High-Speed Flat Drilling and Tufting Brush Machine for Broom/Toilet/Comb Brushes - Hot Sale
Description
产品描述

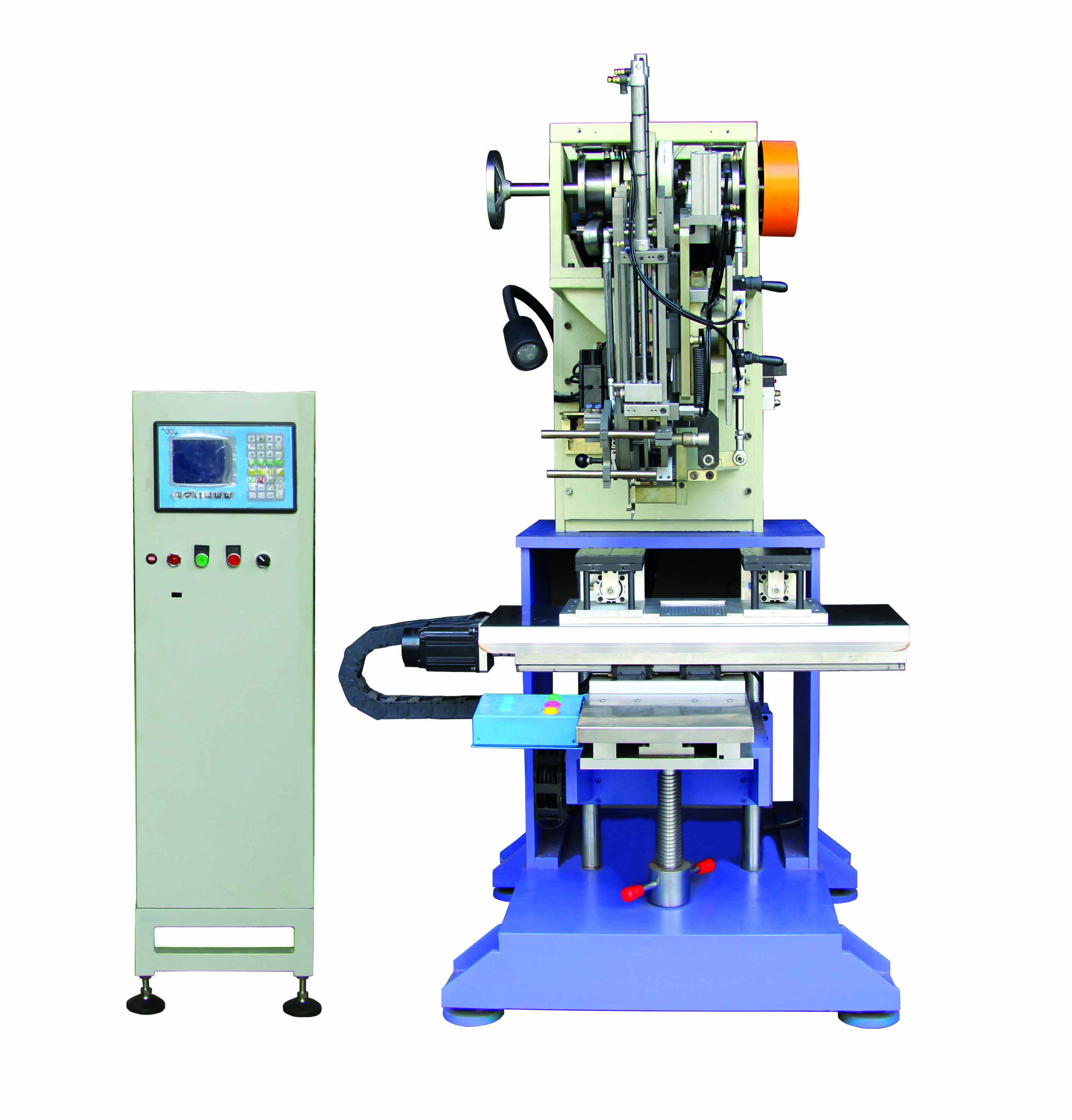

机器照片：

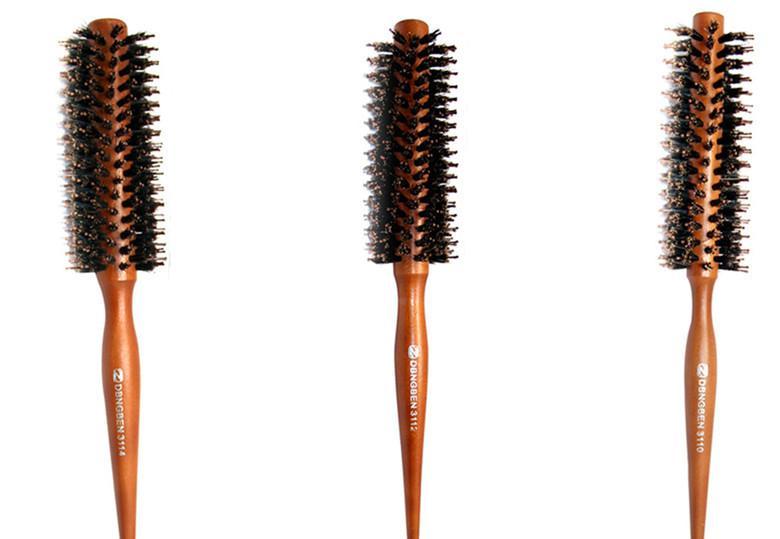

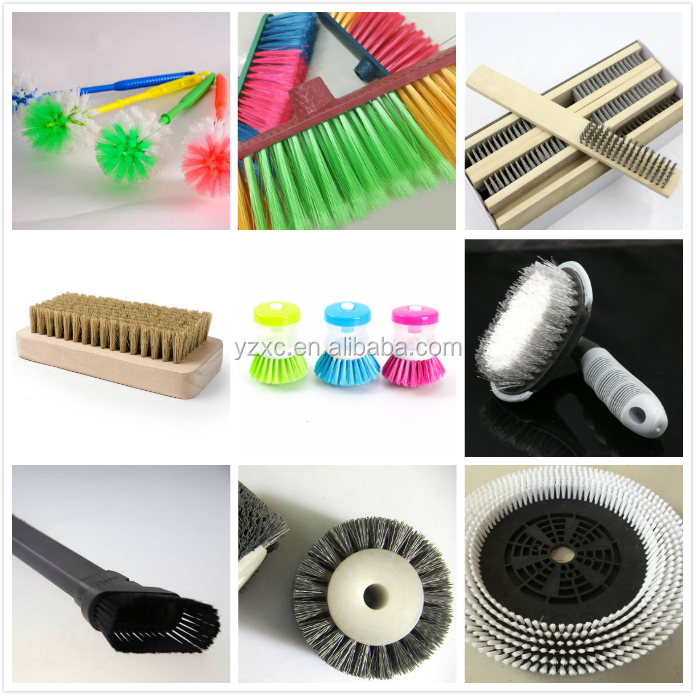

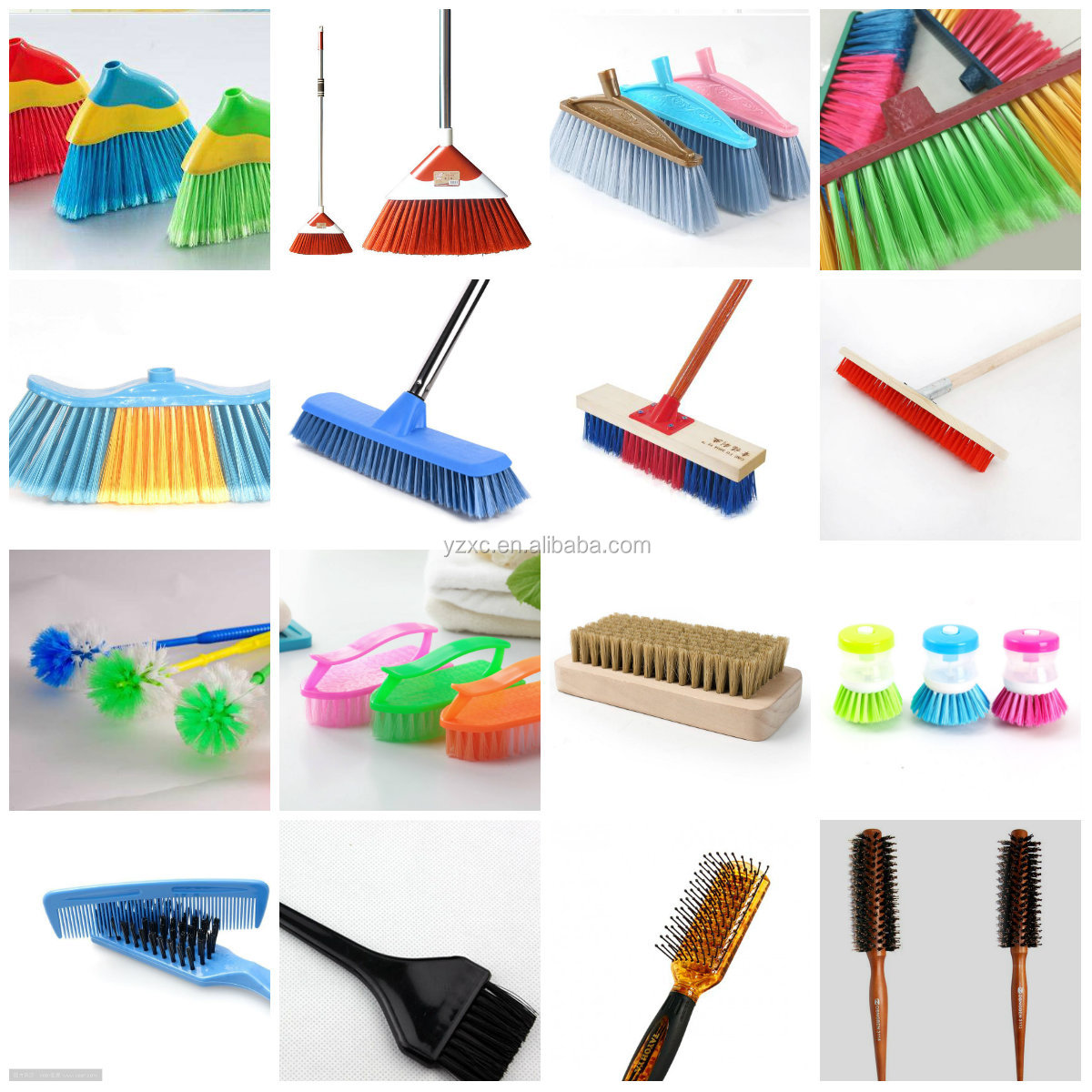

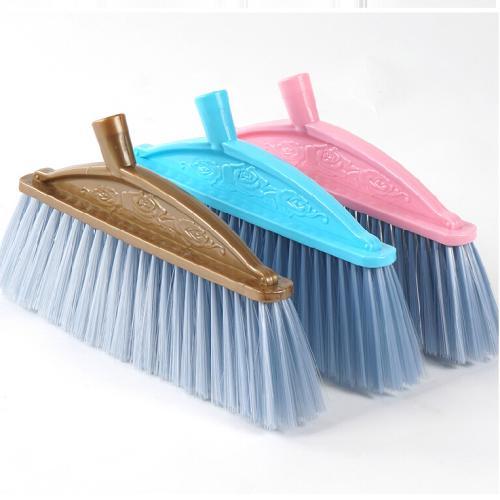

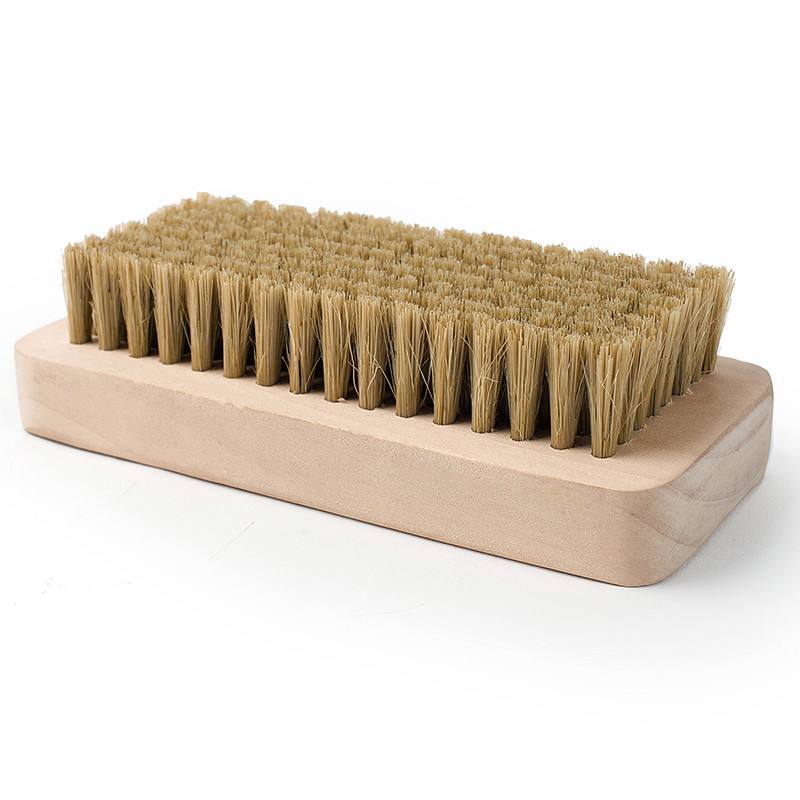

我们可以生产的刷子和扫帚的种类如下：
Technical parameters:
This machine is suitable for all kinds brush of the diameter from 2.2mm-4.0mm and within the height of bristle is 40mm for drilling and tufting.
Bored with two drilling head and one tufting head, high-speed processing, high-volume, cost-effective.
Panel control system of man-machine, Chinese or English display, simple to understand
Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence;
Hair by: flat style.
Largest wool length: 40mm
Models can be stored: 20(expandable)
Input methods: Chinese or English display, menu-driven operation, handheld encoder or key board input.
Technical parameters
|
description |
unit |
parameters |
|
Max speed |
Holes/min |
≤600 |
|
Hole diameter |
mm |
2.2-4.0 |
|
Axis quantity |
axis |
2-4 |
|
Journey X axis |
mm |
500 |
|
Journey Y axis |
mm |
300 |
|
Maximum program quantity |
piece |
100 |
|
Air pressure |
Mpa |
6 |
|
Power voltage, frequency |
V,Hz |
220V,50Hz |
|
Machine power |
KW |
2 |
|
Contour size |
mm |
1100*1150*1830 |
|
weight |
KG |
950 |
|
Control system |
CNC controller |
|
Disturbance display |
English edition |
|
Safety protection |
Overload, short circuit protection |
|
Lubrication |
Auto lubrication system |
|
Main speed control |
Frequency inverter |
|
Fiber box |
Frequency inverter |
FAQ :
1.Your are factory ?
Yes. We are professional supplier of brush&broom making machines .
2. 你能为我提供 OEM 吗？
是的，您只需将您的样品发送给我们，检查后，我们为您提供 OEM。
3.机器是如何包装的？
我们可以提供出口木质包装
4.交货时间是什么时候？
通常在 45 天内。
5.付款方式是什么？
30% T/T 定金。发货前余额
