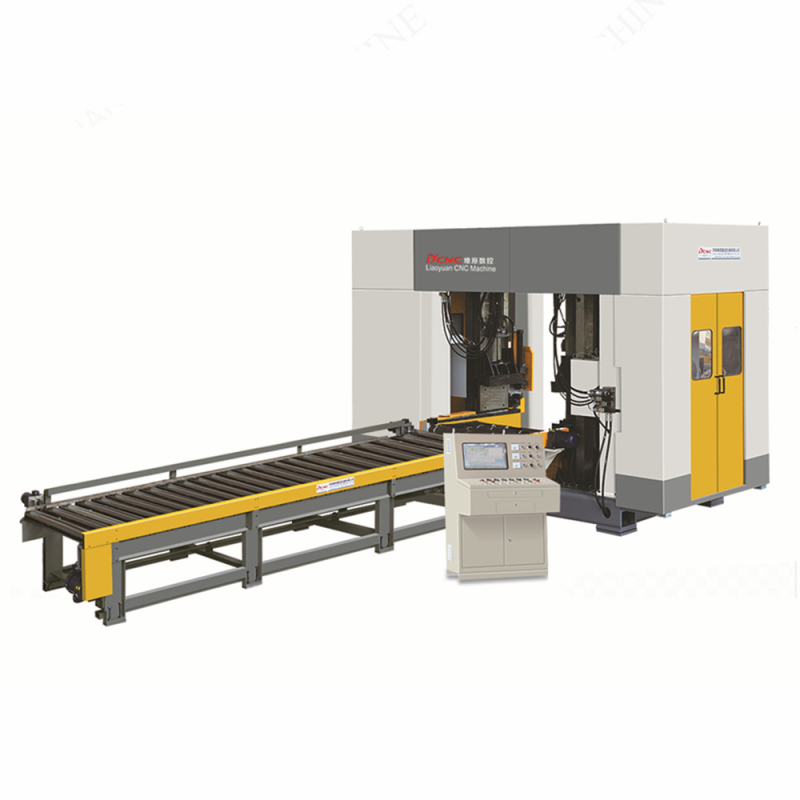

CNC Hydraulic H Channel Steel Beam Beveling and Chamfering Machine
Description
产品描述
CNC Hydraulic H Channel Steel Beam Beveling Chamfering Machine
PRODUCT DESCRIPTION:

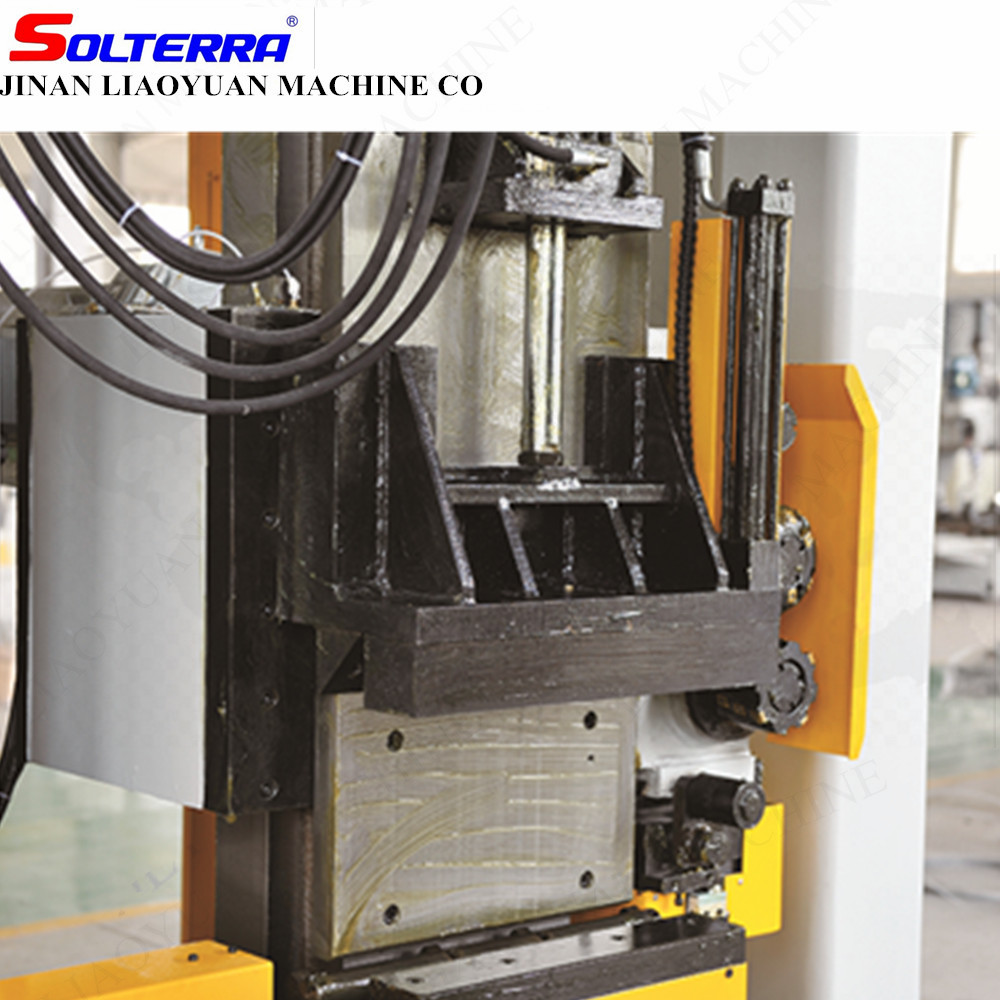

1.The machine is mainly composed of Longitudinal and transverse slipway, milling head, Milling columns, stopper-mechanism, rollerway, hydraulic system, electrical system.etc
2.The machine body is welded between square steel tube and steel plate with a framework structure. The cnc cutting machine possesses strong rigidity and strong processing power. High precision and high stability be realized.

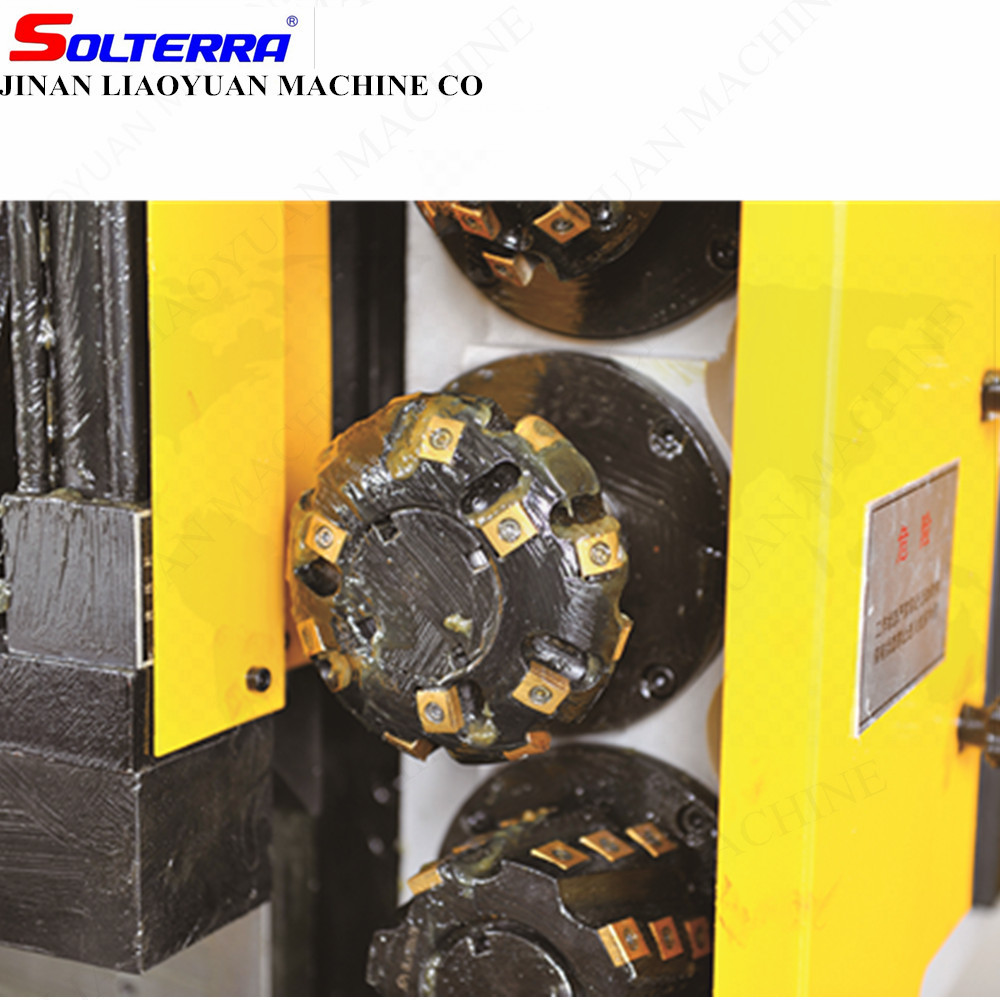

3. Every spindle box includes three mills, bevel the arcnotch, end-surface and web of H-beam in once feeding to finish all processing. Adopted indexable carbide milling head, high grade milling head ensured the efficiency of the machine; every milling head can be use many times through adjusting the position of the edge, the customer can save the cost.
4. Adopted touching screen input as human-computer interface, English or Chinese operation, simple processing data, the operator can operate easily.
5. Six CNC milling spindles.
TECHNICAL INFORMATION:
|
Model |
BM38/6 |
|
|
|
Web height(mm) |
220-1000 |
|
Flange edge width(mm) |
100-600 |
|
|
Flange thickness(mm) |
10-38 |
|
|
End-incline(mm) |
≤300 |
|
|
Workpiece length(mm) |
≥400 |
|
|
|
Quantity |
2 |
|
Rotation speed of spindles(r/min) |
400 |
|
|
(Unit)Head quantiy |
6 |
|
|
Motor power of spindles(kW) |
2×7.5 |
|
|
Up/down speed(frequency conversion,CNC)(mm/min) |
50-500 |
|
|
Motor power for up and down(kW) |
2×1.5 |
|
|
Control mode |
PLC |
|
|
Total power(kW) |
(Approx.)38 |
|
|
Overall dimensions(L×W×H)(mm) |
7300×2900×2000 |
|
|
Machine weight(kg) |
5000(Appr.) |
|

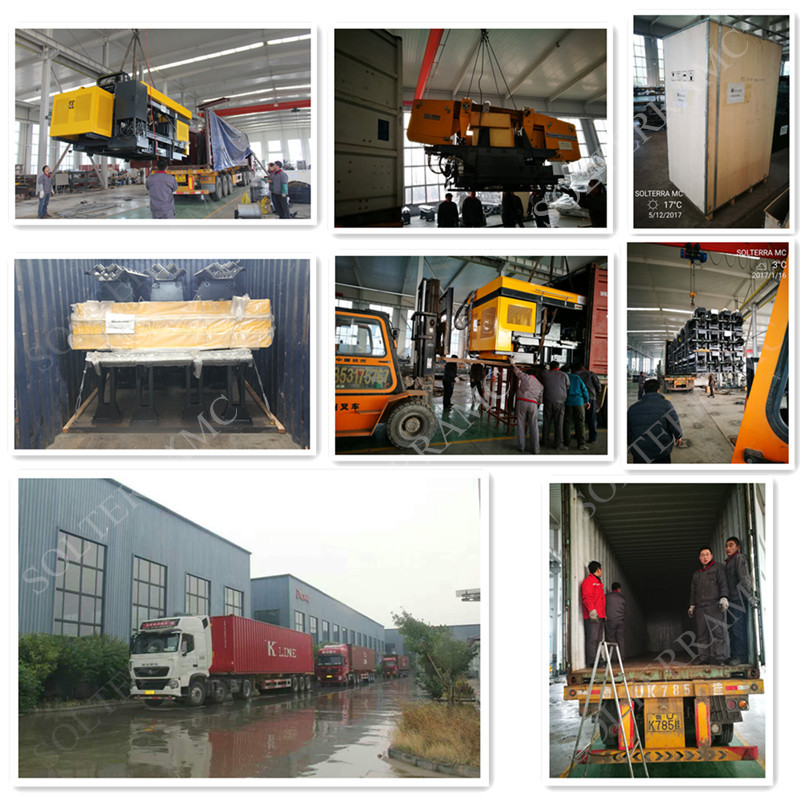

Packing & Delivery
