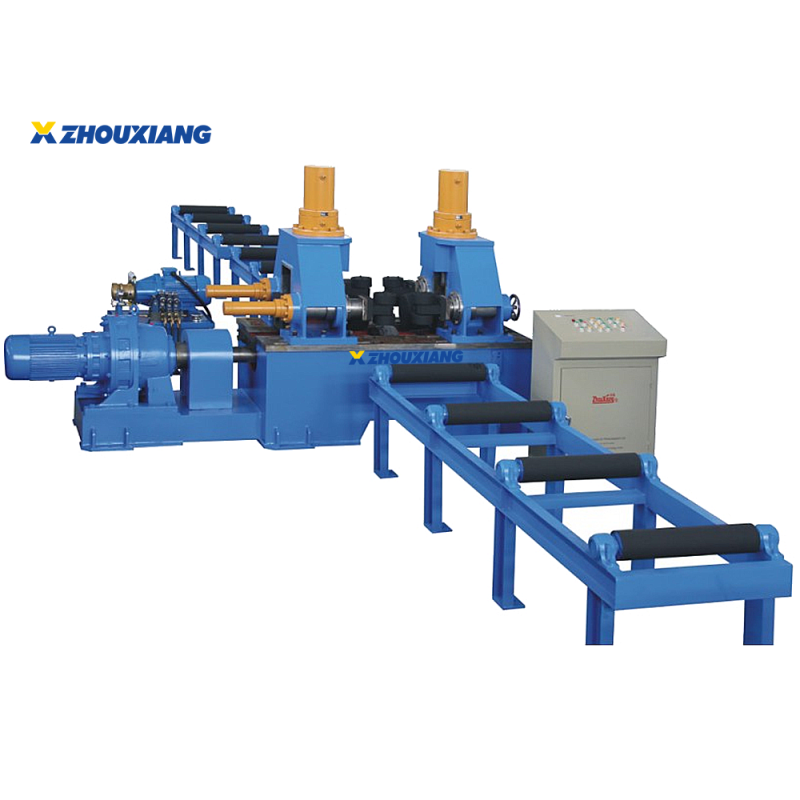

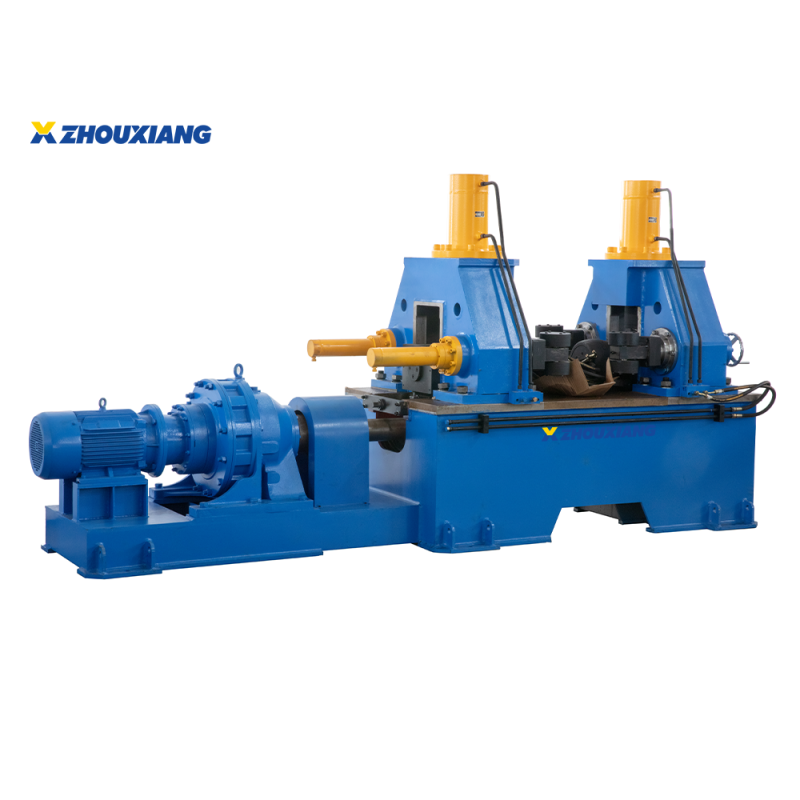

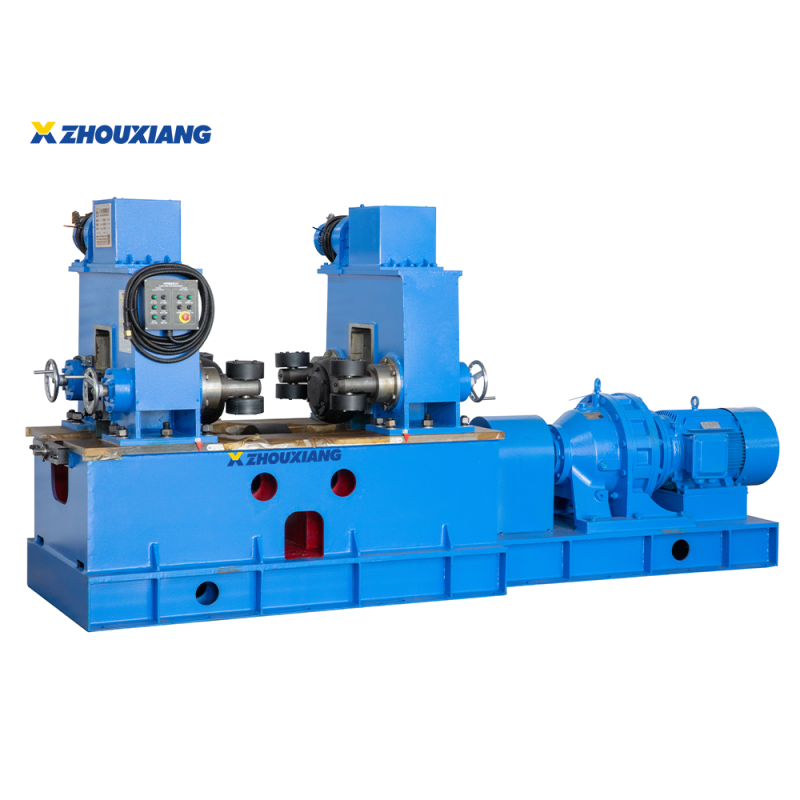

H Beam Automatic Hydraulic Straightening Machine
Description
Product description
| Model | YJZ60B | YJZ80B | YJZ80C | YJZ60C |
| Flange width | 200~800mm | 200~1000mm | 200~1000mm | 200-800mm |
| Flange thickness | ≤60mm | ≤80mm | ≤60mm | ≤40mm |
| Minimum web height | 350mm | 350mm | 200mm | 380mm |
| Material of plate | Q345(16Mn) | Q345(16Mn) | Q235-A | Q345(16Mn) |
| Straightening speed | 6.15m/min | 6.1m/min | 6.3m/min | 9.8m/min |
| Total Power | 37KW | 22KW | 27.5KW | 20.5KW |
| Above are our standard model, it can be designed and manufactured according to customer’s request. | ||||
1.The mainframe is integral frame structure with stress relief, it is processed and shaped in one step by CNC floor type boring and milling machine, with the advantages of compact structure, strong strength and enough rigidity.
2.The main cylinder adopts high quality sealing ring with good sealing performance, which can ensure long service time. There’s fine filter equipped on the pump station which can ensure electromagnetic valve is more e for long-term use
3.There’s dial for all the adjusting motion which can ensure convenience and accuracy.
4.The straightening roller adopts shaft box structure, so it have big loading capacity. There have hydraulic cylinder in shaft box, it can adjust the distance of two upper straightening rollers, which is stable
