Integrated T H Beam Assembly Welding Straightening Machine
Description
Product description

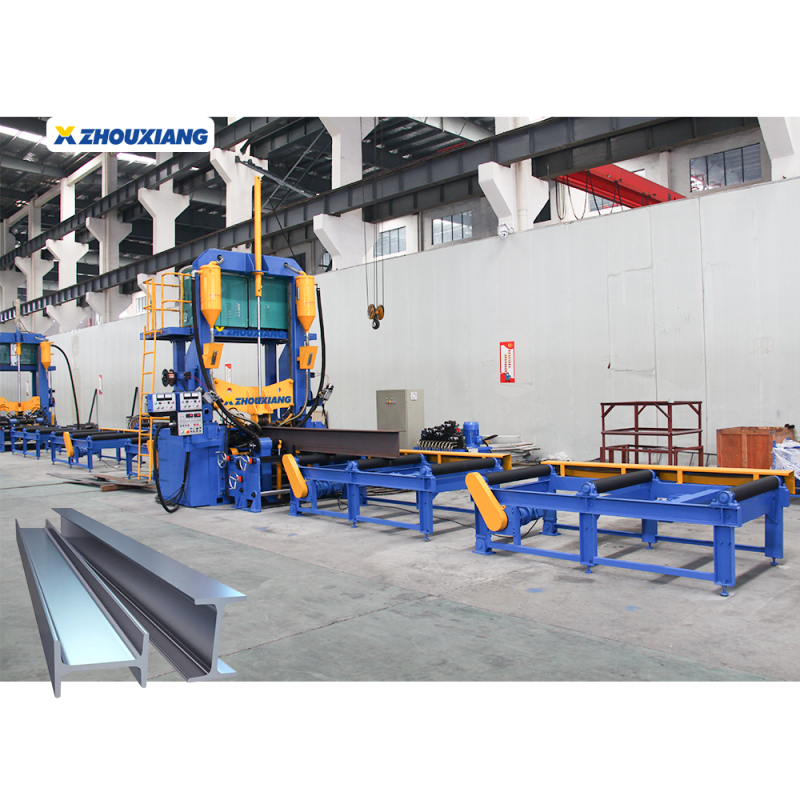

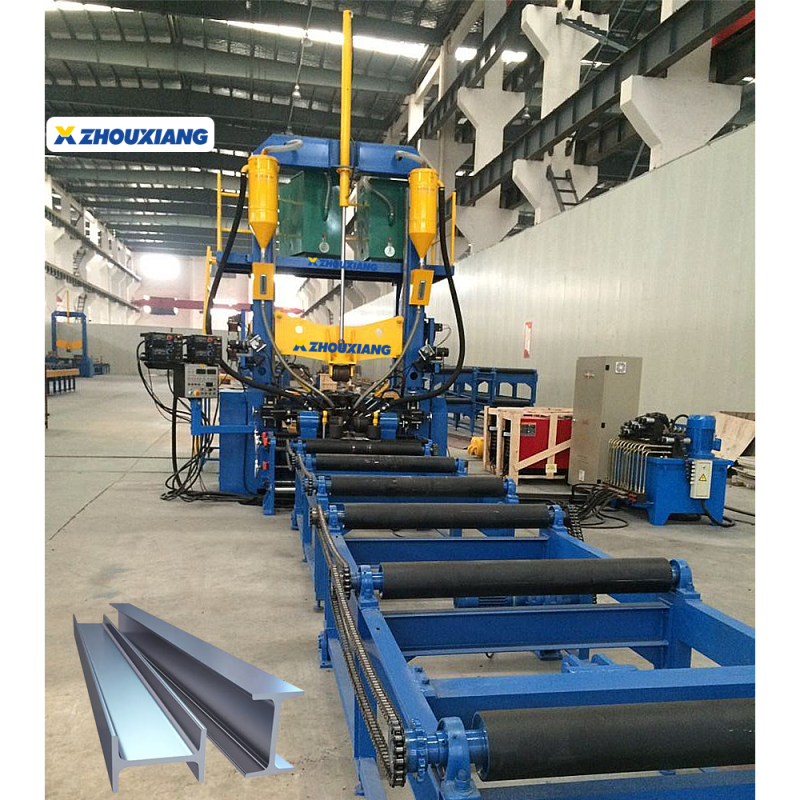

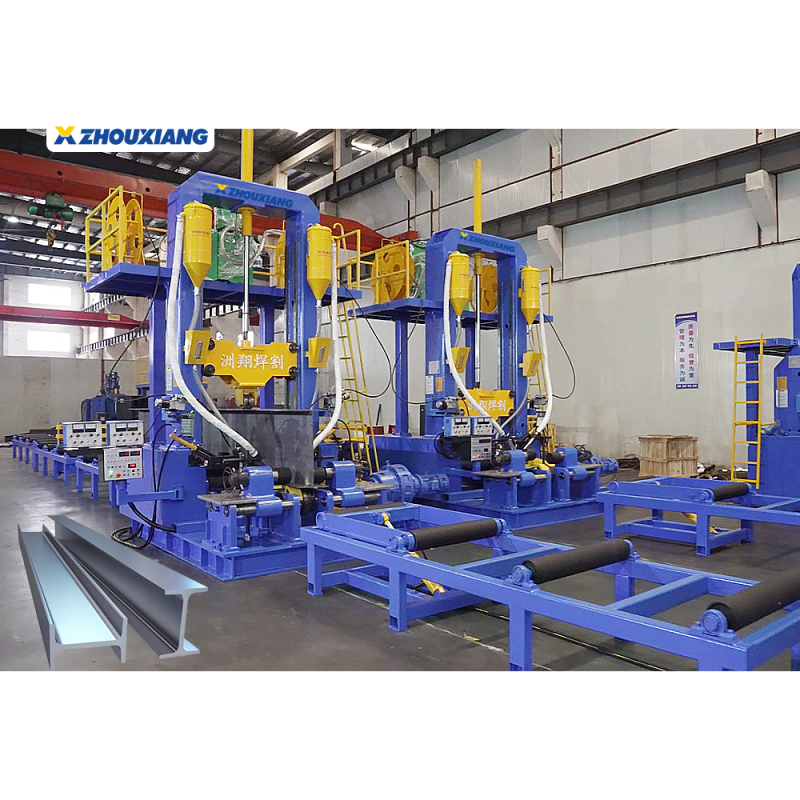

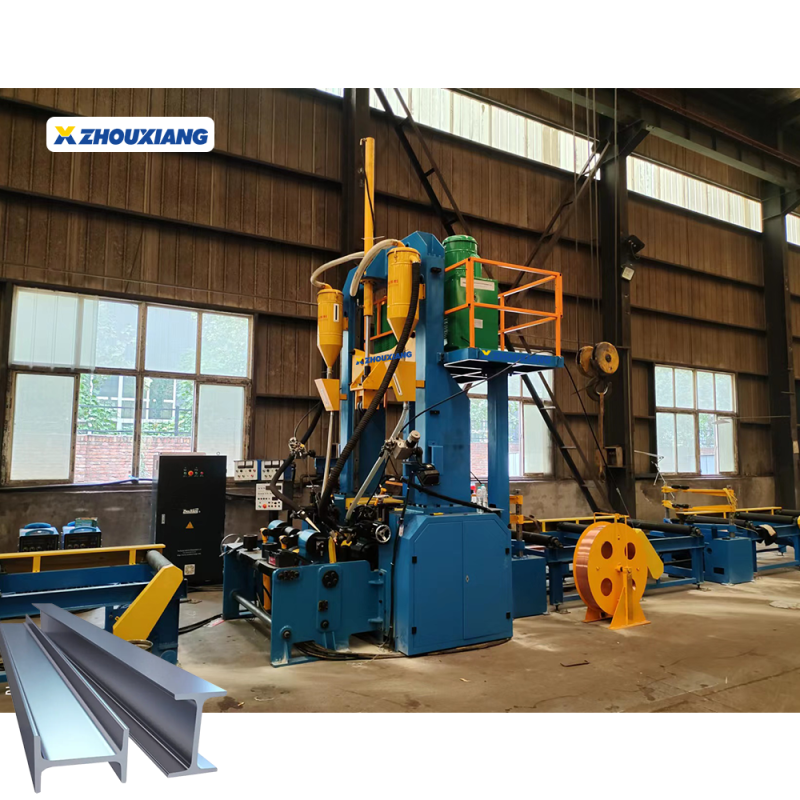

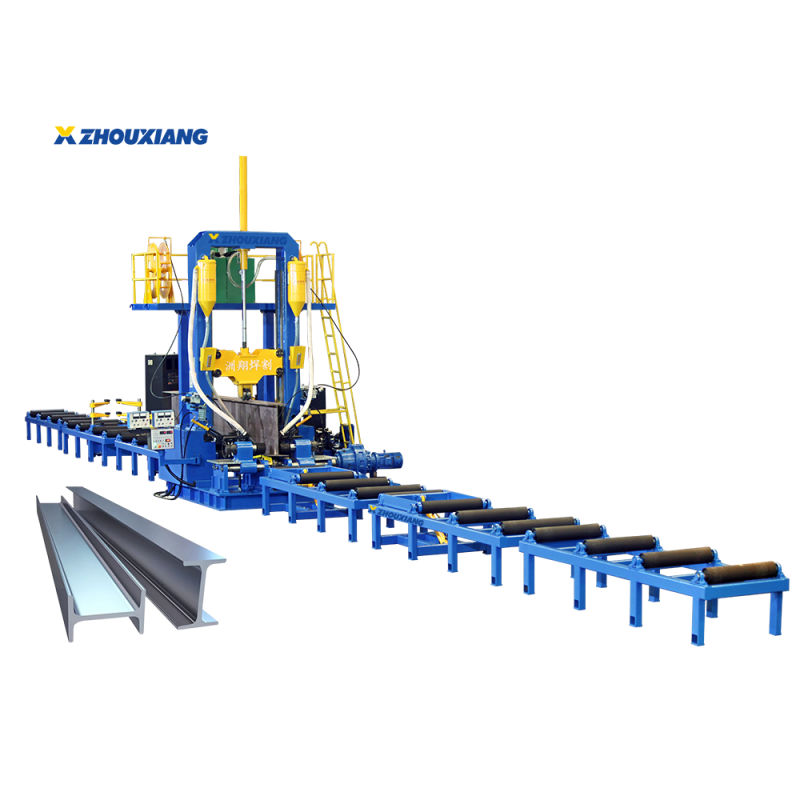

H beam Assembly Welding and Straightening Machine
H beam Assembly Welding and Straightening Machine Introduction:
H-beam vertical Assembling, Welding and Straightening multi-function integrated machine is suitable for making sheet H section steel. We recommend the use of the H-beam split-weld straightening machine when the web thickness is less than 16mm. Fillet weld of web/flange plate at 90°. When the welding current is larger, the welding wire melts faster, the weld pool is larger, the weld pool will flow along the flange plate, and the fillet weld height is reduced. When the web thickness is less than 16 mm, the fillet weld can maintain good shape. When the thickness of the web exceeds 16 mm, we recommend using the 45° horizontal welding method.
H-beam assembly, welding and straightening machine is a necessary equipment for efficient production of H-beam. In other words, we can complete H-beam assembly, submerged arc welding and flange plate straightening in the same machine.
H beam 3 in 1 machine not only has the characteristics of small working space, but also saves the lifting and turning time between each manufacturing process of single line, maximizes the production efficiency and reduces the production cost.
H beam Assembly Welding and Straightening Machine Technical Parameters:
|
Web plate height
|
200~2000 mm
|
|
Web plate thickness
|
6~14 mm
|
|
Flange plate width
|
200~800 mm
|
|
Flange plate thickness
|
6~20 mm
|
|
H beam length
|
6000~15000 mm or as user’s request
|
|
Assembly and welding speed
|
0.35~3 m/min
|
|
Main machine power
|
4 kW
|
|
Roller conveyor motor power
|
4 x 0.55 Kw=2.2 kW
|
|
Flux recycling machine motor power
|
2 x 3 kw=6 kW
|
|
Pump station power
|
4 kW
|
|
Welding source power
|
2 x 69 kW=138 kW (Lincoln DC-1000)
|
|
Above are our standard model, it can be designed and manufactured according to customer’s request.
|
|
Traditional H beam production Working Steps:
H beam flange plates and web plate assembly , H beam welding , H beam flange plate straightening
H beam Assembling Welding and Straightening Machine Details:

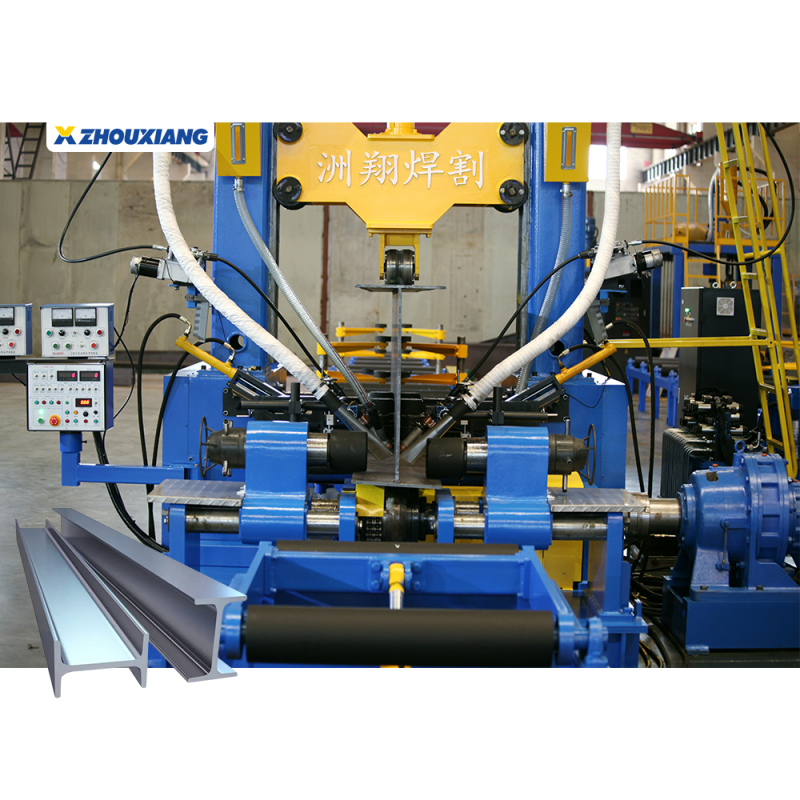

1) Two sets welding gun weld the welding seam of H-beam at the same time.
2) Lincoln welding power and control system are widely used in the H beam assembling welding and straightening machine
3) H-beam assembly, submerged arc welding and flange plate straightening system
