Taizhou Tongfang CNC has been focusing on the research and development of CNC wire cutting products for more than 20 years. The company produces a full range of DK77 CNC wire EDM machines, which use high-precision steel-inlaid V-shaped guide rails (linear guide rails are optional) and P3-level high-precision ball screws. The technology and quality have taken the lead in the industry among similar products, with complete models, long service life and high precision. Machine specifications can be customized according to customer needs, non-standard models DK7740(45)J, DK7750(55)J, DK7763J, DK7780J, DK77100J, DK77120J and even larger models. The company also produces ±30°, ±45° swing large taper machines and CNC high-precision medium-speed wire EDM machines (accuracy≤±0.0025mm, roughness≤0.8μm). The following are the main parameters of DK77 series machines:
1. Standard maximum cutting taper: ±6°/80mm; (optional ±15°, ±30°, ±45°)
2. Accuracy ≤0.015mm, in line with GB7926-2005 standard; (if equipped with linear guide rail, the accuracy can reach 0.01mm)
3. The best surface roughness is less than or equal to Ra2.5μm (single knife), Ra1.5μm (multiple knife);
4. Molybdenum wire diameter: 0.1-0.2mm;
5. Max. Cutting speed≥120mm²/min;
6. Voltage: three-phase 380V (single-phase 220V, three-phase 220V or other voltages can be customized), power: 3KW;
7. Working fluid: water-based emulsion (recommended DX-1 DX-4 Nanguang-1)
1. Standard maximum cutting taper: ±6°/80mm; (optional ±15°, ±30°, ±45°)
2. Accuracy ≤0.015mm, in line with GB7926-2005 standard; (if equipped with linear guide rail, the accuracy can reach 0.01mm)
3. The best surface roughness is less than or equal to Ra2.5μm (single knife), Ra1.5μm (multiple knife);
4. Molybdenum wire diameter: 0.1-0.2mm;
5. Max. Cutting speed≥120mm²/min;
6. Voltage: three-phase 380V (single-phase 220V, three-phase 220V or other voltages can be customized), power: 3KW;
7. Working fluid: water-based emulsion (recommended DX-1 DX-4 Nanguang-1)
|
型
|
工作台行程（mm）
|
工作台尺寸 （mm）
|
最大切割厚度（mm）
|
最大负载（kg）
|
外形尺寸（mm）
|
重量（kg）
|
|
DK7720 系列
|
200*250
|
300*400
|
200
|
80
|
1000*900*1000
|
800
|
|
DK7725 系列
|
200*320
|
320*510
|
300
|
120
|
1120*950*1240
|
1000
|
|
DK7735
|
350*450
|
360*630
|
400
|
300
|
1240*1170*1400
|
1200
|
|
DK7745
|
450*550
|
460*690
|
400
|
450
|
1600*1200*1400
|
1400
|
|
DK7755（50）
|
550*630
|
550*900
|
600
|
700
|
1720*1680*1700
|
2000
|
|
DK7763 系列
|
630*800
|
650*1040
|
600
|
1000
|
2100*1940*1780
|
2500
|
|
DK7745J
|
450*630
|
460*840
|
400
|
500
|
1700*1600*1600
|
1800
|
|
DK7755J
|
550*800
|
550*1040
|
600
|
750
|
2000*1900*1700
|
2300
|
|
DK7763J
|
630*1000
|
650*1240
|
600
|
1100
|
2300*2200*1800
|
3000
|
|
DK7780 系列
|
800*1000
|
890*1220
|
600
|
1200
|
3000*2400*1800
|
3500
|
|
DK7780J
|
800*1200
|
890*1560
|
600
|
1500
|
3000*2400*1800
|
4500
|
|
DK77100
|
1000*1200
|
1060*1590
|
600
|
2000
|
3500*2800*2500
|
5500
|
|
DK77120J
|
1200*1600
|
1230*1880
|
600
|
3200
|
3800*3000*2500
|
8000
|

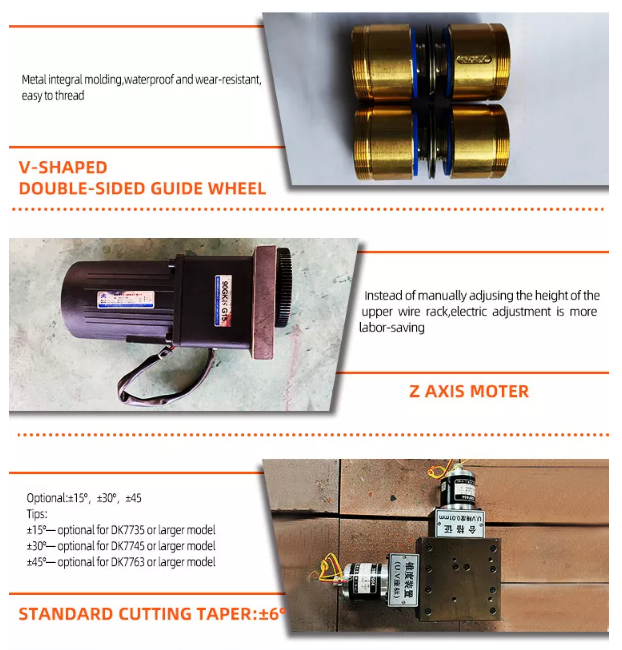

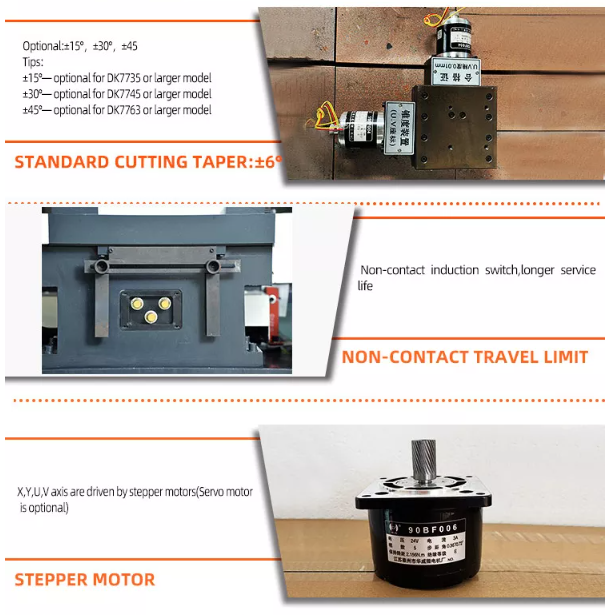

Standard Configuration

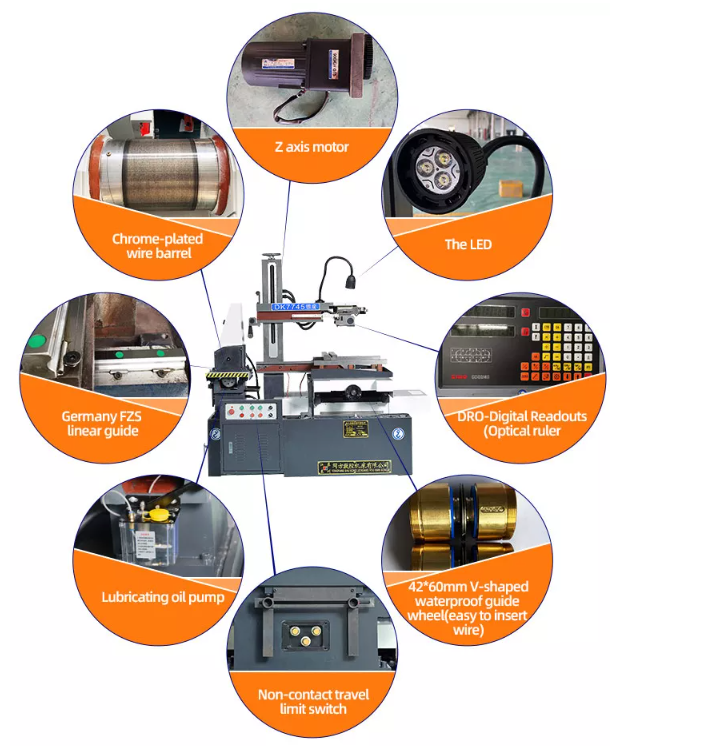

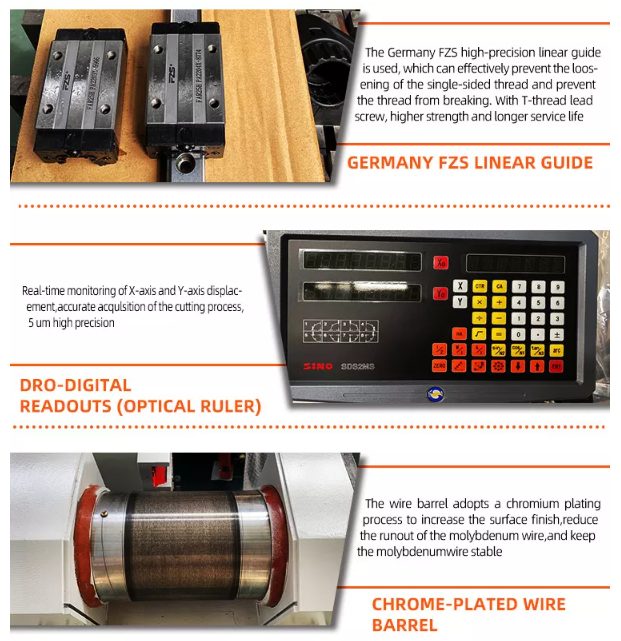

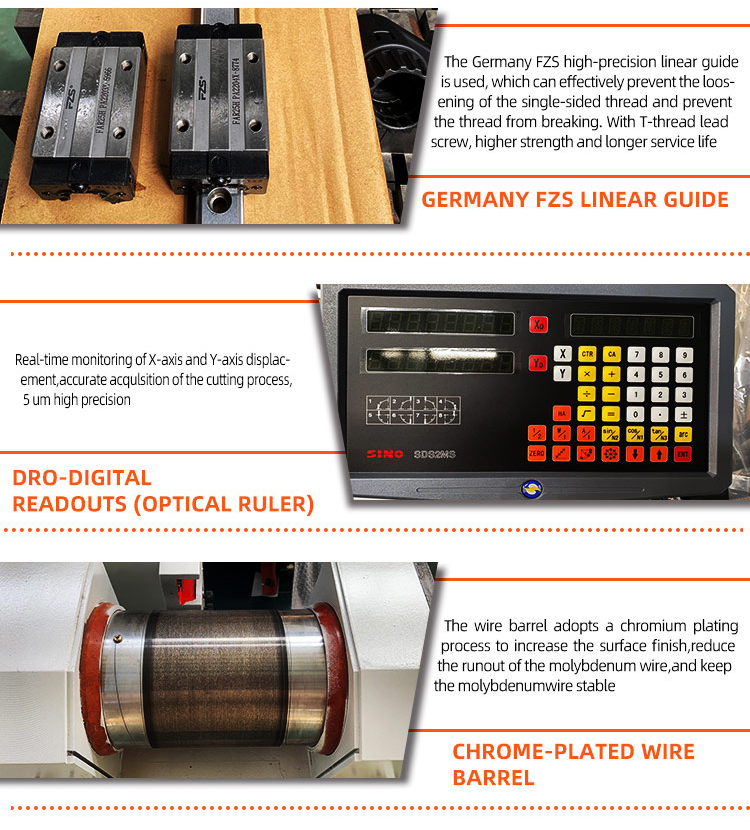

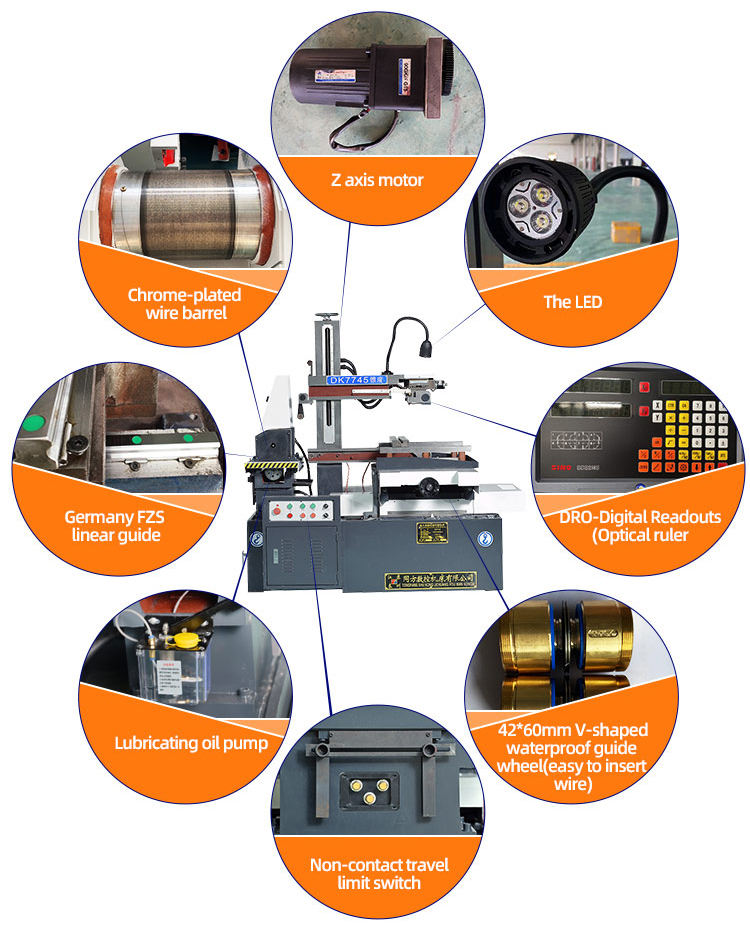

Details Show
