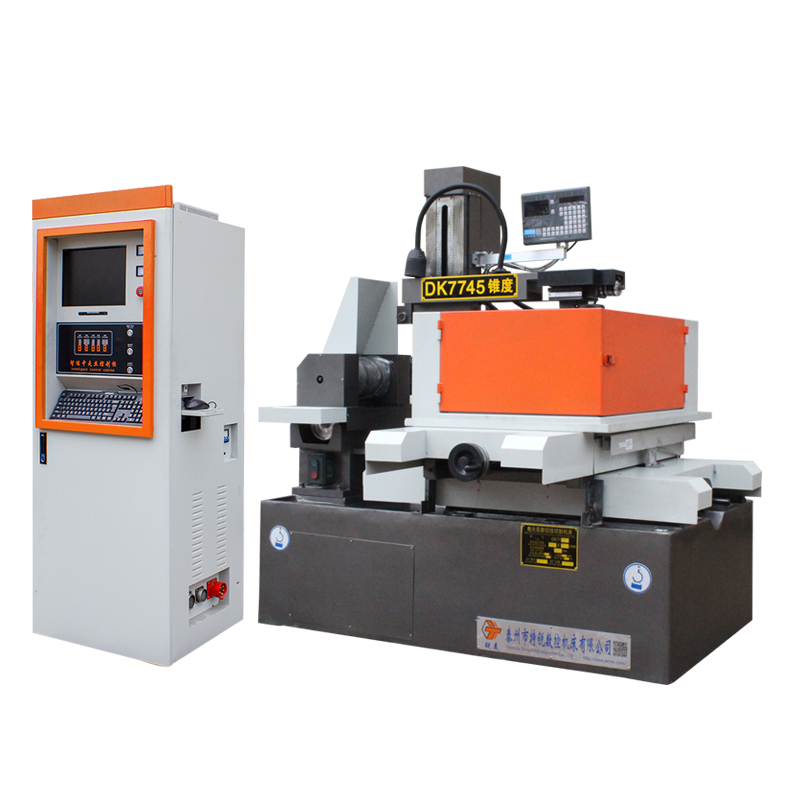

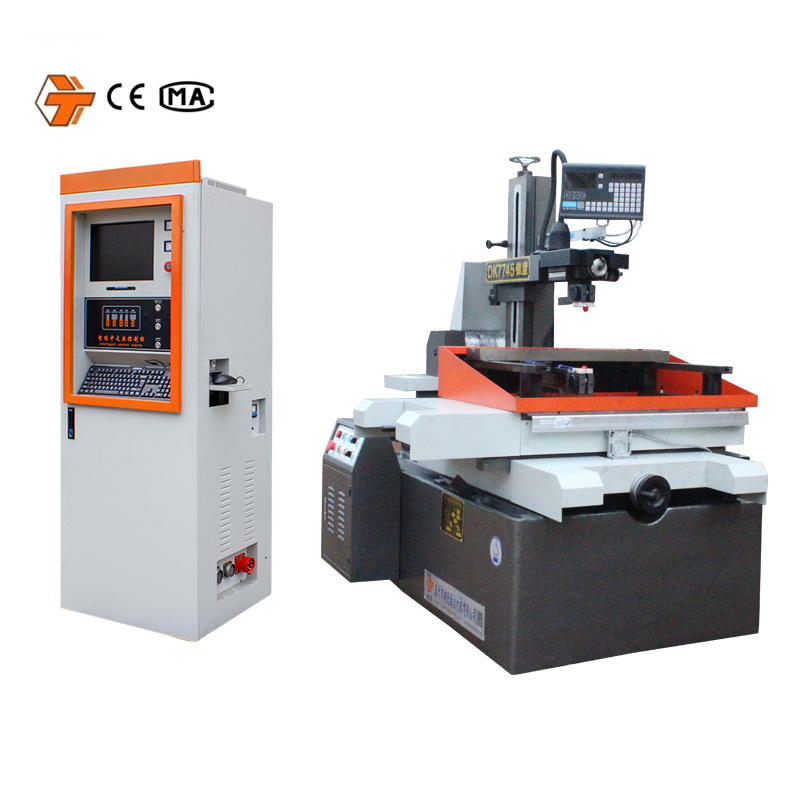

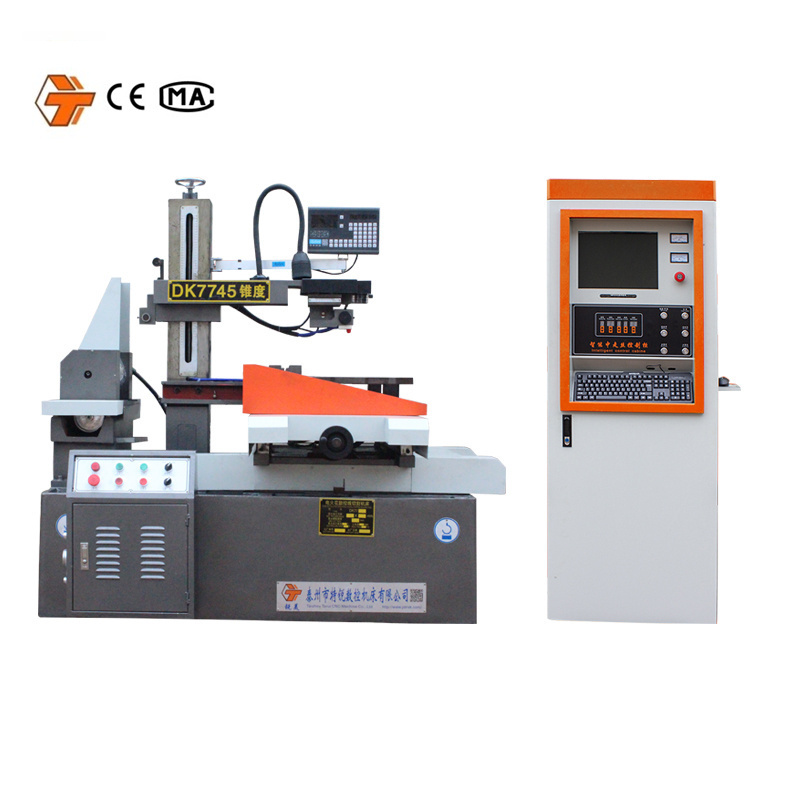

CNC Wire Cut EDM Machine DK7745 with HL Software
Contact Now
Description
产品描述
Product display
Products Description

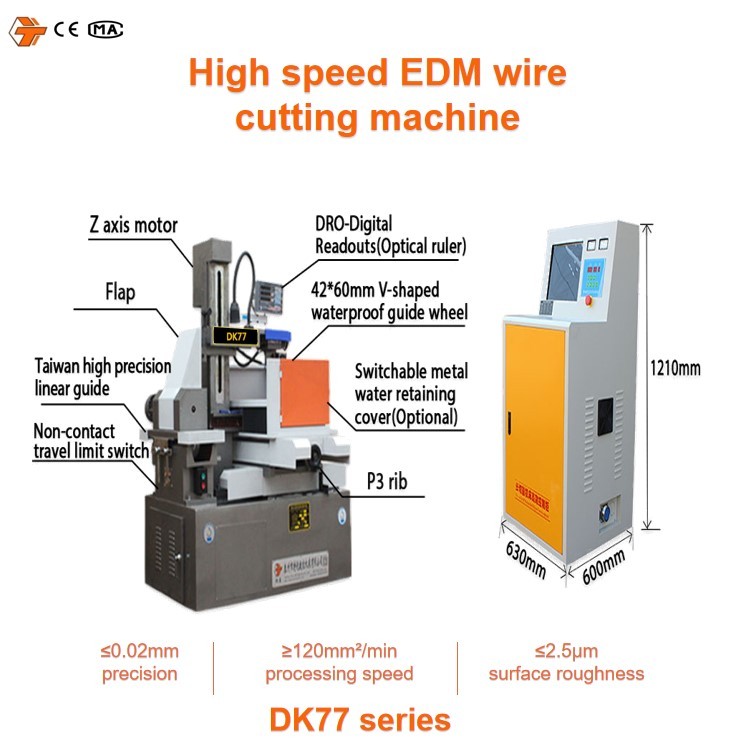

Taizhou Terui CNC Machine Co., Ltd. produces whole series of DK77 CNC edm wire cutting machines,which adopts high precision V-shaped guide rail(Linear guide rail optional) and P3-grade high precison ball screw. The products have high quality, complete models, long service life and high precision. Machine specifications can be customized according to customer needs,like non-standard models DK7740(45)F,DK7750(55)F,DK7763F,DK7780F,DK77100F,DK77120F or even larger models. The company also produces ±30°, ±45° swing large taper machines and CNC high-precision middle speed edm wire cutting machines(Precision≤±0.005mm,roughness≤1.0μm). The following are the main parameters of DK77 series machines:
1.Standard maximum cutting taper:±6°/80mm;(±15°,±30°,±45° are optional)
2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guide equipped, the precision can reach 0.01mm)
3.Best surface roughness ≤ Ra2.5μm(single-cut),Ra1.5μm(multi-cut);
4.Molybdenum wire diameter:0.1-0.2mm;
5.Max. cutting speed≥120mm^2/min;
6.Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can be customized),Power:1.5KW;
7.Working fluid:Water-based emulsion.
1.Standard maximum cutting taper:±6°/80mm;(±15°,±30°,±45° are optional)
2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guide equipped, the precision can reach 0.01mm)
3.Best surface roughness ≤ Ra2.5μm(single-cut),Ra1.5μm(multi-cut);
4.Molybdenum wire diameter:0.1-0.2mm;
5.Max. cutting speed≥120mm^2/min;
6.Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can be customized),Power:1.5KW;
7.Working fluid:Water-based emulsion.
|
型
|
工作台行程（mm）
|
Worktable size(mm)
|
最大切割厚度（mm）
|
最大负载（kg）
|
外形尺寸（mm）
|
|
DK7720 系列
|
200*250
|
420*270
|
200
|
100
|
1250*950*1250
|
|
DK7725 系列
|
250*320
|
520*340
|
300
|
200
|
1450*900*1500
|
|
DK7735(32)
|
350(320)*450(400)
|
710*460
|
400
|
300
|
1400*1100*1600
|
|
DK7745(40)
|
450(400)*550(500)
|
810*570
|
400
|
450
|
1600*1200*1600
|
|
DK7745F(40F)
|
450(400)*630
|
950*600
|
400/600
|
600
|
1600*1580*1600
|
|
DK7755（50）
|
550(500)*650(630)
|
950*650
|
700
|
700
|
2000*1500*1900
|
|
DK7755F(50F)
|
550(500)*800
|
1140*650
|
700
|
700
|
2000*1650*1900
|
|
DK7763 系列
|
630*800
|
1140*750
|
700
|
1000
|
2100*1700*2050
|
|
DK7763F
|
630*1000
|
1350*750
|
700
|
1200
|
2250*1850*2050
|
|
DK7780 系列
|
800*1000
|
1350*980
|
900
|
2000
|
2400*1900*2350
|
|
DK7780F
|
800*1200
|
1600*1050
|
900
|
2400
|
2550*1950*2400
|
|
DK77100
|
1000*1200
|
1600*1100
|
1000
|
2600
|
2850*2500*2500
|
|
DK77100F
|
1000*1400
|
1800*1250
|
1000
|
2800
|
2950*2050*2500
|
|
DK77120
|
1200*1400
|
1800*1350
|
1000
|
3000
|
3050*2750*2500
|
|
DK77120F
|
1200*1600
|
2000*1500
|
1000
|
3500
|
3100*2850*2500
|
|
DK77160
|
1600*1800
|
2000*1700
|
1000
|
4000
|
3250*3000*2500
|
Details show
