High Speed Wire-Cut Electrical Discharge Machine

Product ID: 66859418

High Speed Wire-Cut Electrical Discharge Machine

Contact Now

Description

产品描述

High Speed Wire-Cut Electrical Discharge Machine

Product Characteristic

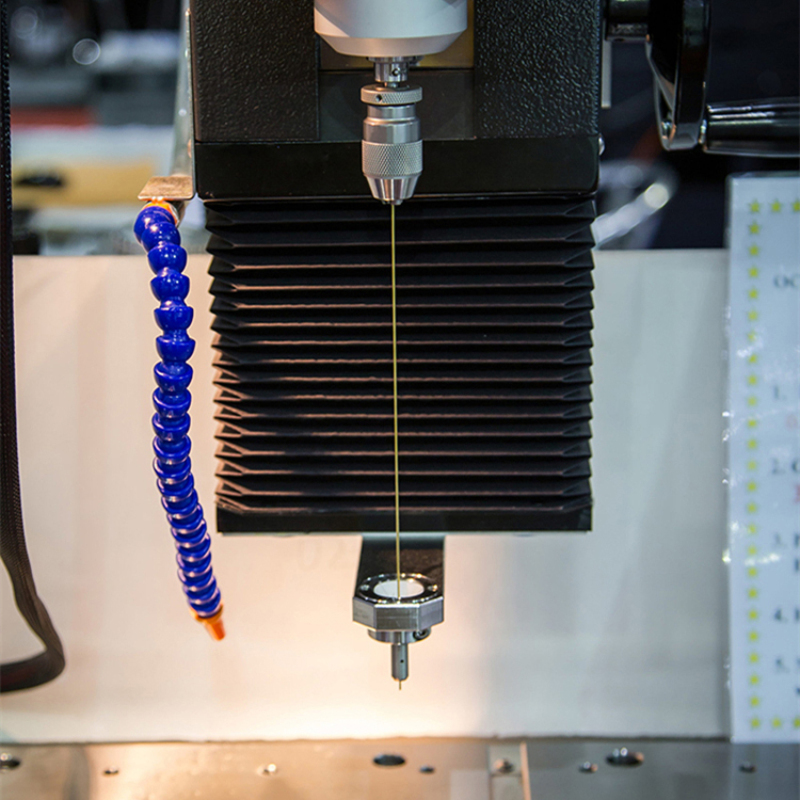

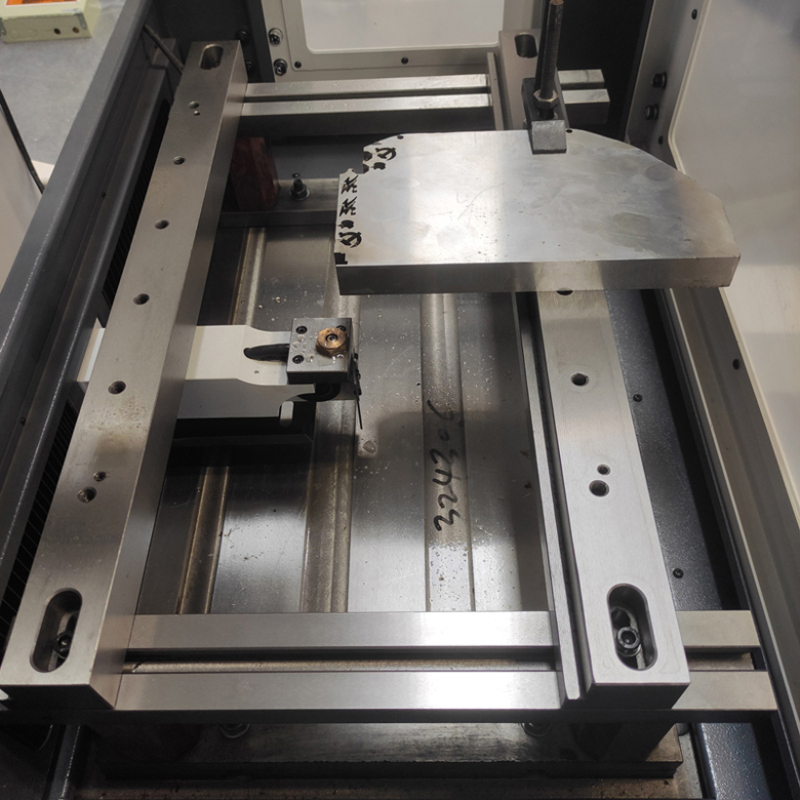

1.DK7750B of Wire Cut EDM machine consists of a worktable, where the material to be cut is placed, and a wire guide system that controls the movement of the wire. The wire guide system is connected to a computer that controls the movement of the wire and the intensity of the electrical discharge.
2.This series of CNC EDM Machine is one kind of CNC machine tools that has Flexible Operation Function: Flexible operation and control mode, that is, the entire processing process can be completed by only the mouse.
3.CNC Wire Cut EDM have the function of Clear angle: can effectively eliminate the collapse angle.
4.Wire cut EDM machines are used in the aerospace, automotive, and medical industries.

Technical Parameters

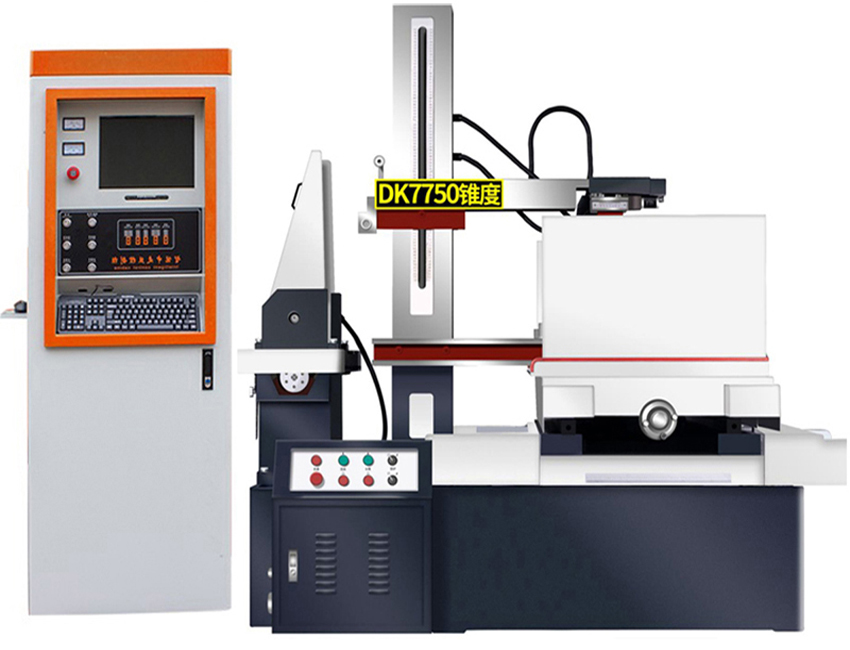

High Speed Wire-Cut Electrical Discharge Machine DK7750

Technical Parameters	Unit	DK7750B
Travel of X and Y Axes	mm	500x630
Maximum cutting thickness	mm	600
Maximum Work piece weight	kg	700
线径	mm	Standard 0.18 mm; Optional: 0.12-0.2 mm.
Cutting Taper	°/mm	6°/ 80 mm
Work Table Size (LxWxH)	mm	600x860x600
Surface Roughness /Ra	u.m	Ra≤2.5
Numerical Control System	#	X8, HF SYSTEM or HL SYSTEM
Display	#	Latest
Serial Interfaces (V.24)	#	RS 232C, Ethernet port, USB
Remote control	#	Including
3-D Graphical Preview	#	Including
Total machine power	KV	1.8
Precision	mm	0.015
最大切割速度	mm²/min	150
Wire speed	m/s	11
Minimum feed increment	mm	0.001
Pulse width adjustable range	us	15-150
Maximum power consumption	KVA	≤2
Machine size (LxWxH)	mm	1865x1700x1750
Machine weight	kg	2500
Machine control cabinet size (LxWxH)	mm	1200x800x800
Machine control cabinet weight	kg	150
