Product ID: 66926107

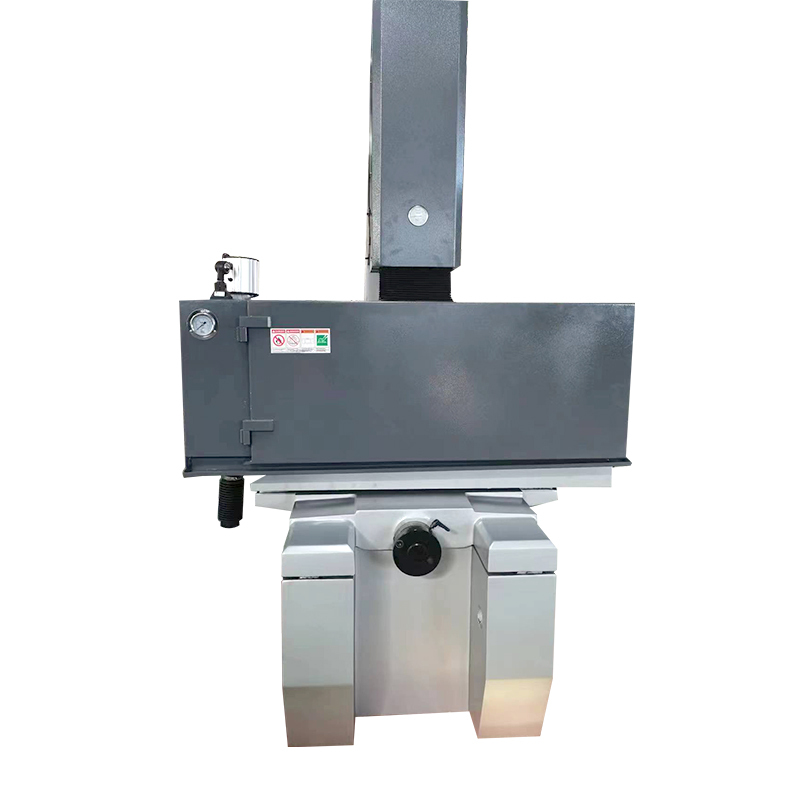

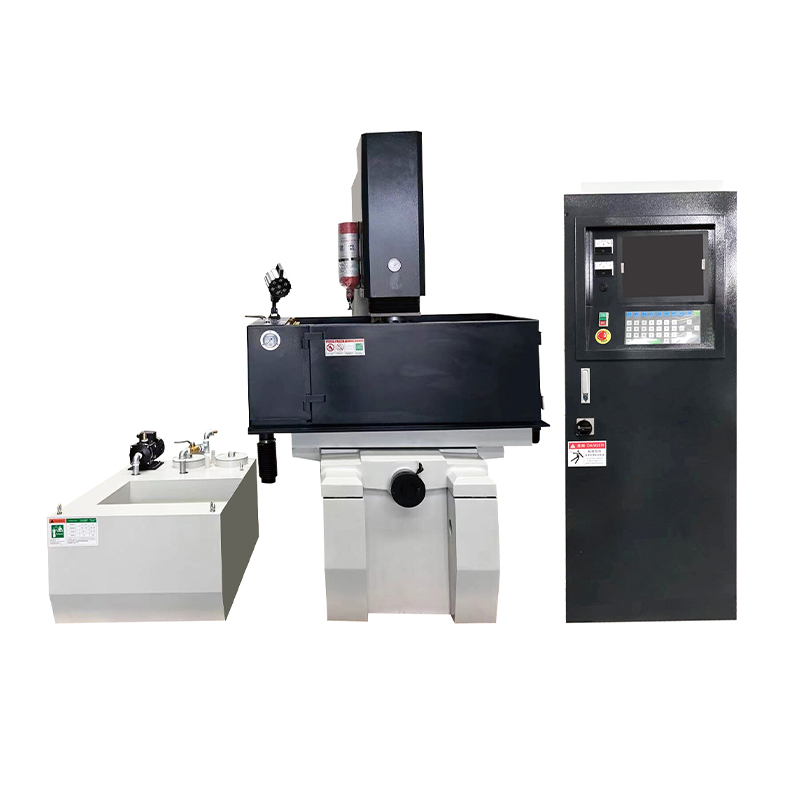

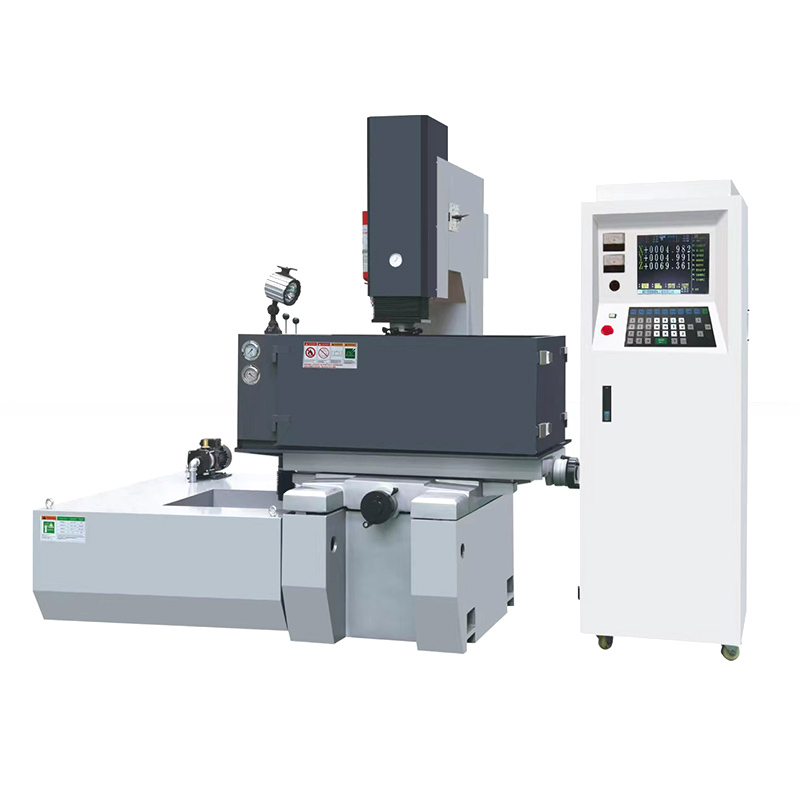

ZNC250 Electrical Discharge Machining (EDM) Sparking Metal Erosion Machine
Contact Now
Description
产品描述
|
Wire Edm Machine--Parameter
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
unit
|
ZNC250
|
ZNC350
|
ZNC430
|

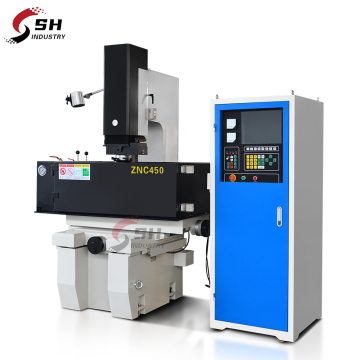

ZNC450
|
ZNC540
|
ZNC650
|
ZNC860
|
||||||||
|
Dimension of working tank
|
mm
|
720x490x320
|
850x570x350
|
1000x580x370
|
1065x640x450
|
1160x690x500
|
1320x800x500
|
1730x1020x600
|
||||||||
|
Working table dimension
|
mm
|
500x250
|
600x320
|
700x360
|
700x400
|
800x450
|
900x500
|
1200x700
|
||||||||
|
Table travel (X, Y travel)
|
mm
|
250x160
|
350x250
|
400x300
|
450x350
|
500x400
|
600x500
|
800x600
|
||||||||
|
Z axis travel
|
mm
|
200
|
200
|
200
|
210
|
220
|
220
|
260
|
||||||||
|
Z Travel of machine head
|
mm
|
/
|
200
|
200
|
235
|
260
|
260
|
280
|
||||||||
|
Max and Min height of spindle end to working table
|
mm
|
430/250
|
550/150
|
610/250
|
660/220
|
690/220
|
800/340
|
950/410
|
||||||||
|
Dimension of oil tank
|
mm
|
1130x970x530
|
1000x1300x455
|
500x1400x550
|
750x1150x530
|
1100x1400x530
|
1100x1900x510
|
1400x2100x510
|
||||||||
|
Max weight of electrode
|
kg
|
50
|
50
|
75
|
50
|
50
|
50
|
50
|
||||||||
|
Max load of working table
|
kg
|
400
|
500
|
800
|
800
|
1000
|
1000
|
2000
|
||||||||
|
Weight of machine body
|
kg
|
710
|
1030
|
1200
|
1500
|
1700
|
2100
|
3600
|
||||||||
|
Dimension of machine (with oil tank)
|
mm
|
1250x1000
|
1650x1400
|
1700x1400
|
2100x1300
|
2400x1450
|
2500x1900
|
2750x2100
|
||||||||
