Product ID: 66927540
Servo Motor Actuator 10kN 200mm for Tables
Contact Now
Description
产品描述
Product Parameters
| Model | DGRST-65 | ||||||||
| Ball Screw | Screw lead(mm) | 5 | 10 | 16 | 20 | ||||
| Diameter(mm) | 16 | 16 | 16 | 16 | |||||
| Rated dynamic load(kgf) | 1380 | 1103 | 808 | 554 | |||||
| Max.motor power | / | 400W servo motor | 750W servo motor | ||||||
| Rated Torque: 1.27Nm | Rated Torque: 2.39Nm | ||||||||
| Rated speed: 3000rpm | Rated speed: 3000rpm | ||||||||
| Speed reduction | / | 1 | 1.5 | 1 | 1.5 | 3 | 1 | 1.5 | 1 |
| Max.rated speed | mm/s | 250 | 166 | 500 | 333 | 166 | 800 | 533 | 1000 |
| Max.rated thrust | N | 1360 | 2030 | 680 | 1020 | 2030 | 800 | 1200 | 640 |
| Max.rated torque | N.m | 1.27 | 1.91 | 1.3 | 1.9 | 3.8 | 2.4 | 3.6 | 2.39 |
| Stroke range | mm | 10-800 | |||||||
| Axial backlash | mm | Ground ball screw | 0.025 | ||||||
| Rolled ball screw | 0.08(default rolled) | ||||||||
| 300mm lead tolerance | mm | Ground ball screw | 0.023 | ||||||
| Rolled ball screw | 0.05(default rolled) | ||||||||
| Repeatable position accuracy | mm | Ground ball screw | ±0.01 | ||||||
| Rolled ball screw | ±0.02(defautl rolled) | ||||||||
| Limit Swith | / | NPN, PNP | |||||||
| Servo cylinde type | / | Inline/Parallel | |||||||
| Operating temperature | ºC | 0~80 | |||||||
| Ambient temperature motor | ºC | 0~40 | |||||||
| Protection class | 1 | IP68 | |||||||

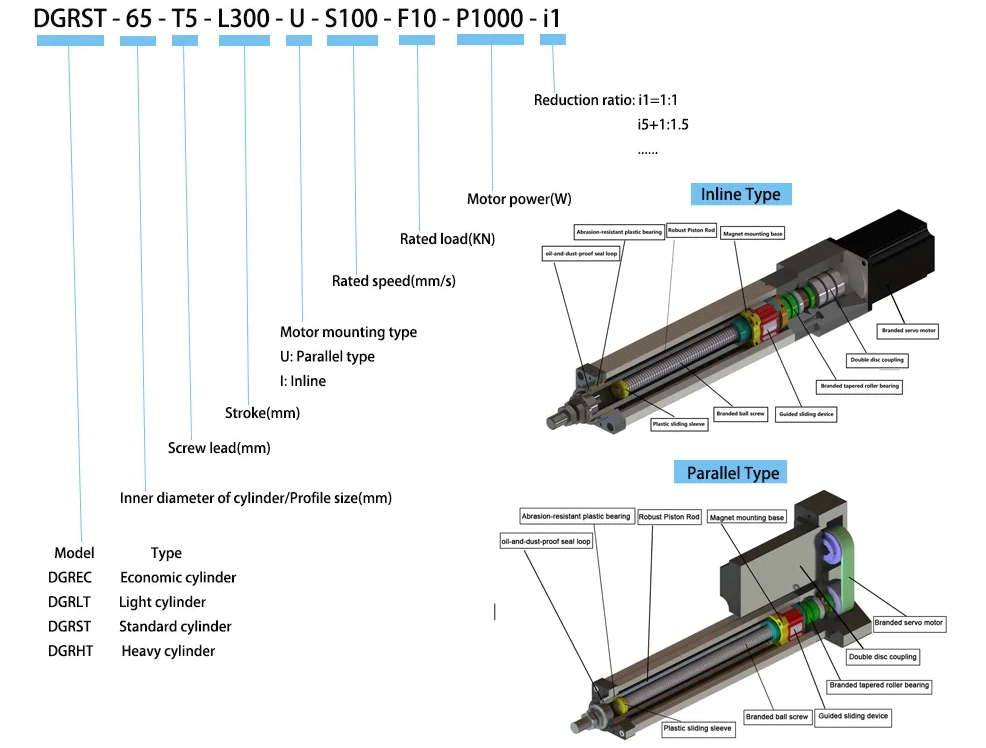

Model Instruction
How to Choose a Model
If you are familiar with electric cylinders, just choose suitable model on the product page. If you can't confirm how to choose the model, please provide following info, we will recommend appropriate model to you.
1. Thrust(kN)
2. Stroke(mm)
3. Speed(mm/s)
Otherwise, to make a quick and accurate quotation, please also confirm below info if available.
1. The mounting method of electric cylinder
A. Front flange B. Rear flange C. Side flange D.Trunnion E. Guide rod F. Rear hinge plate G. Other
2. Loading connection method
A. Outer thread B. Inner thread C. Fish eye connector D. Y type connector E. I type connector F. Floating connector G. Other
3. The mounting method of motor
A. Direct B. Parallel
1. Thrust(kN)
2. Stroke(mm)
3. Speed(mm/s)
Otherwise, to make a quick and accurate quotation, please also confirm below info if available.
1. The mounting method of electric cylinder
A. Front flange B. Rear flange C. Side flange D.Trunnion E. Guide rod F. Rear hinge plate G. Other
2. Loading connection method
A. Outer thread B. Inner thread C. Fish eye connector D. Y type connector E. I type connector F. Floating connector G. Other
3. The mounting method of motor
A. Direct B. Parallel

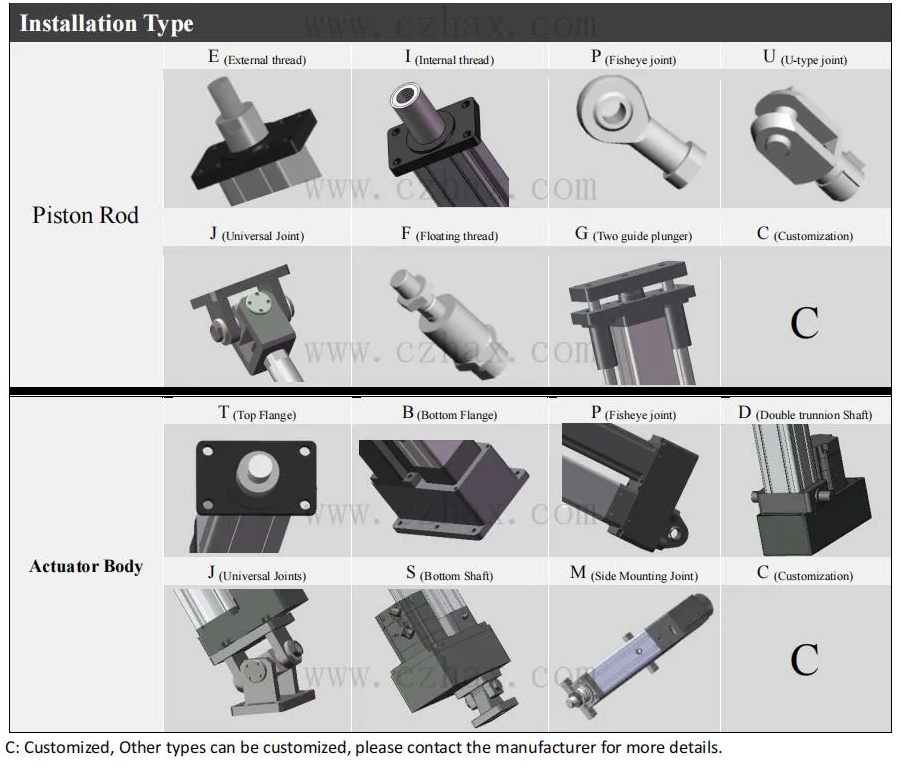

Mounting Accessories
