Product ID: 68332093

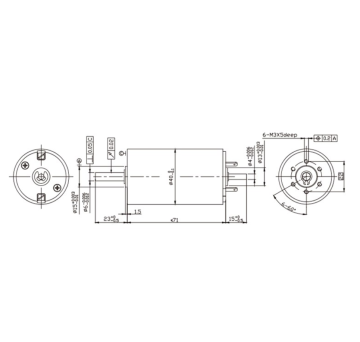

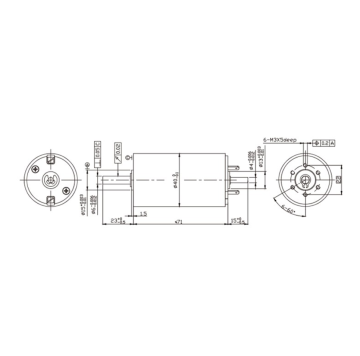

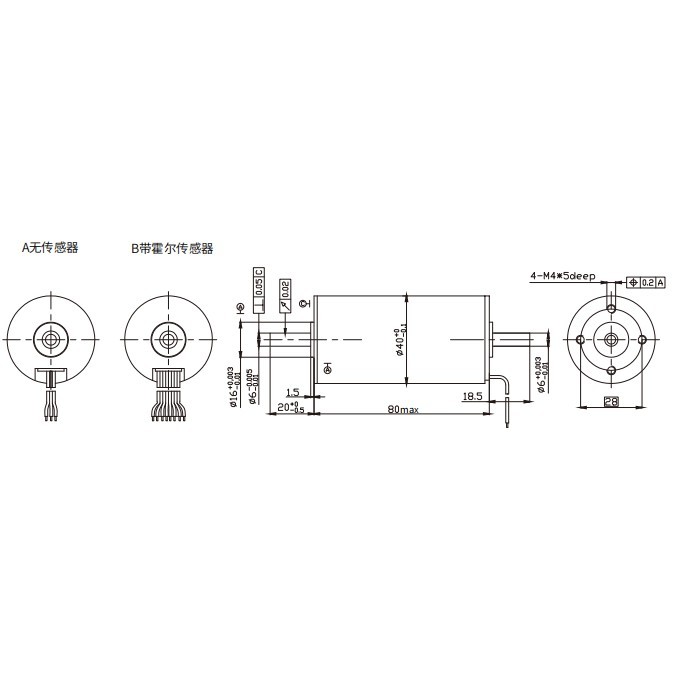

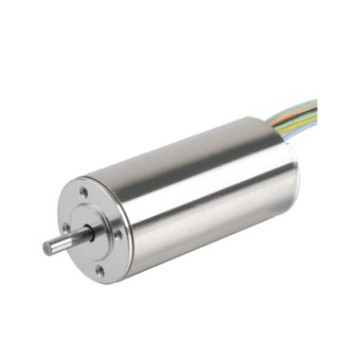

40 Servo DC Motor
Contact Now
Description
The 40 servo DC motor is a high-performance precision drive motor. It adopts advanced servo control technology and brushless DC design, featuring high-precision positioning, rapid response, and stable operation. The rated power of this motor ranges from 150W to 170W, supports a 24V voltage specification, and is equipped with a high-precision encoder (optional incremental/absolute value). The position control accuracy can reach ±0.1°, the speed range is 0-10000 rpm, and it supports instantaneous overload with a torque output of 200% of the rated torque. The product features a fully enclosed metal casing with a protection level of IP65, equipped with double ball bearings and temperature protection sensors, ensuring long-term reliable operation in a temperature range of -40°C to 100°C. Its core functional features include: 1) Using FOC vector control algorithm to achieve low-speed high-torque and smooth speed regulation; 2) Built-in multiple communication interfaces such as CAN/RS485/PWM, supporting Modbus protocol, facilitating integration into automation systems; 3) Having triple protection functions for overcurrent, overvoltage, and overheating; 4) Paired with a 17-bit high-resolution encoder, with a repeat positioning accuracy of ±0.01mm. This motor is widely used in industrial robot joint drives, CNC machine tool feed systems, positioning devices for automated production lines, precise transmission in medical equipment, AGV logistics carts, and aerospace servo control systems, all of which require high dynamic response and precise motion control.
