Product ID: 68332133

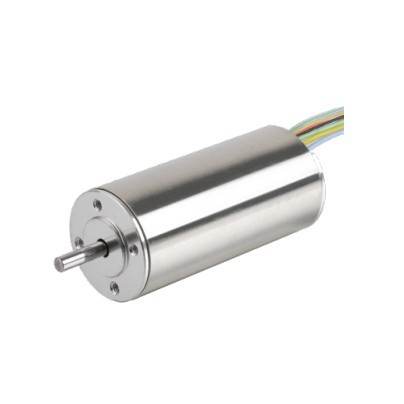

40 Brushless DC Motor
Contact Now
Description
The 40 brushless DC motor is a high-performance integrated mechanical-electrical drive product. It adopts advanced brushless motor technology and intelligent control algorithms, featuring high efficiency, low noise, and long lifespan. The rated power range of this motor is 70W, and it supports 24V DC power supply. The maximum rotational speed can reach up to 12,000 rpm, and the peak torque is 2.5N·m. It is equipped with a high-precision Hall sensor for precise direction control. The product uses a fully enclosed aluminum alloy casing with a protection level of IP55. It has built-in temperature protection and overcurrent protection functions, and the working temperature range is -40℃ to +100℃. Its core functional features include: 1) Using FOC vector control technology, with an efficiency of over 92%; 2) Low slot torque design, with a running smoothness of ±2%. This motor is widely used in industrial automation equipment, medical instruments, robot joint drives, AGV logistics vehicles, unmanned aerial vehicle power systems, and precision instrument and metering systems, where high drive performance is required. It is particularly suitable for occasions that require high reliability and precise control.
