Mse02Motor with Drum Brake Used in Road Sweeper
Description
产品描述
Basic Info.Mse02Motor with Drum Brake Used in Road Sweeper，MS MCR SERIES RADIAL CAM-RING HYDRAULIC PISTON MOTORS ARE WIDELY APPLIED IN CONSTRUCTION,MINING MACHINERY, CEMENT EQUIPMENTS ,OCEAN ENGINEERING ,ENVIRONMENTAL PROTECTION,MILTARY INDUSTRY AND OTHER FIELDS,WHICH HAS THE CHARACTERISTICS : MODULAR DESIGN, THE ENTIRE STRUCTURE IS DESIGNED AS OUTPUT MODULE,FUNCTION MODULE,FLOW-DISTRIBUTION MODULE AND BRAKE MODULE, IT CAN COMBINE WITH AFFERENT MIAN MACHINES EASILY , WITH STAND STRONGER RADIAL AND AXIAL LOADS, THE OUTPUT MODULE OF PRODUCTS APPLIES BICONICAL ROLLER BEARING TO WITHSTAND STRONGER RADIAL AND AXIAL FORCES.
HIGHT EFFICIENCY AND STABLE AND IMPACT RESISTANCE WITH BRAKES .
Product Description
Poclain Hydraulic Drum Brake Ms02 Radial Piston Motor With Drum Brake Used in Road Sweeper
Features:

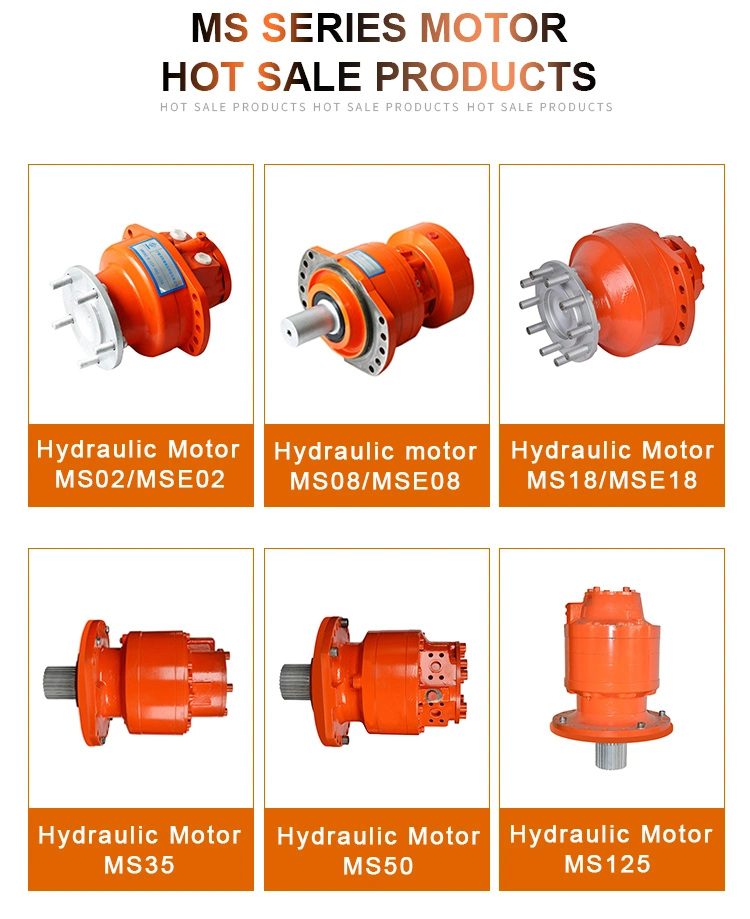

Poclain MS02 Hydraulic Motor
1). Radial piston type;
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
MS02 Displacement Diagram
| Code | HMS02 | HMSE02 | |||||
| Displacement Group | 8 | 0 | 1 | 2 | 0 | 1 | 2 |
| Displacement(ml/r) | 172 | 213 | 235 | 255 | 332 | 364 | 398 |
| Theoretical torque at 10Mpa(N.m) | 273 | 339 | 374 | 405 | 528 | 579 | 633 |
| Rated speed(r/min) | 200 | 200 | 160 | 160 | 160 | 125 | 100 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated torque(N.M) | 550 | 700 | 750 | 800 | 1100 | 1150 | 1300 |
| Max.pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max.torque(N.m) | 650 | 850 | 950 | 1000 | 1300 | 1450 | 1600 |
| Speed range(r/min) | 0-390 | 0-310 | 0-285 | 0-260 | 0-200 | 0-182 | 0-165 |
| Max.power(kW) |
Standard displacement is 18kW(HMSE02 22kW), variable displacement priority rotation 12kW(HMSE02 16.5kW), no priority is 9kW(HMSE02 11kW) |
||||||
Applications:
Mining Machinery:Coal Mine Drill, Heavy Duty Handling Car.
Engineering Machinery:Scavenging Machine, Aircraft Tractor, Beam Carrier/Hoisting Machine.
Farming Machinery: Mini Farming Vehicle, Ditcher.
