NIKIYUMAX 3-Way Forklift Stacker with 1500kg Capacity for Sale: The Ultimate Solution for Efficient Material Handling
Contact Now
Description
产品描述

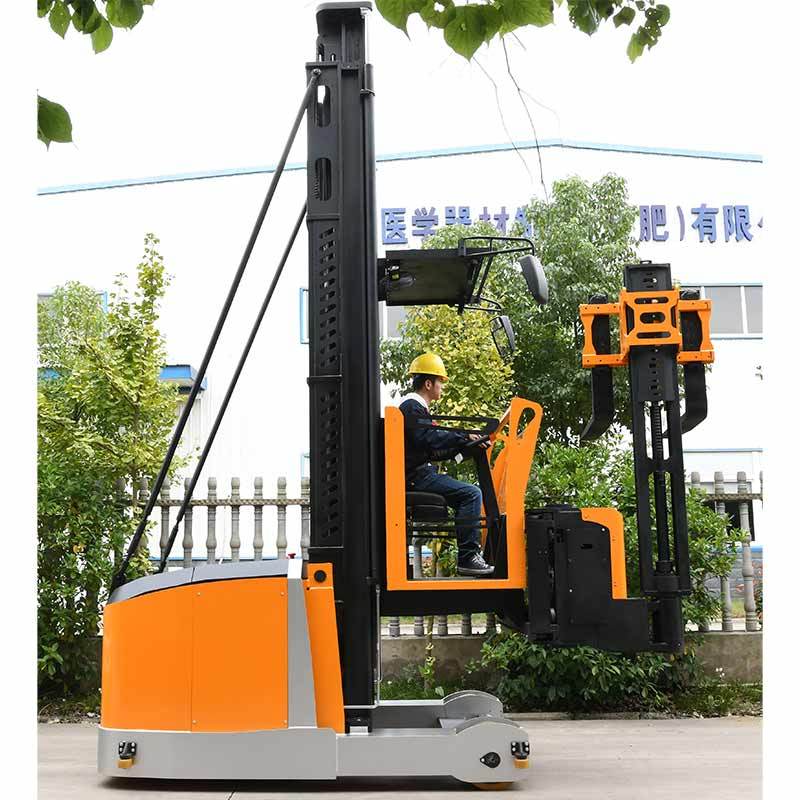

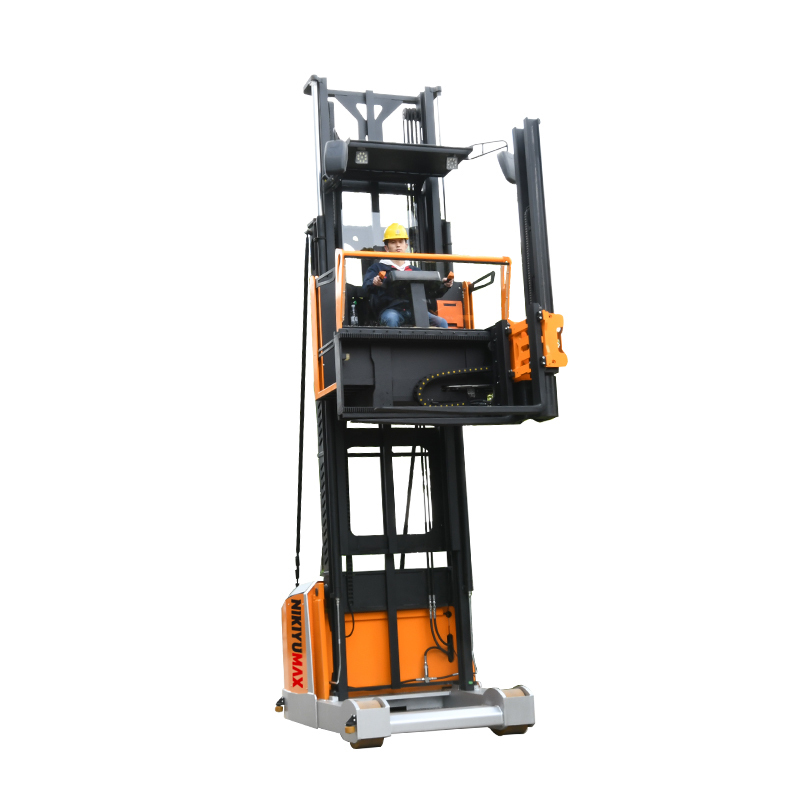

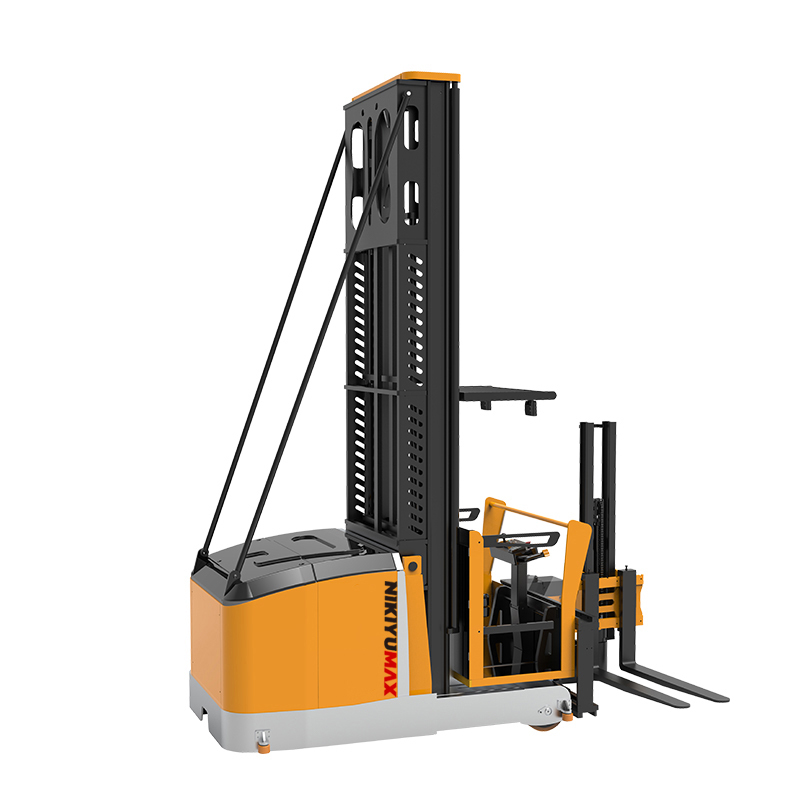

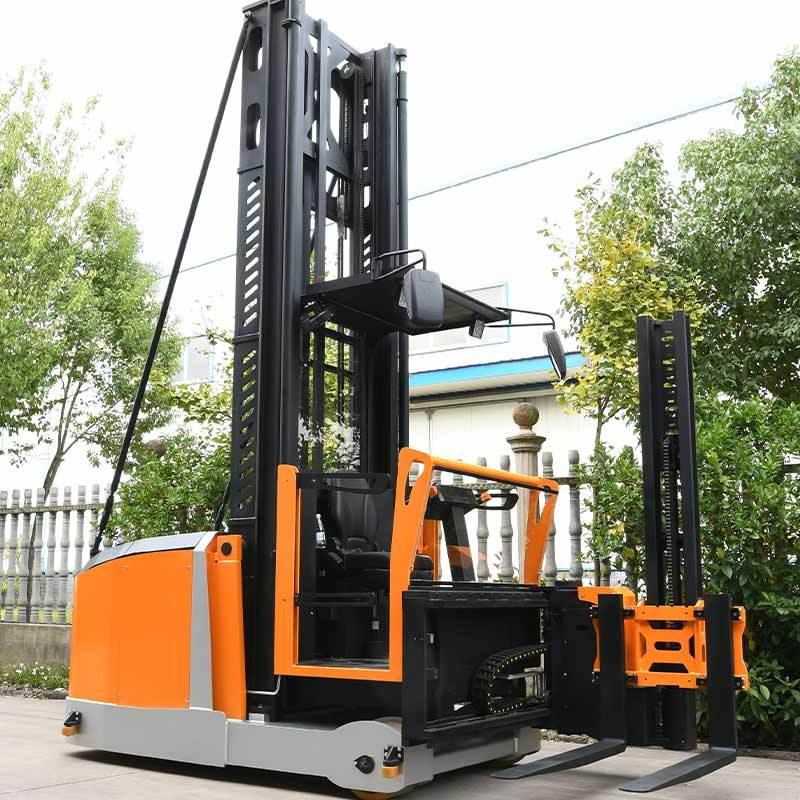

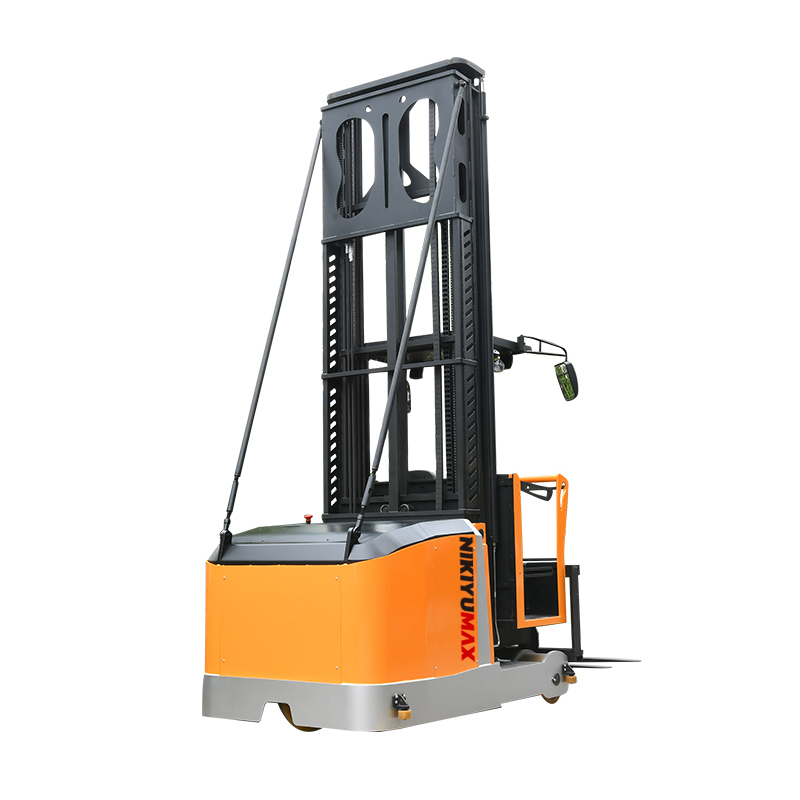

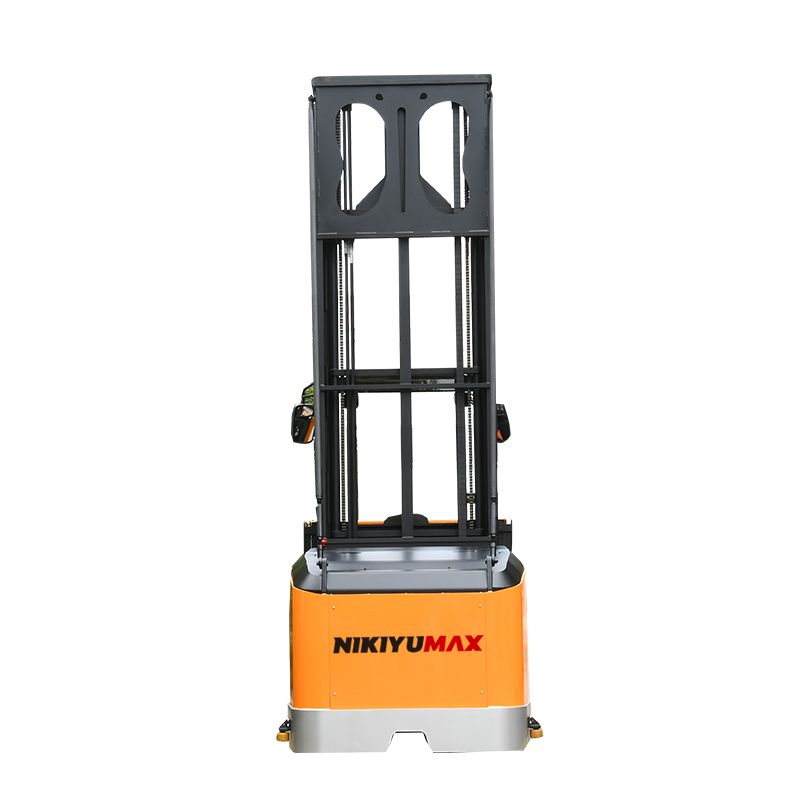

NIKIYUMAX Man-up Electric Three-Way Stacker Forklift
Man-up Electric Three Way Stacker Forklift is optimized solution to your warehouse, engineered with full AC technology, 1500 kg capacity and lifting height up to 10000 mm, providing outstanding performance in handling a variety of narrow aisle warehousing applications, ranging from pallet picking up, transporting, to stacking.
- Loading capacity: 1000-1500 kg
- Lifting height: 3000-10000 mm
| NIKIYUMAX Man-up Electric Three-Way Stacker Forklift | ||
| Model | RFTLS15 | |

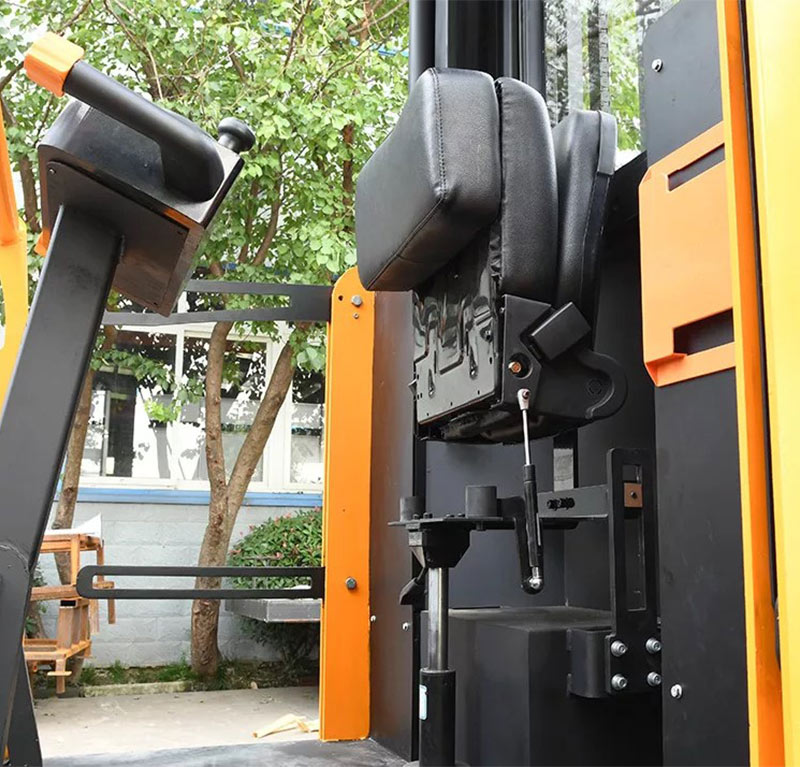

| Operation mode | Seated / Standing Type | |
| Rated load capacity | kg | 1500 |
| Load center | mm | 600 |
| Wheelbase | mm | 1913 |
| Self-weight with battery | kg | 8766 |
| Driving wheel | mm | 400*160 |
| Front wheel | mm | 350*200 |
| Mast lowered height | mm | 3980 |
| Auxiliary lifting height | mm | 1500 |
| Mast lifting height | mm | 5000 |
| Max.height when lifting | mm | 7400 |
| Height of overhead guards | mm | 2446 |
| Body length | mm | 3679 |
| Body width | mm | 1474 |
| Anti-collision guard rail width | mm | 1609 |
| Sideshift distance | mm | 1280 |
| Fork size | s/e/l(mm) | 45/125/1220 |
| Fork adjustment | mm | 260-680(Customizable) |
| Min. ground clearance (wheelbase center) | mm | 80 |
| Stacking channel width | Ast(mm) | 1709(1200*1200 pallet) |
| Channel guide rail height | mm | 120 |
| Min. turning radius | Wa(mm) | 2300 |
| Main Channel Width | mm | 4410 |
| Max. driving speed, no load / full load | km/h | 1.00 |
| Lifting speed, no load / full load | m/s | 0.35/0.3 |
| Battery | V/Ah | 48V/540Ah |
The data is for reference only, please contact us for more details or other loads and lifting heights.
Configuration
- Full AC control system

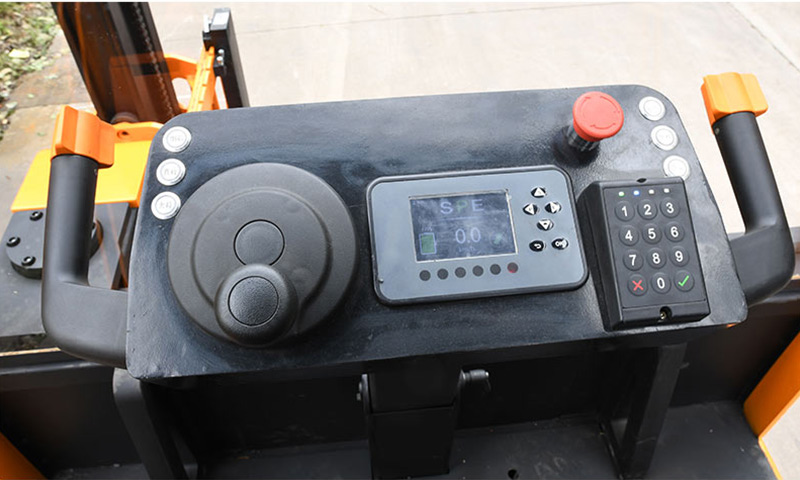

- Integrated handle
- EPS
- Mast lifting hierarchical control (with exclusive free lifting system)
- 48V540Ah-750Ah battery

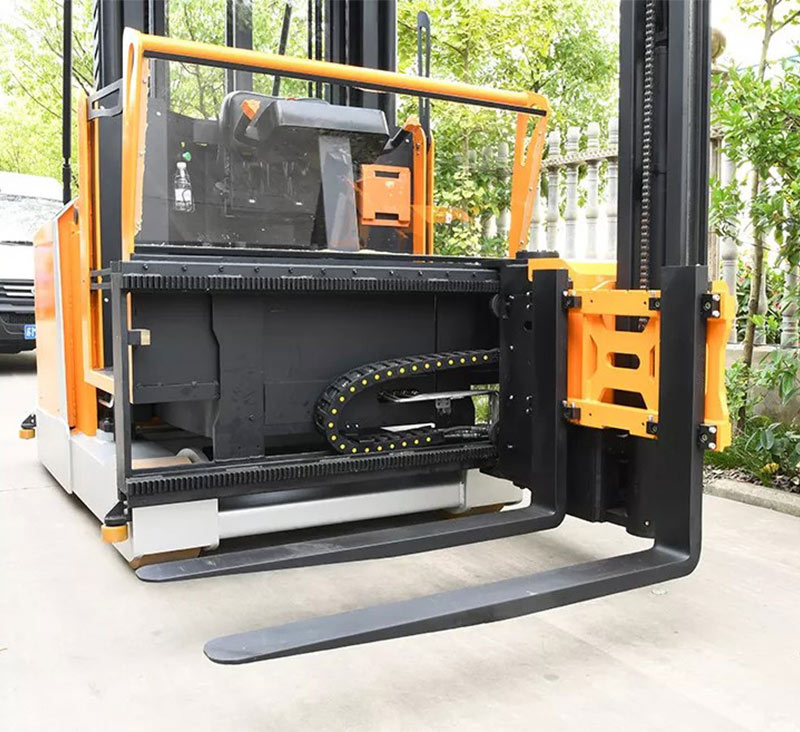

- Hydraulic swing cylinder rotation
