Low Profile Scissor Lift Tables with Ramp
Description
产品描述

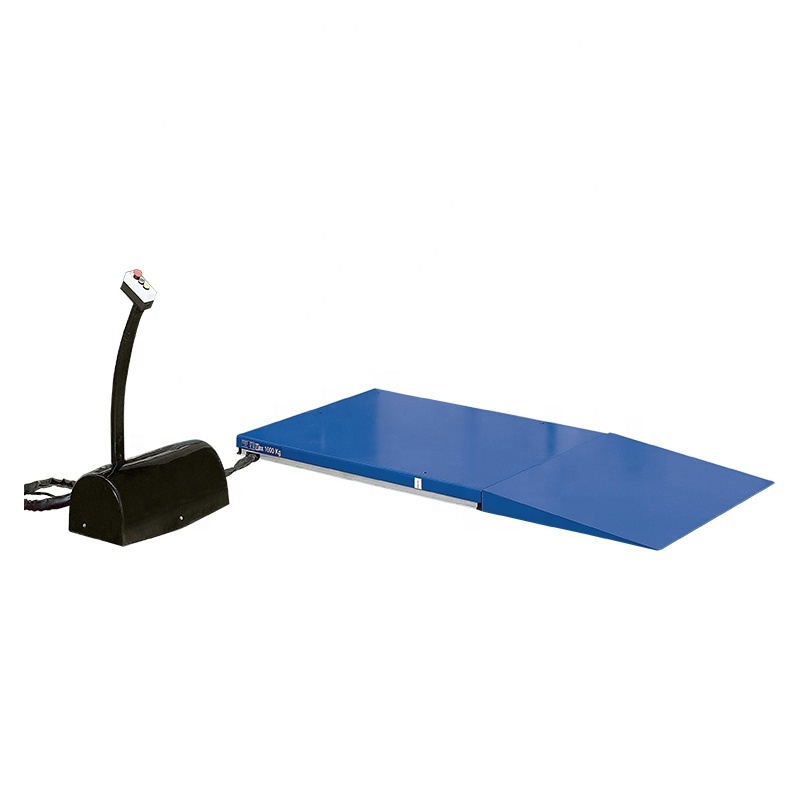

Low Profile Scissor Lift Tables equipped with ramp
- OEM & ODM 服务 -
SAGAFIRST Brand Low Profile Scissor Lift Tables are equipped with ramp with extremely low self height,easy for trolly enter.Its pump station and electric system are placed in metal box independently to save the minimum lifting height.Loading capacities from 1,000KG to 2,000KG, and lifting heights up to 870mm. We also accept customized platform size,load capacity and lifting height.
|
型 |
Loading Capacity(kg) |
平台尺寸 |
Base Size |
Self Height (mm) |
Max Platform Height (mm) |
Lifting Time(s) |
Net Weight(kg) |
|
HL1001 |
1000 |
1450x1140 |
1325x1074 |
85 |
860 |
25 |
357 |
|
HL1002 |
1000 |
1600x1140 |
1325x1074 |
85 |
860 |
25 |
364 |
|
HL1003 |
1000 |
1450x800 |
1325x734 |
85 |
860 |
25 |
326 |
|
HL1004 |
1000 |
1600x800 |
1325x734 |
85 |
860 |
25 |
332 |
|
HL1005 |
1000 |
1600x1000 |
1325x734 |
85 |
860 |
25 |
352 |
|
HL1501 |
1500 |
1600x800 |
1325x734 |
105 |
870 |
30 |
302 |
|
HL1502 |
1500 |
1600x1000 |
1325x734 |
105 |
870 |
30 |
401 |
|
HL1503 |
1500 |
1600x1200 |
1325x734 |
105 |
870 |
30 |
415 |
|
HL2001 |
2000 |
1600x1200 |
1427x1114 |
105 |
870 |
35 |
419 |
|
HL2002 |
2000 |
1600x1000 |
1427x734 |
105 |
870 |
35 |
405 |
Heavy Duty Custom Scissor Lift Platform adopts much stronger material and parts to improve the load capacity and lifting height.We will make the platform size, max platform height and load capacity as per your request.
Hydraulic scissor lift table is an important component in material handling area, it is one of professional high-altitude operation equipment.Scissor lift table is mainly used to convey goods from one working level to another.

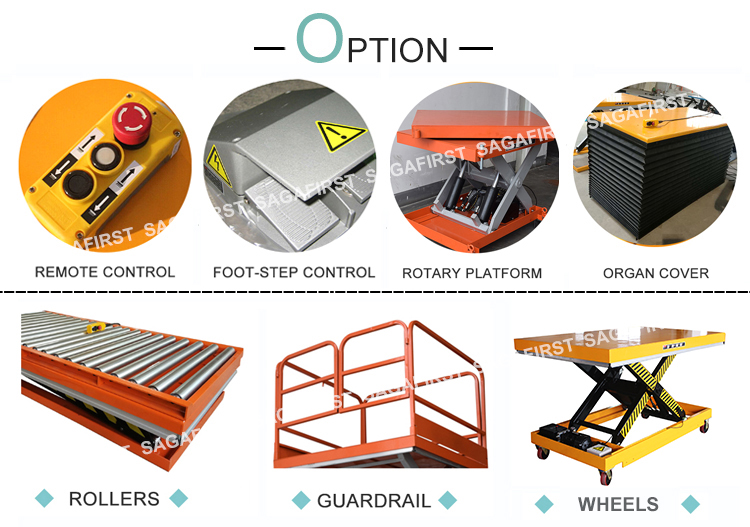

SAGA FIRST can also provide customer many options like wireless controller, footstep control, roller, safety bellows and so on, customer can provide their need to SINOFIRST, and we will try to fulfill all customers’ need.
1. Sagafirst scissor lift tables are dealt with shot blasting and stoving varnish, high anti-corrosion function.
2. High quality pump station make the scissor lift table lifts and falls very stably.
3. Anti-pinch scissor design, main pin-roll place adopts self-lubricating design which prolong life span.
4. Removable lifting eye can help to lift the table and install.
5. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Brief structure make it much easier to operate and maintain.
8. Up to American standard ANSI/ASME and Europe standard EN1570.
