50mm Galvanized Spring Shaft Gravity Roller
Description
Product description

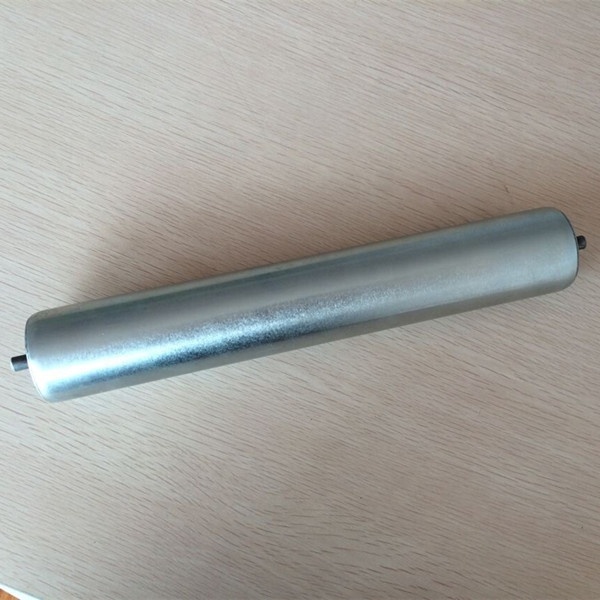

50mm diameter galvanized spring shaft gravity roller
The benefits of galvanized spring shaft gravity roller
1.Exceptionally low-noise operation
- Drive heads (alternatively sprockets made of steel)
2.Replaceable chain heads and toothed belt heads for fixed and friction drives
- Fixed bearing housings for attachable drive heads
3.Comprehensive drive versions
- Round, toothed and flat belts; chain drive
Properties of galvanized spring shaft gravity roller
1.Bearing bales: Precision double sealed bearings(Sealed precision ball bearings)
2.Structure characteristics: Using reinforced plastics cover and the precision bearings
and outer pipe pressure equipment composition
3.Axis: cold pull round steel (can do galvanized processing), stainless steel
4.Cylinder surface manage: can make plastic bags, packet polyurethane, galvanized,
stainless steel
5.Characteristics:dustproof flexible rotation, stable and no noise
6.Running way:type O belt transmission
Specification of galvanized spring shaft gravity roller
|
Dia of Roller |
Dia of Shaft |
Tube thickness |
Roller length |
Tube Material |
Surface treatment |
Mounting way |
|
Φ38 |
Φ12 |
1.2/1.5 |
50-1500 |
Carbon steel Stainless steel Aluminum alloy PVC
|
Plate zinc Chrome plate Plastic coating Rubber lagging |
1 spring shaft 2 Female thread 3 Male thread 4 Mortise 5 going shaft 6 Outer cylindrical mortise |
|
Φ42 |
Φ12 |
1.5 |
50-1500 |
|||
|
Φ50 |
Φ12/Φ15 |
1.2/1.5/2.0 |
50-1500 |
|||
|
Φ60 |
Φ12/Φ15 |
1.5/2.0/2.5/3.0 |
50-1500 |
|||
|
Φ76 |
Φ15/Φ20 |
2/2.5/3.0 |
50-1500 |
|||
|
Φ89 |
Φ20 |
3.0 |
50-1500 |

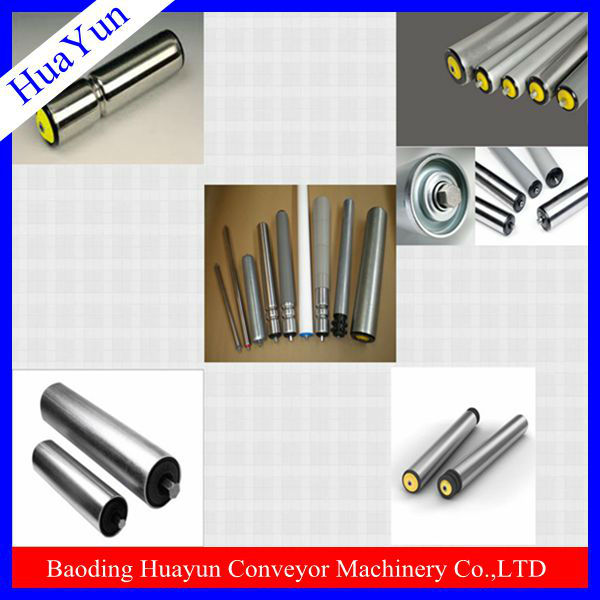

Here are some types of roller we made.
