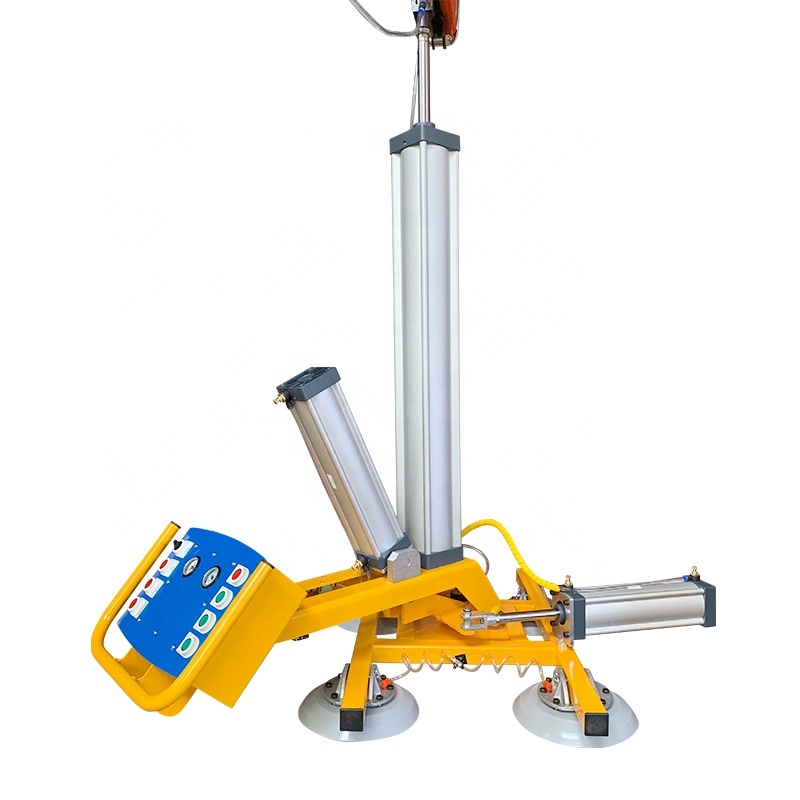

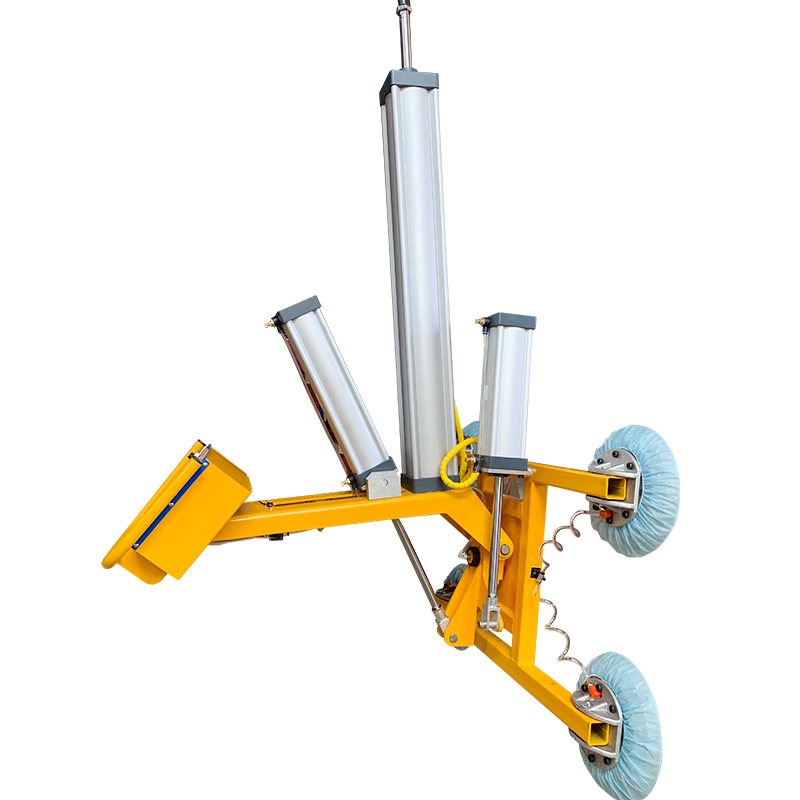

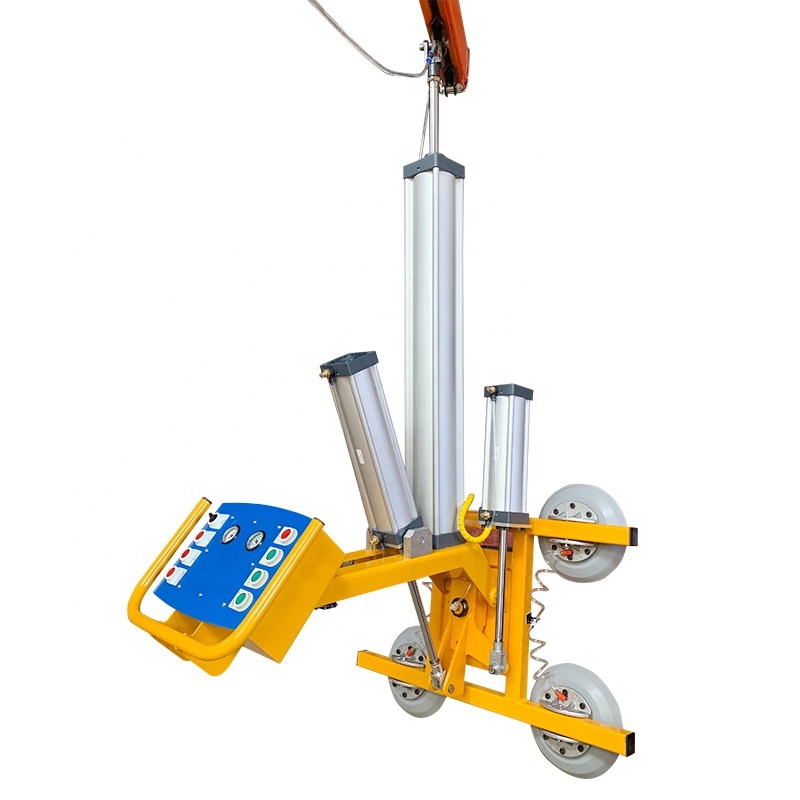

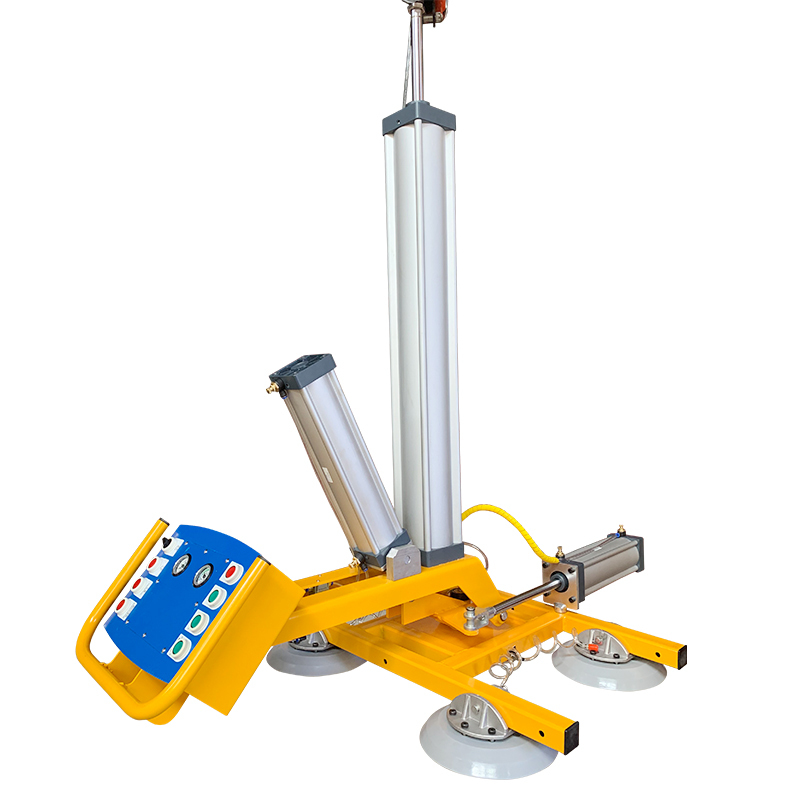

Pneumatic Vacuum Lift for Glass and Windows
Contact Now
Description
产品描述
Vacuum Lifting Device Lifting Glass Window pneumatic vacuum lift
OEM&ODM Service
OEM&ODM Service
Sagafirst suction caps are specially design for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble.They are widely used for installing glass wall,windows for contruction and metal sheet,marbles process workshop etc.
| Model | GL-SC-400 | GL-SC-600 | GL-SC800 | GL-SC-1000 | |
| Lifting Capacity | kg | 400 | 600 | 800 | 1000 |
| Cup Qty | / | 4 | 6 | 8 | 10 |
| Single Cup Size | mm | 300 | 300 | 300 | 300 |
| Single Cup Lifting Capacity | kg | 100 | 100 | 100 | 100 |
| Rotation | / | 360°manual rotate | |||
| Tilting | / | 90° manual | |||
| Volte | V | DC12 | |||
| Charger | V | AC220/110 | |||
| Weight | kg | 70 | 90 | 100 | 110 |
| Sucker Frame Size | mm | 850*750*300 | 1800*900*300 | 1760*1460*300 | 1900*1600*300 |
| Extension Bar Length | mm | 500 | |||
| Control System | / | Integrated Control Cabinet and Wired Remote Control | |||
| Overall Size after packed by wooden box | mm | 1230*910*390 | |||
| Gross Weight after packed by wooden box | kg | 97 | 110 | 123 | 150 |
