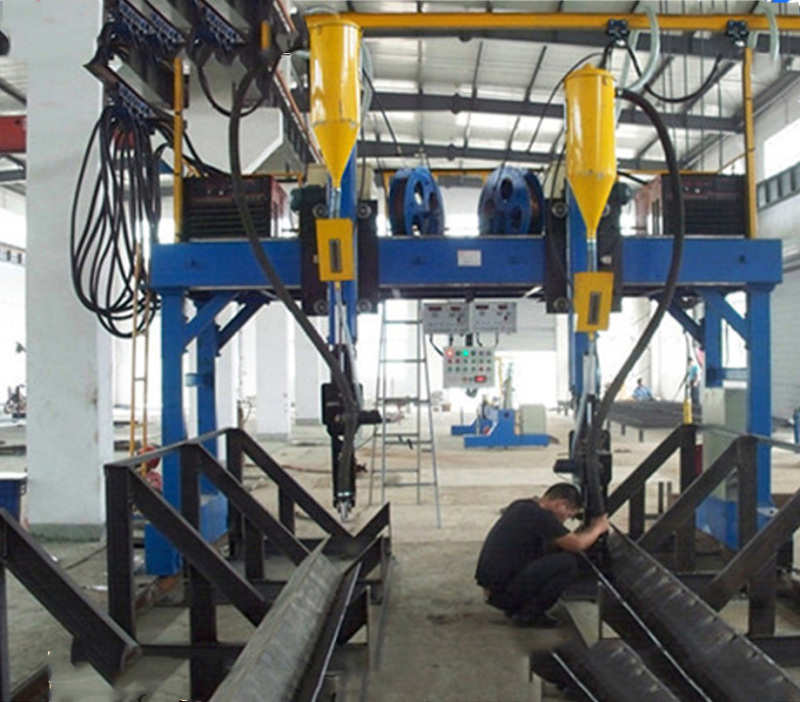

Automatic H Beam Submerged Arc Welding Machine for Used Welding Industries
Description
产品描述

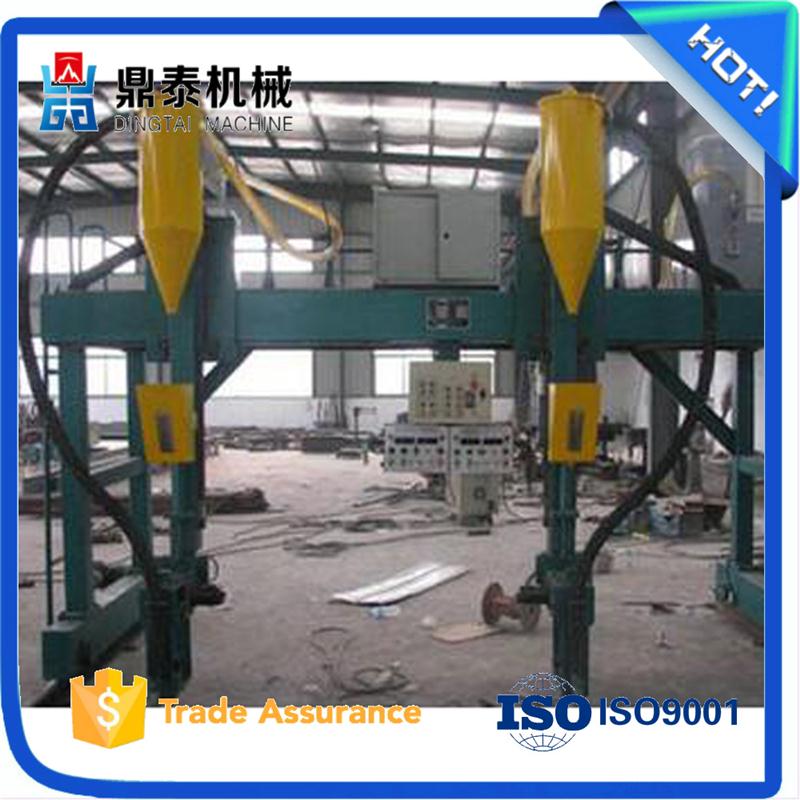

Automatic H beam Submerged Arc Welding Machine, used welding industries
产品描述

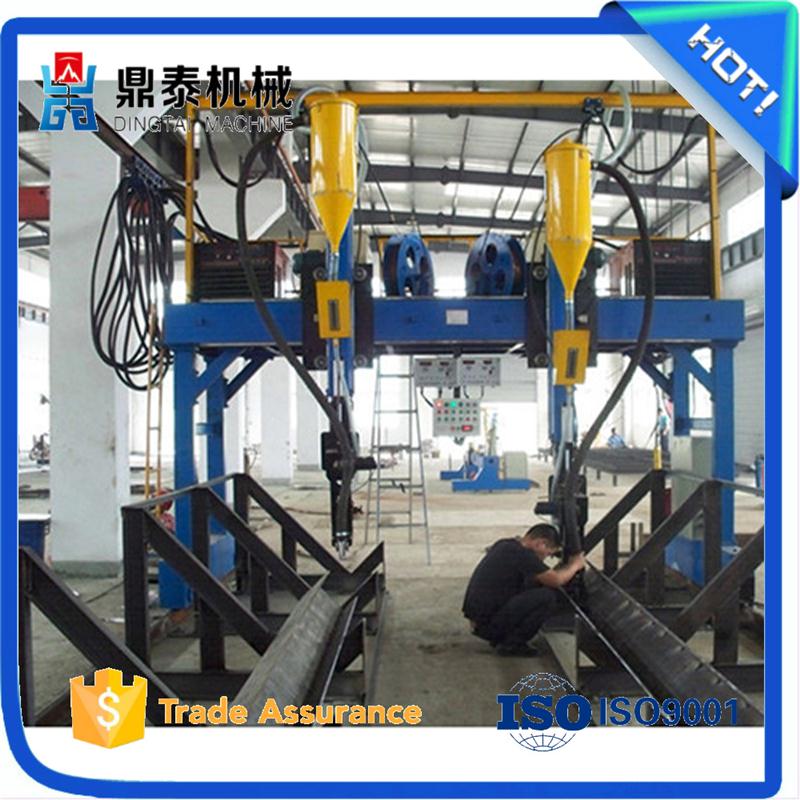

Specifications:
1. The H beam gantry gate welding machine has two structures: Gantry gate move type & double
cantilever move type.
2. Gantry gate or cantilever drive method: AC motor and R series worm reducer.
3. Welding speed: 0.15~1.5m/min.
4. Arc guide frame head function is to mechanically track up and down, left and right.
5. Imported frequency converter is able to realize gantry gate or cantilevers stepless speed
adjustment,with wide speed adjustment range,high accuracy and constant output torque.
6. Electrical control cabinet includes main control cabinet and remote operation box.
7. Two work-piece at one time.

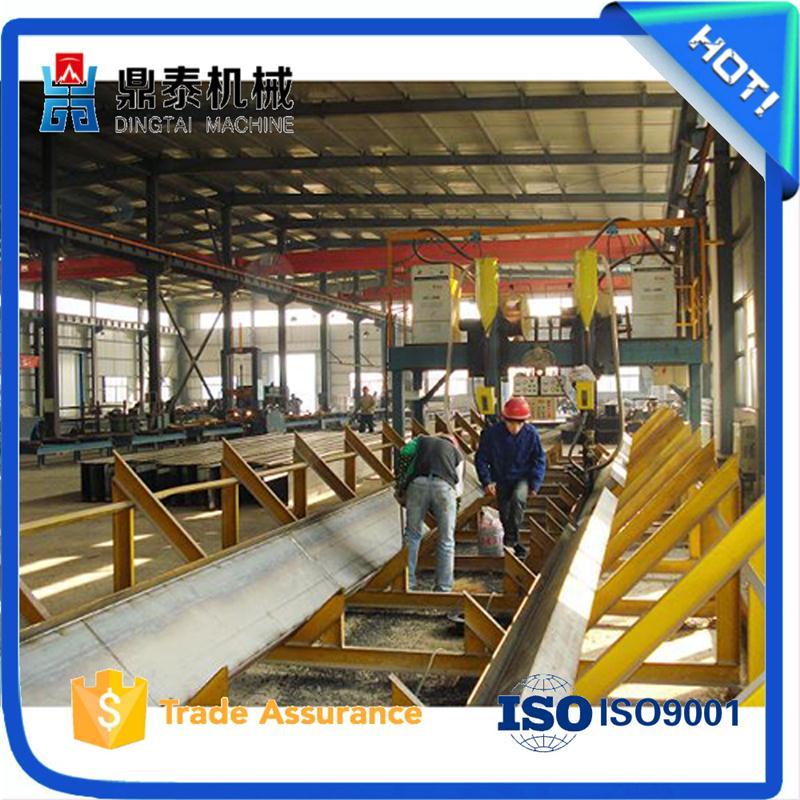

Supply scope:
1.Gantry gate unit:Gantry gate,travel device,lateral sliding device,feeding wire wheel and pipe
accessories.
2.Welding arm and carriage:Welding arm,motor transmission device,move device and accessories (2 sets each).
3.Arc guide device:Welding gun,mechanical adjusting unit and feeding wire machine (2 sets each).
4.Flux recovery system:100kg flux recovery machine,separate material barrel,flux hopper,flux recoveryand transmission pipe.
5.Electric control system:Electric control cabinet,AC frequency converter,operation box,lighting,
warning light.
6.Pipe and wire system:Welding machine power wire,control wire,welding cable,gantry gate control
cable,air source pipe,suspending sliding frame.

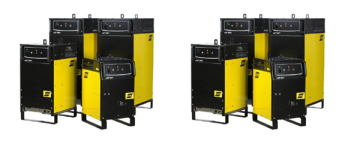

7.Welding system:MZ-1000 sub merge arc welding machine*2sets.
Technical parameters
| Model |
web height mm |
flange width mm |
welder model | welding type | welding speed |
welding torch return speed |
rails' distance |
overall power |
| LHA-4000 | 200-1500 | 200-800 | MZ-1000 |
boat-type welding |
0.15-1.5m/min | 3m/min | 4000mm |
10KW,exclude welder pow |
| SXBH-20 | 200-2000 | 200-800 | 2000mm |
