Submerged Arc Welder for Car Beam
Description
Product description
Submerged Arc Welder for Car Beam
Product Description

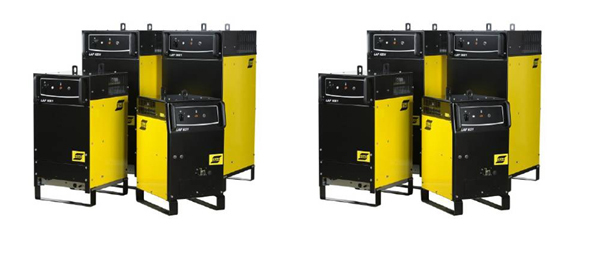

The LAF series of submerged arc welder supplies are remotely controlled air-cooled three-phase welding power supplies for efficient mechanized submerged arc welding (SAW), with pole stacking or gas shielded MIG(Metal Inert Gas)welding/MAG welding. The welding rectifier supply has excellent welding performance in the entire current and voltage range, especially excellent arc and reignition characteristics. The series of welding rectifier supply has good arc stability; Moreover, the power supply with automatic overload protection function; when automatically trip out, the power panel has a yellow light, when the temperature dropped to an acceptable range, the circuit will automatically turn on.
Welding object:
length 10~20m;width 200~400mm;height 400~1000mm;thickness 6~25mm
Workpiece materials:carbon steel
Type of weld seam:fillet weld
Amount of weld seam:four weld seam
Welding technology:
Workpieces need to be pre-assembled before welding. The equipment used submerged arc welding process, welding speed of 100 ~ 1500mm / min. The device is equipped with two welding torch, which can be symmetrical on the workpiece at the same time two welds can also be welded alone. The welding torch is equipped with a seam tracking device, which effectively tracks the weld and improves the welding efficiency.
Main Technology
|
100% Duty cycle |
1250A/44V |
|
Setting range SAW |
40A/22V~1250A/46V |
|
Open-circuit voltage |
54V |
|
Efficiency |
0.86 |
|
Power factor |
0.87 |
|
Protection class |
IP23 |
|
Size |
774×598×1428mm3 |
|
Weight |
485Kg |
Pictures
Packaging & Shipping
1.Outside package: Sandard export wooden cases.
Inner package: stretch film; or According to the customers'orders.
2. Delivery and Shipping:30-60 days after the deposit received.
Company Information
Shijiazhuang Longxuan Trading Co., Ltd. is located in Shijiazhuang, the capital of Hebei Province with convenient transportation. Our company was established in Feb. 2012. Our company is professional in supplying industrial equipment, covering pipe processing machinery, automatic welding equipment, cutting machine, etc. Our company always adheres to "credibility and integrity, efficiency" purpose and develops rapidly, creating excellent results and our company has fostered a good image in suppliers and foreign customers. And our company has established long friendly cooperative relationships with many high-tech machinery manufacturing enterprises.
Our company will continue to provide our clients with professional quality integrated solution in automatic welding, cutting and robot welding.
For further relevant product images or details, please send your inquire details and contact me directly!
