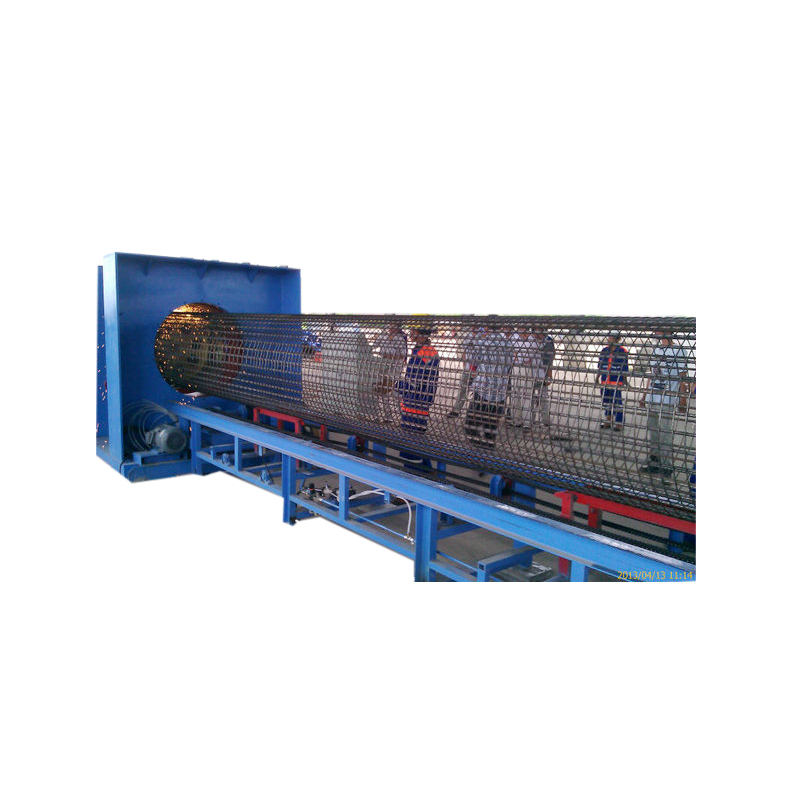

Precast concrete pile wire cage welding machine
Contact Now
Description
产品描述
This machine adopts advanced welding technology, which can realize the automatic welding of steel cages. The welding speed is fast and the welding effect is good. The machine is equipped with safety devices to ensure the safety of operators. It is an ideal equipment for the production of steel cages.
| Diameter of welded frame | ø 250-ø 1200 or customized |
| Length of welded reinforcement cage | 4M-15M or customized |
| Number of longitudinal reinforcements | 6, 7, 10 , 12, 14, etc |
| Diameter of longitudinal reinforcement | ø7.1, ø9.0, ø10.7, ø12.6MM |
| Diameter of hoop reinforcement | ø4- ø6 |
| Cage pitch | 0-100mm |
| Driving power | 8.4KW-15.2KW |
| Welding power | 200KVA-300KVA |
| Controller | NC controller |
Pile cage welding machine for concrete pole is a special-purpose welder used to-produce the high-strength concrete pipe pile reinforcement cages. The welder is widely-appliedto reinforcement cage welding by self-stressing and prestressing pretensioning-method and post-tensioning method.
