Product ID: 68064556

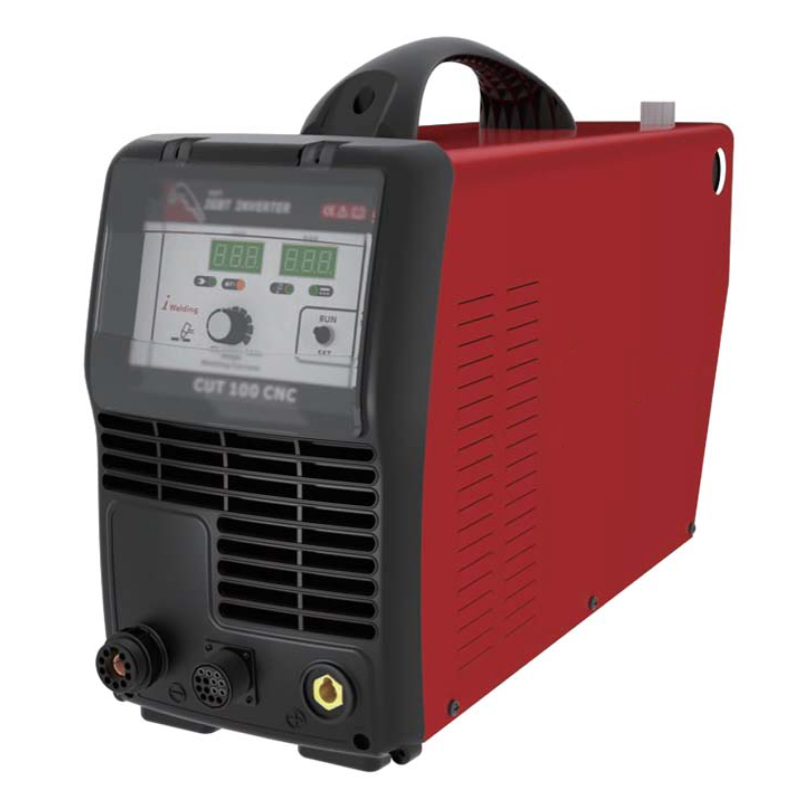

OEM Digital DC Inverter Plasma Cutter for Heavy Industrial CNC Plasma Cutting
Contact Now
Description
Product description
Products Description
|
Product Name:
|
Heavy Industrial CNC Plasma Cutting OEM Digital DC Inverter Plasma Cutter Portable Cutting Machine
|
|
|
|
|||
|
Features
|
1. The main components of the equipment adopt IGBT inverter technology, with high reliability, high efficiency and light weight.
2. Precise preset cutting current without pole regulation. 3. High success rate of arc initiation, stable cutting output current, good arc stiffness, smooth incision, fast and smooth cutting. 4. It can be used to cut cooperating with CNC cutting equipment 5. Strong resistance to network voltage fluctuation, the normal fluctuation of the power grid has no effect on the cutting current. 6. Various protective and alarm functions for over-temperature and over-current.
|
|
|
|
|||
Product Parameters
|
Model
|
CUT 80 CNC
|
CUT 100 CNC
|
CUT 120 CNC
|
|
Input Voltage
|
3~AC380V±10% 50/60Hz
|
3~AC380V±10% 50/60Hz
|
3~AC380V±10% 50/60Hz
|
|
Input Current
|
20A
|
28A
|
28A
|
|
Insulation Class
|
H
|
H
|
H
|
|
Open Circuit Voltage
|
400V
|
420V
|
420V
|
|
Output Current Range
|
20~80A
|
20~100A
|
20~120A
|
|
Duty Cycle (40°C)
|
60%
|
100%
|
60%
|
|
Efficiency
|
90%
|
92%
|
92%
|
|
Protection Class
|
IP21S
|
IP21S
|
IP21S
|
|
Dimensions
|
660*240*445mm
|
660*240*445mm
|
660*240*445mm
|
|
Weight
|
26.5KG
|
30KG
|
30.5KG
|
