Product ID: 68064850

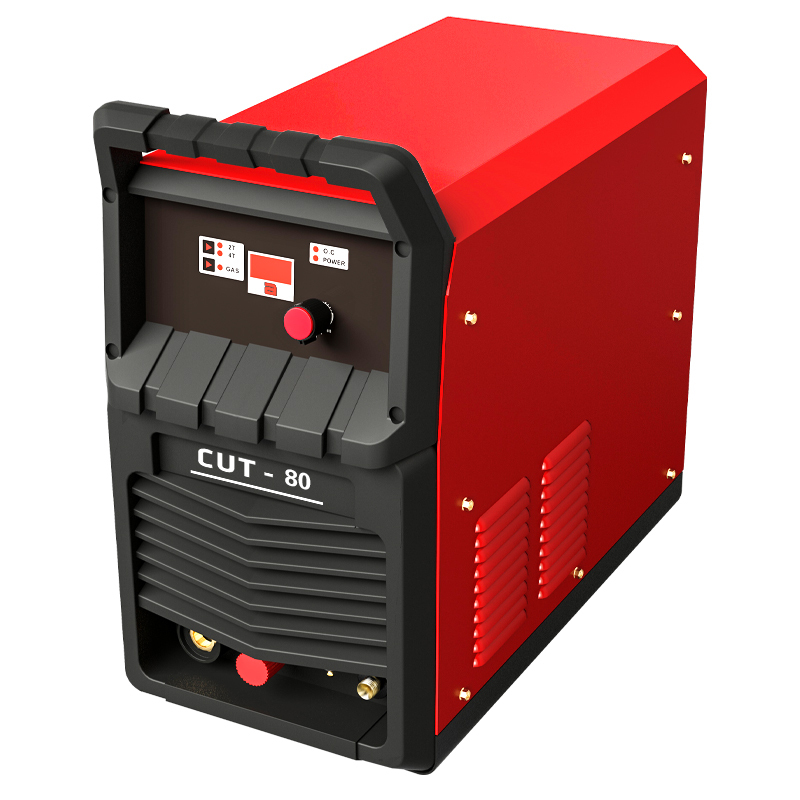

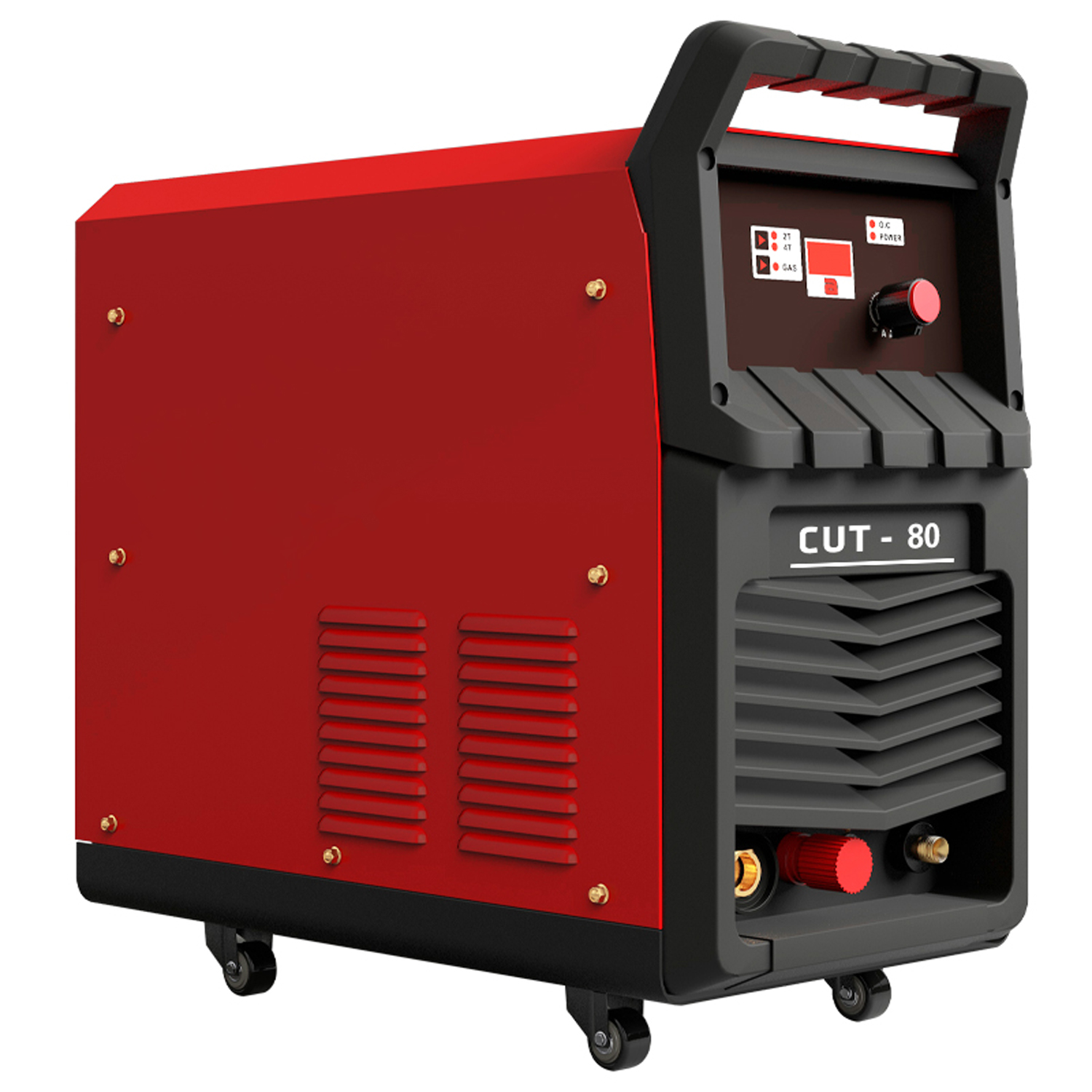

TKWELD DC Inverter Plasma CUT80 Arc Cutting Machine
Contact Now
Description
Product description
Products Description
|
Product Name:
|
TKWELD DC Inverter Plasma CUT80 Arc Cutting machine Cutter
|
|
|
|
|||
|
Features
|
1. IGBT inverter technology, high reliability, high efficiency, light weight.
2. Precise precast cutting current, infinitely variable control. 3. High success rate of arc initiation, stable cutting current, good arc stiffness, smooth incision. 4. Strong resistance to network voltage fluctuation, the normal fluctuation of the power grid has no effect on the cutting current. 5. Various protective and alarm functions for over-temperature and over-current. |
|
|
|
|||
Product Parameters
|
Item
|
CUT80
|
CUT100
|
CUT120
|
|
Input Voltage
|
380V±10% 3ph 50/60Hz
|
380V±10% 3ph 50/60Hz
|
380V±10% 3ph 50/60Hz
|
|
Output Current
|
20-80A
|
20-100A
|
20-120A
|
|
Insulation Class
|
H
|
H
|
H
|
|
Open Circuit Voltage
|
280V
|
290V
|
300V
|
|
Duty Cycle (40°C)
|
60%
|
60%
|
60%
|
|
Max Cutting Thickness
|
30mm
|
35mm
|
45mm
|
|
Effective Cutting Thickness
|
1-25mm
|
1-30mm
|
1-40mm
|
|
Arc Start
|
High Frequency
|
High Frequency
|
High Frequency
|
|
Protection Class
|
IP21S
|
IP21S
|
IP21S
|
|
Dimensions
|
510X335X420mm
|
510X335X420mm
|
510X335X420mm
|
|
Net. Weight
|
26kgs
|
29kgs
|
30kgs
|
