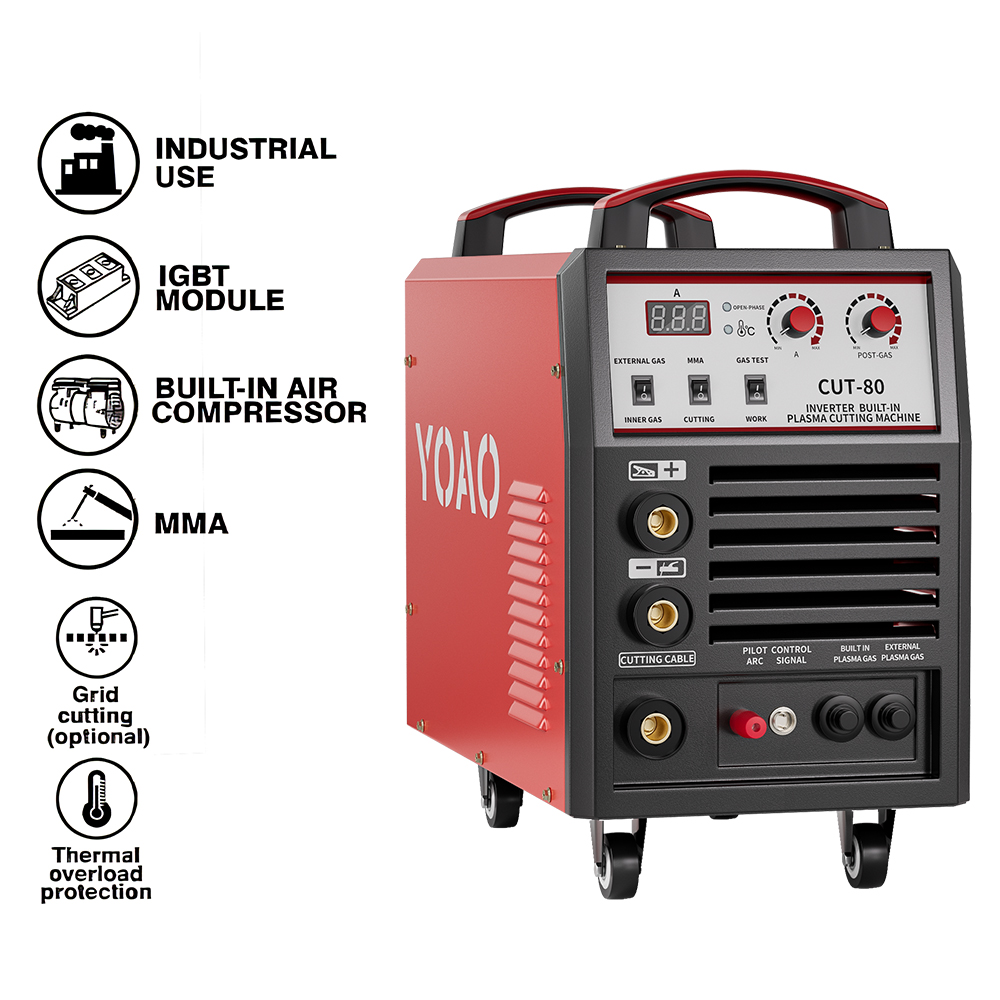

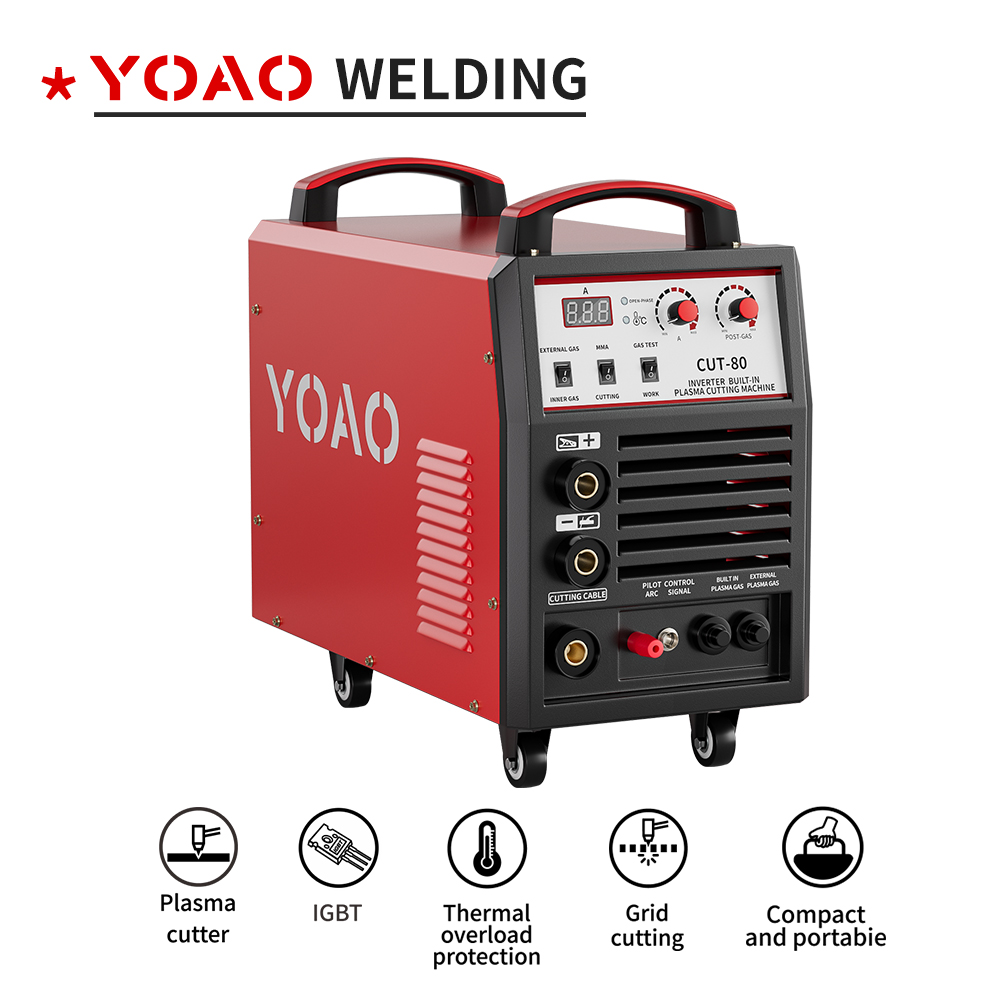

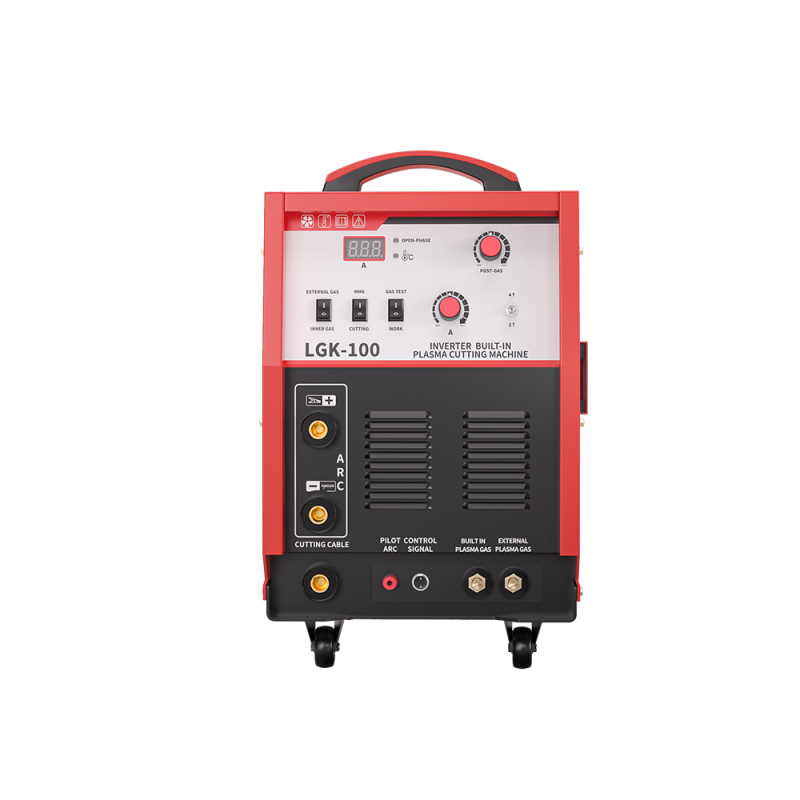

YOAO Hot Sales Professional Dual Voltage Portable Air Plasma Cutter with Built-In Air Compressor
Contact Now
Description
Product description
Products Description
|
MODEL
|
CUT-80 dual voltage
|
CUT-100 dual voltage
|
|
INPUT VOLTAGE
|
220/380V ±15%
|
220/380V ±15%
|
|
INPUT CURRENT
|
380V:25A 220V:43A
|
380V:36A 220V:40A
|
|
INPUT POWER
|
7.6KW
|
11KW
|
|
OUTPUT CURRENT
|
380V CUT:30-60A MMA:50-180A
220V CUT:30-60A MMA:50-200A |
380V CUT:30-80A MMA:50-200A
220V CUT:30-60A MMA:50-200A |
|
DUTY CYCLE@40℃
|
60%
|
380Ｖ CUT:45% MMA:60%
220Ｖ 60％ |
|
NO-LOAD VOLTAGE
|
380V CUT:354V MMA:59V
220V CUT:400V MMA:68A |
380V CUT:366V MMA:59V
220V CUT:405V MMA:69A |
|
maximum cutting thickness
|
25mm
|
380V:30mm
220V:25mm |
|
Optimum cutting thickness
|
15mm
|
20mm
|
|
ARCING MODE
|
HF
|
HF
|
|
MMA WELDING ROD
|
2.5-4.0mm
|
2.5-4.0mm
|
|
Dimension(mm)
|
520*250*460
|
580*310*530
|
|
Weight(KG)
|
25.8
|
35.4
|
