Product ID: 68073837

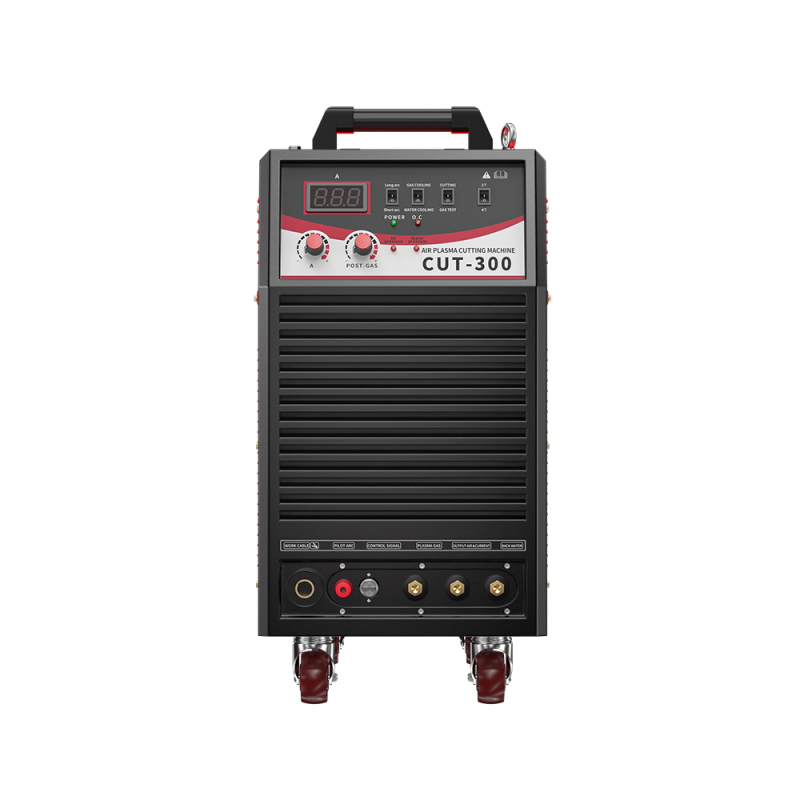

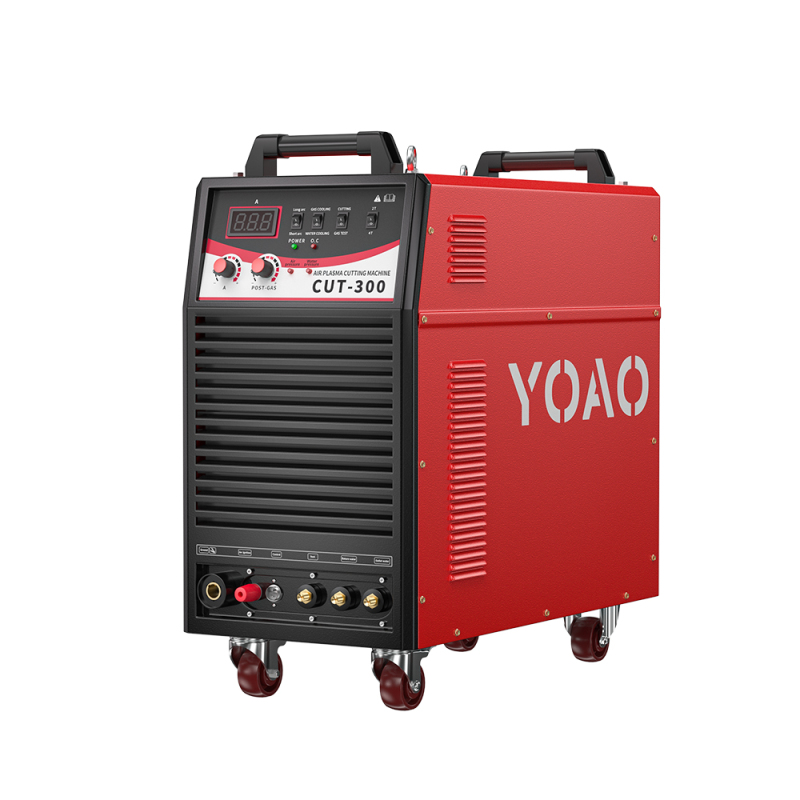

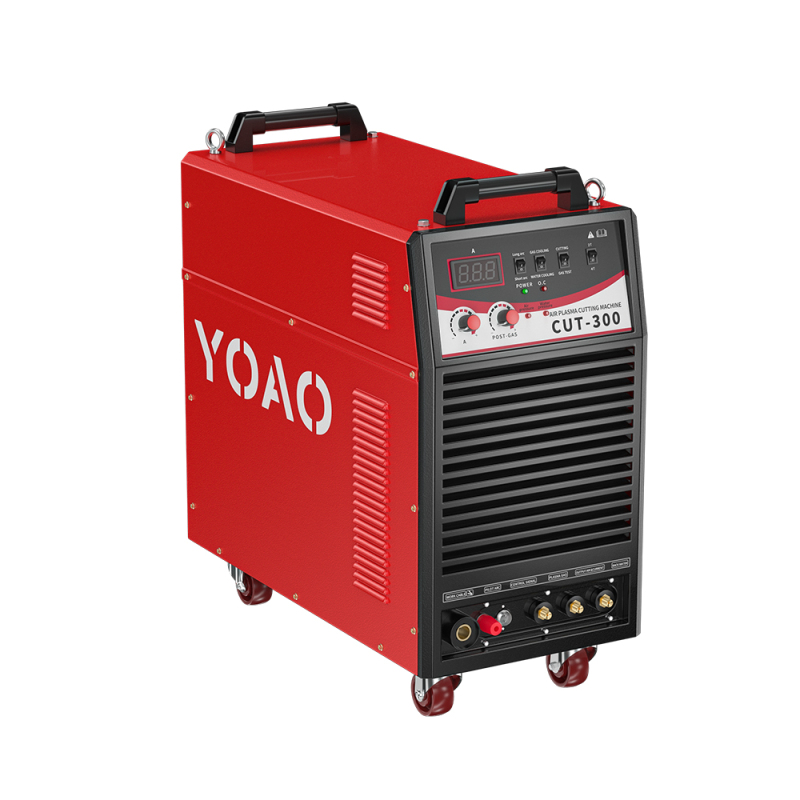

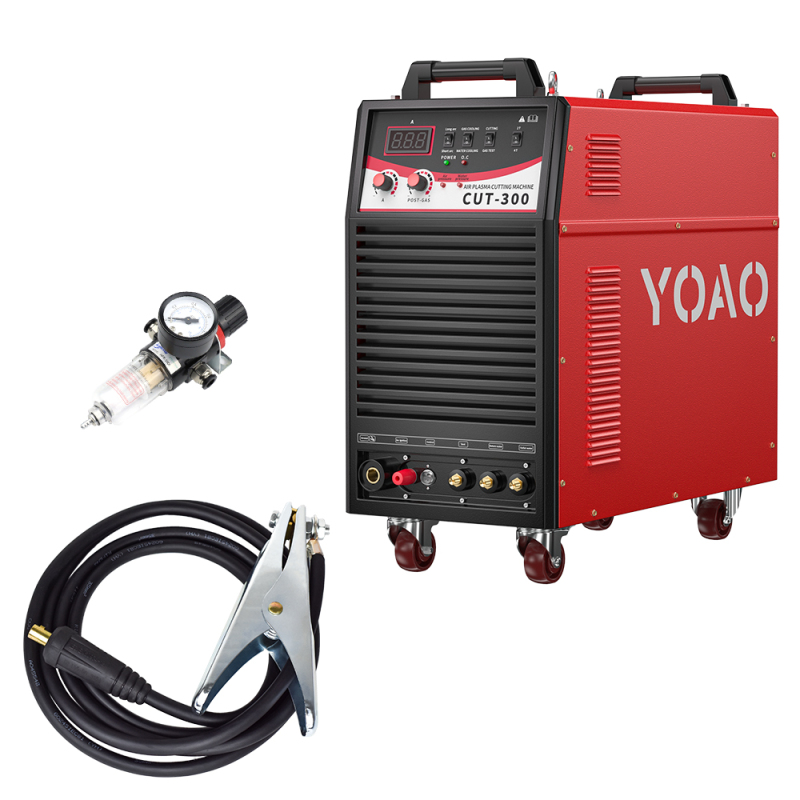

YOAO Wholesale High Power Air Plasma Cutter
Contact Now
Description
Product description
Products Description
|
Item
|
Unit
|
Models
|
Models
|
|
|
|||
|
|
|
CUT-160
|
CUT-200
|
CUT-300
|
CUT-400
|
|||
|
Input Power
|
V/Hz
|
3~380+15% 50/60
|
|
|
|
|||
|
Rated Input Capacity
|
KVA
|
21.2
|
46.5
|
70.4
|
92.3
|
|||
|
Rated Input Current
|
A
|
32.5
|
70.9
|
107
|
142
|
|||
|
Rated Output Current
|
A
|
160
|
200
|
300
|
400
|
|||
|
Rated Output Voltage
|
V
|
128
|
160
|
200
|
200
|
|||
|
Rated Open Circuit Voltage
|
V
|
308
|
360
|
370
|
370
|
|||
|
Rated Duty Cycle
|
-
|
100%(40C)
|
|
|
|
|||
|
Efficiency
|
-
|
92%
|
|
|
93%
|
|||
|
Power Factor
|
-
|
0.78
|
|
0.92
|
|
|||
|
Output Curent Adjust Range
|
A
|
30~160
|
30~200
|
60~300
|
60~400
|
|||
|
Arc Voltage Output Ratio
|
-
|
1:1/1:20/1:50/1:100( Default 1:1 )
|
|
|
|
|||
|
Quality Cut Thickness(Carbon Steel)
|
mm
|
10(500mm/min )
|
20(500mm/min )
|
32(500mm/min )
|
40(500mm/min )
|
|||
|
Severance Cut Thickness(Carbon Steel)
|
mm
|
8020(280mm/min )
|
25(280mm/min )
|
45(250mm/min )
|
50(270mm/min )
|
|||
|
Handheld Severance Cut Thickness (Carbon Steel)
|
mm
|
45
|
50
|
60
|
80
|
|||
|
Plasma gas
|
-
|
Compressed Air
|
|
|
|
|||
|
Air Pressure
|
MPa
|
0.5~0.8
|
|
|
|
|||
|
Coolant Working Flow
|
L/Min
|
-
|
≥2.7
|
|
|
|||
|
Torch Cooling Mode
|
-
|
Air Cooling / Water Cooling
|
|
|
|
|||
|
Arc Strike Mode
|
-
|
Non-Contact
|
|
|
|
|||
|
Power Source Cooling
Mode |
-
|
Air Cooling
|
|
|
|
|||
|
Insulation Grade
|
-
|
F
|
|
|
|
|||
|
Ingress Protection
|
-
|
IP21S
|
|
|
|
|||
|
Dimension(LxWxH )
|
mm
|
600*300*600
|
710*370*760
|
710*370*760
|
710*370*760
|
|||
|
Weight
|
KG
|
58
|
65
|
70
|
76
|
|||
