380V 260KW PLC Ringlock scaffold automatic welding machine
Description
Product description
Renqiu Jinshi Welding Machine Co.,Ltd is a professional scaffolding welding machine manufacturer with over 20 years experiences. Our products include Vertical Pole Automatic Welding Machine, Ledger Automatic Welding Machine, Jack Base Welding Machine, Vertical Starting Pipe Welding Machine, Steel Prop Special Welding Machine, Hydraulic Punching Machine, Automatic Cutter, etc.

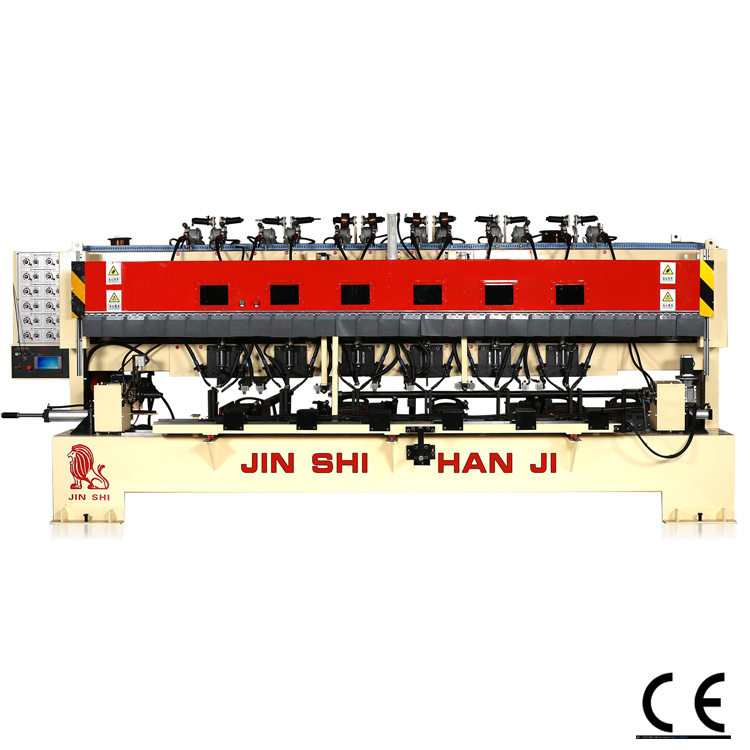

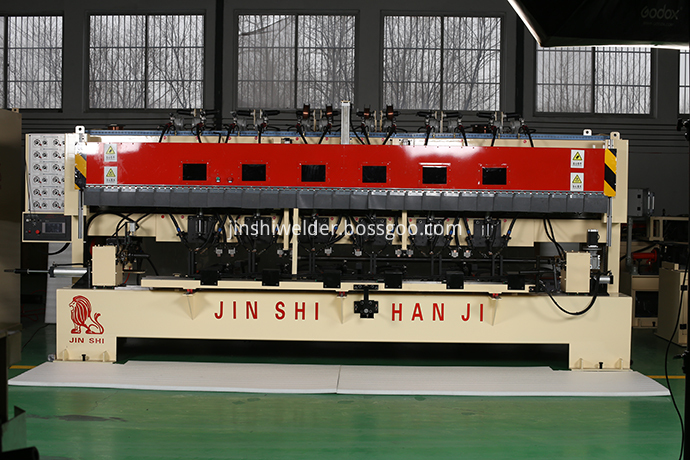

Ringlock Scaffolding Standard Automatic Welding Machine
Simple and convenient operation ,
stable and reliable performance,
set machine, electricity, gas control in one.

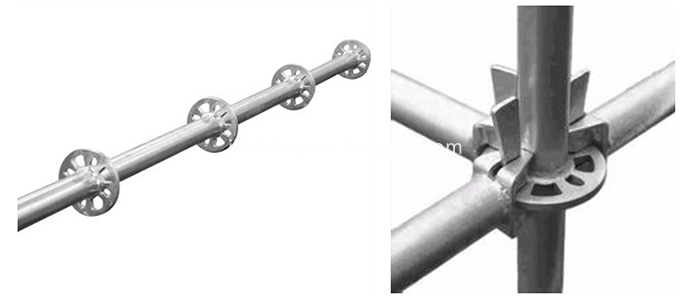

Ringlock Scaffolding that can be welded:
Products description
|
Types of Pole automatic welding machine |
Cuplock Scaffolding |
Ring lock Scaffolding (Manual spot welding) |
Ring lock Scaffolding (Automatic spot welding) |
Pulley-clip scaffolding |
Kwikstage Standard |
Starting pipe |
|
Voltage(V) |
380 |
380 |
380 |
380 |
380 |
380 |
|
Power(kw) |
120 |
260 |
260 |
260 |
120 |
80 |
|
Motor type |
stepper motor |
stepper motor |
stepper motor |
stepper motor |
servo motor |
stepper motor |
|
Duty cycle |
100% |
100% |
100% |
100% |
100% |
100% |
|
Air pressure adjustment range(MPa) |
0.2-0.8 |
0.2-0.8 |
0.2-0.8 |
0.2-0.8 |
0.2-0.8 |
0.2-0.8 |
|
Spindle speed(rpm) |
0.5-200 |
0.5-200 |
0.5-200 |
0.5-200 |
0.5-200 |
0.5-200 |
|
The speed of the wire feed (m/min) |
2--14 |
2--14 |
2--14 |
2--14 |
2--14 |
2--14 |
|
Spindle speed control mode |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
|
Torch adjustment method |
Pneumatic |
Pneumatic |
Pneumatic |
Pneumatic |
Pneumatic |
Pneumatic |
|
The main dimensions mm (L * W * H) |
5250*2250* 2450 |
5250*2250* 2450 |
5250*2250* 2450 |
5250*2250* 2450 |
5500*2300* 2350 |
3100*800* 2100 |
|
Weight(kg) |
3000 |
3000 |
3000 |
3000 |
3500 |
1000 |
Products details
1.Welding seam
uniform and good appearance reducing the grinding time and welding consumables

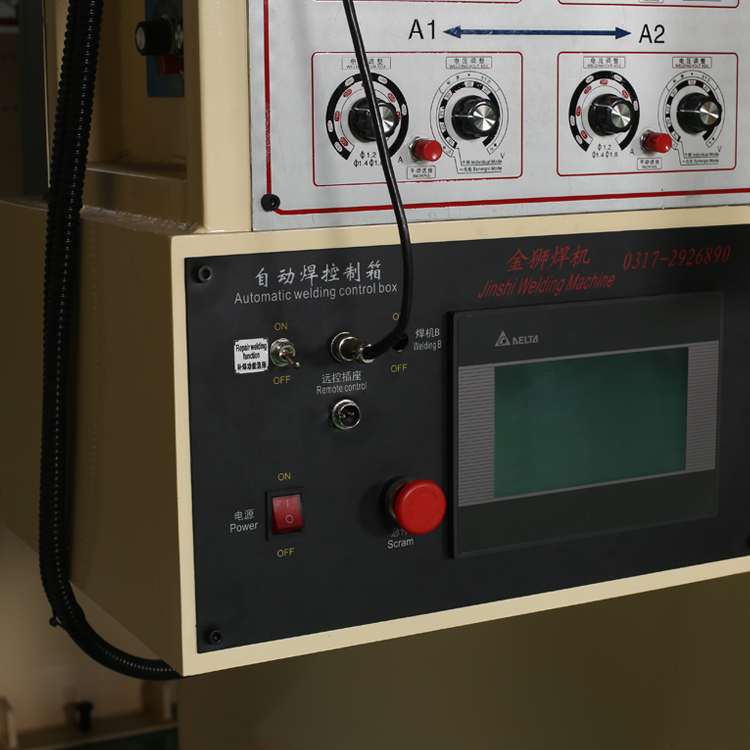

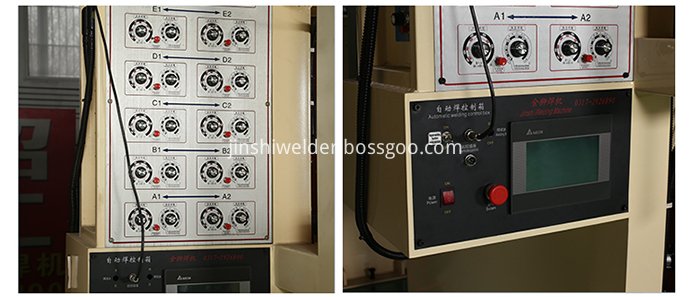

2. PLC industrial-level touch screen
high degree of automation, stable and reliable performance.
Control system components
imported or domestic well-known brands ,set machines, electricity, gas control in one.

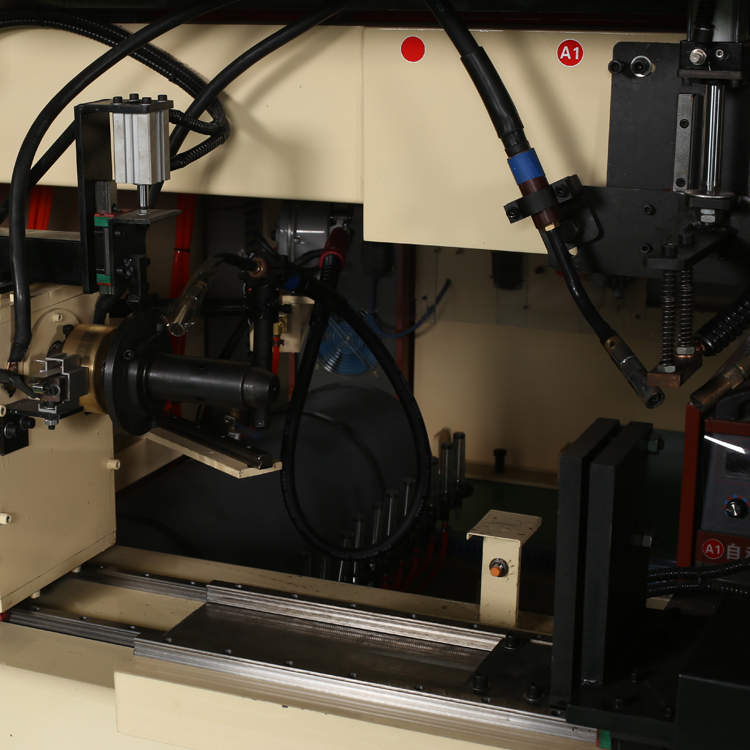

3. using pneumatic to clip the work piece, 13 machines working, the speed is very fast
