Diffusion expansion of welding machines for sale
Description
Product description
Equipment technical characteristics:
1. The furnace is horizontal or vertical structure, the pressure can be designed as a single pressure head or double head structure up and down;
2. Indenter drive shaft seal with my company's patented product, with no leakage and long life advantages;
3. Pressure sensors and displacement sensors (grating) all imported brands, long-term stability and high accuracy;
4. The furnace is equipped with temperature, pressure, water pressure, vacuum and other interlocking features, with a highly secure protection and prevention functions;
5 with remote control operation, remote fault diagnosis and remote program updates and other functions;

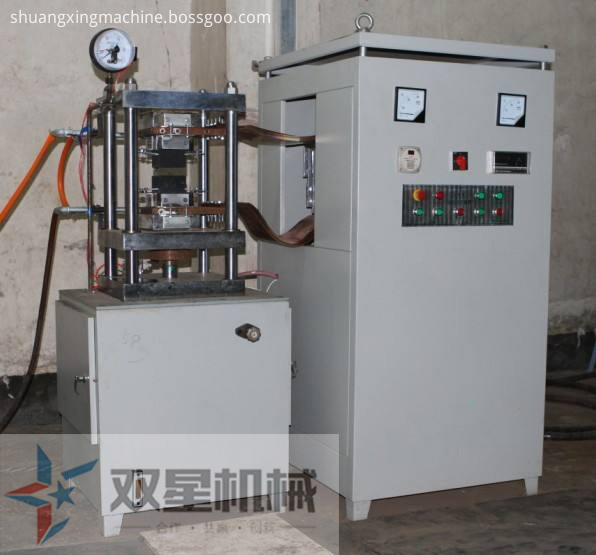

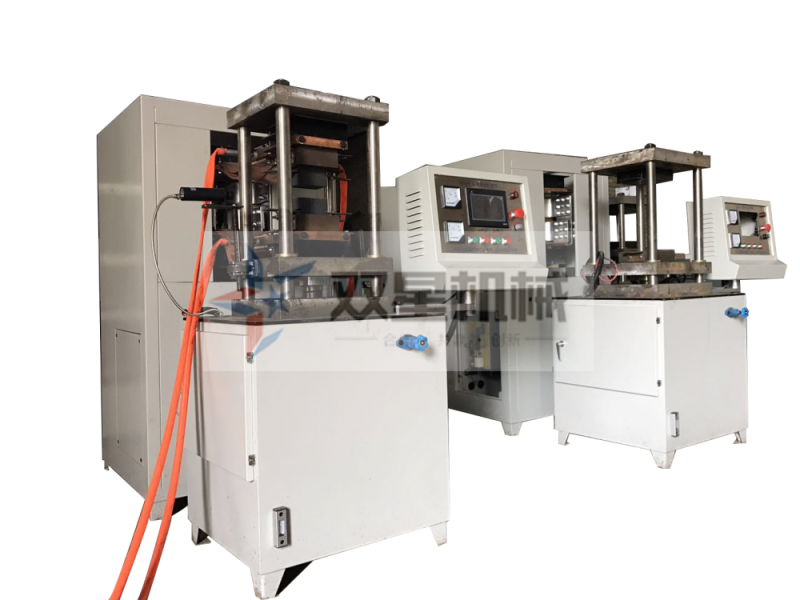

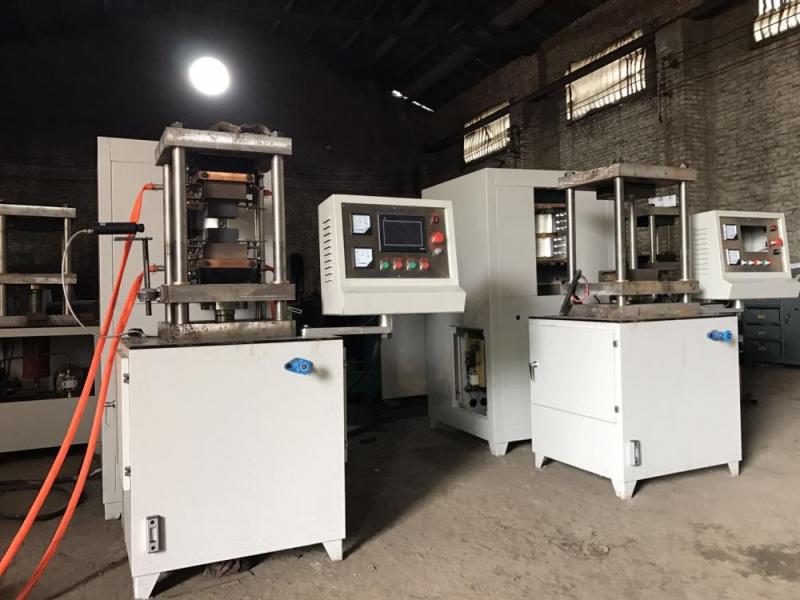

High molecular diffusion welding machine (also known as polymer diffusion welding machine, diffusion welding, copper strip welding machine, copper soft bonding welding machine, copper strip welding equipment,
aluminum foil welding machine, aluminum strip welding equipment, stainless steel soft bonding welding machine, Alloy cutter head welding machine), which is composed of main engine and control, "PLC control, touch
screen operation", is the necessary equipment for processing soft connection in each new energy battery connecting sheet industry. The main function is to realize multi-layer welding of copper foil, aluminum foil, etc. The
equipment mainly produces busbar expansion joints and soft connection conductive belt products urgently needed in the new energy battery, electric power, chemical industry and smelting industry. It can realize diffusion
welding between soft bus, soft bus and hard bus, high power soft bus, telescopic joint and soft connection conductive products, brazing special workpiece of opposite sex.
The company produces polymer diffusion welding, simple operation, safe use, durable, resource-saving, in line with environmental protection requirements. The product can be pressed and welded at the same time
according to the technological requirements of the product, Automatic control of production in accordance with specified procedures. The product model is complete: widely used in new energy battery, power, textile, oil,
coal and other industries, highway leads.
Main technical parameters of polymer diffusion welder:
Model number: HJ2-60-80-100-120-150-200-250-300KVA.
Power: rated working pressure 1-30mpa adjustable.
Welding stroke height: 160mm.
Work plane: 500*375mm.
Host transformer: 40-60-80-100-120-150-200-250-300KVA.
Welding platform area: 160*160mm.
Secondary voltage: depending on the model.
Primary coil inlet voltage: 380V.
Maximum load output current: determined by type number
