PP Geomembrane Wedge Welding
Description
Product description
Geomembrane Wedge Welding

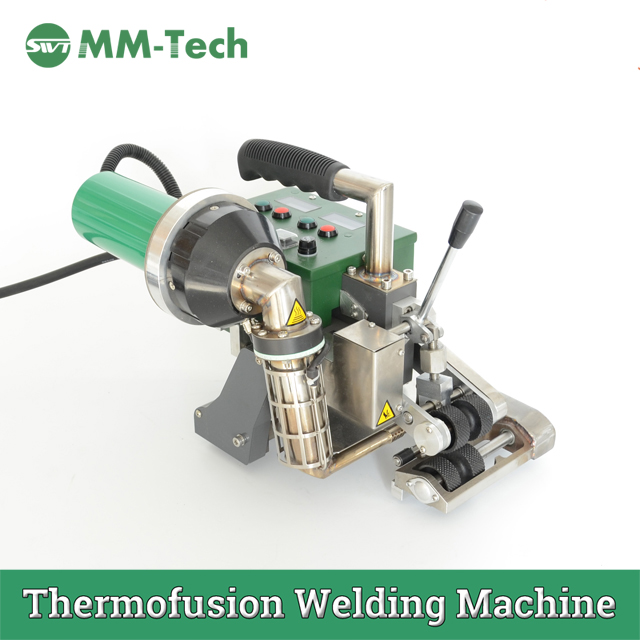

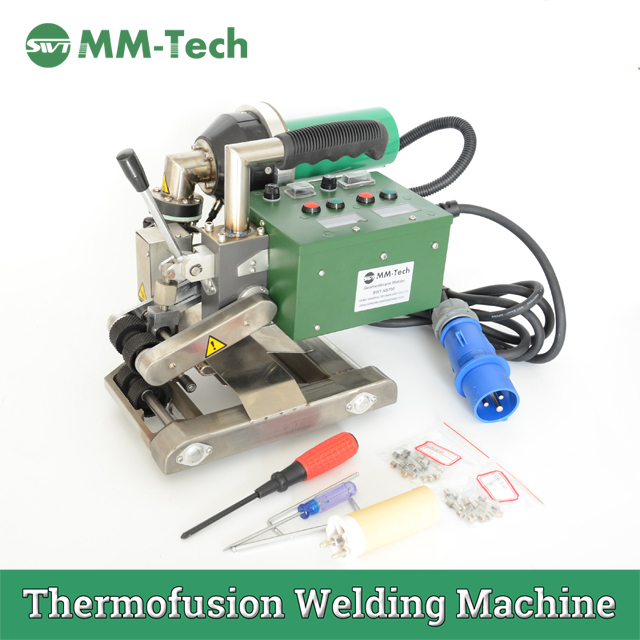

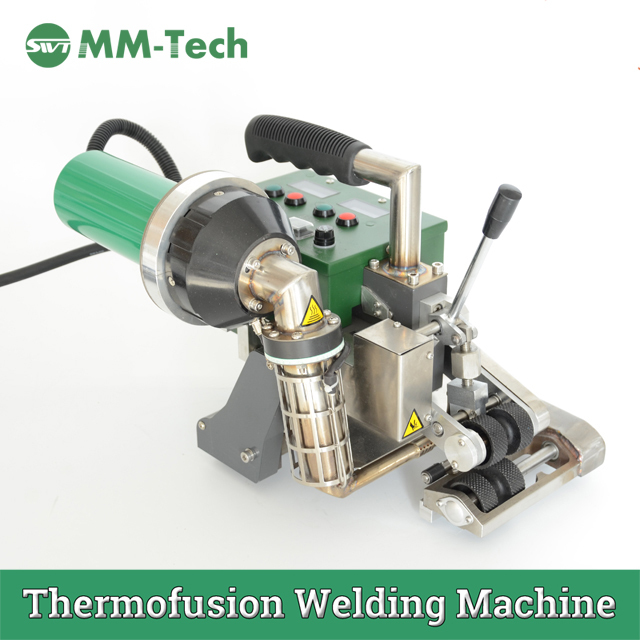

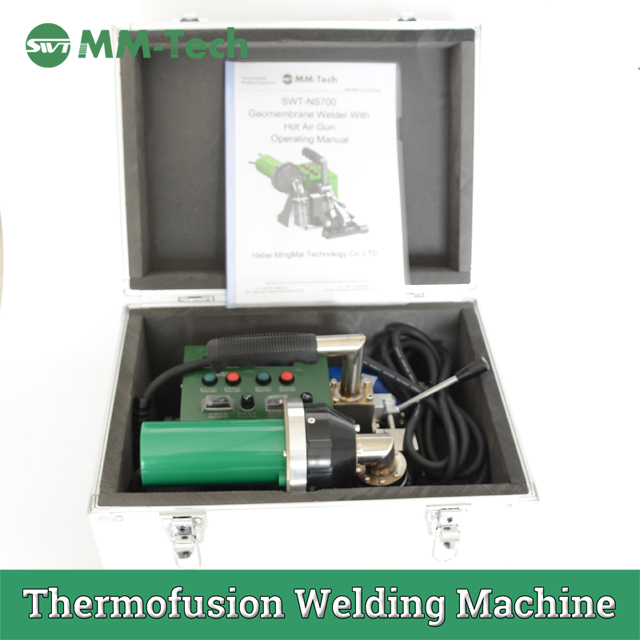

SWT-NS700 Geomembrane Welder Machines, Extrusion Welding Welder welds 0.5mm-2.0mm thickness membrane. which is adopts advanced hot wedge strcuture.Geomembrane Welder Testing With its high power,high speed and pressure.This Geomembrane Welder & Automatic Geomembrane Welding Machine PE Geomembrane Wedge Welder is specially desgined for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof constructions and other waterproofing projects.
SWT-NS700 Geomembrane Wedge Welding with stepless adjustable temperature and drive.
| Voltage | 220 V ± 5% |
| Frequency | 50/60Hz |
| Power | 1200W |
| Welding temp | 0-450 ℃ |
| Welding Speed | 0.5-8 m/min |
| Thickness of material | 0.5-2.0 mm |
| Welding width | 15 mm *2, interior cavity 20 mm |
| Overlap width | 120 mm |
| Seam Strength | ≥85% base material ( tensile resistant in shear direction) |
| Weight | 7.5 Kg |
| Size | 350(L) X 267mm(W) X 267mm(H) |
Geomembrane Welder is an CNC Hot Wedge Welding Machine for overlap welding and manufacturing of films and geomembrane liners in tunnels as well as earthwork and civil engineering. The heat is transmitted by using the best combination of contact and hot air. Especially well-suited for overhead welding in install geomebrane, civil engineering, tunnel engineering.
