HDPE Geomembrane Liners and PVC Welding Machines: Solutions for Effective Hot Melt Plastic Film Welding
Contact Now
Description
Product description
Products Description
HDPE Geomembrane Liner for Welding Hot Melt Plastic Film Welding Machine Geomembrane for Pvc PVC Welding Machine
|
Model
|
BT-810
|
|
Rated voltage
|
230V/customized
|
|
Rated power
|
800W/1100W
|
|
Frequency
|
50/60HZ
|
|
Heating temperature
|
50-500℃
|
|
Welding speed
|
1-5.5m/min
|
|
Welding material thickness
|
Single layer film thickness
Rubber wheel 0.3-1.5mm
Steel wheel 1.0-2.0mm
|
|
Welding seam width
|
three seams: 16mm*3, cavity 12mm; two seams: 17mm*2, cavity 12mm
|
|
Weld strength
|
≥90% base metal (tensile strength in shear direction)
|
|
Overlap width
|
10cm
|
|
Insulation level
|
Class II
|
|
Body weight
|
7.5kg
|
Send us your inquiries
Advantage：
-Standardized production
-State-of-the-art control system
-Excellent pressure regulation
-State-of-the-art control system
-Excellent pressure regulation
-Exceptional roller mechanism
-Superior heating system
-Waterproof
-Superior heating system
-Waterproof
Applications:
-Anti-seepage applications
-Aquaculture
-Roofing construction
-Sewage treatment
-Tunnels
-Subways
-Aquaculture
-Roofing construction
-Sewage treatment
-Tunnels
-Subways
Details Images

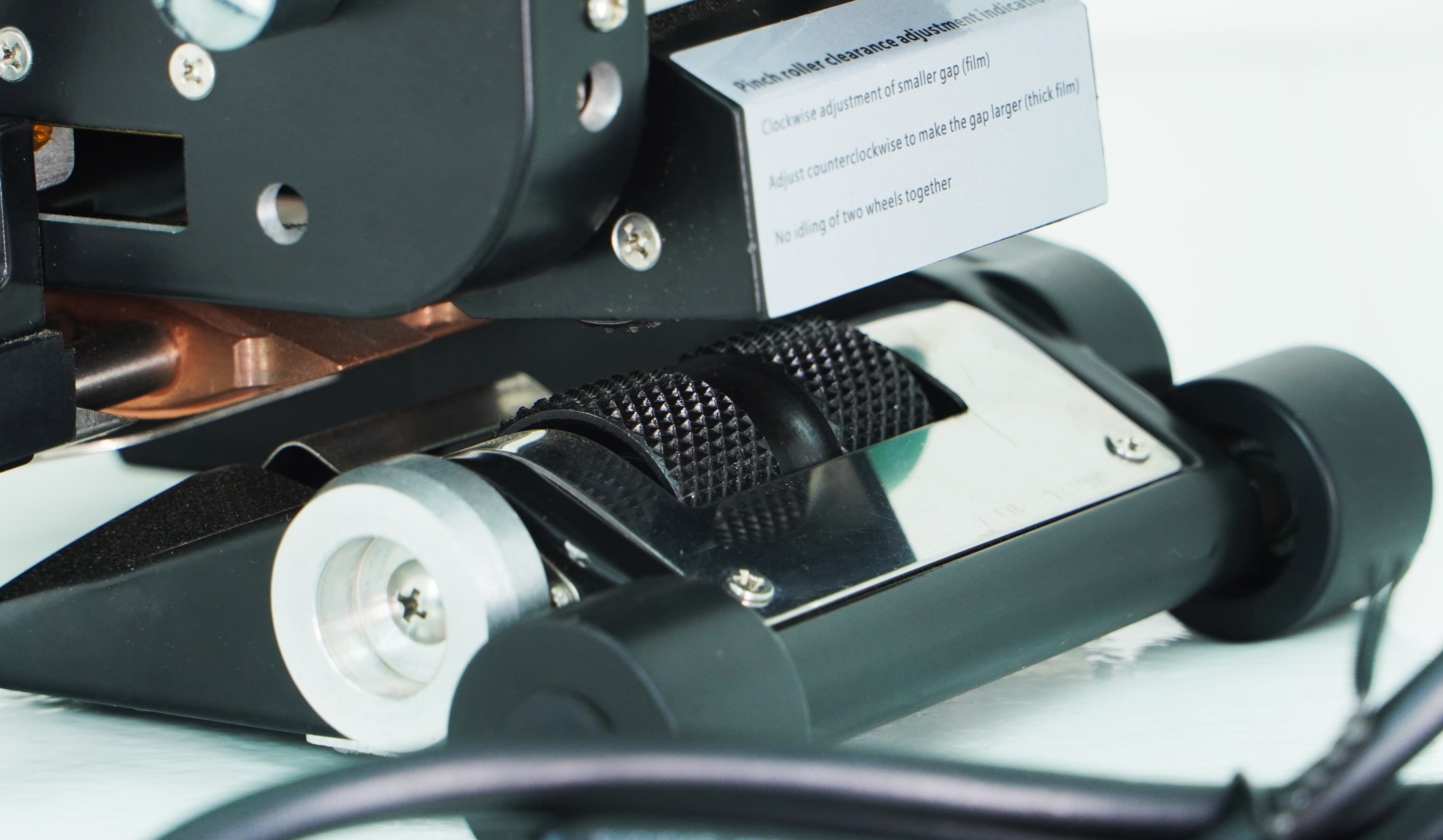

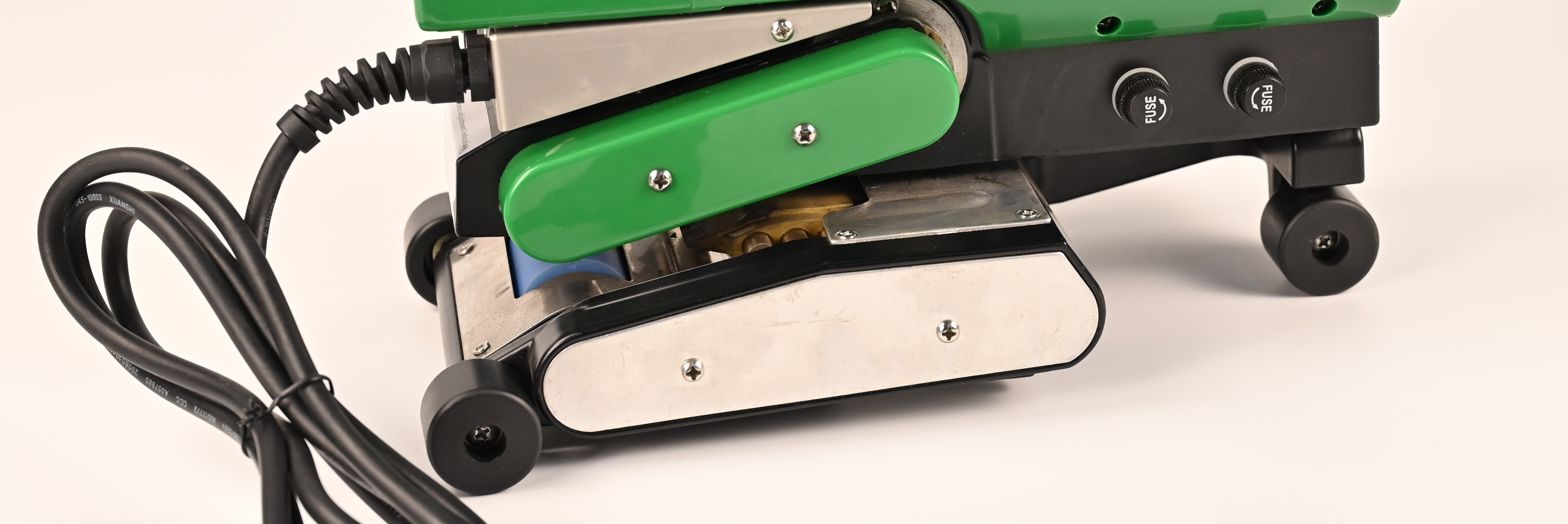

-Aluminum chain chamber is used instead of plastic. It is not easy to be scratched in the work, and the use efficiency of the machine is improved.

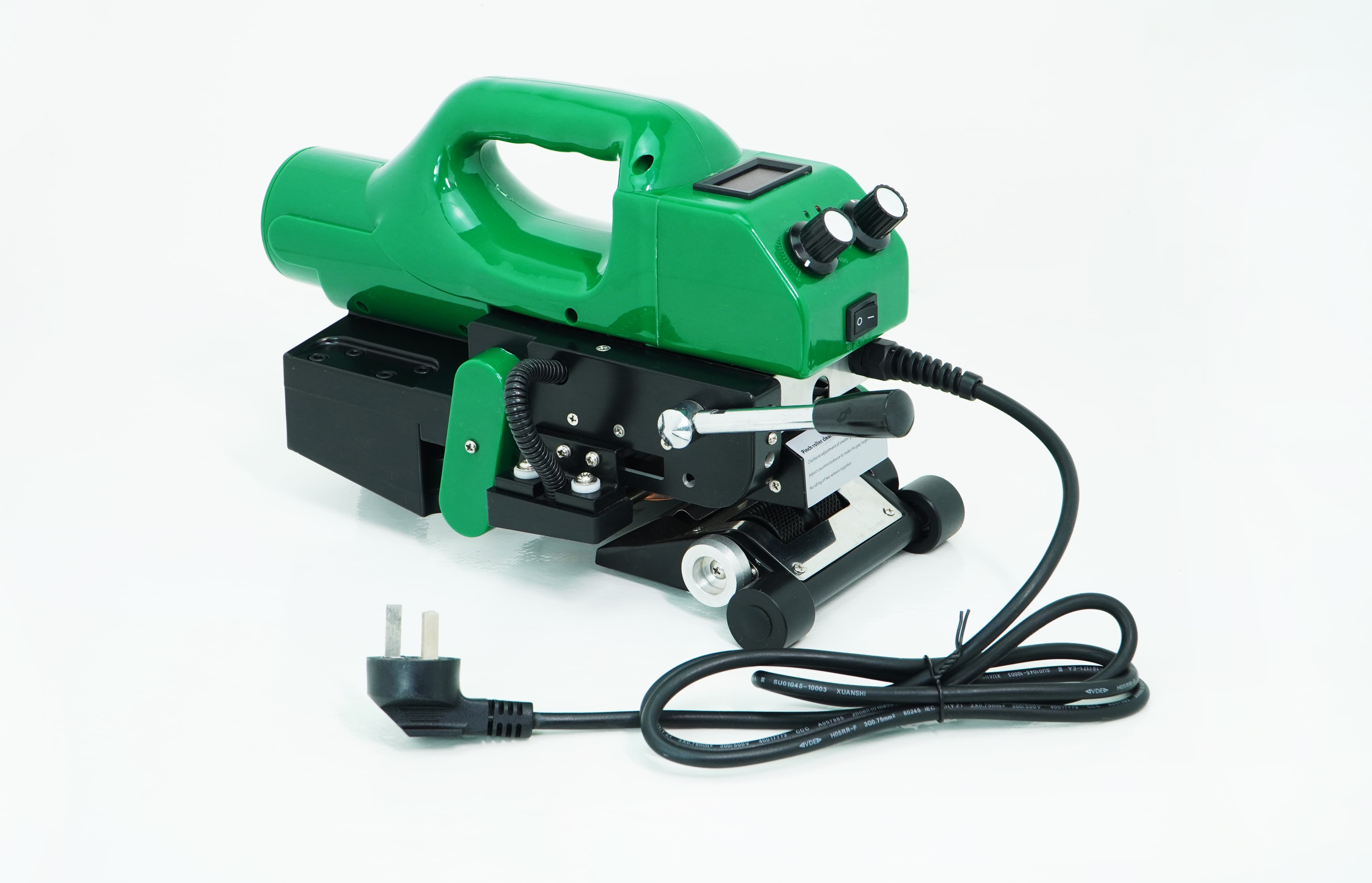

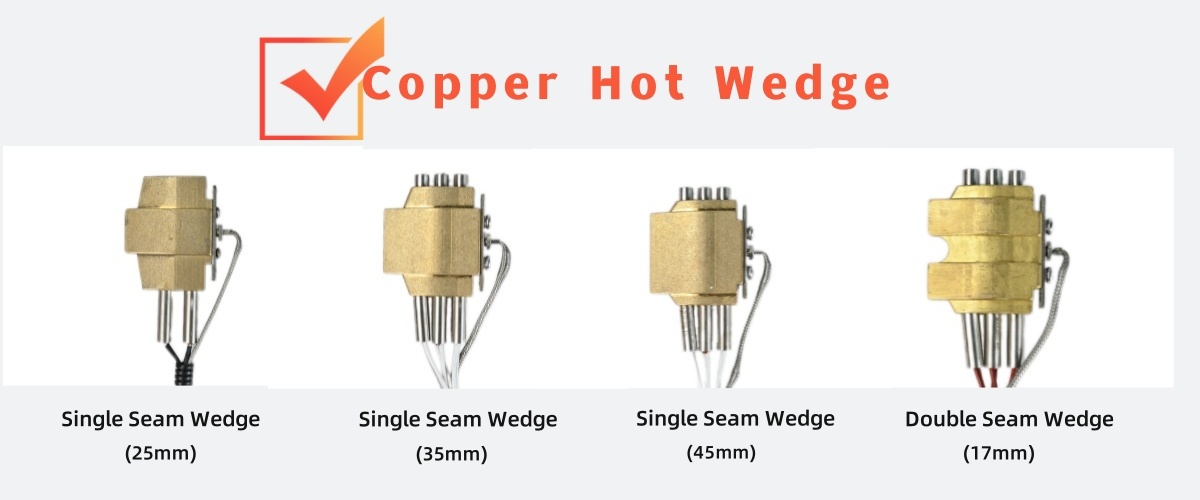

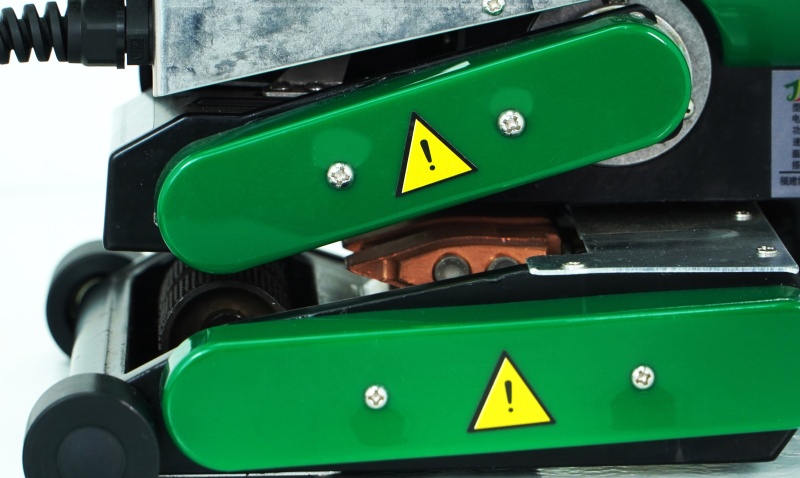

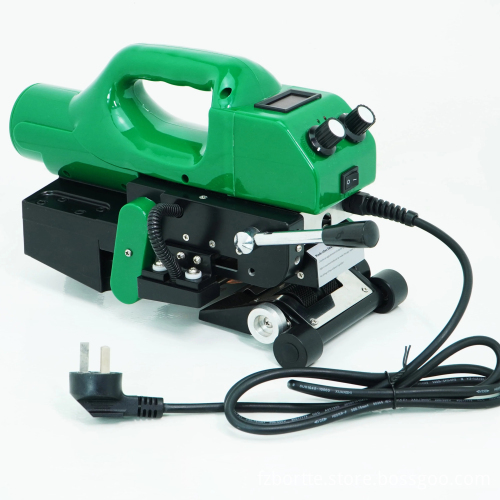

-The BT810 Geomembrane welding machine model features small size and exceptional thermal wedge design.
-It is also lightweight for convenient usage.
