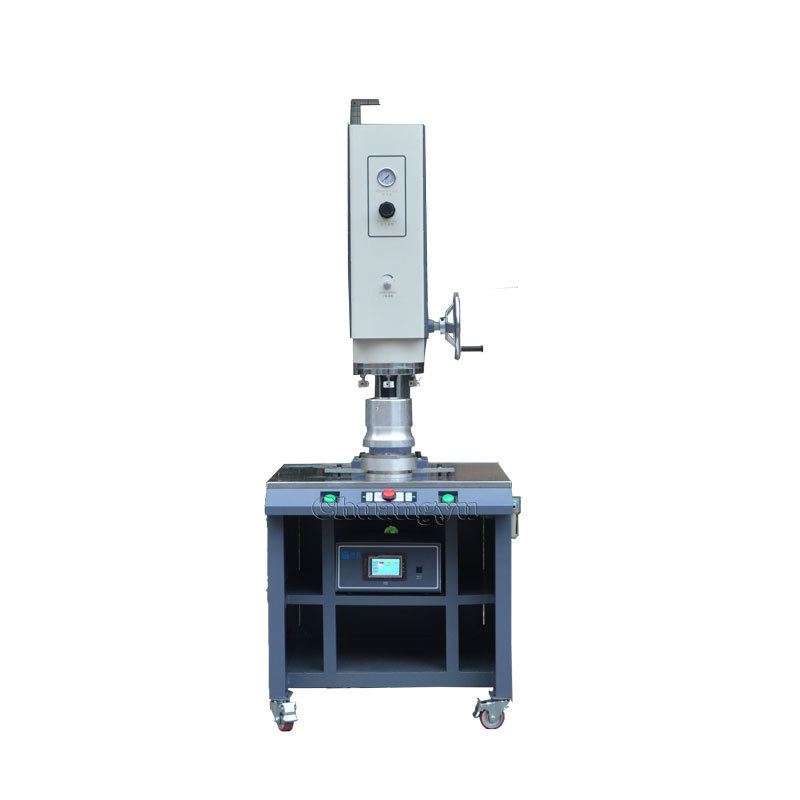

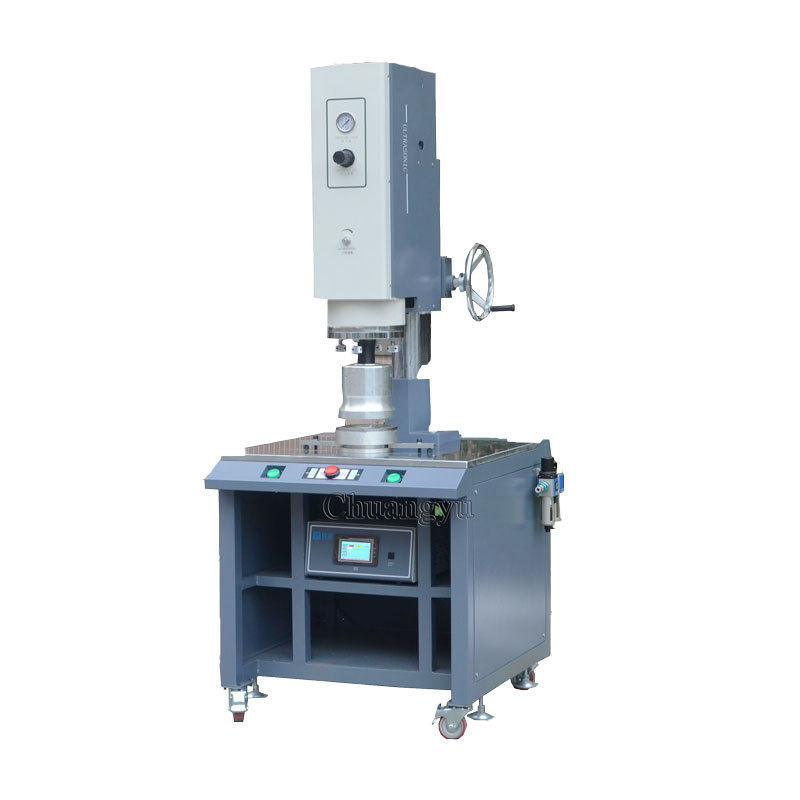

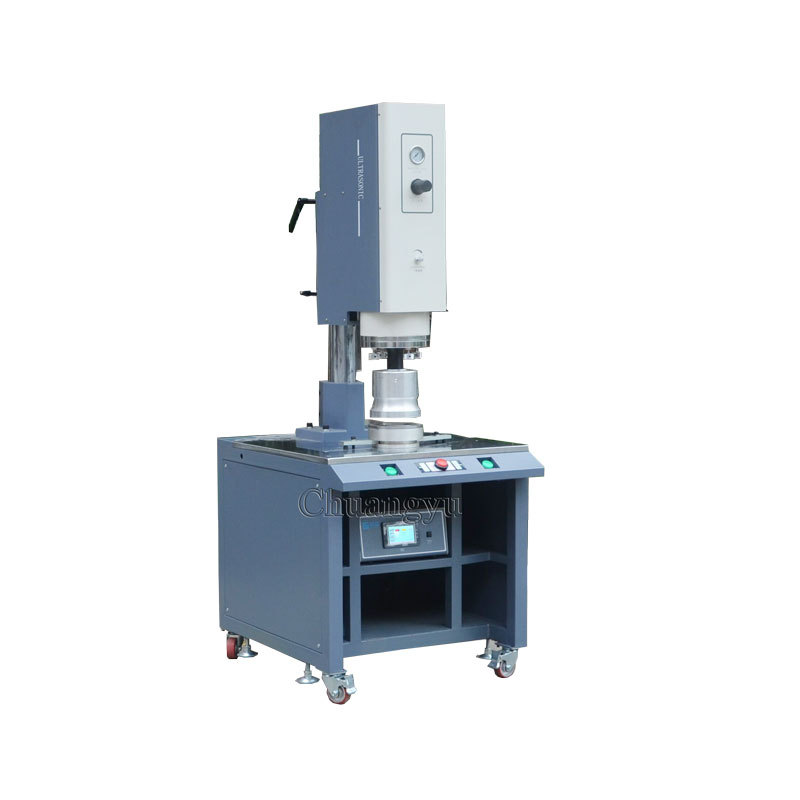

Ultrasonic Sealing Machine for Transparent Plastic Welding in Comic Books (15kHz, 4200W/6000W)

Product ID: 68137109

Ultrasonic Sealing Machine for Transparent Plastic Welding in Comic Books (15kHz, 4200W/6000W)

Contact Now

Description

Product description

15khz 4200w 6000w Comic Books Transparent Plastic Welding Machine Ultrasonic Sealing Machine

Specification

Technical parameter of ultrasonic welding machine: 1. Ultrasonic Frequency: 15khz 2. Watts: 4200w~6000w （customized） 3. Air pressure: 0.1~1.0Mpa 4. Input voltage: AC220V~240V 5. Welding horn stroke: 100mm 6. Frame structure: circular column 7. Output time： 01~9.99s 8. Work mode :button / Touch screen 9. Control mode: button/ foot pedal 10. Overall dimension：750x800x 2000mm 11. Net weight: 350kg 12. Intelligence management: amplitude/quality/data/safety 13. Generator circuit system: digital intelligence automatic frequency-tracking 14. Control system: QDSONIC 15. Language : English & Chinese 16. System safety mode : Password 17. Operation screen: 4.3 touch screen

Features:

1. Use of original imported super-power transducer.
2. Integrated structures, adoption of a safety scale adjustment control.
3. Computer intelligent control, accuracy is up to thousandth of a second
4. Mold level adjustment, frame-mode simple and quick
5. Automatic body -motor up, down, the first in domestic.
6. Base level regulation , frame-mode fast.

What is ultrasonic welding process? Ultrasonic welding is a solid-state welding process in which joining of materials (metals and plastics) occur without melting. In ultrasonic welding, high-frequency mechanical vibrations are transferred to the parts to be joined, which cause sliding one part over another.

Ultrasonic welding is an especially gentle joining technology for thermoplastic materials and nonferrous metals. Manual work stations are used in many ways in the plastics processing industry. The user manually loads the plastic components to be joined and removes them again from the ultrasonic welding machine after the weld process. The components can be welded with one or more ultrasonic sonotrodes depending on their size and geometry. Partially automated solutions support the work process for the production of high-quality thermoplastic products, but we also offer suitable platforms for copper and aluminum, i.e. for LI battery and cable harness applications. The development and production of all Chuangyu's ultrasonic welding machines, whether they are series or customized machines

Packing & Delivery

15khz 4200w 6000w Comic Books Transparent Plastic Welding Machine Ultrasonic Sealing Machine will be packed by several export wooden case, assemble will be according to instruction
