Longitudinal Seam Welding Machine
Description
Product description
Longitudinal Seam Welding Machine ZF500
Control system of the Welding Robot: PLC control system is advanced, high degree of automation, stable and reliable operation. The Welding Equipment is applied to the welding work of the external weld seam for shells. Welding main for thin sheet metal.
Welding modes: TIG welding.
Type of welding source: WSM-400I.
Technical parameters
|
Supply |
Three-phase, 50hz AC200v |
|
Welding Voltage |
Three-phase, 50hz AC 380v |
|
Thickness of products |
0.5~3.0mm |
|
Diameter of products |
800mm≥φ≥80mm |
|
Length of products |
≤500mm |
|
Moving speed range |
100~1800 mm/min |
|
Welding troch lift stroke |
100mm |
|
Range trimming lift stroke |
Axis y±30mm.axis z±30mm |
|
Max. Welding current |
500a |

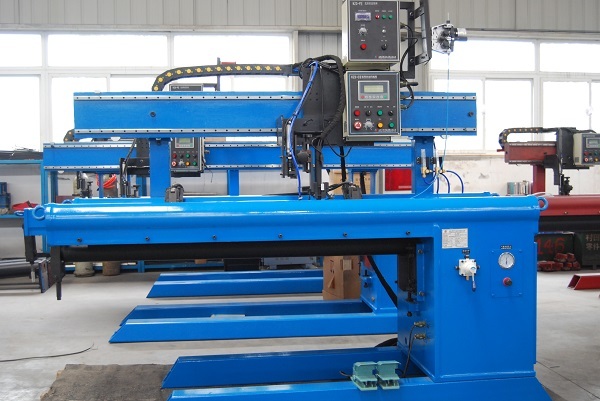

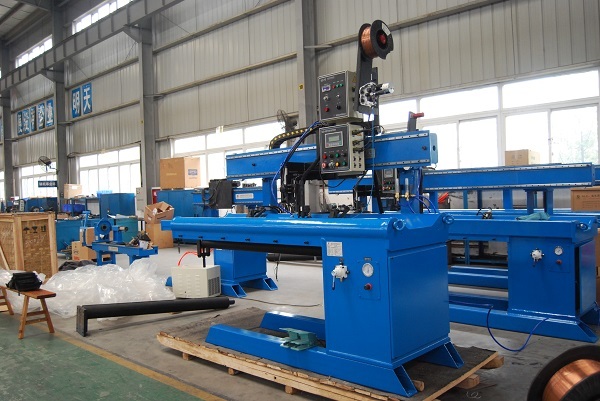

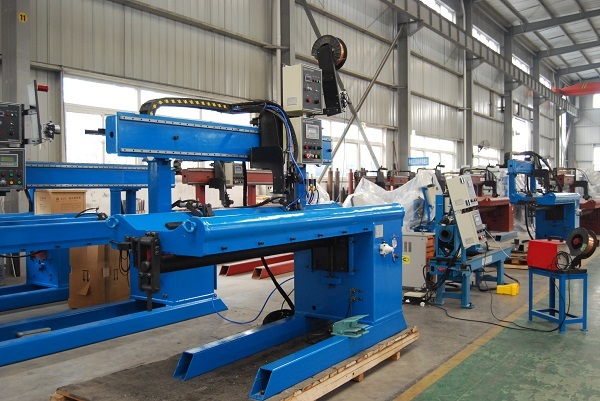

Pictures of Products
Drawing
Packaging & Shipping
1.Outside package: Sandard export wooden cases.
Inner package: stretch film; or According to the customers'orders.
2. Delivery and Shipping:30-60 days after the deposit received.
Company Information
Shijiazhuang Longxuan Trading Co., Ltd. is located in Shijiazhuang, the capital of Hebei Province with convenient transportation. Our company was established in Feb. 2012. Our company is professional in supplying industrial equipment, covering pipe processing machinery, automatic welding equipment, cutting machine, etc. Our company always adheres to "credibility and integrity, efficiency" purpose and develops rapidly, creating excellent results and our company has fostered a good image in suppliers and foreign customers. And our company has established long friendly cooperative relationships with many high-tech machinery manufacturing enterprises.
Our company will continue to provide our clients with professional quality integrated solution in automatic welding, cutting and robot welding.
For further relevant product images or details,please send your inquire Details in the below,click "Send" or contact me directly!
