Product ID: 68137101

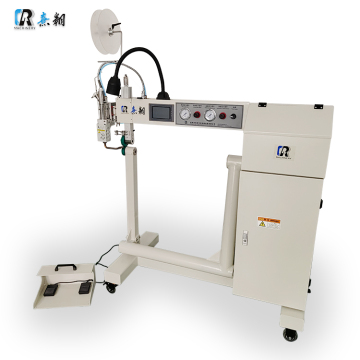

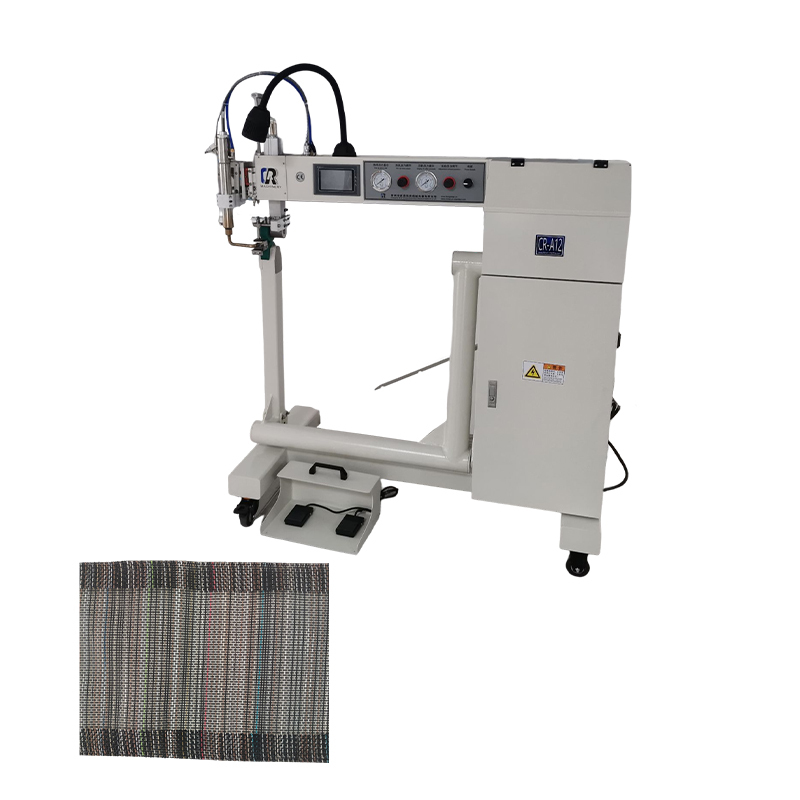

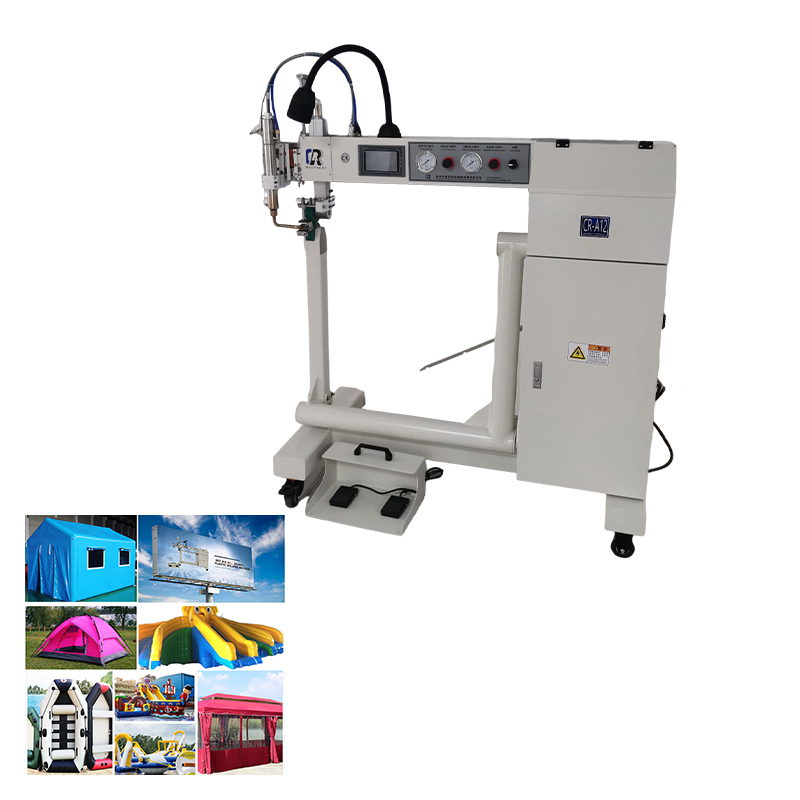

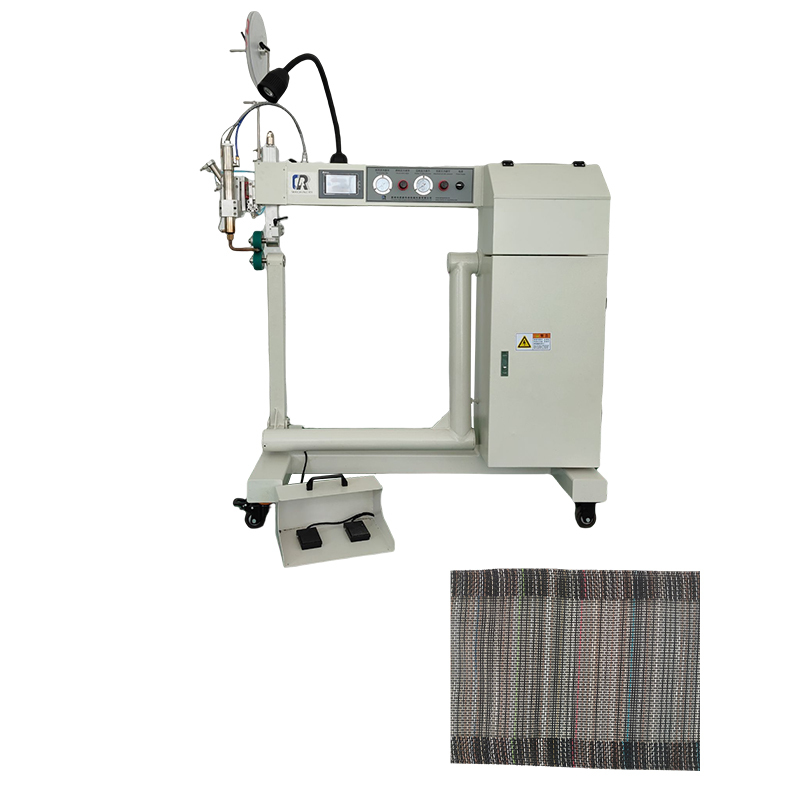

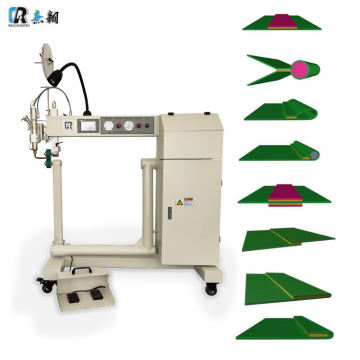

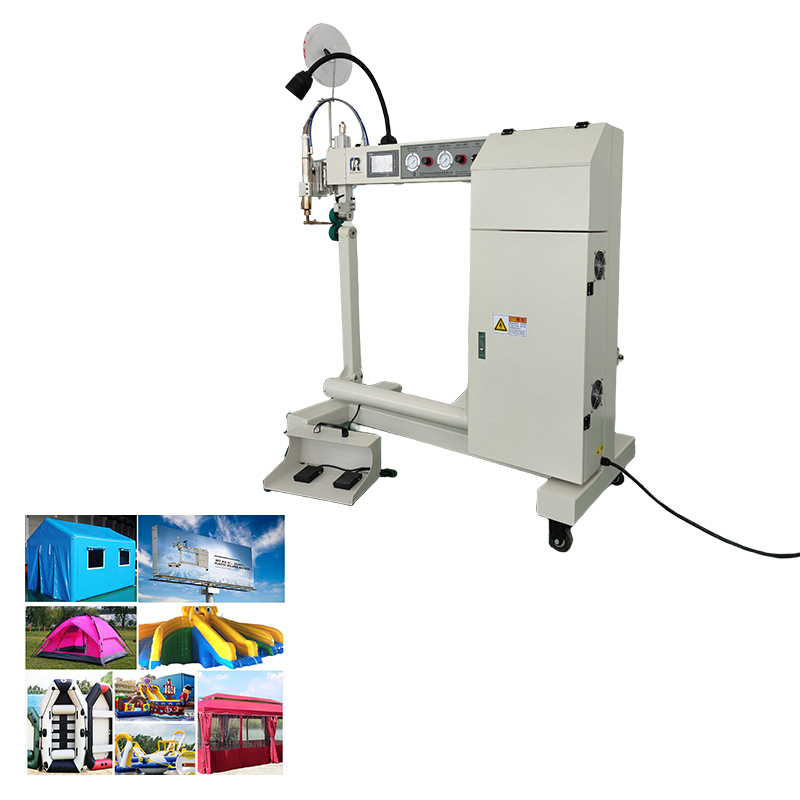

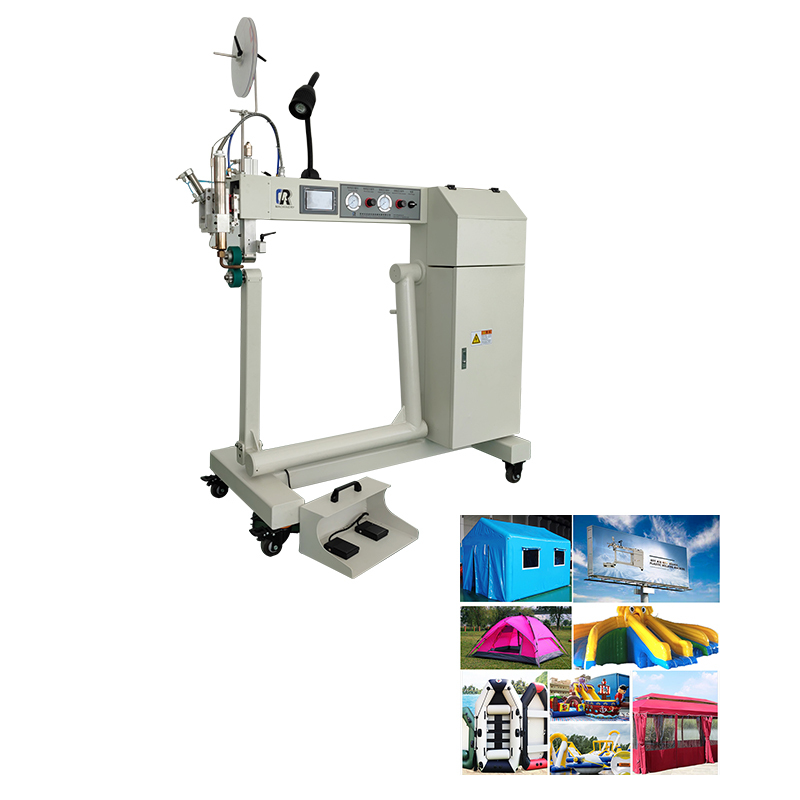

Hot Air Seam Sealing Welding Machine for Inflatable Bouncy Castles and Trampolines
Contact Now
Description
Product description
Feature of Hot Air Hot Wedge Plastic Welding Machine
1. This machine adopts advanced technology and has functions of hot air and hot wedge.Hot air and hot wedge functions can be switched, easy to replace. It can meet various welding requirements of TPU, PVC,PE,PVC mesh cloth,etc.
2. It adopts editable PLC control system. high-definition touch screen display.Chinese and English system,can be programmed according to user requirements, microcomputer automatically controls the whole machine, simple operation, stableaction performance,and low failure rate. 3.Auto temperature control with warning device for the up limit temperature. 4.Auto compensation, auto micro back to reduce empty welding.
5.Double pedals control, the upper and lower pressing rollers and therear dragging rollers can realize theindependent drive of the motor, and the speed differential function can be set to effectively prevent the shrinkage and wrinkling of the elastic fabric.
6.It could work up to 24 hours.
7. The unique heating structure can reach up to 750℃, the temperatureis automatically tracked and controlled by a computer,and the accuracy can reach ±1℃.
8. Super strong torsional dynamic design.
9.Blowing-in hot air is filtrated without any water and oil.
10. The hot wedge function is noiseless, energy-saving, environmentally friendly and smoke-free,with strong welding fastness,no wrinkles,and no bright edges.
11.The equipment can set differentparameters according to different welding materials, and automatically store them. which is convenient to call and improve work efficiency.
12. The super wide hot welding space with worktable, the worktable can be dismantled, it is more suitablefor the processing of medium,large and super large tents. car covers.rubber boats.outdoor barracks,inflatable boats, inflatable bouncy trarmpoline,tarpaulin,bannerandother products.
1. This machine adopts advanced technology and has functions of hot air and hot wedge.Hot air and hot wedge functions can be switched, easy to replace. It can meet various welding requirements of TPU, PVC,PE,PVC mesh cloth,etc.
2. It adopts editable PLC control system. high-definition touch screen display.Chinese and English system,can be programmed according to user requirements, microcomputer automatically controls the whole machine, simple operation, stableaction performance,and low failure rate. 3.Auto temperature control with warning device for the up limit temperature. 4.Auto compensation, auto micro back to reduce empty welding.
5.Double pedals control, the upper and lower pressing rollers and therear dragging rollers can realize theindependent drive of the motor, and the speed differential function can be set to effectively prevent the shrinkage and wrinkling of the elastic fabric.
6.It could work up to 24 hours.
7. The unique heating structure can reach up to 750℃, the temperatureis automatically tracked and controlled by a computer,and the accuracy can reach ±1℃.
8. Super strong torsional dynamic design.
9.Blowing-in hot air is filtrated without any water and oil.
10. The hot wedge function is noiseless, energy-saving, environmentally friendly and smoke-free,with strong welding fastness,no wrinkles,and no bright edges.
11.The equipment can set differentparameters according to different welding materials, and automatically store them. which is convenient to call and improve work efficiency.
12. The super wide hot welding space with worktable, the worktable can be dismantled, it is more suitablefor the processing of medium,large and super large tents. car covers.rubber boats.outdoor barracks,inflatable boats, inflatable bouncy trarmpoline,tarpaulin,bannerandother products.
|
Product name
|
Hot Air Hot Wedge Plastic Welding Machine
|
|
|
|
|||
|
Model
|
CR-A12
|
|
|
|
|||
|
Voltage
|
AC 220V 50-60HZ
|
|
|
|
|||
|
Power
|
3500W
|
|
|
|
|||
|
Heat control
|
Up to 750°C
|
|
|
|
|||
|
Speed
|
1-25m/min
|
|
|
|
|||
|
Pressure
|
0.35-0.5Mpa
|
|
|
|
|||
|
Roller width
|
Optional 20/30/40/50mm
|
|
|
|
|||
|
Nozzle width
|
Optional 20/30/40mm
|
|
|
|
|||
|
Dimension
|
1500*750*1600MM
|
|
|
|
|||
|
Weight
|
350kgs
|
|
|
||||
