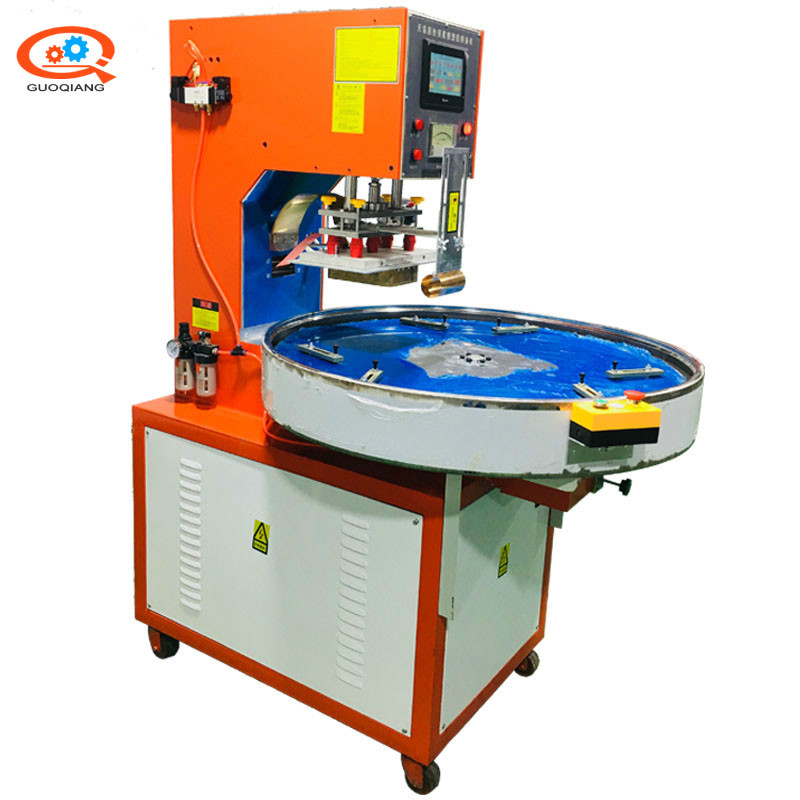

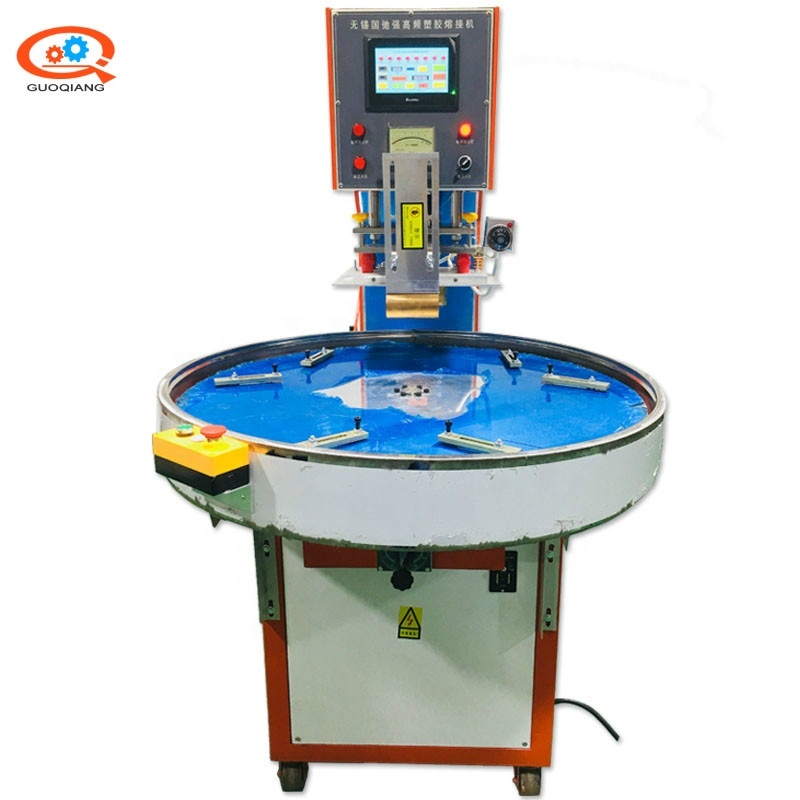

Semi-Automatic High Frequency Blister Clam Shell Paper Card Packing Machine
Description
Product description
Turntable sealing machine series HF Welder is equipped with special high precision rotary indexing gear controlled by frequency inverter. The machine operation is based on step by step technology with possibility of multiple welds in one cycle. with the use of touch screen PLC, operator can easily input multiple weld/seam recipes. machines have production power outputs from 5kW to 20kW for multi-cavity production loads and specialized products.
- Turntable with 2, 4, 6 or 8 workstations
- Pneumatic or hydraulic welding press
- 1, 2, 3 or 4 HF welding heads operation
- Production speed 5-10 cycles/min
- Touch screen control panel with PLC
- High frequency generator integrated with press
- Fully automated HF weld cycles with adjustable rotating speed
- Precision (to 0.1mm) indexing rotary work table
- High pressure sealing with enhanced ram guidance
- Safety light curtains on all work stations
|
Model No |
GCQ-B5KW |
GCQ-B8KW |
GCQ-B10KW |
|
Voltage |
AC220/380/400/415/440V 50/60HZ(Customized) |
||
|
Output Power |
5KW |
8KW |
10KW |
|
Input Power |
8KVA |
10KVA |
12KVA |
|
HF Frequency |
27.12MHZ ±0.6% |
||
|
Oscillation Tube |
8T85RB |
8T85RB |
8T85RB |
|
Anti-spark Tube |
NL-5557 |
NL-5557 |
NL-5557 |
|
Gap of Electrode |
200mm |
200mm |
200mm |
|
Size of upper electrode |
200×300mm |
250×350mm |
300×400mm |
|

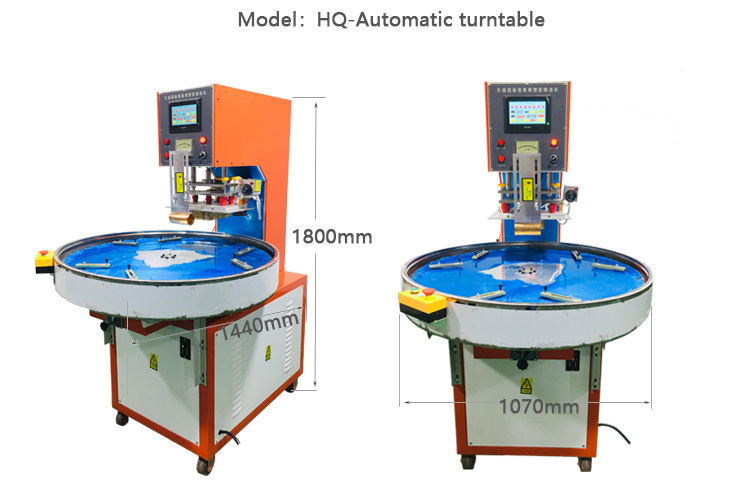

Machine Size |
1100×1650×1750 |
1100×1650×1750 |
1100×1650×1750 |
|
Machine Weight |
400KG |
420KG |
450KG |
