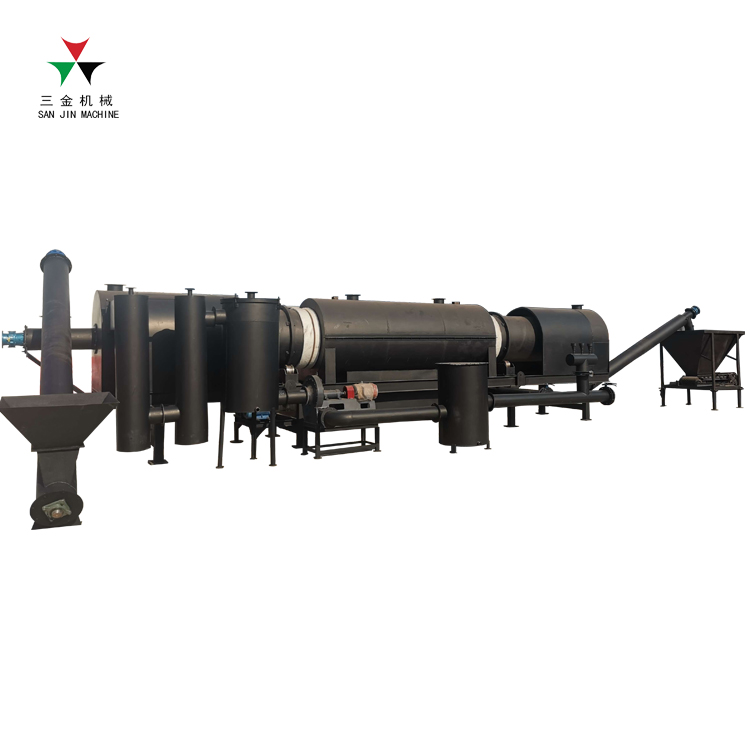

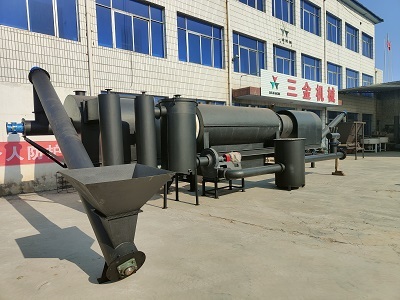

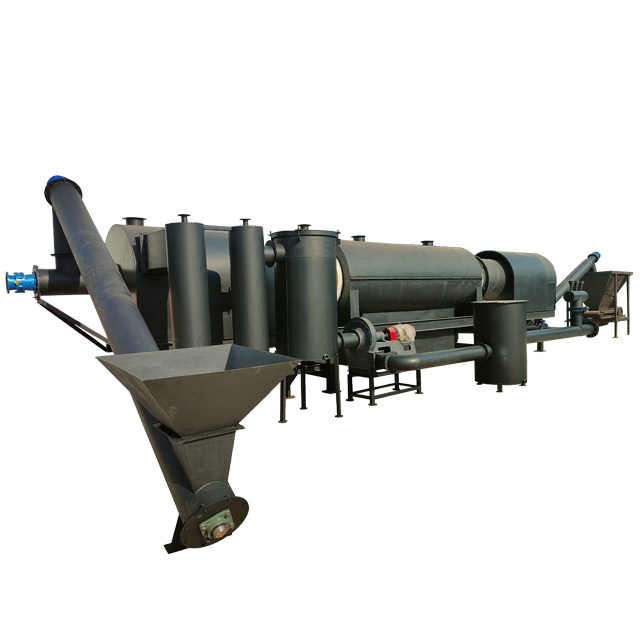

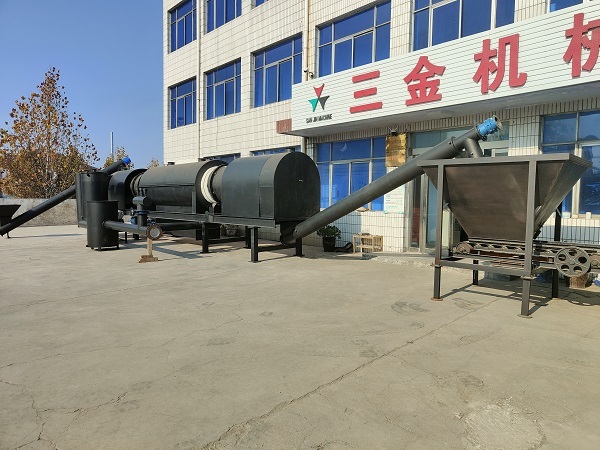

Hot Air Flow Continuous Rotary Biochar Pyrolysis Charring Furnace for Charcoal Production
Contact Now
Description
Product description
Hot air flow continuous rotary biochar pyrolysis charring furnace stove kiln for making charcoal
The continuous carbonization furnace is mainly used for the carbonization of biomass materials. The equipment is still using the principle of gasification carbonization and adopts advanced smoke-free environmental carbonization process:The whole set of equipment consists of gasification system (liquefied gas gasification machine), purification system (spray tower, cyclone dust removal, water cooling, oil water separator, fine filter) and control system (control cabinet). The whole carbonization process is automated production, automated operation.
Different from the energy-saving and environmentally-friendly continuous carbonization machine, it has two significant advantages: First, the main machine has a large volume, high carbonization rate, and strong production capacity, and can be produce 0.3-0.8 tons of carbonized products per hour;
Second, the cost is low and the practicability is strong, which satisfies the objective requirements of the initial small entrepreneurs' investment and small benefits. The carbonization machine is a carbonized wood material such as wood chips, rice husks, peanut shells, plant straws, bamboo chips, coconut shells, palm shells, bark, etc. (volumes of less than 10 cm in size) are subjected to dry distillation under high temperature conditions in the furnace, Ideal equipment for oxygenation and high carbonization rates.
THE TECHNICAL PARAMETERS
|
Model
|
1000
|
1200
|
|
|
Feed power
|
3kw+1.1kw
|
3kw+2.2kw
|
|
|
Cooling and discharge power
|
3kw+3kw
|
3kw+3kw
|
|
|
Drive motor
|
5.5kw
|
7.5kw
|
|
|
Fan motor
|
7.5kw
|
11kw
|
|
|
Diameter*length
|
1m*12m
|
1.2m*12m
|
|
|
Output capacity
|
600-800kg/h
|
800-1200kg/h
|
|
|
Working continuously
|
24H
|
|
|
|
The feed temperature
|
350-450℃
|
|
|
|
The raw material size
|
≤3cm
|
|
|
|
The raw material moisture
|
≤15%
|
|
|
MORE DETAILS
Raw Materials
Environmental protection continuous type carbonization furnace is suitable for woodiness materials which containing carbon (volume below 15mm granular), such as coconut shell, apricot shell, hemp stalk, sawdust, rice husk, bamboo, eucalyptus, mushroom residue, furfural residue, coffee grounds, palm shell, peanut shell, walnut shell, etc.
Flue gas recycling
It is the better machine for dry distillationand anaerobic carbonization under high temperature and the carbonization rate is high. The advanced technology of recovering, purifying and circulating combustion of combustible gases such as carbon monoxide, methane and produce smoke lead the carbonization process is adopted reasonably.
Working Principle
The biomass material is ignited in the heating furnace. The flue gas produced by burning after spraying, cooling, purification process, it produces the pure combustible gas (carbon monoxide, methane, ethane, etc.).As the early stage of the carbonization of heat source, through the early warming of the carbonized, to feed the material when the heat reaches the special temperature.The combustible gas that carbonation process of flue gas by spraying, cooling, purification process into the burned secondary.
According to this method of circulation, sufficient to achieve self-sufficient, then achieve the effect of energy-saving.The flue gas through purification, to reach the environment production and flue gas emissions-free. Which is reached to the standards of waste gas emptying. The whole carbonization process is automated production, automated operation.
According to this method of circulation, sufficient to achieve self-sufficient, then achieve the effect of energy-saving.The flue gas through purification, to reach the environment production and flue gas emissions-free. Which is reached to the standards of waste gas emptying. The whole carbonization process is automated production, automated operation.
DETAILS IMAGES

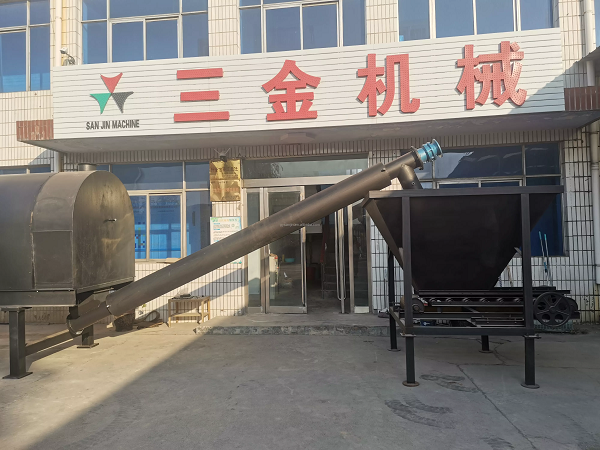

Feed conveyor
