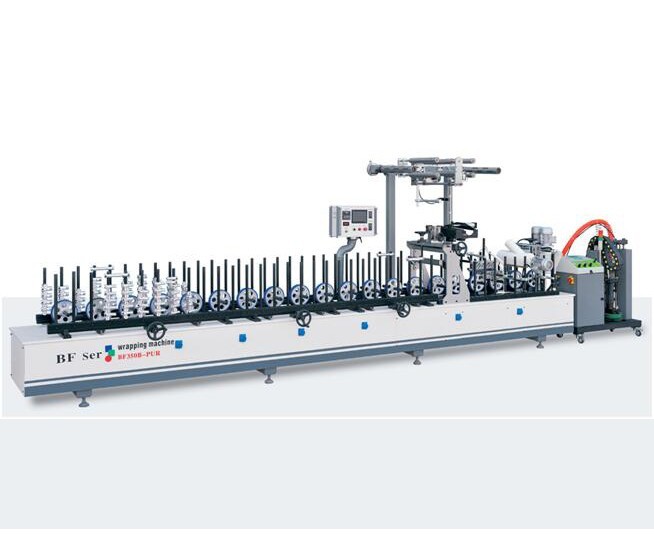

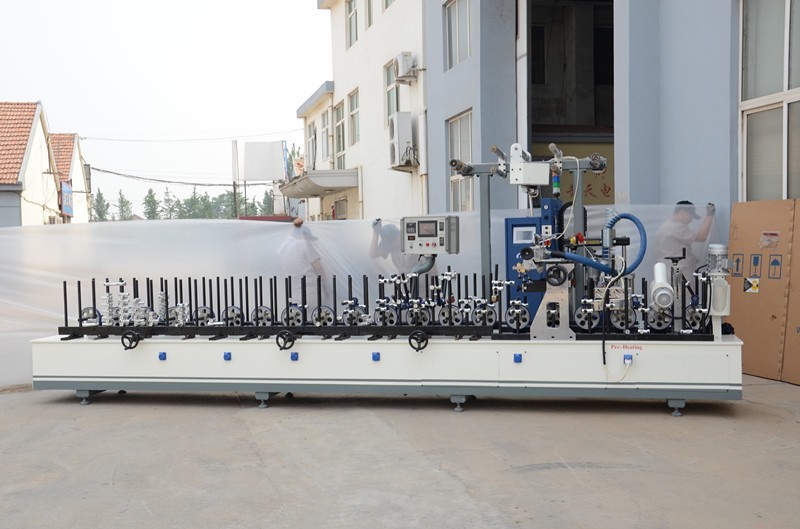

Automatic Hot Melt Adhesive Profile Wrapping Machine with PUR Glue for Wood Frame Making
Contact Now
Description
Product description
Product Show
Specification
|
Model
|
BF350B-PUR-II
|
|
Max. wrapping width
|
350mm
|
|
Max processing thickness
|
120mm
|
|
Wrapping speed
|
0-50m/min
|
|
Total Power
|
13Kw
|
|
Power of main motor
|
2.2Kw
|
|
Power of dusting motor
|
0.37Kw3
|
|
Power of PUR glue machine
|
8Kw
|
|
Electrical control manner
|
PLC control, Touching screen
|
|
Overall dimension of main machine
|
5780Χ900Χ1900mm
|
|
Overall dimension of glue machine
|
1030Χ420Χ1600mm
|
|
Weight
|
2000kg
|
|
|
|
Details Images

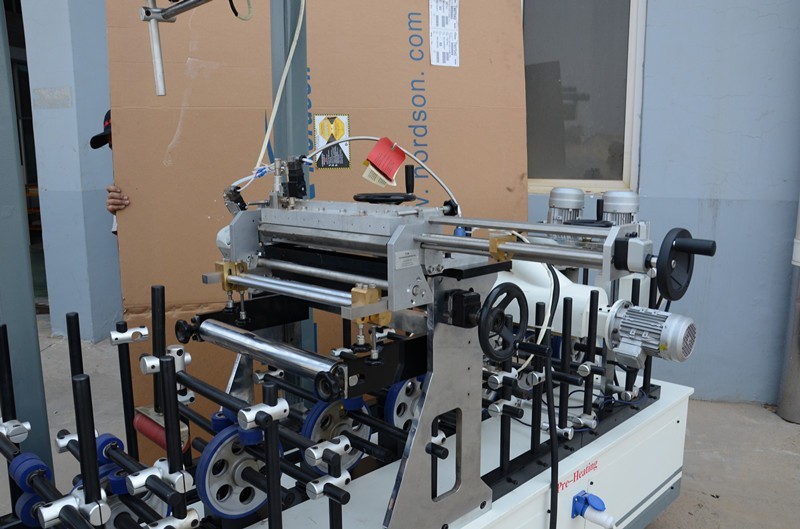

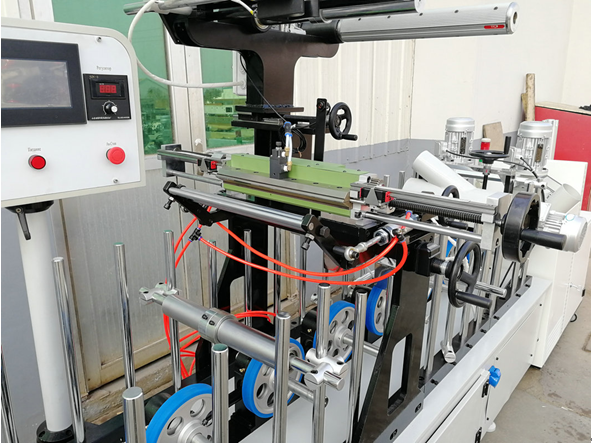

Gluing device, and pneumatic shaft hold the film tightly, pneumatic shaft with electromagnetic brake system
Automatic PVC film correct system, with electrical sensor adjust film left and right, keep it at center
Pre-heating System
Dust Cleaning System
