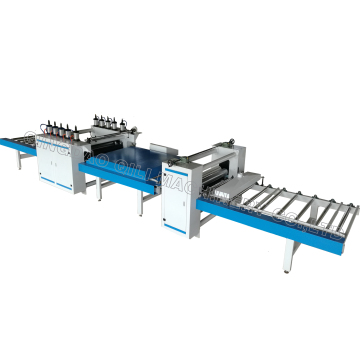

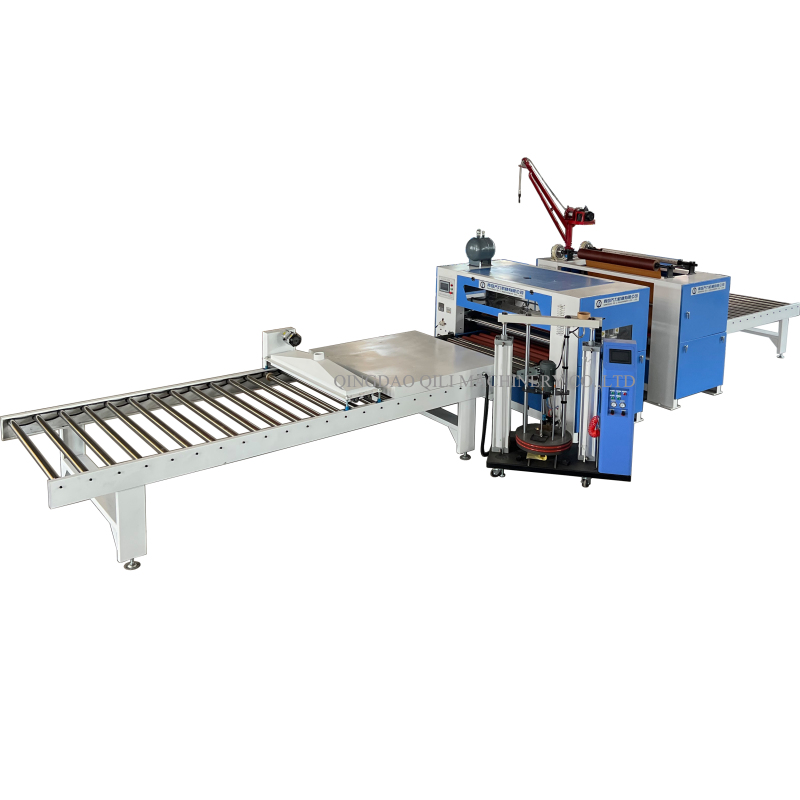

Qingdao QILI PUR Hot Melt Glue Flat Laminating Production Line Machines
Description
产品描述
Product Description

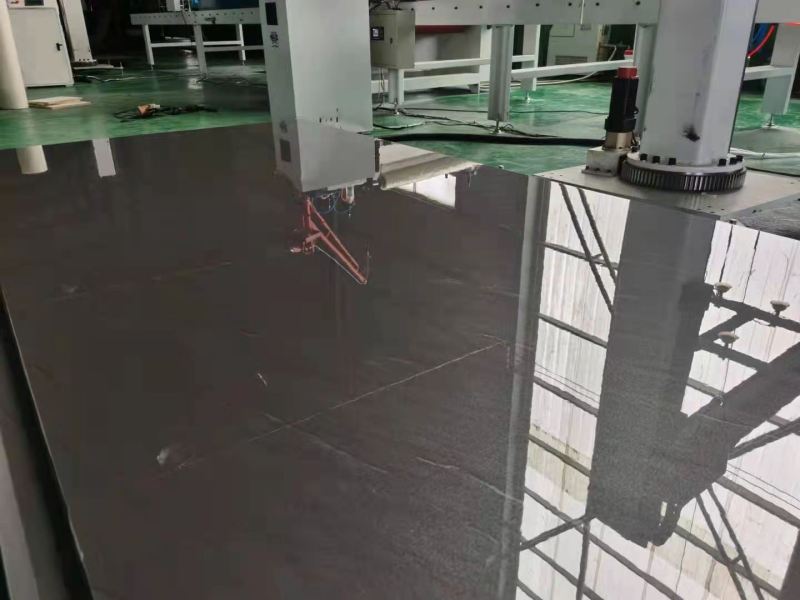

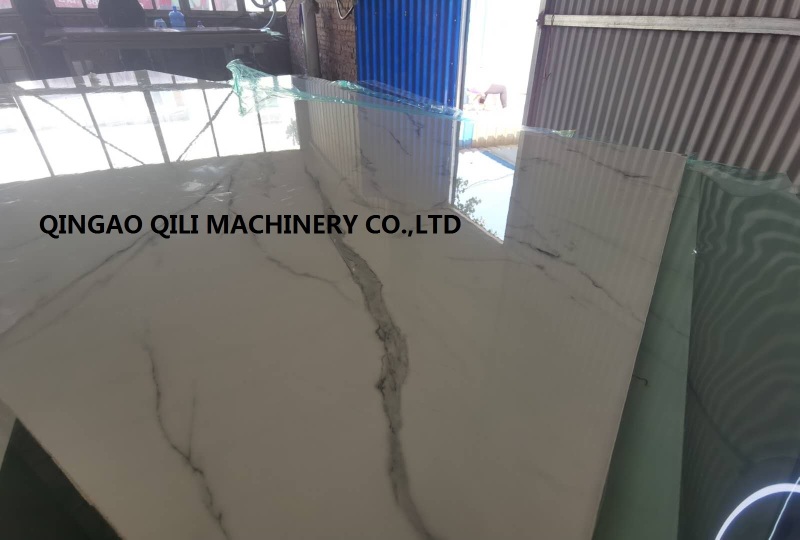

woodworking PUR hot melt glue laminating machine for high gloss,This production line adopt the special precise hotmelt glue system .This machine is specialize in sticking on panel and multiplayer board, it is suitable for produce high-glossy , panel ,cabinet ,furniture door, honeycomb board and foam board sticking .etc .
1.Laminate material :High-gloss pvc , acrylic , HPL, PVC board and metal board ,PE, PET ,PVC, veneer , paper .ect.
2.Based panel material :MDF board ,chipboard, plywood, gypsum board, HPL, foam board ,aluminum panel ,steel panel.
3.Glue: PUR hotmelt glue .
4.User :Furniture ,cabinet ,panel door producer ,new building material factory ,high-grade decoration board factory .
Technical parameters
woodworking PUR hot melt glue laminating machine for high gloss
| Panel preheating | One heating channel |
| PUR glue machine | 55 gallans |
| silica gel glue coating roller | Φ240*1pc |
| steel glue roller | Φ190*1pc |
| Ceramic glue roller | Φ240*1pc |
| steel glue roller heating | adopt a 15 kw oil heating system |
| Glue heating after coating | ONE HEATING BOX |
| shaft for film | Two |
| Loading height of the hoist | 350kgs |
| silica gel pressing roller | Φ240mm*1pc |
| Hot steel pressing roller | Φ240mm*1pc |
| Drive motor Power | 6KW |
| PUR glue melt machine power | 20KW |
| Heating power | 24KW |
| Dust clean power | 0.37KW |
| Total power | 50kw |
| Max.glue coating width | 1300mm |
| Max.working width | 1300mm |
| Processing thickness | 3-50mm |
| Frequency converter | HZ |
| Electric parts | CHINT |
| 工作速度 | 2-18m/min |
| 电压 | 380V/50Hz |
| 机器重量 | 4000kg |
| Overall size | 13000*2300*1700mm |
Detail information

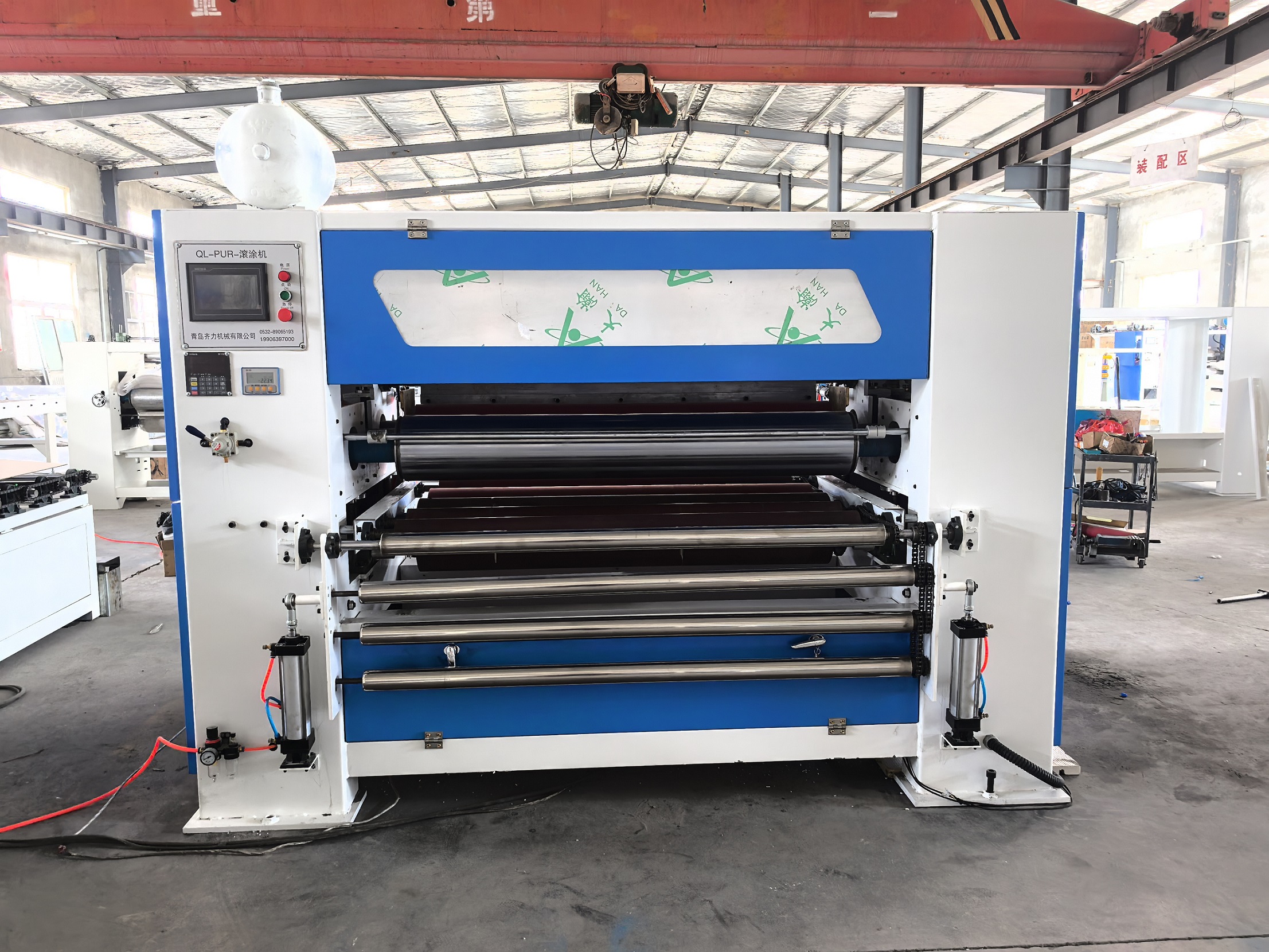

PUR hot melt glue laminating machine is suitable for laminating roller film(Matt PVC film,high gloss PVC film,melamine paper,PET film...) and sheet type material(Acrylic,CPL,HPL,aluminum sheet) on different kind of flat panel(particle board, MDF board, WPC board, PVC board,plywood, plastic board, gypsum board foamed plastic board, zinc board, aluminum board, steel board, etc.)This machine for panel size 1220*2440mm,we can also make the machine suitable for 1830*3660mm panel which need addition charge.woodworking PUR hot melt glue laminating machine for high gloss

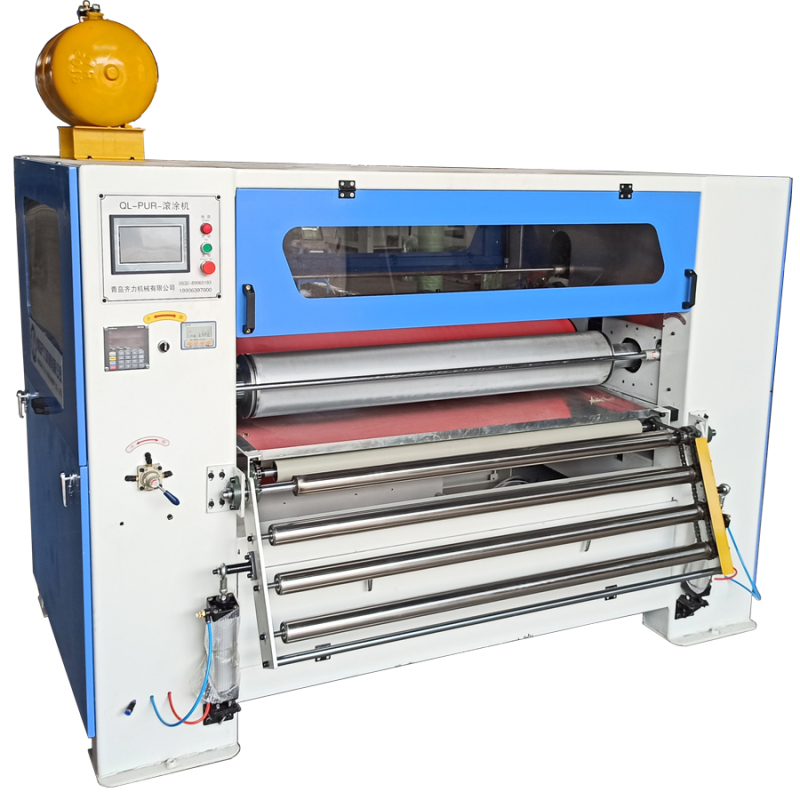

1:For the glue spreading system ,adopt oil heating system to heat the glue roller.In this way could make sure the glue roller temperature stable.And could make sure the pur glue in the good state.woodworking PUR hot melt glue laminating machine for high gloss
