PVC Profile Wrapping Machine - Easy Operation 300mm Width for Wall Panel
Description
Product description
Product Description

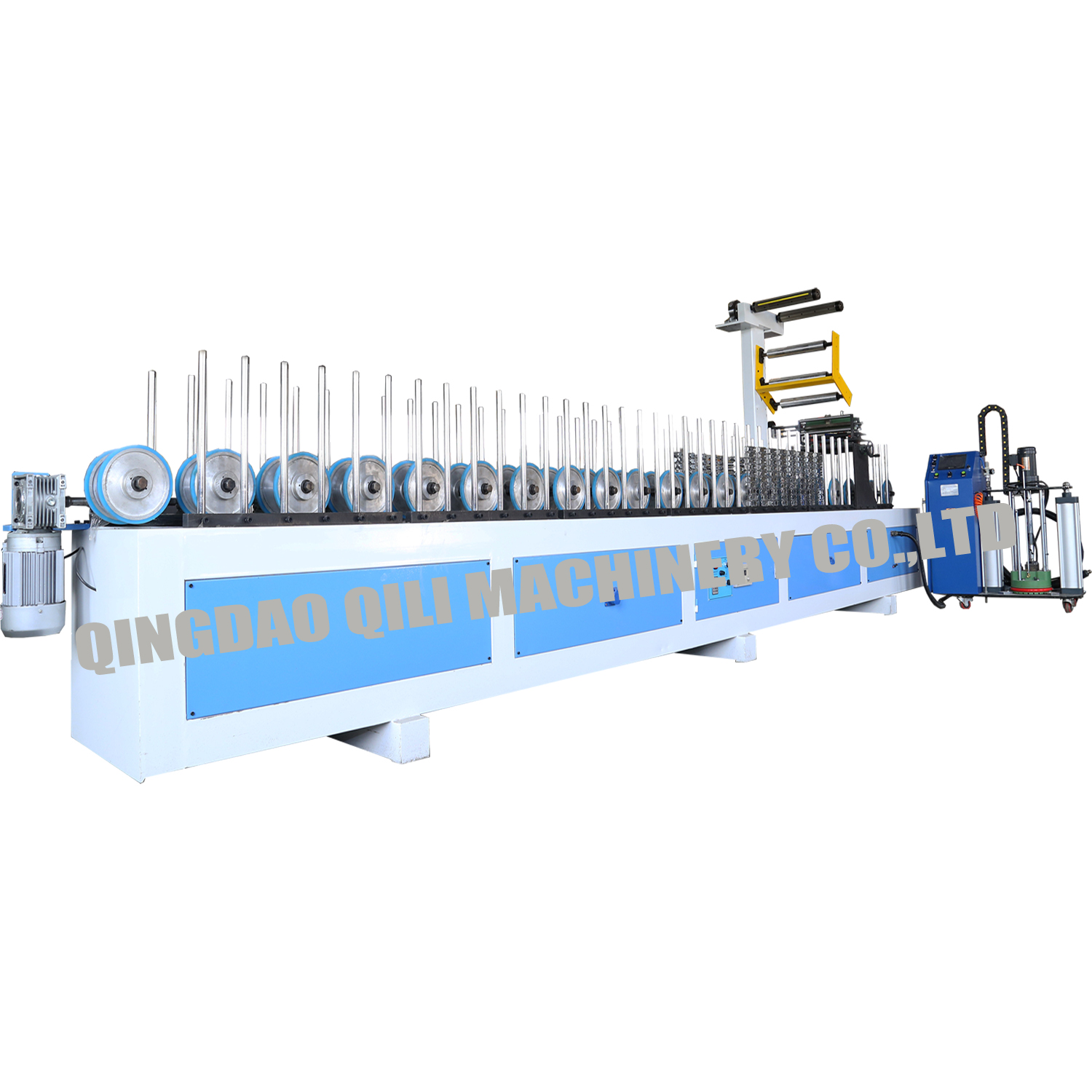

QL300BF-PUR hot melt glue profile wrapping machine
This machine is special for Wrapping PVC / high glossy PVC / leather / paper /veneer /aluminum foil / Leather / CPL on MDF, particle board, plywood ,PVC ,WPC ,aluminum, plastic steel.And it is mainly for different angles, ARC, roughness and the edges to get excellent performance. What's more, PUR glue has the features of anti-aging, anti-UV which makes it to be the top choice for outdoor.
Technical parameter
| Maximum film covering width | 350mm | |||||||
| Maximum process thickness | 90mm | |||||||
| Conveying power | 1.5kw | |||||||
| Power of the heating gun | 800W*8 | |||||||
| Conveying roller | 18group*2 | |||||||
| Pressing roller | 104pcs | |||||||
| Conveying speed | 0-28 meter/min | |||||||
| Single hole | 100pcs | |||||||
| Double hole | 100pcs | |||||||
| compression bar | 100PCS | |||||||
| Machine size | 6800*1500*1900mm | |||||||
| Machine weight | 2000KGS | |||||||

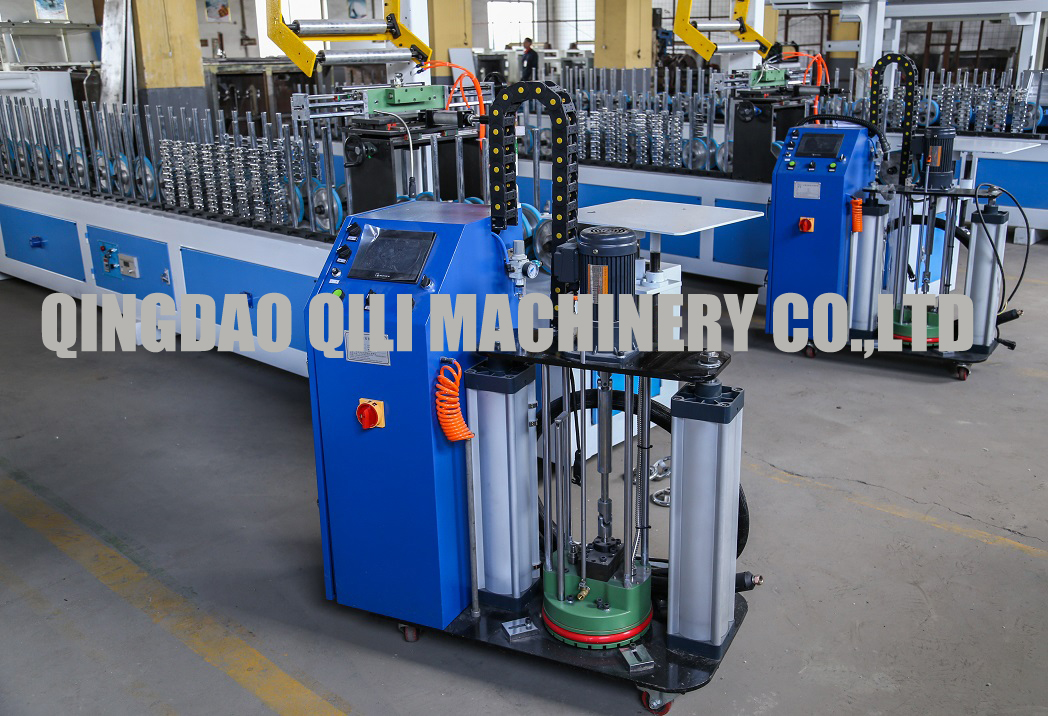

| The Hot melt Glue barrel ( can be customized according to different requirement) | ||||||||
| The specification of glue barrel | 20kg /barrel (5 gallon) | |||||||
| Heating power | 16kw | |||||||
| The max speed of motor | 125rmp | |||||||
| Control system | PLC + Touched screen | |||||||
| The working temperature | 10-250 degree | |||||||
| Max working pressure | 10Mpa | |||||||
| Machine weight | 200kg | |||||||
| Temp Accuracy | 1 degree | |||||||
| Dimension | 1100*900*1600mm | |||||||
Detail Information

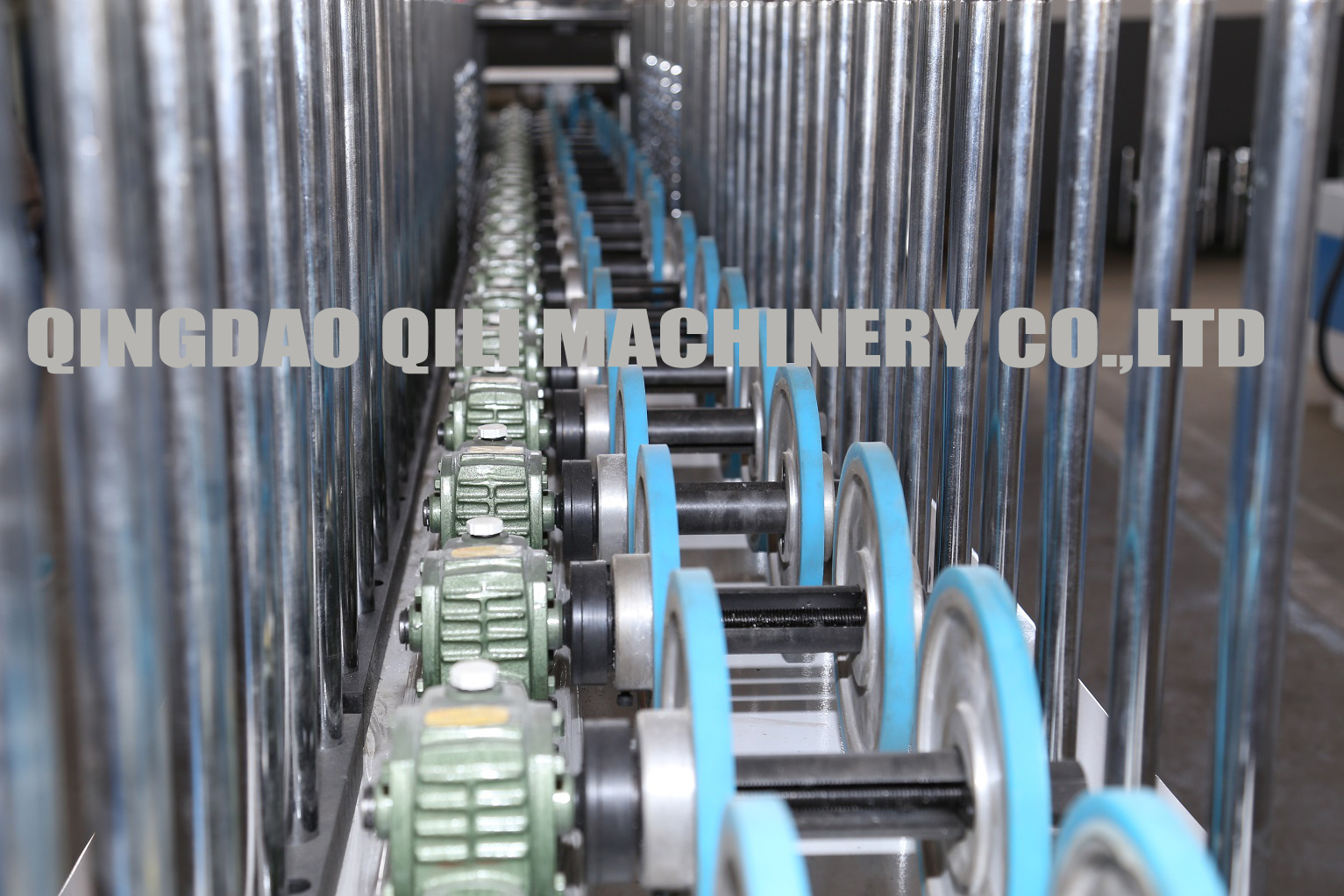

1. This machine uses high quality steel and complete whole machine body, adopting high precision of the gear transmission.

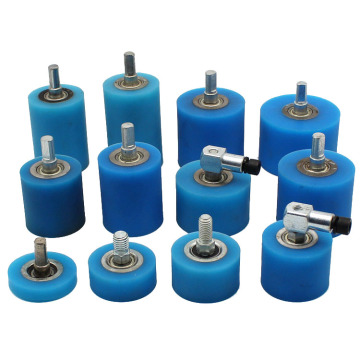

2. All wheels are silicone rubber and aluminum featuring light weight and high strength, the silicone are good wear-resistance and proof of glue sticky, promise long use life.

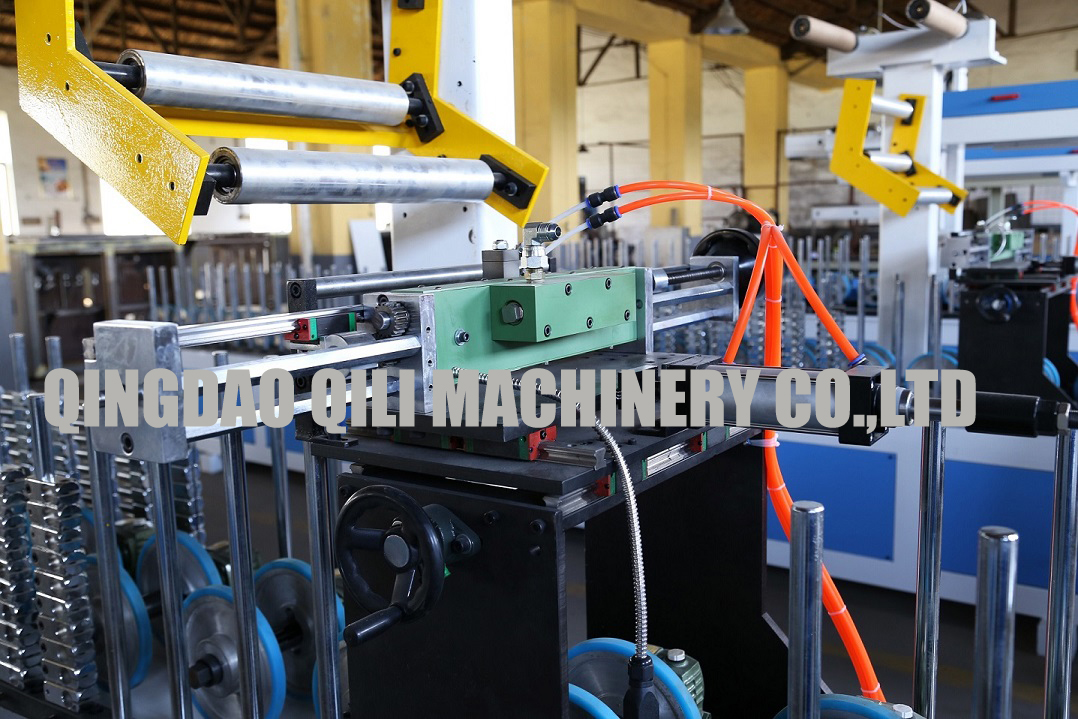

3 .PUR system is in exact heating control and proof, dispense PUR hot melt material from one automatic slot nozzle gun for Profile Wrapping application.
4. Adopting high accuracy gear transmission instead of chain transmission.

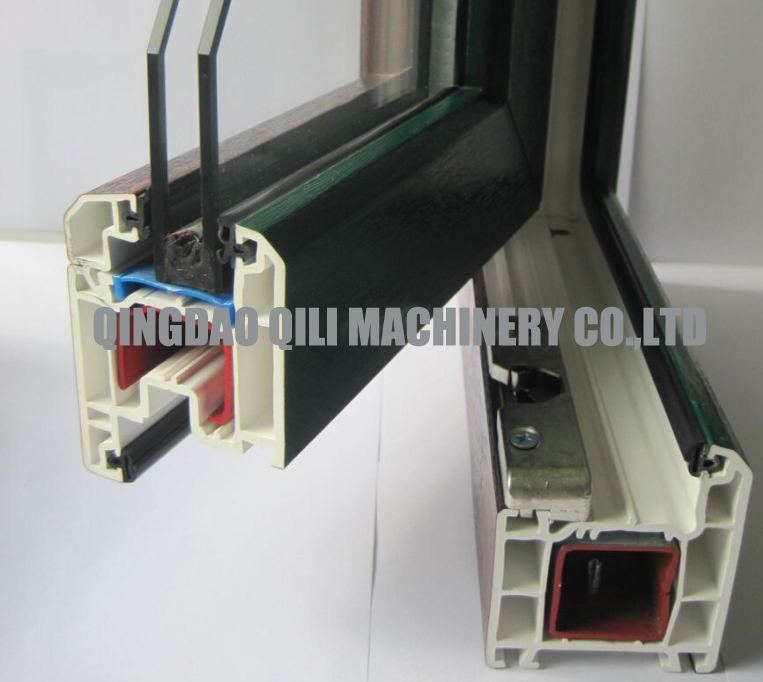

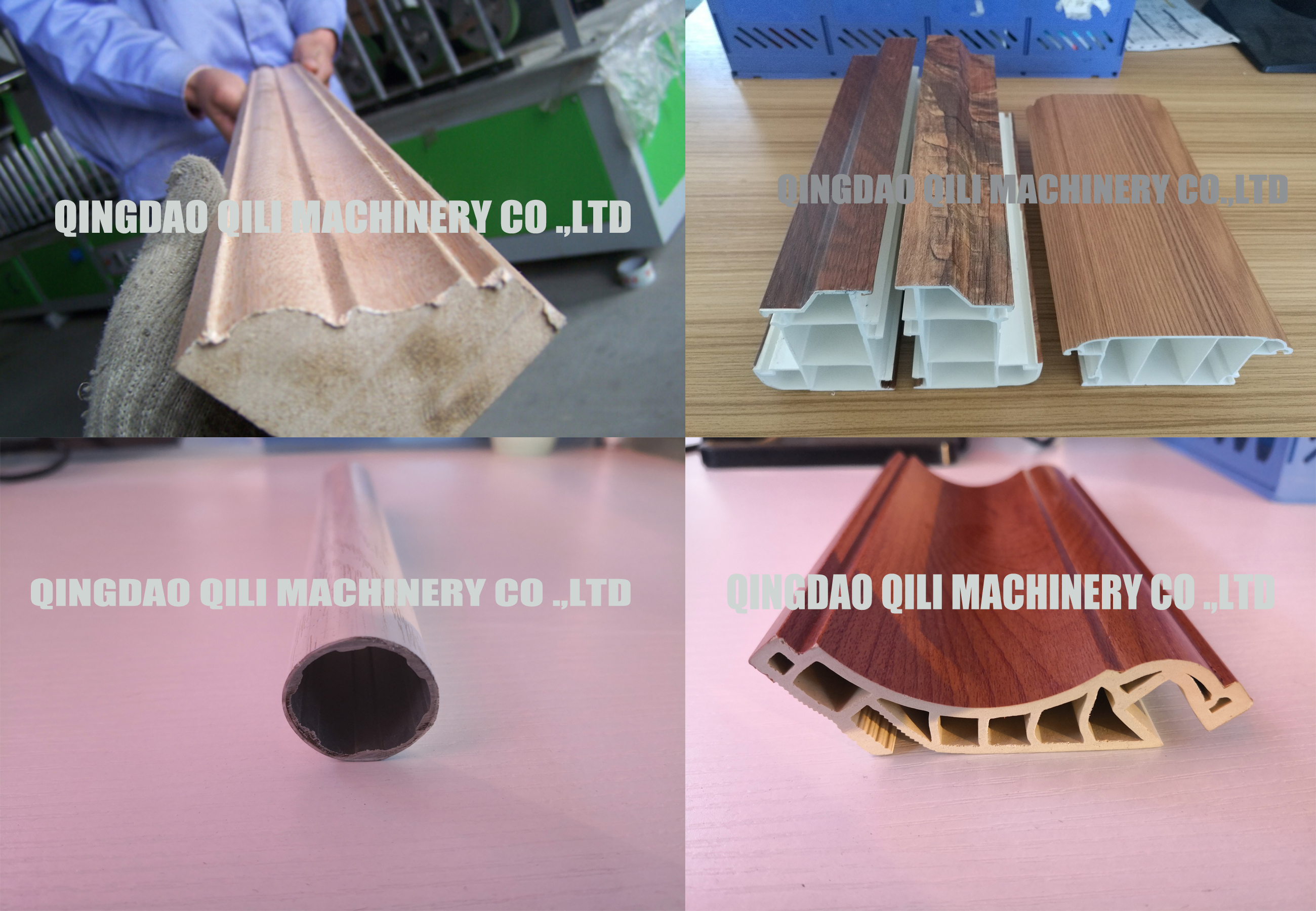

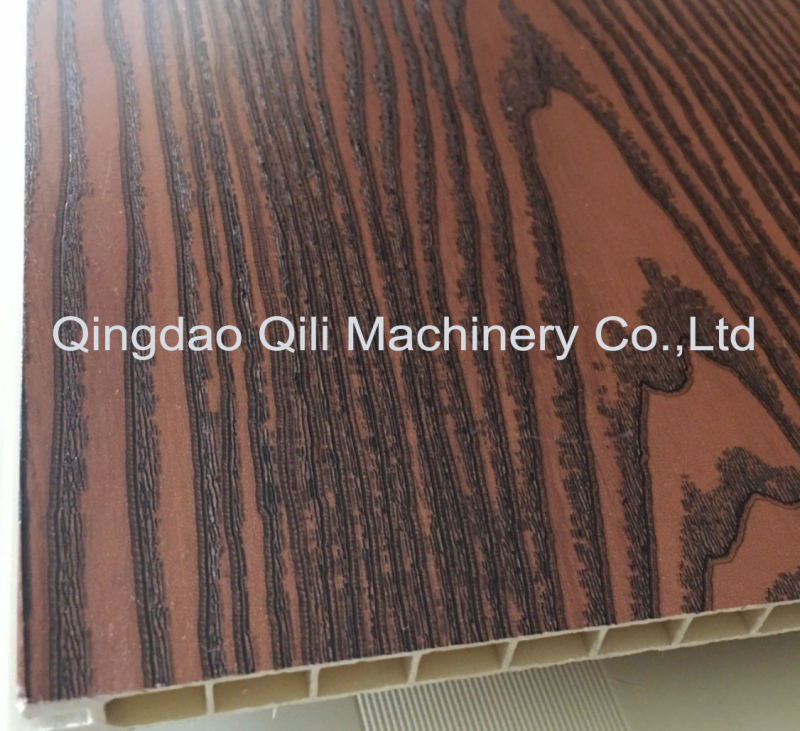

Final product
