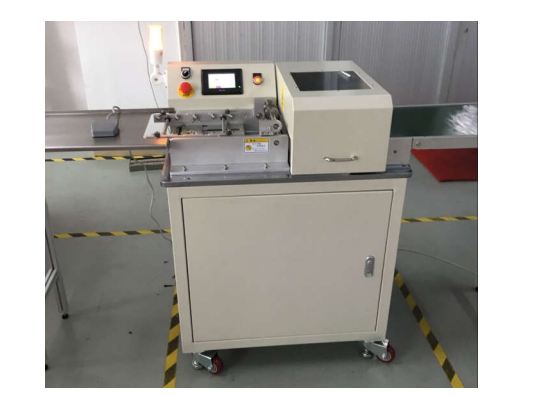

Max Width 300MM 200W SKD11 Blades PCB Depaneling Machine

Contact Now

Description

Product description

High quality PCB depaneling machine / V-cut PCB depanelizer,multi-blade depaneling machine,Pcb Separator

Feature

1. The shaft of the knives( top and bottom) is design to be an an integral whole, it is convenient to install, pick and place.

2.This machine adopts computer screen control with a counting device which can be preset production. Gap of the cutting tool displayed by the display screen directly.

3.All the v-cut pcb board can be cut by this machine.

4.Using the machine to cut, reduce stress, prevent the solder joint cracking.

5.Pcb board is cut by multiple cutters which can cut several board once.

6.The machine top cutter wheel can be slightly adjust:0-5mm.

7.The distance between the knives can be adjusted, and it is suitable to cut single pcb board within width 15-20mm.

8.Blade is made of SKH51 high speed steel with long service life and wear resistance.

9.Cutting speed can be set and conveniently adjusted by turn-knob.

10.Install conveyer belt, pcb board which is cut can be sent out directly, then docking with the next machine and reducing the times of artificial pick and place. This machine can cut LED panel, fiberboard, aluminum board (more than 400mm ) and special board.

11.With several knives, the machine operates simply and efficiently and is suitable for mass production.

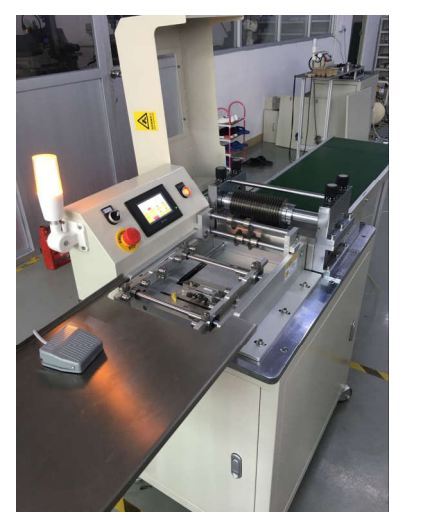

Multiple Groups Of Blades PCB Depaneling YSVJ-650 Machine

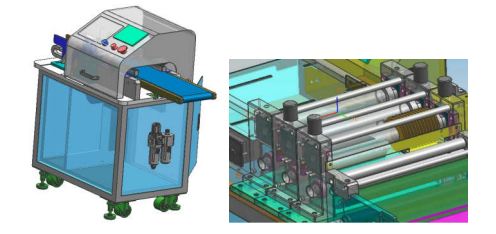

The machine is equipped with standard upper and bottom 20 groups of blades which can separate the 10 lines or more LED light bars at same time.all blades are made of endurable SKD11 high speed steel.

PCB clamping and conveying system ensure precise separating without deformation and burrs.

The machine adopts touch screen and PLC control system which can monitor production information,easy to operate.

Full english operation interface , easy to operate.

Features:

● The conveying speed can be adjusted.

● The single separated PCB width is 8-20 mm. Max cutting width 300mm;

● Machine with automatic feeding system;

● Machine is equipped with safety protection device.

● Suitable cutting material of PCB :aluminum ,FR4,glass fiber.

● Equipped with SMEMA connector ,easy to connect with upstream machine

● The machine adopts the touch screen and PLC which can monitor production information.

● MDS-900 is equipped with multiple sets of blades which can separate the whole light bar board one time.

● The distance between upper and lower cutter can be precisely adjusted, the separating thickness of PCB range is : 0.8MM-3.0MM.

Specifications:

Total Dimension	L2600W850H1050mm
Inlet conveying length	850mm
Outlet conveying length	850mm
Separating blades number	20 groups of upper and lower blades , total:40pcs
Max length of PCB	unlimited
PCB Thickness	0.6-5.0mm
Separating PCB bar number at one time	11 LINES
Separting width of single PCB	8-20MM
Max PCB width	300 mm
Max component height	30mm
Blade material	SKD11
Blade average lifespan	1,000,000 times (1.2m long , 3mm thick PCB)
Voltage	220V/50Hz or 110V
Machine weight	210 kg
Power	200W
