Laser engraver cutter/co2 laser engraving cutting machine/laser engraver machine/laser engraving machine
Contact Now
Description
Product description

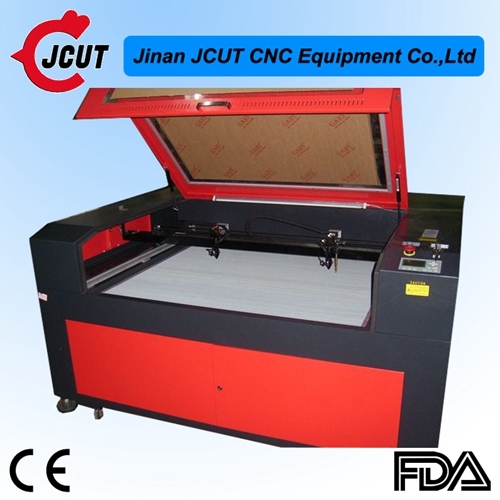

Laser engraver cutter/co2 laser engraving cutting machine/laser engraver machine/laser engraving machine JCUT-1290-2(23.5''+23.5'') X 31.4''
JCUT-1290-2 multi-head laser cutting machine have the high efficiency and low cost laser cutting equipments which was researched and manufactured by our company according to features of large processing working loads and urgent processing working time in manufacture enterprise. The working feature of this machine is the laser head can realize engraving and cutting at the same time each of which can be controlled respectively.
The multi-head laser cutting machine has the feature of sel ecting one single laser head or the multi-head, making the flexibility to arise, the suitable area more abroad, solving the problem that the single head laser machine can not suit the need ofvolume production, making the enterprises to produce many products with the laser machine to realism.
The unique decelerate design make the mechanical system move stably and smoothly.
The edge of cutting is smooth and there is no sawtooth. The software adopts
continuous curve method to get faster cutting speed.
Supply with CE certificate, FDA
Specification:
1) Engraving area: (600mm+600mm) x900mm
2) Whole machine size: 1,720 x 1210x 1070mm
3) Laser power: 60w(optional 80W) X 2
4)Cutting speed: 0 - 24,000mm/min
5) Resetting positioning accuracy: ±0.1mm
6) Power supply: AC 110 - 220V ±10%, 50 - 60Hz
7) Gross power: <1,000W
8) Operating temperature: 0 - 45°C
9) Operating humidity: 8 - 95%
10) Minimum shaping character: English 1 x 1mm
11) Graphic format supported: BMP, HPGL, PLT, DST, DXP, and AI
12) Driving system: stepper
13) Cooling mode: water-cooling and protection system
14)Auxiliary equipments :Exhaust-fans, air-exhaust pipe
15)Controlling software : DSP control system.
16)Compatible software: CorelDraw AutoCAD Photoshop
17)Laser- type: Sealed CO2 laser tube
18)Net Weight:280KG
Applicable materials: wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable industries: advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry
