Overview

Basic Info.

Model NO. 60W CO2 Film Laser Cutting Machine
Application Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System Air Cooling
Technical Class Continuous Wave Laser
Applicable Material Nonmetal
Structure Type Gantry Type
Laser Classification Solid Laser
Laser Technology Laser Control Fault Cutting
Laser Power 60W 70W 100W 150W
Cutting Range 650* 550mm Customizable
Transport Package Wooden Cases
Trademark Smart
Origin China
HS Code 845611
Production Capacity 5000sets/Year

Product Description

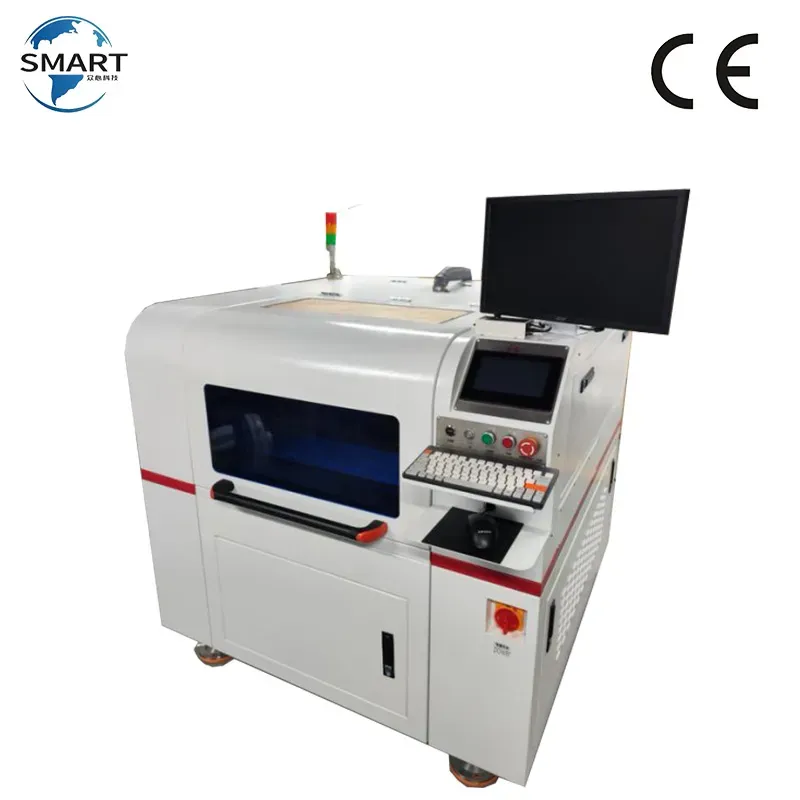

Advantages: 60W Film CO2 Laser Cutting Machine

Model: ZXJN-AC6555

Laser wavelength: 10.6 μm / 9.3 μm

Laser power : 10W / 30W / 55W / 60W / 70W / 100W / 150W

Cutting range: 650× 550mm

Repeatability: ±0.01mm

Locating Accuracy: ±0.02mm

Airspeed: ≤60m/min

Acceleration: ≤ 1g

Size : 1450Lx1320Wx1200Hmm

Operation Height: 850±25mm

Power supply: 220V/50Hz/8KVA

Gas consumption : 0.6MPa air compression ≥1L/min or pressurized nitrogen for option

Applicable materials:

3M, PET, PT, PC, PP, PS, PCR, SMT, ITO, EMI, EL, Stickers, Plastic, Plastic cement, Crystal, PMMA, Double color board, Plexiglas acrylic Leather, Cloth, Kevlar, Garment accessory, Fibre ESD cloth and other fabrics Plank, Fibreboard, High density board, EPE, Paper, Hardboard, Rubber plate, Ceramic wafer, Other metal composite films

Applicable Industry:

Touch screen--PET, Toughened film, LED board, Backlight, Electro-luminescence, Display board, Touch board, Switch film, Electronic insulating materials Electronics product--FPC/PCB board, Mobilephone shim, Phone shell, E-papaer display Advertisement decoration--Crystal word production, PMMA pattern cutting Craft accessories--PMMA pattern cutting, Wood pattern cutting Household adornment--Wood pattern cutting Eyeglass--Polyester chip Garment leather--PU/Leather/ ornamental Other industries--cutting

Specific performance parameters:

NO	Item	Parameters
1	Laser wavelength	10.6 μm / 9.3 μm
2	Laser power	10W / 30W / 55W / 60W / 70W / 100W / 150W
3	Cutting range	650× 550mm
4	Repeatability	±0.01mm
5	Locating Accuracy	±0.02mm
6	Airspeed	≤60m/min
7	acceleration	≤ 1g
8	Size	1450Lx1320Wx1200Hmm
9	Operation Height	850±25mm
10	Weight	950kg
11	Power supply	220V/50Hz/8KVA
12	Gas consumption	0.6MPa air compression ≥1L/min or pressurized nitrogen for option

Configuration details:

NO.	Parts	Brief Description	QTY	Brand/Place of origin
1	Laser	Cutting-edge air-cooled laser, uniform spot, stable beam quality, long service time	1	USA
2	Optical length	Extender lens, Polarizer, Reflector, Focusing mirror	1	USA
3	CCD location system		1	China
4	Laser power supply	All digital control	1	Taiwan Ming wei
5	D/A control card	16bit high performance digital to analog conversion card	1	China
6	computer	P4 2.0G, 2G, 500G	1	China industrial grade
7	Special cutting software	Radium carving, carving, cutting	1	China
8	Control system	Montion control card	1	Googeltech
9	Operating system	ZXL	1	ZHONGXIN China
10	Driver ( Dual-drive )	750W/400W servo drive	1	ZHONGXIN China
11	CCD location system		1	ZHONGXIN China
12	Table	JNZX-CC6555	1	ZX-CC60
13	Rail		4	Taiwan-HIWIN
14	Lead screw		3	JP-THK
