Product ID: 68590109
High Speed Shrink Sleeve Film Cutting Machine
Contact Now
Description
Basic Info.
| Model NO. | 600 |
| Classification | Flat Knife Cutter |
| Driven Type | Electric |
| Type | Living Paper Cutting Machine |
| Blade Material | Steel |
| Computerized | Computerized |
| Cutting Speed | 500PCS/Min (According to The Material) |
| Transport Package | Wooden Case |
| Specification | 2000*1000*1000mm |
| Trademark | RILI |
| Origin | China |
| HS Code | 8477800000 |
| Production Capacity | 200sets/Year |
Product Description
High Speed Shrink Sleeve Film Cutting PVC PET Shrink Sleeve Film Sheeting Machine
Applications:
The machine is suitable for cutting all kinds of beverage packaging, mineral water standard cover, wine standard bottle cover, candy packaging, self-adhesive, paper, etc.
Performance and characteristics:
- The whole machine is controlled by microcomputer and hauled by stepping motor.
- Any fixed length, step photoelectric tracking, accurate and stable, automatic stop when losing marks.
- Automatic counting and settable counting alarm, variable frequency speed regulation, power saving
- It has the functions of flat cutting, special-shaped cutting, pressing dotted line, automatic gluing, etc.
Main Technical Parameters
| Model | KQ-350 | KQ-500 | KQ-600 |
|---|---|---|---|
| Cutting Speed | 500 pcs/min | 400 pcs/min | 350 pcs/min |
| Bag Making Width | 350mm | 500mm | 600mm |
| Main Motor | 1.5kw | 1.5kw | 1.5kw |
| Driver | 1.5kw | 1.5kw | 1.5kw |
| DC Motor | 400W | 400W | 400W |
| Machine Weight | 500kg | 500kg | 500kg |
| Voltage | 220V/60Hz | 220V/60Hz | 220V/60Hz |
| Total Power | 2.5Kw | 3Kw | 3Kw |
| Overall dimensions (L×W×H): | 2.1×1×1.1m | 2.1×1.1×1.1m | 2.1×1.2×1.1m |

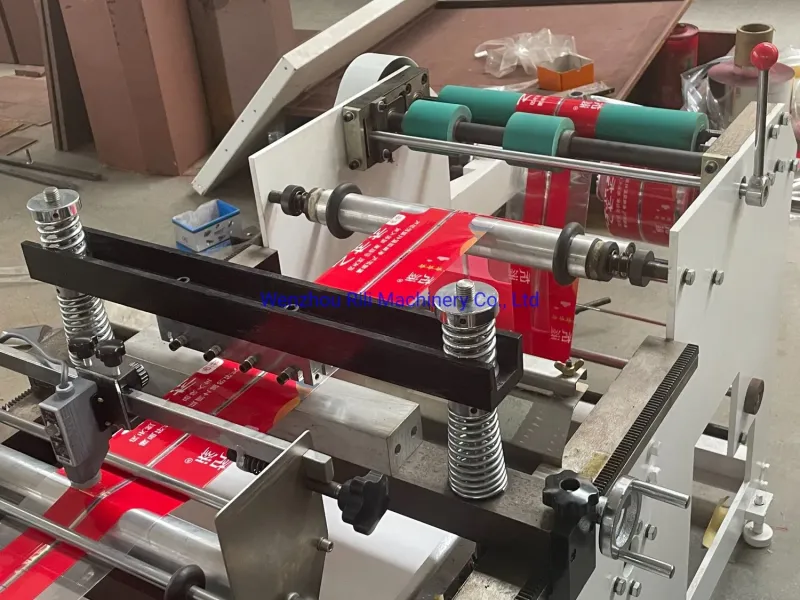

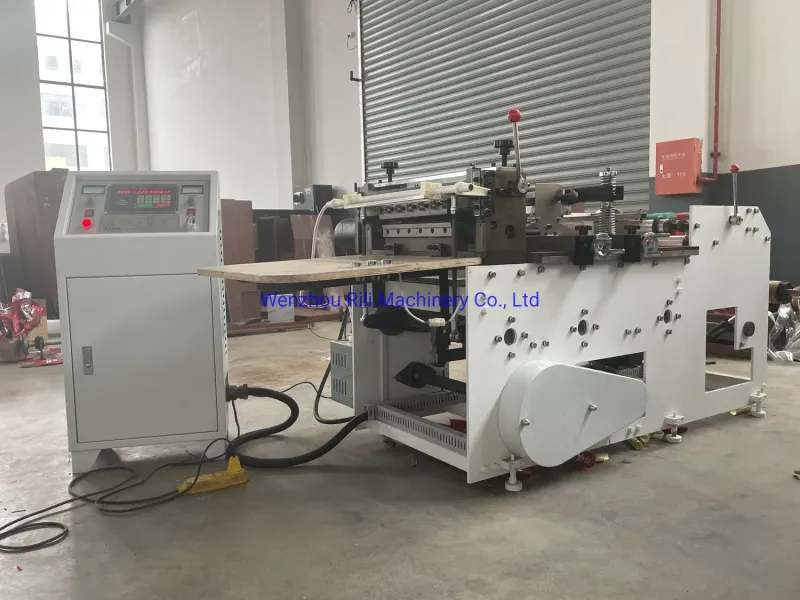

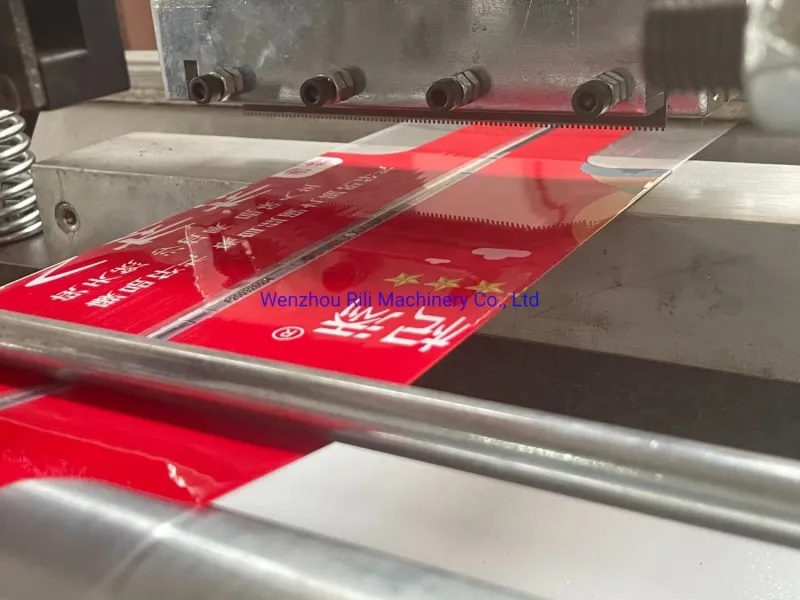

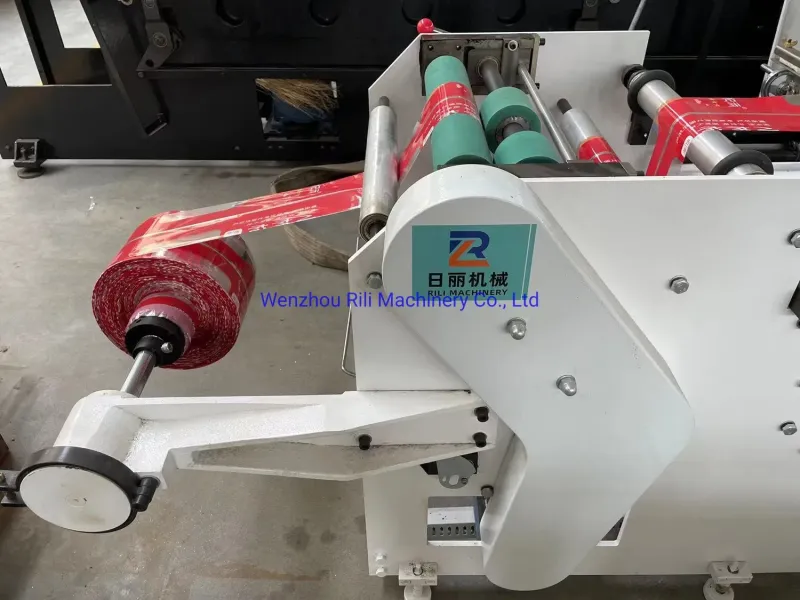

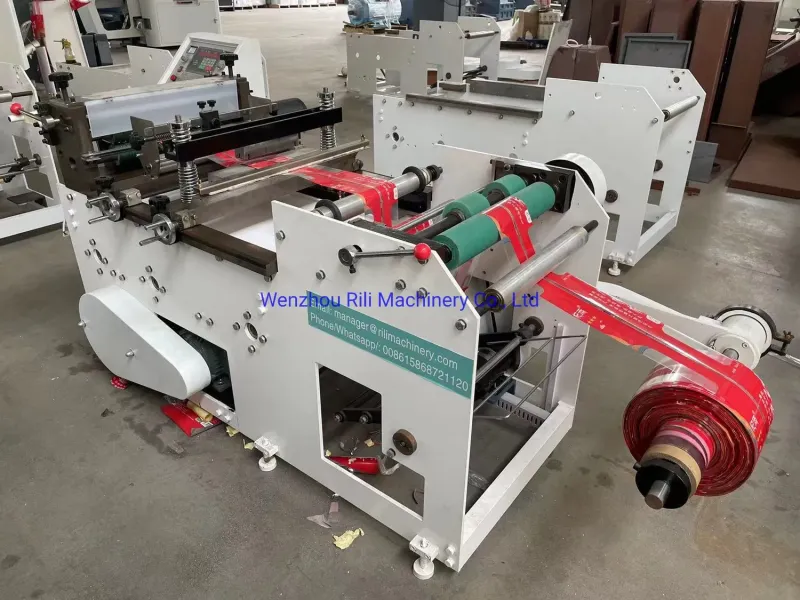

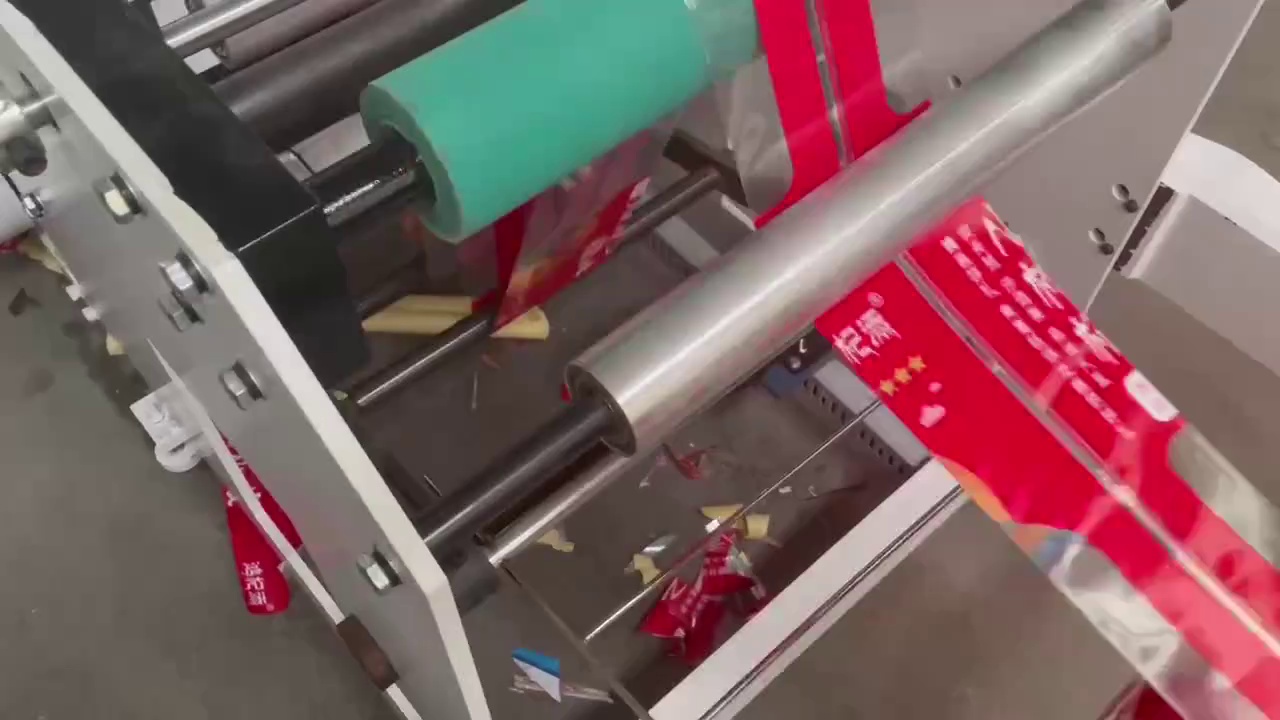

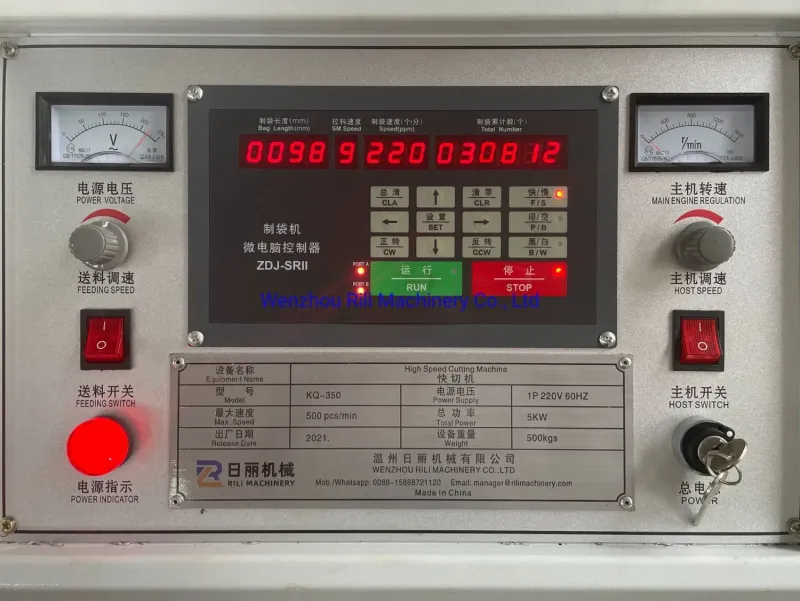

Machine Pictures:
Sample:
