Product ID: 68590173
Brs1000 Series Biological Research Microscope
Contact Now
Description
Basic Info.
Model NO.
BRS1200
Magnification
>1000X
Type
Biological
Number of Cylinder
≥Three
Mobility
Desktop
Stereoscopic Effect
0
Kind of Light Source
Ordinary Light
Shape
Cylindrical Shaped Lens
Usage
Teaching, Research
Principle
Optics
Principle of Optics
Infinity Optical System
Nosepiece
Sixtriple
Swing out Condenser
Abbe N.A0.9/0.13
Base
5W LED
Mechanical Stage
280X160mm,Rackless(Integrated) Stage
Dark Field Condenser
Dry/Wet
Independent Phase Contrast Unit
Quintuple Hole Turret 10X/20X/40X/100X pH Lens
Filter
Frost Grass
C-Mount
0.35X/0.5X/0.75X/1.0X
Transport Package
Carton
Specification
560x350x520(mm)
Trademark
OPTEC
Origin
Chongqing
HS Code
9011100000
Production Capacity
50000PCS/Year
Packaging & Delivery
Package Size
56.00cm * 35.00cm * 52.00cm
Package Gross Weight
21.000kg
Product Description

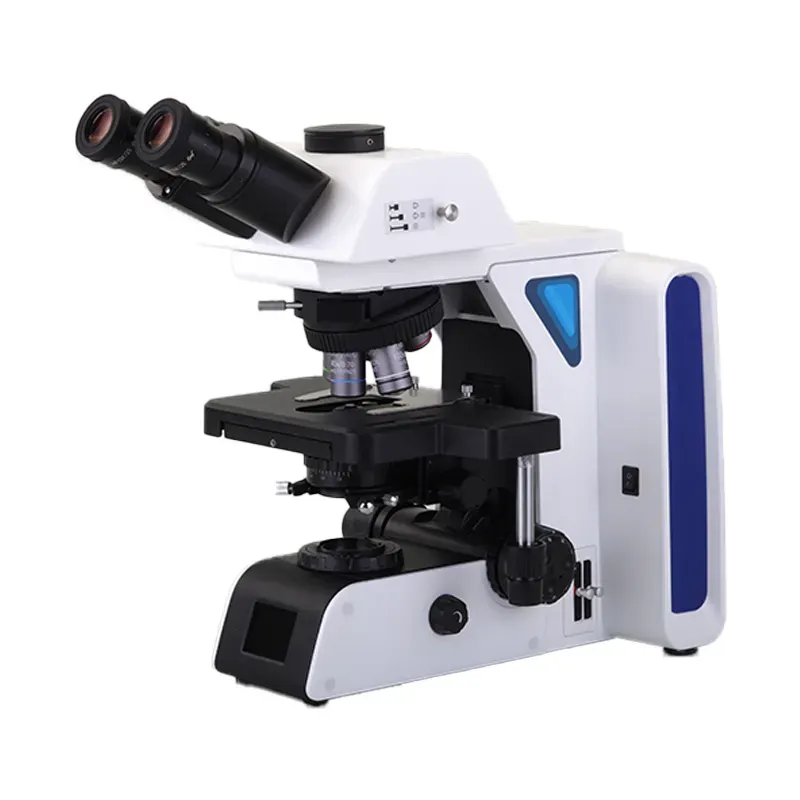

BRS1000 Series Research Biological Microscope
--New Research Level Laboratory Microscope With Modular Structure Design

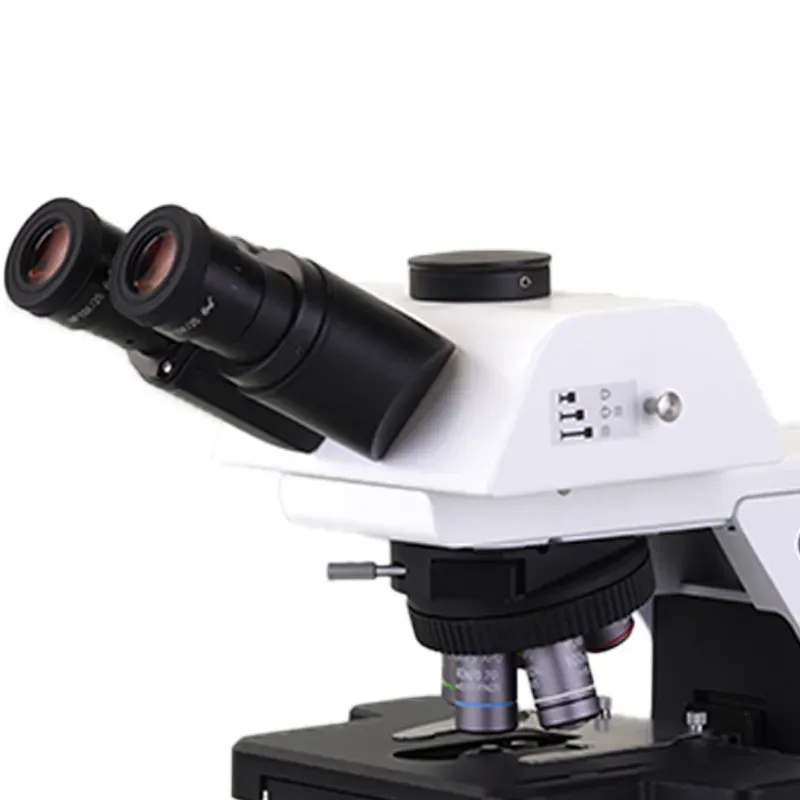

--Large View Field 25mm Trinocular Head With 0.5x C-Mount, Light Split E100:P0/E20:P80/E0:P100
--Super Wide Field SWF10x/25mm Eyepiece Dia.30mm Diopter Adjustable
--Rackless Large Mechanical Stag 182x140mm/77x52m With Double Slide Holder
--Swing Out Condenser N.A. 0.9/0.13 + High Brightness 5W LED Koehler Illumination
--Large View Field 25mm Trinocular Head With 0.5x C-Mount, Light Split E100:P0/E20:P80/E0:P100
--Super Wide Field SWF10x/25mm Eyepiece Dia.30mm Diopter Adjustable
--Rackless Large Mechanical Stag 182x140mm/77x52m With Double Slide Holder
--Swing Out Condenser N.A. 0.9/0.13 + High Brightness 5W LED Koehler Illumination
Product Display

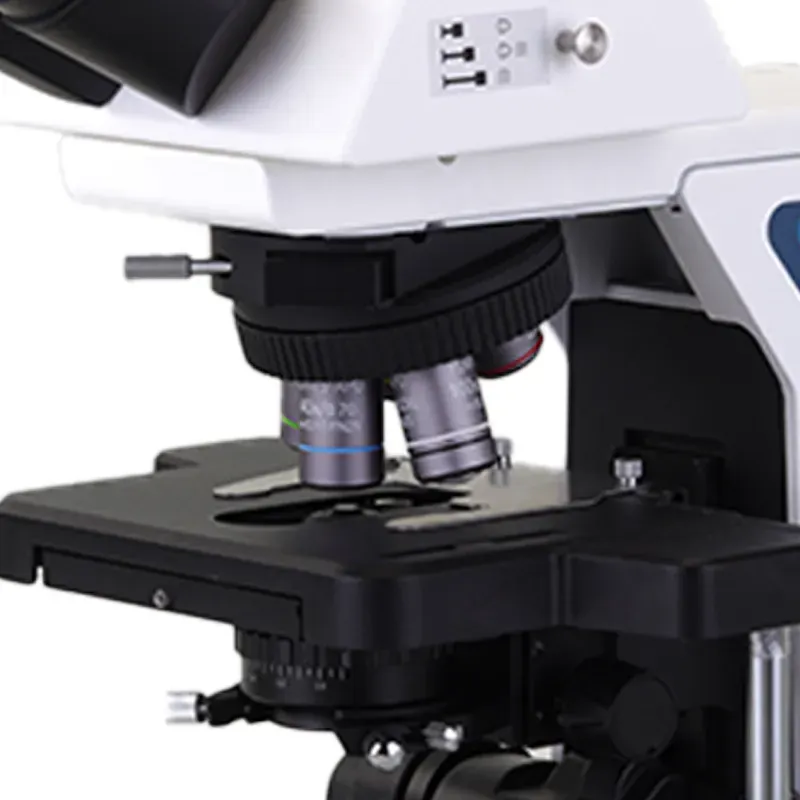

Qunituple turret phase contrast unit
10X/20X/40X/100X
10X/20X/40X/100X

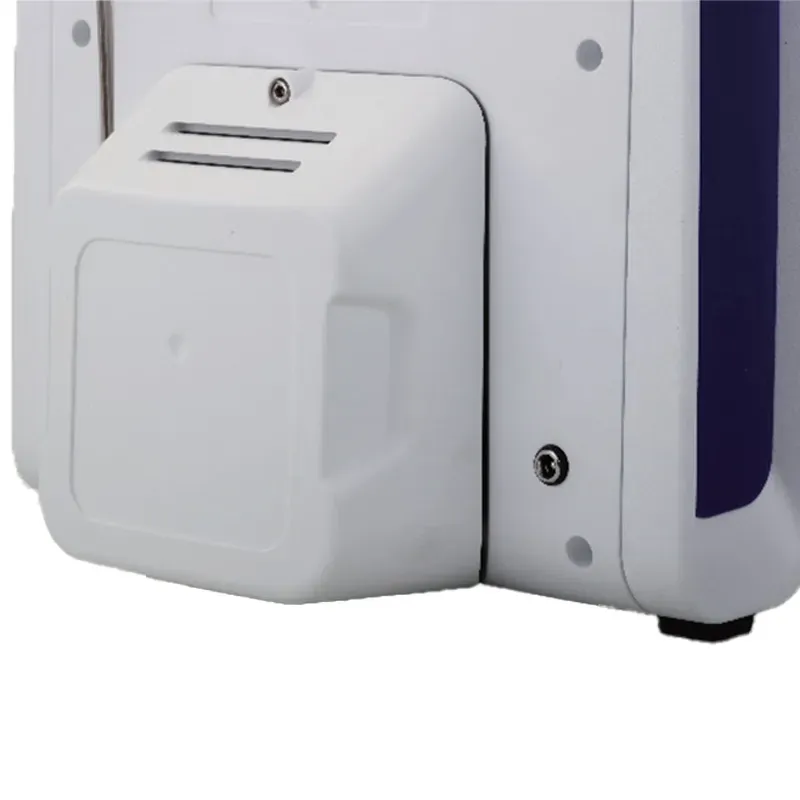

5W LED Illumination
50W/100W Halogen Illumination
Management System(Optional)
280x160mm Rackless integrated large size mechanical stage, travel range 80x52mm

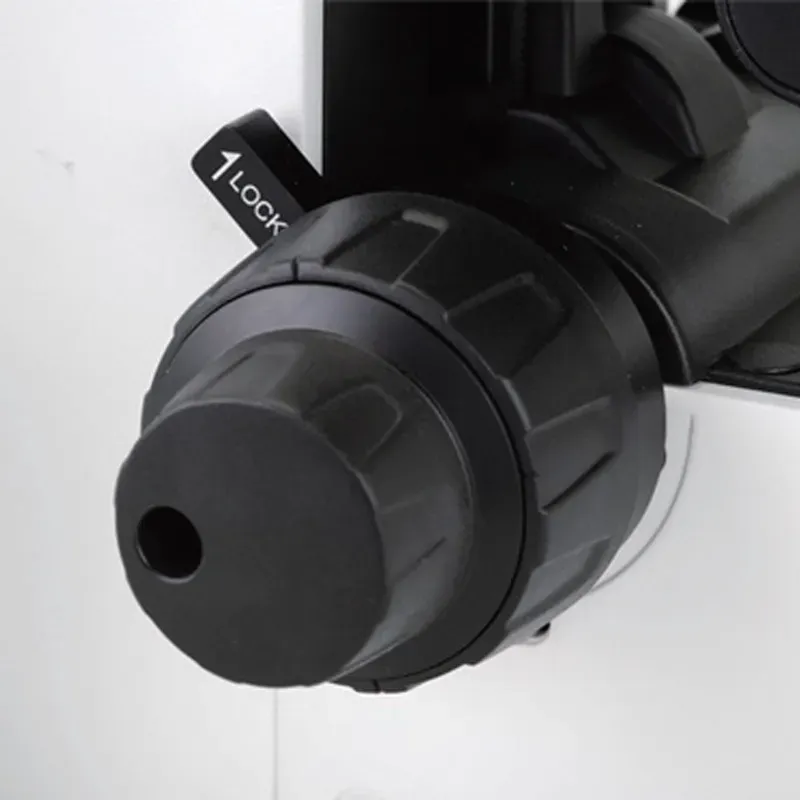

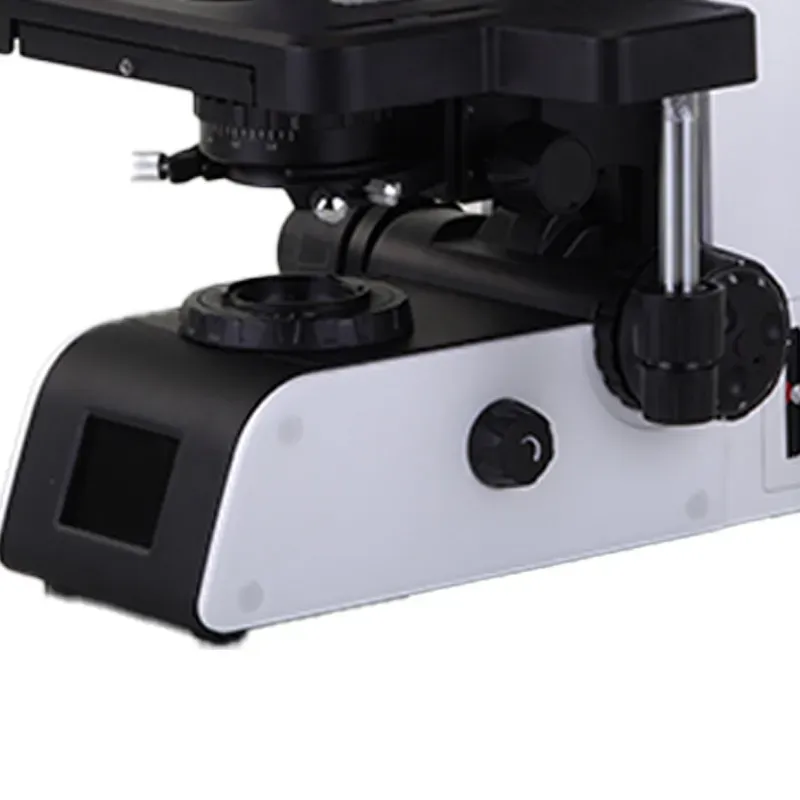

Coarse and fine precise adjustment system(scale 1μm)
Coarse stroke 30mm
Focusing upper limiting device
Coarse stroke 30mm
Focusing upper limiting device
1.Only for LED illumintaion
2.LCD display
3.Power-on shows customer logo
4.Current magnifcation of objective display
5.Working brightness display, current brightness memory
6.Working time setting
7.LED bulb color temperature adjustable within 3500K-6000K
8.Brightness adjustment automatically upon different
objectives
2.LCD display
3.Power-on shows customer logo
4.Current magnifcation of objective display
5.Working brightness display, current brightness memory
6.Working time setting
7.LED bulb color temperature adjustable within 3500K-6000K
8.Brightness adjustment automatically upon different
objectives
Technical Specifications
Objective Parameter list | |||
Objective | Emitter | Noted | |
BRS1100 Infi nity Semi Apochromatic Objective(FN25) | PLAN S-APO 4X | 0.10 | 16.20 |
PLAN S-APO 10X | 0.30 | 9.60 | |
PLAN S-APO 20X | 0.45 | 2.80 | |
PLAN S-APO 40X(S) | 0.70 | 0.55 | |
PLAN S-APO 100X(S, oil) | 1.25 | 0.21 | |
BRS1200 Infi nity Plan achromatic objective(FN25) | PLAN 4X | 0.11 | 12.1 |
PLAN 10X | 0.25 | 10.0 | |
PLAN 20X | 0.45 | 3.33 | |
PLAN 40X(S) | 0.70 | 2.61 | |
PLAN 100X(S, oil) | 1.25 | 0.25 | |
Fluroescence Filter Parameter List(Optional) | |||||
Items | Exciter | Dichroic | Exciter | Emitter | Noted |
FL-B(Blue) | EX450/60 | EX450/60 | DM505 | EM520LP | |
FL-G(Green) | EX540/30 | EX540/30 | DM565 | EM590LP | |
FL-UV(Ultraviolet) | EX375/28 | EX375/28 | DM415 | EM435LP | |
FL-V(Violet) | EX405/30 | EX405/30 | DM430 | EM470LP | |
FL-B (Chroma39002) | EX470/40 | EX470/40 | DM505 | EM535/40 | EGFP/FITC/Cy2/ AlexaFluor 488 |
FL- G (Chroma39004) | EX530/40 | EX530/40 | DM565 | EM605/55 | TRITC/Cy3/TagRFP/AlexaFluor 546 |
FL-UV (Chroma39000) | EX375/28 | EX375/28 | DM415 | EM460/50 | DAPI/Hoechst/AlexaFluor 350 |
FL- Auramine(Chroma19008) | EX450/50 | EX450/50 | DM485 | EM495LP | For Tuberculosis |
Company Information
Chongqing Optec Instrument Co., Ltd. Was founded in the 1990s, It is as the Chinese largest OEM/ODM manufacturers of microscopes in the past. Today, Optec Instrument has been a world-renowned brand, firmly established as a market leader in optical instrumentation and the only microscope company to manufacture its own accessories, ensuring the very finest quality assurance throughout all productions, including Biological microscope, Stereo microscope, Metallurgical microscope, Inverted microscope, Fluorescence microscope, Polarizing microscope, and Digital microscope.
Optec products are on the latest microscopy techniques and a wide range of applications. International guests can obtain impressive applicative and technological insights into light microscopy for the life sciences, materials research, industry etc. Company has many service locations in China, overs an area upwards of 2, 498 square meters.
All of our products have been sucessfully got ISO9001, ISO14001, ISO13485, CE and RoHS certificates. Based on superior quality, professional technical support and the best after-sale service, in the field of microscope we have a higher profile, especially in the national market, our production has sold to America, Japan, Germany, France, Italy and such Developed Country.
Company vision.
Chongqing Optec Instrument Co., Ltd. Has been keeping the aim: The " Diligence and tenacity, sincerity and tolerance, forge ahead ". We will make an effort to create a best environment for our employees, as well as provides high quality, cost-effective products and services for domestic and international customers including a comprehensive range of customized products and systems integration applications to choose for our clients.
Company service.
" Quality first, Service upmost" Is our business philosophy. Our company is not only one of the biggest factories; But also one of the most trusted in China. We can ensure the best services.
CNOPTEC Brand.
In 2021, In Bejing, Captial Of China, we establish the Independent Brand Development Headquarters. With the strong support of our factory′s CEO, we are going to rapidly take our brand to the world!
Sincerely, welcome to China and visit our manufactory, Museum of Microscope!
Our Certificate
Our Exhibition
FAQ
Q1: How do I know which model is suitable for my product application?
A:You just need to tell us the following information then we can offer you a suitable solution? In addition, you can also send us the specimen and we will arrange professional engineers for proofing evaluation.
1) What is your product? required detailed specifiction?
2) What is the current production process?
3) What is your desired budget and delivery time.
A:You just need to tell us the following information then we can offer you a suitable solution? In addition, you can also send us the specimen and we will arrange professional engineers for proofing evaluation.
1) What is your product? required detailed specifiction?
2) What is the current production process?
3) What is your desired budget and delivery time.
Q2: When I get this microscope, but I don't know how to use it. What should I do?
A:We will send teaching video of both installation and operation, as well as the English manual. If you have further questions, we have engineers who can speak English can serve you on-line directly. And for some countries , like in India, Malaysia, Korea,Spain, we have local support team, more countries will be in the picture soon.
A:We will send teaching video of both installation and operation, as well as the English manual. If you have further questions, we have engineers who can speak English can serve you on-line directly. And for some countries , like in India, Malaysia, Korea,Spain, we have local support team, more countries will be in the picture soon.
Q3: How can I do if the Microscope goes wrong?
A:We guarantee product quality for 36 months, during this period, if spare parts of the machine were not man-made damaged, we can send the component to the customer in best delivery. Besides guarantee period, we still provide you free online services for life.If parts broken, you can order replacement parts from us.
A:We guarantee product quality for 36 months, during this period, if spare parts of the machine were not man-made damaged, we can send the component to the customer in best delivery. Besides guarantee period, we still provide you free online services for life.If parts broken, you can order replacement parts from us.
Q4. Can you customized product according to different application?
A:Yes, CNOPTEC is very dedicated to combine with our current ability with the main leading supplier to offer you the customized application.
A:Yes, CNOPTEC is very dedicated to combine with our current ability with the main leading supplier to offer you the customized application.
Q5. What is your normal lead time?
A:Generally standard machine, our lead time is 2-7 days after PO confirmed. Customized product need a little longer.
A:Generally standard machine, our lead time is 2-7 days after PO confirmed. Customized product need a little longer.
Q6. Will the package damaged during transportation?
A:Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition
A:Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition
Q7:Why should I choose CNOPTEC compared with other companys?
A:We are factory with 453 employees, turnover reached 100 millions USD in 2019, ISO 9001/13854 certificated and most products are CE/SGS/Rohs approoved, can offer you a high-quality pre-sale, in-sale and after-sales solution.
A:We are factory with 453 employees, turnover reached 100 millions USD in 2019, ISO 9001/13854 certificated and most products are CE/SGS/Rohs approoved, can offer you a high-quality pre-sale, in-sale and after-sales solution.
