Basic Info.

Model NO. XT-X-6A
Material Steel and Aluminum
Feature Reusable
Group Adult
Transport Package Wooden Box
Trademark xin cheng
Origin Zhejiang, Jiangsu, China

Product Description

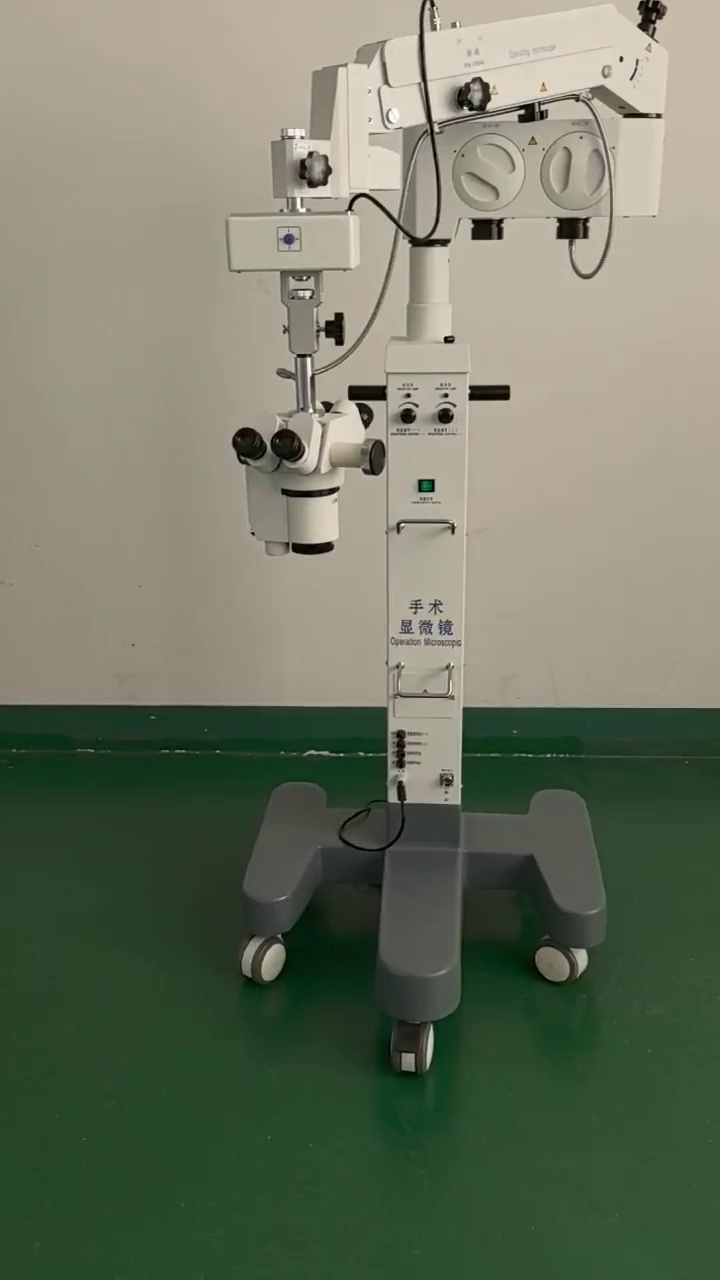

XT-X-6A operating microscope is a kind of widely used precision medical optical instruments, suitable for orthopedics, hand surgery, neurosurgery, ophthalmology, andrology, genitourinary urology, skin plastic surgery and other various Junior College of microsurgical microvascular and nerve anastomosis. In addition to the instrument for two people at the same time surgery can also be taught, camera and so on.

Product Features

The instrument adopts a continuous variable magnification optical system, with clear imaging, strong body vision and wide field of vision. The surgeon and the surgeon can observe at the same magnification.
The instrument has a large objective lens with three different focal lengths, and therefore three different working distances, which can be adapted to the surgical needs of various depths.
The lighting device adopts a cold light source coaxial internal lighting system, equipped with four groups of light source system.
Equipped with foot control electric X-Y plane mover, moving range X-Y: 40mm.

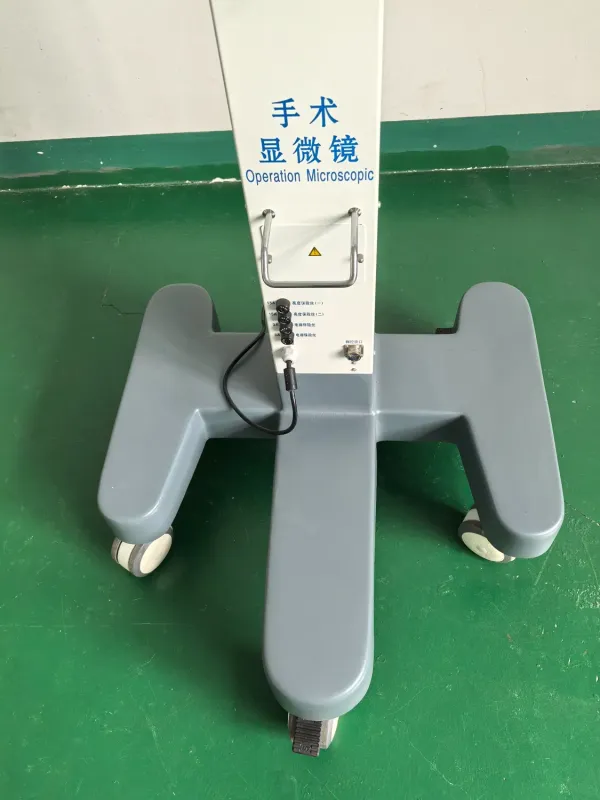

The instrument frame adopts a new balanced structure, which can be adjusted in any balance and positioning, and the operation is light and flexible, stable and reliable.

Technical Parameters

Eye piece magnification: 12.5X Alf type wide-angle eyepiece
Objective focal length: 200mm
Working distance: 192.74mm
Primary mirror magnification: 5X-25X, electric/manual infinity continuous variable
Field of view diameter: 11mm - 82.5mm
Visibility adjustment range: ± 6D
Interpupillary distance adjustment range: 55mm - 75mm

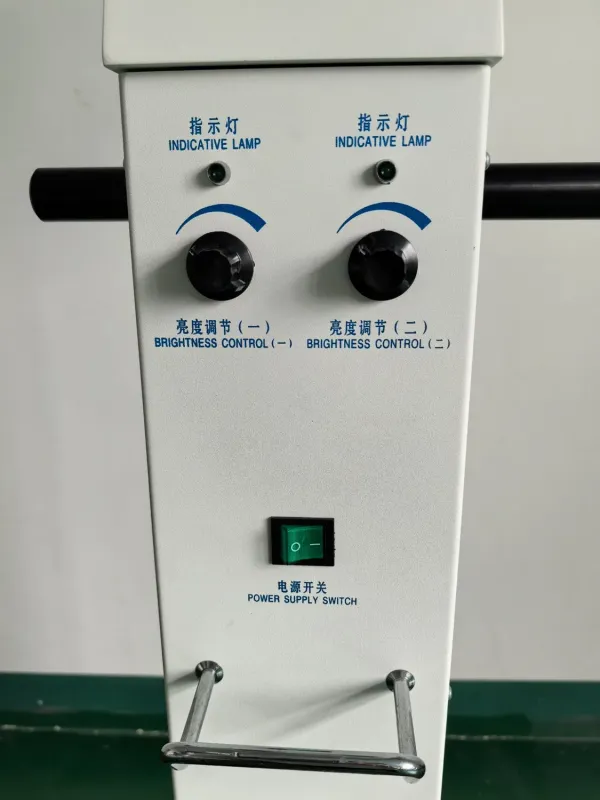

Illumination light source: four groups of light sources, 15V/150W, cold light source coaxial illumination of German OSRAM halogen lamp, four-stage dimming coaxial illumination
Object surface illuminance: ≥ 50000LX
Cross arm extension radius: ≥ 1230mm
Vertical adjustment range: ≥ 550mm
Fine adjustment focus speed and stroke: ≤ 2.5 mm/s, ≥ 40mm
X/Y coordinate device movement speed and range: ≤ 1.5 mm/s, ≥ 40mm
Power supply voltage and frequency: 220V ± 10% 50Hz
