Infinity Plan Optical 1000X Magnification BK5000 Laboratory Binocular Trinocular Biological Lab Microscope **Title:** *BK5000 1000X Infinity Plan Optical Microscope*
Description
Overview
Basic Info.
- Model NO. BK5000
- Type Biological
- Number of Cylinder Binoculars
- Mobility Desktop
- Stereoscopic Effect Stereoscopic Effect
- Kind of Light Source LED or Halogen
- Shape None
- Usage Research
- Principle Optics
- Model Bk5000
- Name Biological Microscope
- Head Binocular
- Eyepiece Wf10X/20mm
- Objectives Plan 4X/10X/20X/40X/100X
- Stage 175*145mm
- Condenser Abbe N.a.1.25
- Illumination 3W LED or 12V/20W Halogen
- Packing Size 542*265*355mm
- Net Weight 10kgs
- Certificate CE, ISO
- MOQ 1 Unit
- Level Laboratory
- Application Biology Laboratory
- Delivery Time 7~15 Days
- Transport Package Carton
- Specification Normal Size
- Trademark Chongqing Scope
- Origin China
- HS Code 90118000
- Production Capacity 5000pieces/Year
Packaging & Delivery
- Package Size 55.00cm * 27.00cm * 36.00cm
- Package Gross Weight 12.000kg
Product Description

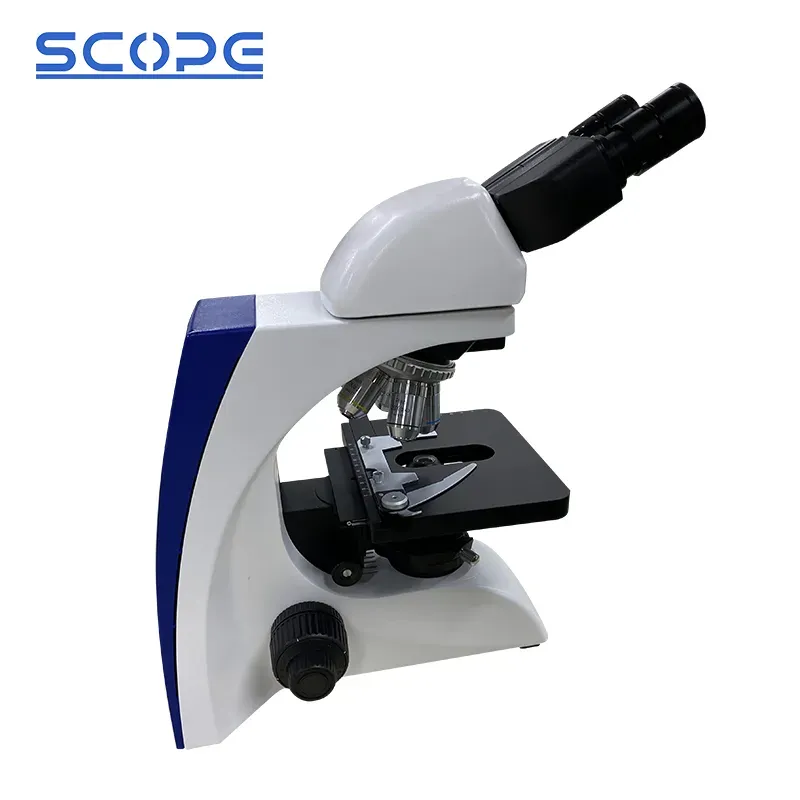

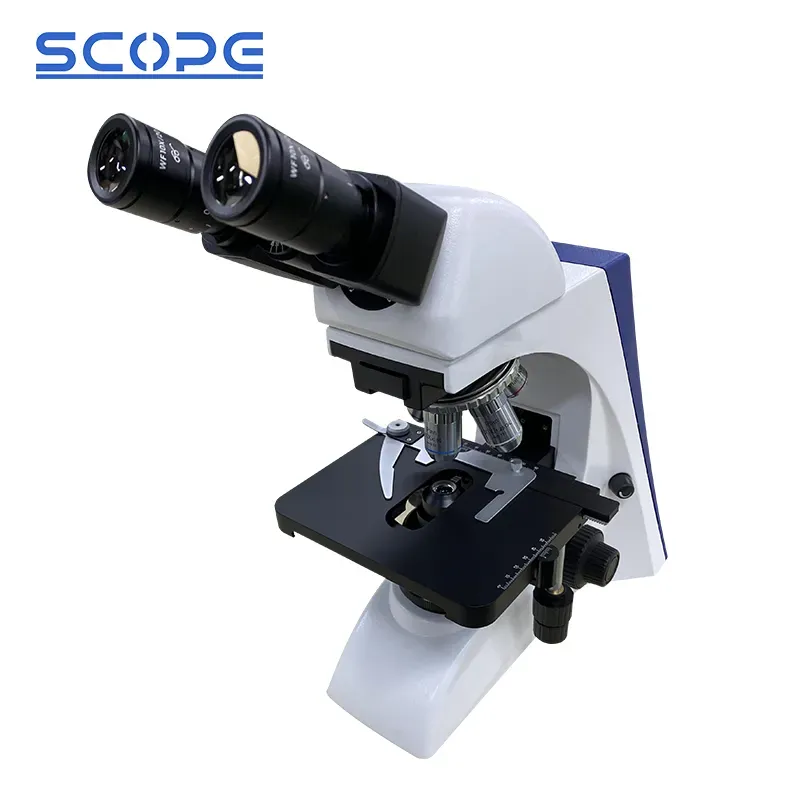

BK5000 Binocular Biological Microscope
BK series is a professional optical biological microscope, which is widely used in hospital clinical laboratory, university teaching and professional laboratory, and so on. Excellent infinity optical system for perfect resolution and definition. On the basis of this microscope, polarizing, dark field, digital head and other devices can be configured according to research requirements. Multiple configurations, multiple choices, simple operation, clear observation.
Our team has 20 years of experience in selling precision instruments. The company's microscope products cover nearly 80% of domestic products. Experienced in foreign trade, and have any qualification certificate for export.
1. The microscope connection voltage is 100V ~ 240V
2. The pupil distance of binocular microscope is 48mm-75mm
3. Flat field achromatic eyepiece with 4x / 10x / 20x / 40x / 100X
4. New low energy consumption LED cold light source, longer service life.
BK5000 Binocular Equipment Outfits
| Item | Specification |
|---|---|
| Eyepiece | WF10x/-20mm(23.2mm) |
| Infinity Plan Objective | Plan 4X/10X/20X(S)/40X(S)/100X(S,Oil) |
| Seidentopf Binocular Head | Inclined 30°, Rotated 360°, Interpupilary Distance 48-75mm |
| Nosepiece | Quintuple |
| Mechanical Stage | Stage size 175mm*145mm, Travel: 78mm*55mm, Coaxial coarse and fine focusing knobs, Two slide holder |
| Condenser | Abbe N.A.1.25 with iris diaphragm |
| Koehler Illumination | 3W-LED Illumination, wide voltage input: 110V-240v, field diaphragm, center adjustable |
| Packing Size | 542mm*265mm*355mm |
| Weight | 12KGS(Gross), 10KGS(Net) |
Optional
- Infinity Plan Objective: Plan 2.5X/60x(S)/100X(S,W)
- Seidentopf Trinocular Head: Inclined 30°, rotated 360°, Interpupilary Distance 48-75mm, Light Distribution 0:100/80:20
- C-mount: 1X/0.5X/0.75X C-mount (Focus Adjustable)
- Imaging System: 3MP digital microscope camera, 5MP digital microscope camera, 12MP digital microscope camera, 9.7inches LCD tablet camera (Built-in 5MP camera)
- Mechanical Stage: Integrated Stage, Stage Size: 182mm*140mm, Travel: 77mm*52mm, Two Slide Holder
- Condenser: Swing-out Condenser, N.A 0.9/0.13 with iris diaphragm
- Koehler Illumination: 12V/20W Halogen Lamp, 6V/30W Halogen Lamp
- Filter: Blue, Green/Amber/ Grey
- Fluorescence attachment: Epi Fluorescence Unit(six-hole disc media which can be fixed with Uv/V/B/G and another filters), 100W mercury Lamp, Epi Fluorescence Unit(six-hole disc media which can be fixed with Uv/V/B/G), 5W-LED Fluorescence lamp
- Phase Contrast Unit: Quintuple hole turret, 10X/20X/40X/100X phase contrast objective, Independent Slot, 10X/20X/40X/100X phase contrast objective
- Dark Field Unit: Dark field condenser(dry), apply to 4X-40X objective, Dark field condenser(wet), apply to 4X-40X objective (Note: Using wet dark field condenser must add oil immersion)
- Polarizing Attachment: Analyzer/ Polarizer
Packaging & Shipping
The Packing Size of BK5000 microscope is 542mm×265mm×355mm, and Gross Weight is 12 kgs, Net Weight is 10kgs. Packed in neutral cartons. No logos or nameplates, etc. The transportation of products supports express delivery, sea transportation, air transportation, etc., and various transportation methods are available.
FAQ
- What's your product usage range?
Our products is widely used in the field of laboratory, college and university education. Agriculture, industry, petroleum, geology and medical unit. - What's you popular products?
Most of our products are very popular in many countries, like microscope, metallographic equipment. And now we also sale medical manikin. - How about your warranty?
We supply 1 year warranty. During this period, we provide online technical support. If parts need to be replaced according to specific conditions, please communicate with our sales personnel. - How can I choose the suitable one?
Please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request. - How to deliver?
The first choice is express shipping, followed by air and sea freight. Also we can deliver it by customer's forwarder. - How can I pay?
We accept many payment term, such as T/T, Western Union and so on.
