Product ID: 68590153

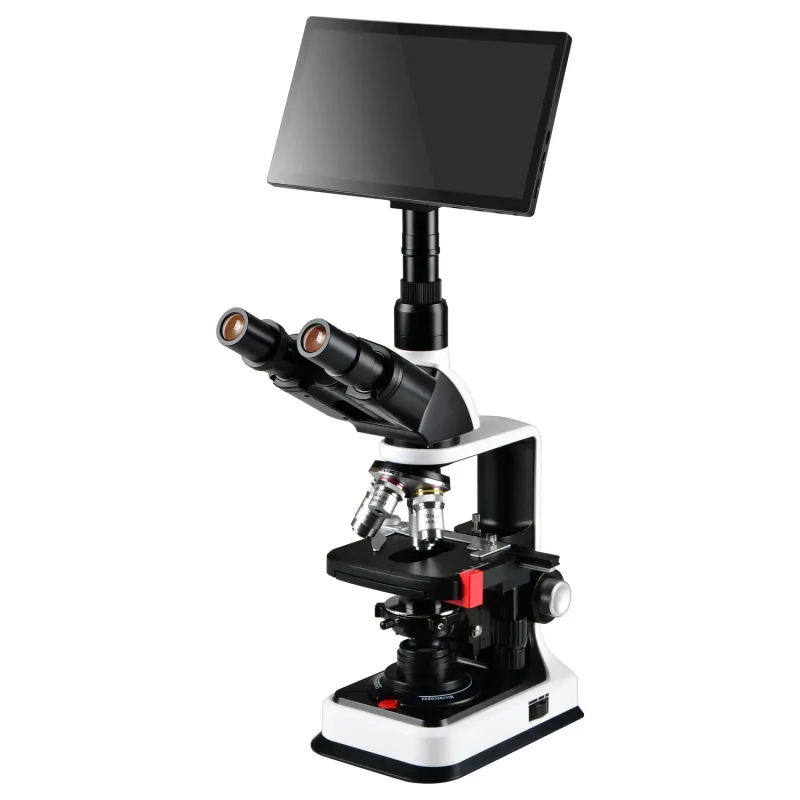

4K Biological Microscope with 11.6inch Touch LCD Screen
Contact Now
Description
Basic Info.
- Model NO. B1.101TD
- Magnification 40X-1000X
- Type Biological
- Number of Cylinder ≥Three
- Mobility Desktop
- Stereoscopic Effect Without Stereoscopic Effect
- Kind of Light Source Kohler Illumination System
- Shape Cylindrical Shaped Lens
- Usage Teaching, Research
- Principle Optics
- Principle of Optics Optic
- Eyepiece Pl10X/22mm
- Achromatic Objective 4X,10X, 40X(Spring), 100X(Spring,Oil)
- Double Layer Mechanical Stage 10mmx120mm
- Moving Range 70mmx30mm
- Transport Package Styrofoam Box + Carton Box
- Specification 1pc/carton
- Trademark OEM
- Origin China
- HS Code 9011800000
- Production Capacity 200PCS/Month
Product Description

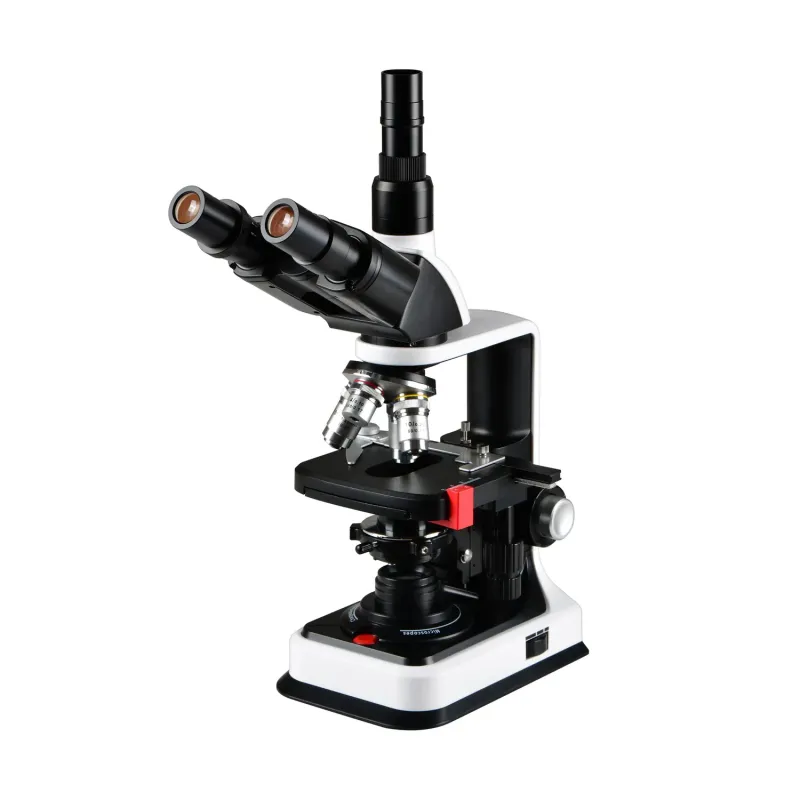

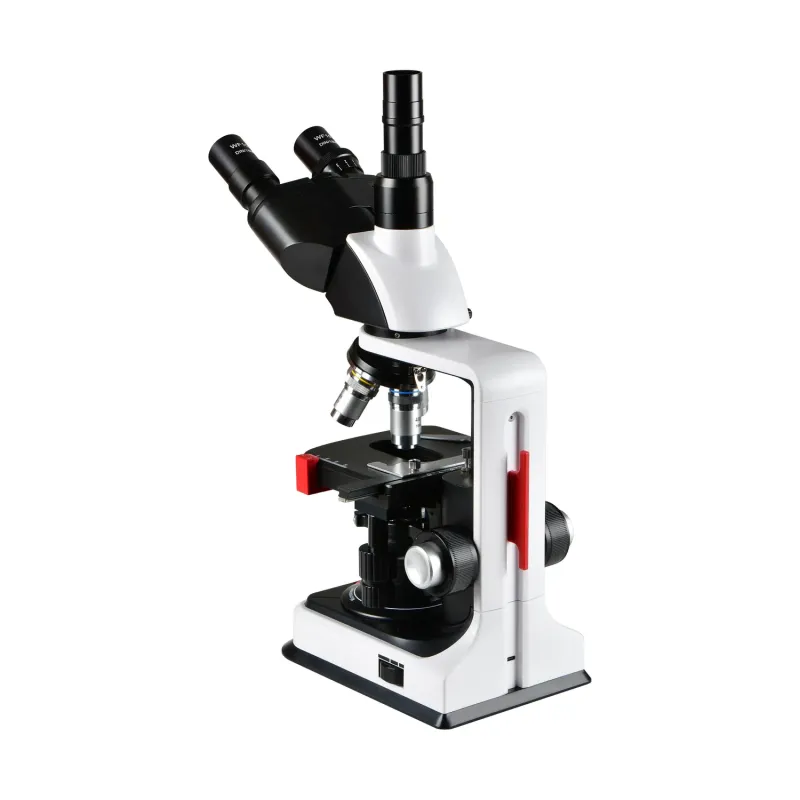

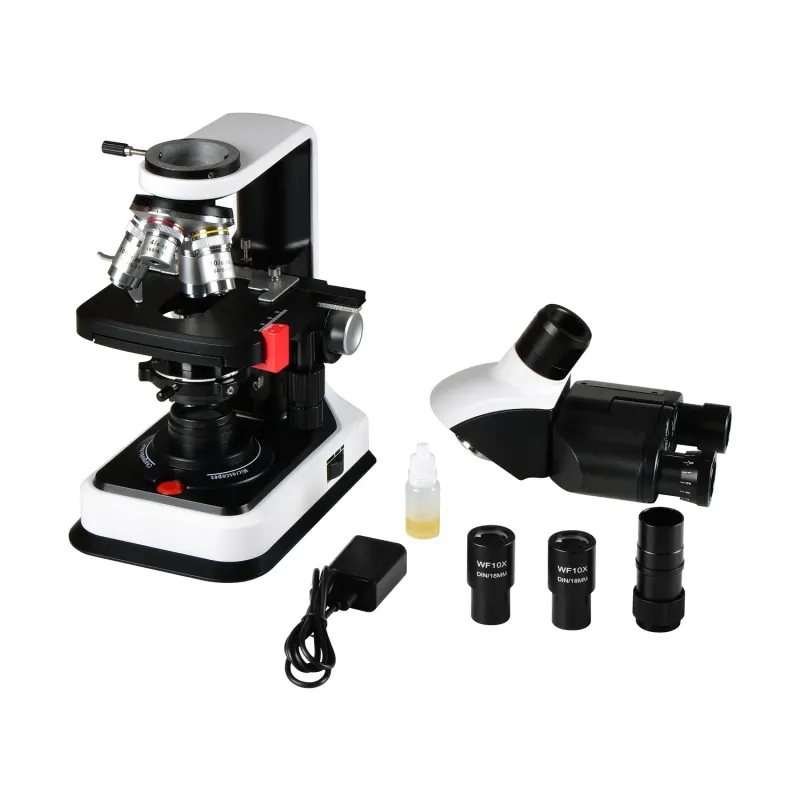

4K Biological Microscope with Touch LCD Screen 11.6inch (B1.101TD)
- Head: Trinocular Head, 45° inclined, 360° Rotatable, Interpupillary Distance 48-75mm
- Eyepiece: Wide-angle eyepiece WF10X (field of view 18mm, optional WF16X, WF25X)
- Nosepiece: Quadruple Revolving Nosepiece
- Objective: 195mm achromatic objective, 4X, 10X, 40X, 100X (oil)
- Condenser: ABBE N.A.1.25 Condenser with Iris Diaphragm & Filter
- Stage: Double Layer Mechanical Stage, Size 110mmx120mm, Moving Range: 70mmx30mm
- Focusing: Coarse and Fine Focusing
- Light source: 1W LED, with Rechargeable Battery, Type C, USB cable
- Power: DC 5V/1A, rechargeable AA * 3/1.2V, 1300mAh, AA * 3/1.5V
- Attachments: Dust bag, Type C power cord
BM-LCD116.A

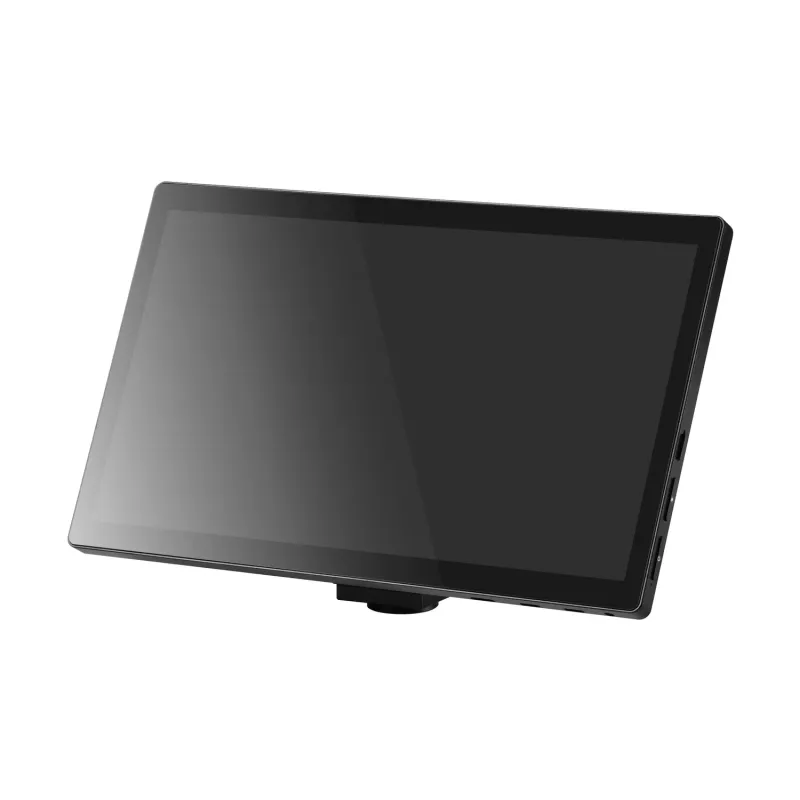

Screen Specification:
- Screen size: 11.6"
- Screen color: 16.7M, 72% NTSC
- Brightness: 400cd/m²
- Contrast ratio: 1000:1
- Viewing angle: 89/89/89/89
- Processor: ARM Cortex Dual Core 1.2GHz
- COMS: Sony IMX307 (C)/1/2.8 "
- Video Resolution: 1920*1080P/30fps/MP4
- Image Resolution: 200W/JPEG
- Pixel size: 2.9*2.9μ m
- HDMI: 1920*1080@60fps
- USB: USB*2/ Can be connected with external USB mouse, USB flash drive, etc
- Storage: Support SD card
- Photo button: Support
- Power input: DC 12V/2A
- Software System: Hypervision 2.0 (Optional TSCamView/TSCamView Pro)
- Parameter adjustment: Support
- Measurement: Support
- Language: Chinese/TraditionalChinese/Russian/English/German/French/Japanese/Italian, etc
