Product ID: 68590108
Automatic Paper Cutting Machine for Paper / Film Factory Price
Contact Now
Description
Overview
Basic Info.
| Model NO. | SX-D1100A |
| Classification | Single-blade Cutter |
| Driven Type | Electric |
| Type | Industrial Cutter |
| Blade Material | HSS |
| Computerized | Computerized |
| Raw Material | Roll Material |
| Cutting Width | 1100 mm / 1400 mm |
| Length of Cutting | 20-1500 mm |
| Max Diameter of Material | 1400 mm |
| Design Speed | 20-200 Times/Min |
| Acutal Speed | 150 Times/Min |
| Cutting Precision | 0.2 mm |
| Voltage | 380V 50 Hz |
| Total Power | 7 Kw |
| Weight | 3600 Kg |
| Operation | Taiwan Touch Screen |
| Motor | Jaskawa, Japan |
| PLA | Mitsubishi |
| Transport Package | Plastic Film Packing |
| Specification | 5400x2000x1400 mm |
| Trademark | Shengxiang |
| Origin | Zhejiang, China |
| HS Code | 8441100000 |
| Production Capacity | 30 Sets/ Month |
Packaging & Delivery
| Package Size | 540.00cm * 200.00cm * 140.00cm |
| Package Gross Weight | 3500.000kg |
Product Description
About Shengxiang
Ruian Shengxiang Packaging Machinery Co., Ltd. was established in 2010. It is a private economic entity integrating development, design, production, sales, and service. Mainly specializing in the manufacture of packaging equipment such as cross-cutting machines, A4 paper cutting machines, slitting machines, roll paper cutting machines, rewinding machines, printing machines, and so on.
Product Description
Specification
| Model | SX-D1100 | SX-D1400 |
|---|---|---|
| Cutting Width | 1100 mm | 1400 mm |
| Min Vertical Cutting Width | 50 mm | 50 mm |
| Max Diameter of Material | φ1400 mm | φ1400 mm |
| Length of Cutting | 20-1500 mm | 20-1500 mm |
| Cutting Speed | 20-200 times/min | 20-200 times/min |
| Cutting Precision | ±0.2 mm | ±0.2 mm |
| Total Power | 7 kw | 8.5 kw |
| Weight | 3600 kg | 4000 kg |
| Overall Size (L x W x H) | 5400*2000*1400 mm | 5400*2300*1400 mm |

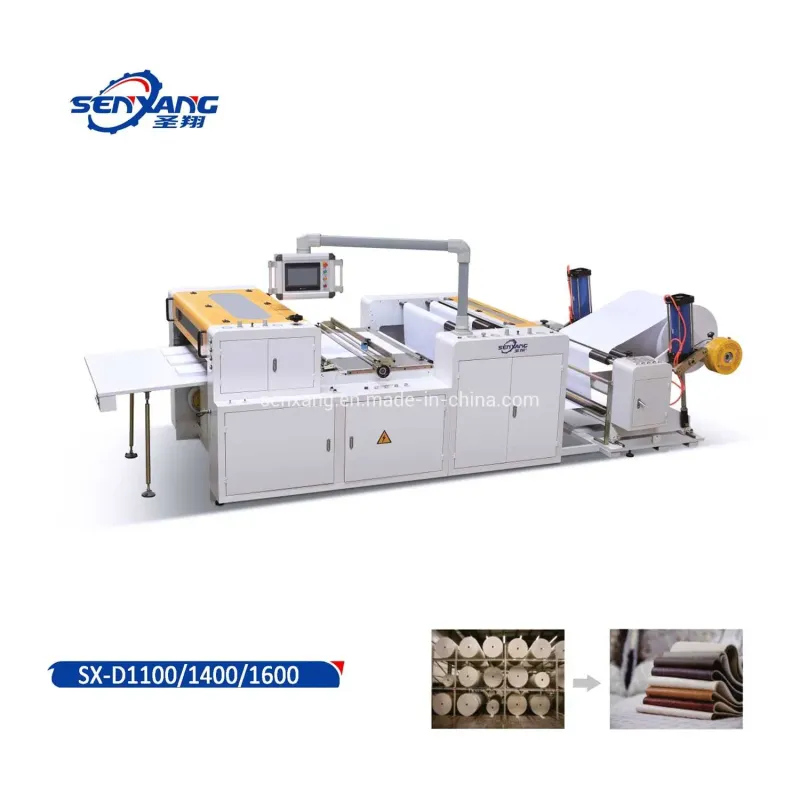

SX-D1100/1400 High Precision PVC Film/Paper Cross Cutting Machine
Feature and Characteristic
- This machine suitable for Cutting all kinds of thin paper (28-100g), PVC, PET film, paper-plastic composite, cloth, leather, and other large drum packaging materials, etc.
- It adopts a servo motor for controlling constant-length cutting.
- It adopts a pneumatic, a photoelectric sensor for controlling the transmission system, with photocell, gas together.
- It has the functions of easy operation, high precision, good stability, low noise. (photo tracking function is optional.)
- This machine has the function of the frequency converter timing device, automatic counting, stop work by alarm magnet powder tension control.
Detailed Photos

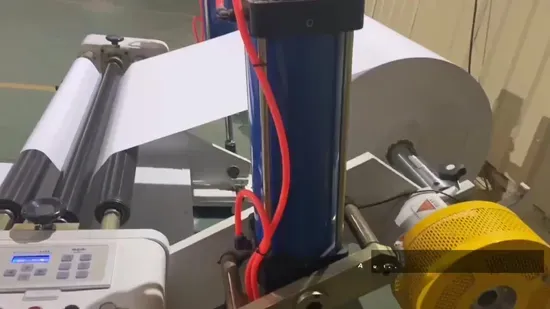

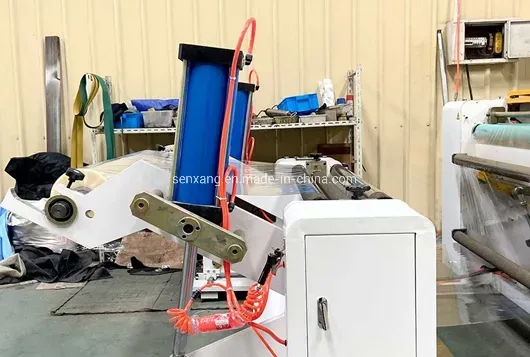

Automatic Loading Unit
- Pneumatic feeding system, suitable for your large roller material

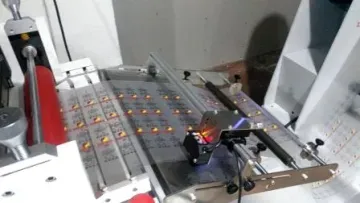

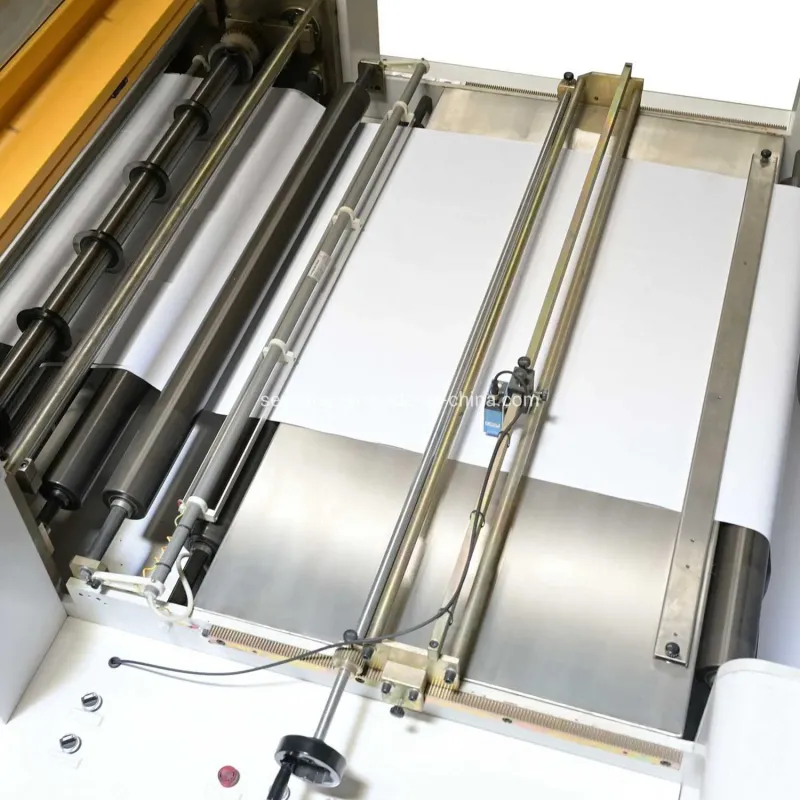

- Automatic photocell EPC system

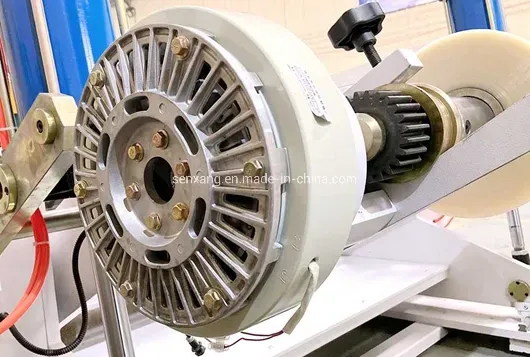

Magnetic Tension Control
- Tension Magnet adopts 10KG/20kg controller, to keep your paper flat and double side under the same tension.

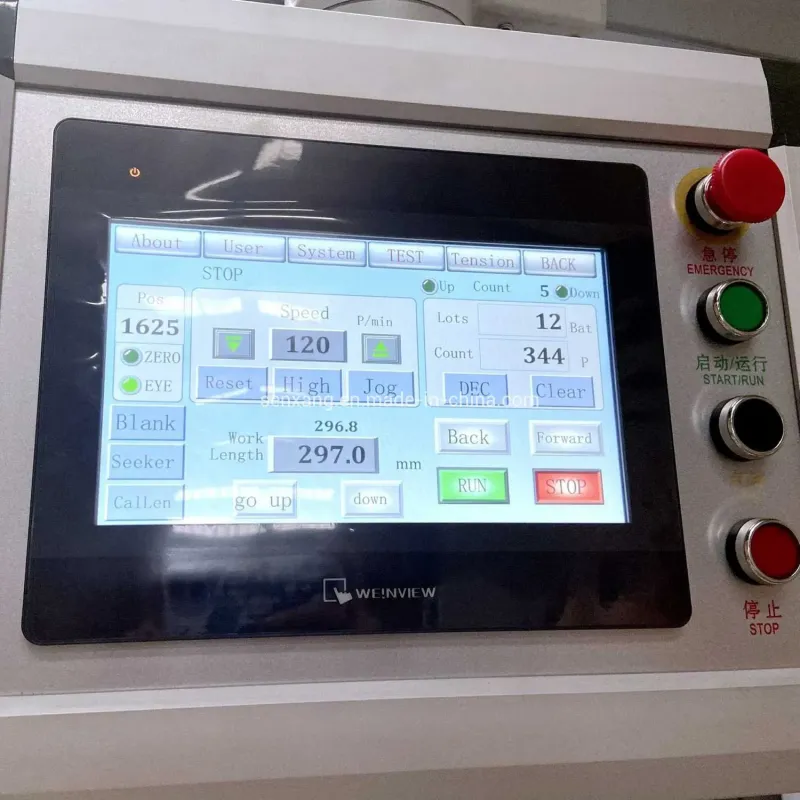

Touch Screen
- Position adjustable
- Big size, More convenient for operation

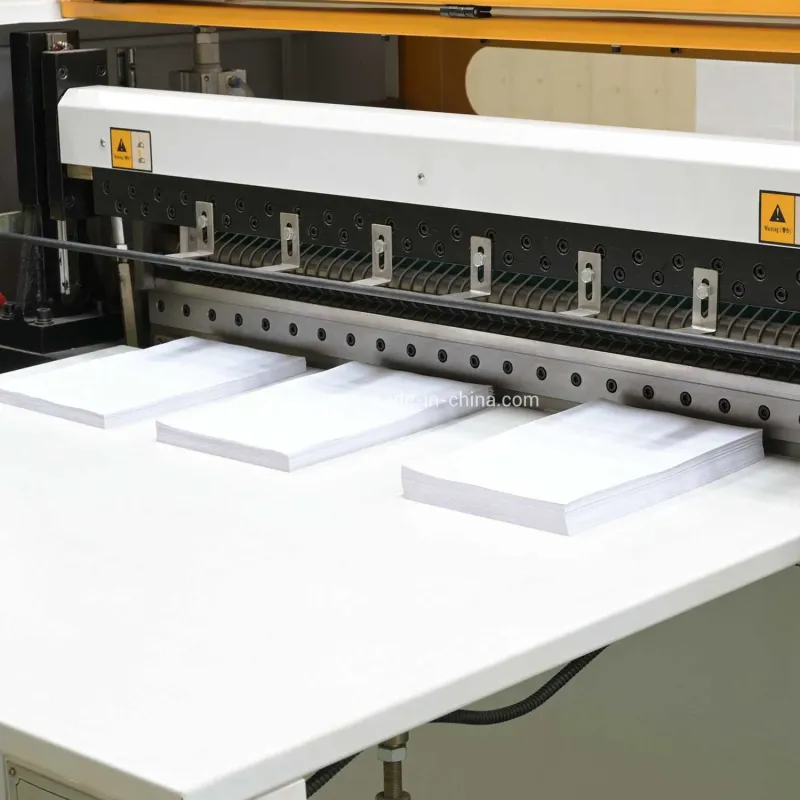

Collect
- Protect Cover for cutting knife
- Fixed wooden plate
- Need one labor to collect the products
Packaging & Shipping
After Sales Service
Why Choose Us - Shengxiang
- Quality Warranty One Year Warranty We Promise Commissioning services: Product arrived on-site, Our Technical Staff Will Guide you to Finish installation, commissioning, and training How to operations Until you get it (Installation charge, buyer responsible)
- Training Services We will provide comprehensive technical training if necessary Training Include as following:
- Normal operating procedures for equipment training.
- Knowledge of routine maintenance on equipment training.
- Introduction of the equipment and service solutions for training.
- Lifetime Service Warranty expires, we will provide life-long service to all customers on a regular basis to provide equipment upgrades and maintenance services.
- Archives Service After execution of the contract, we will establishment of archives, including the sale contract, the technical parameters, commissioning acceptance of a single report, the relevant technical drawings.
