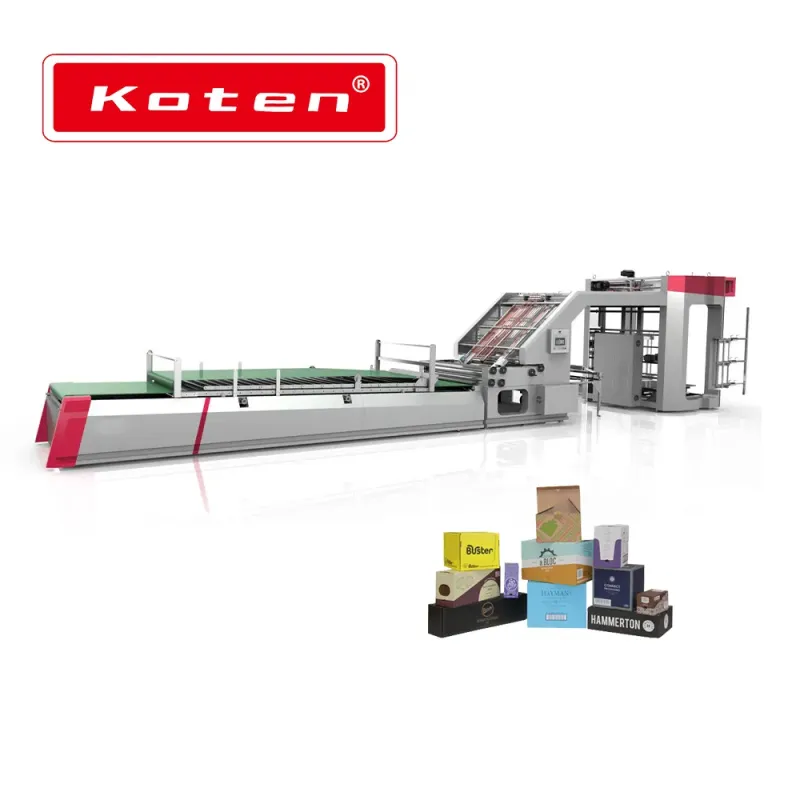

Automatic Flute Paper Laminator for Corrugated Cardboard
Contact Now
Description
Basic Info.
| Model NO. | NB-H |
|---|---|
| Classification | Cold Laminating Machine |
| Application | Packaging Paper |
| Driven Type | Electric |
| Automatic Grade | Automatic |
| Membrane Material | Cardpaper+Corrugated Paper/Cardpaper |
| Plastic Film Mulching Modes | Cardpaper+Corrugated Paper/Cardpaper |
| Performance | Multi Functions |
| Laminating Speed | 10000PCS/H |
| Cardpaper and Cardpaper Laminating | Yes |
| Corrugated Paper and Cardpaper Laminator | Yes |
| Workers Requirement | 1-2 Workers |
| PLC Touch Screen Control | Yes |
| Transport Package | by Strong Wooden Case. |
| Specification | CE |
| Trademark | Koten |
| Origin | China |
| Production Capacity | 50sets/Month |
Packaging & Delivery
| Package Size | 1500.00cm * 220.00cm * 250.00cm |
|---|---|
| Package Gross Weight | 12000.000kg |
Product Description

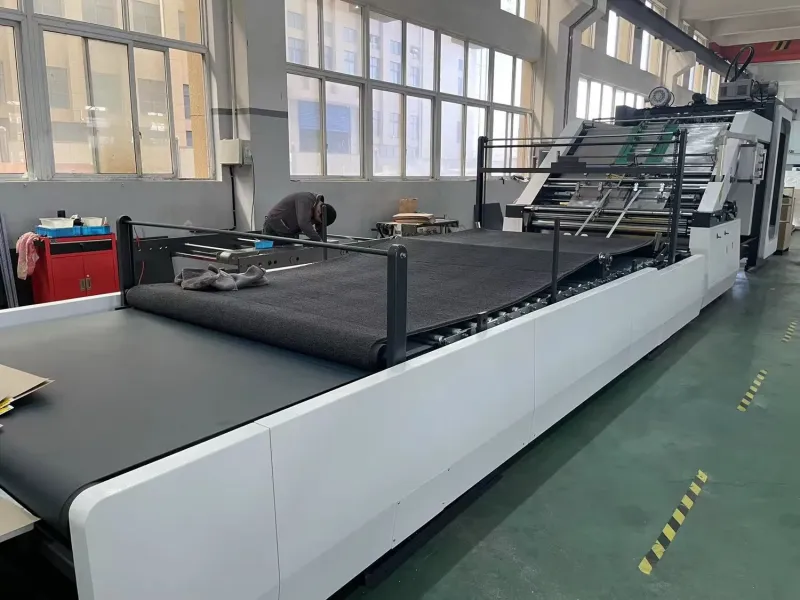

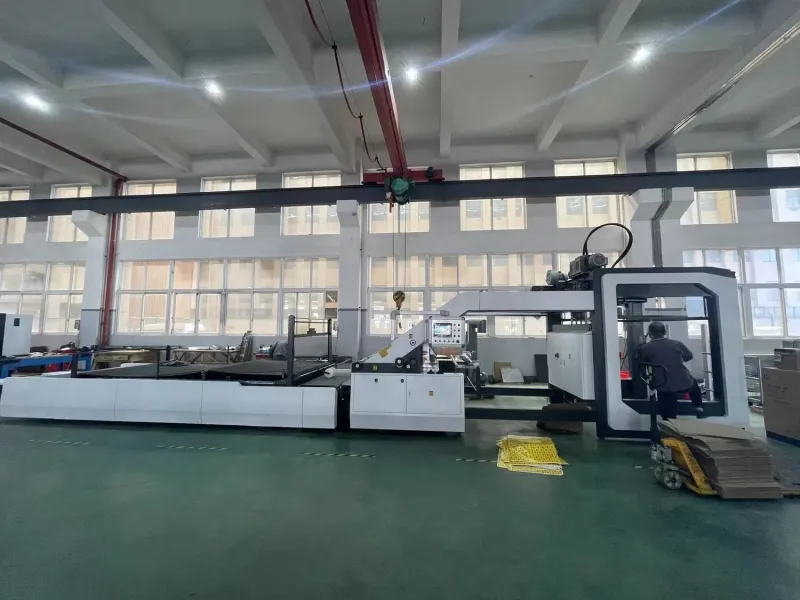

Introduction: This machine is used for the flute laminating of color top sheets and corrugated paper. Adopts feeder feeding the top sheet and suction device sending the bottom sheet combines fully automated. Simple operation, easy maintenance; High speed and high precision.
Cardboard Paper Box.
Corrugated Paper Box Samples.
Main Characteristics:

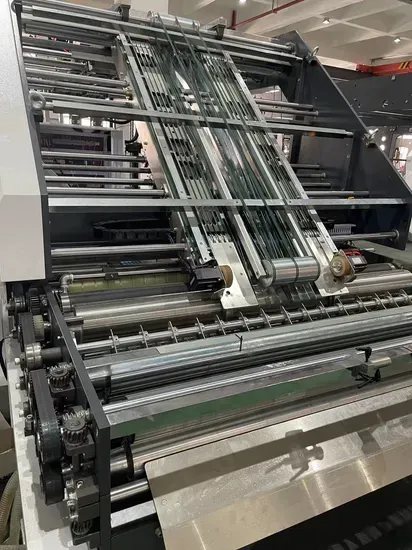

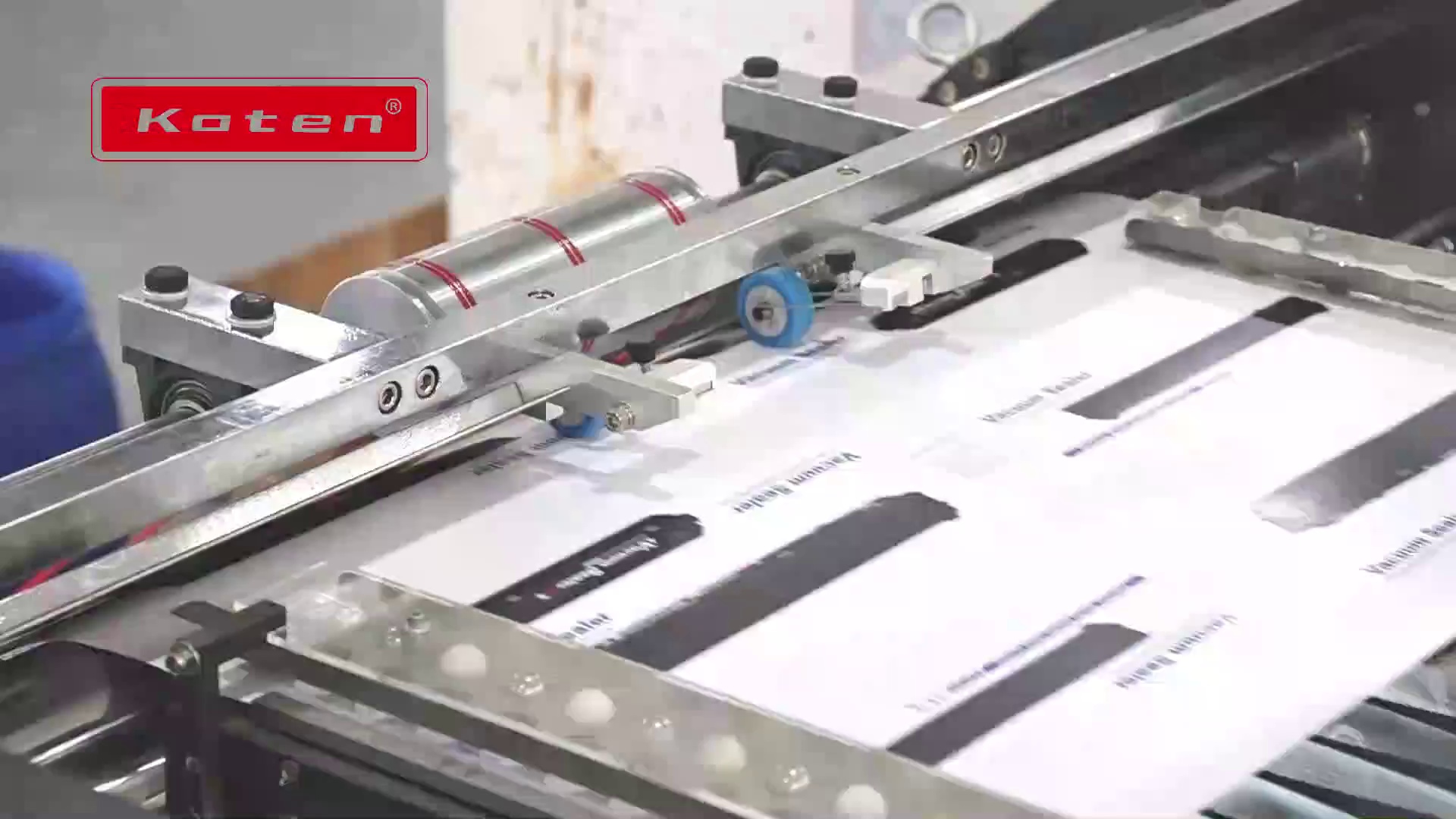

- The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more efficient
- Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking
- Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.
- Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm;
- The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste;

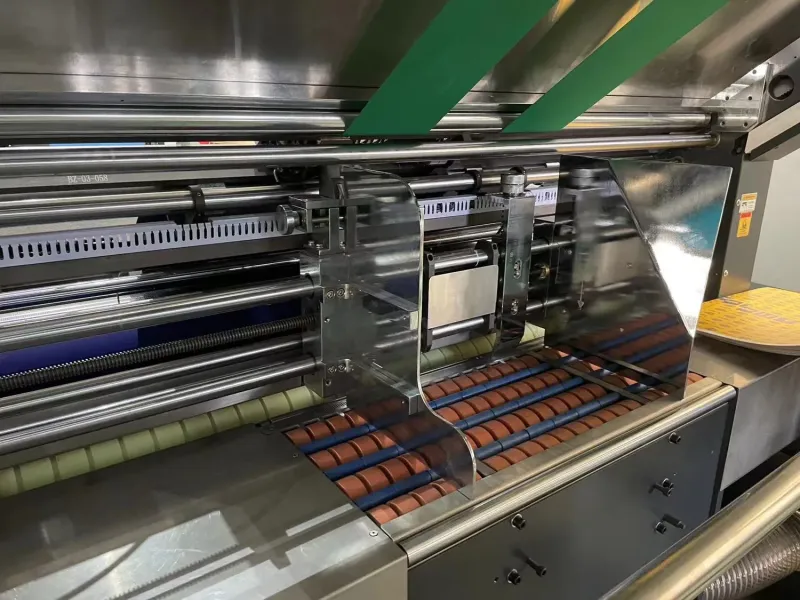

- The scientific design of the metering roller speed to ensure the glue evenly on the same time, to avoid rejection of glue at high speed.
- Using the rubber roller cleaning to make cleaning thoroughly, and so that the back of the corrugated cardboard never gets glue, and eliminating the trouble of frequent replacement of blade.
- Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; Unilateral adjustment by way of adjustment worm roll lamination pressure for quick
- Control of water tank cleaning cycle using an independent method, clean, hard rubber product;
- For 150g-600g of color cardboard and A / B / C / D / E / F corrugated laminating.
Features
- It is both suitable for corrugated paper and cardboard laminating, and cardpaper and cardpaper laminating.
- Feeding parts adopts servo motors control, which can adjust the bottom paper and top paper automatically, intelligent adjustable.
- Famous brand electrical parts which guarantee machine with steady running and long life using.
Main Specifications.
| Model | NB-1450H | NB-1650H | NB-1950H |
|---|---|---|---|
| Max. Paper Size | 1450x1450mm | 1650x1650mm | 1950x1650mm |
| Min.Paper Size | 450x450mm | 450x450mm | 450x450mm |
| Suitable Paper | Top Paper 150-600gsm | ||
| Bottom Paper 0.5-12mm(Flute A,B,C,D,E,etc, 4ply corrugated paper, cardboard more than 300gsm) | |||
| Laminating Precision | +0.15mm | +0.15mm | +0.15mm |
| Max. Speed | 12000pcs/h. 150m/min. | 12000pcs/h. 150m/min. | 12000pcs/h. 150m/min. |
| Main Power | 22kw | 22kw | 22kw |
| Machine Size | 13.5x2.4x2.4m | 14.5x2.6x2.4m | 17x2.9x2.6m |
| Height For Bottom Paper | 400mm | 400mm | 400mm |
| Height For Top Paper | 1800mm | 1800mm | 1800mm |
