Product ID: 68590073
Automatic Sheet Cutting Machine for Pet Film, Paper, Label, Sticker, Nomex, TFT
Contact Now
Description
Basic Info.
- Model NO. LTG-500
- Driven Type Electric
- Type Roll to Sheet Cutting
- Blade Material Stainless Steel
- Computerized Computerized
- Condition New
- Application Paper, Pet, PVC, PE, PP, PC, BOPP, Sticker in Roll
- Automatic Grade Automatic
- Power 1.2kw
- Weight 300kg
- Certification CE and ISO 9001:2008
- Function Roll to Sheet Cutting for Paper, Pet, PVC, PE, PP, etc
- Keyword Roll to Sheet Cutting
- Cutting Speed 110 M/Min
- Transport Package Wooden Boxes
- Specification (L1450xW980xH1300)mm
- Trademark LINGTIE
- Origin Xiamen, China
- HS Code 847780000
- Production Capacity 35 Sets/Mouth
Product Description
Cutting machine features:
- The machine is suitable for cutting copper foil, aluminum foil, PET, PC, PVC, PCB, FPC, lithium battery membrane, flannelette, sheet metal, TFT, etc. All kinds of coil material cutting.
- This machine adopts servo motor to pull material, imported PLC touch screen operation, can be set arbitrary length, quantity, speed, can cut single authoritarian.
- This machine is used with the function of automatic feeding, loading axis adopt gas rose axis, make the operator handling convenient.
Main Technical Specification:
| Model | LTG-360 | LTG-500 | LTG-600 |
|---|---|---|---|
| Voltage | 220/380v | 220/380v | 220/380v |
| Power | 0.75kw | 1.2kw | 1.5kw |
| Weight | 250kg | 300kg | 400kg |
| Cutting Width | 0-360mm | 0-500mm | 0-600mm |
| Cutting Length | 0.1-9999.9mm | 0.1-9999.9mm | 0.1-9999.9mm |
| Machine Size | L780xW920xH1300mm | L980xW1450xH1300mm | L1080xW1550xH1300mm |

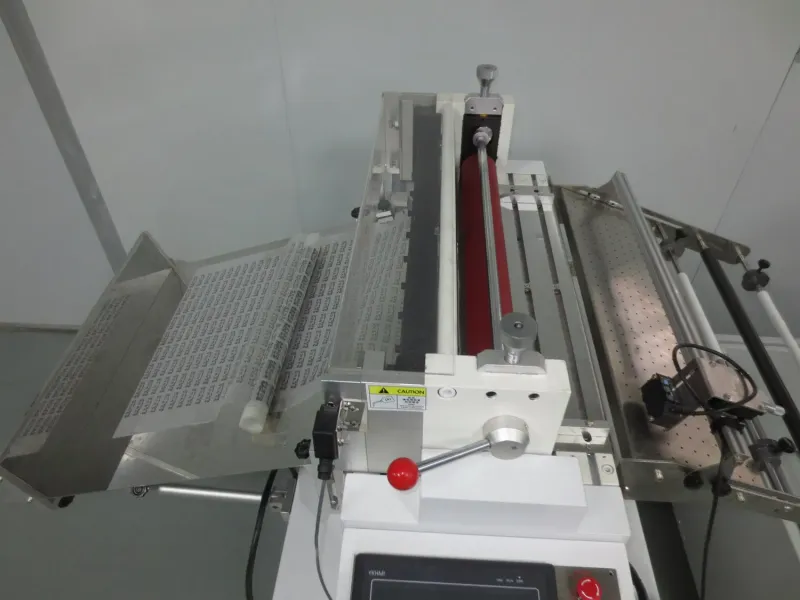

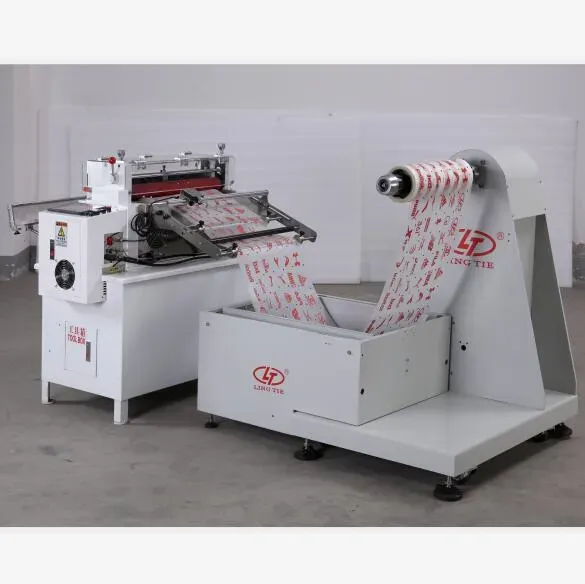

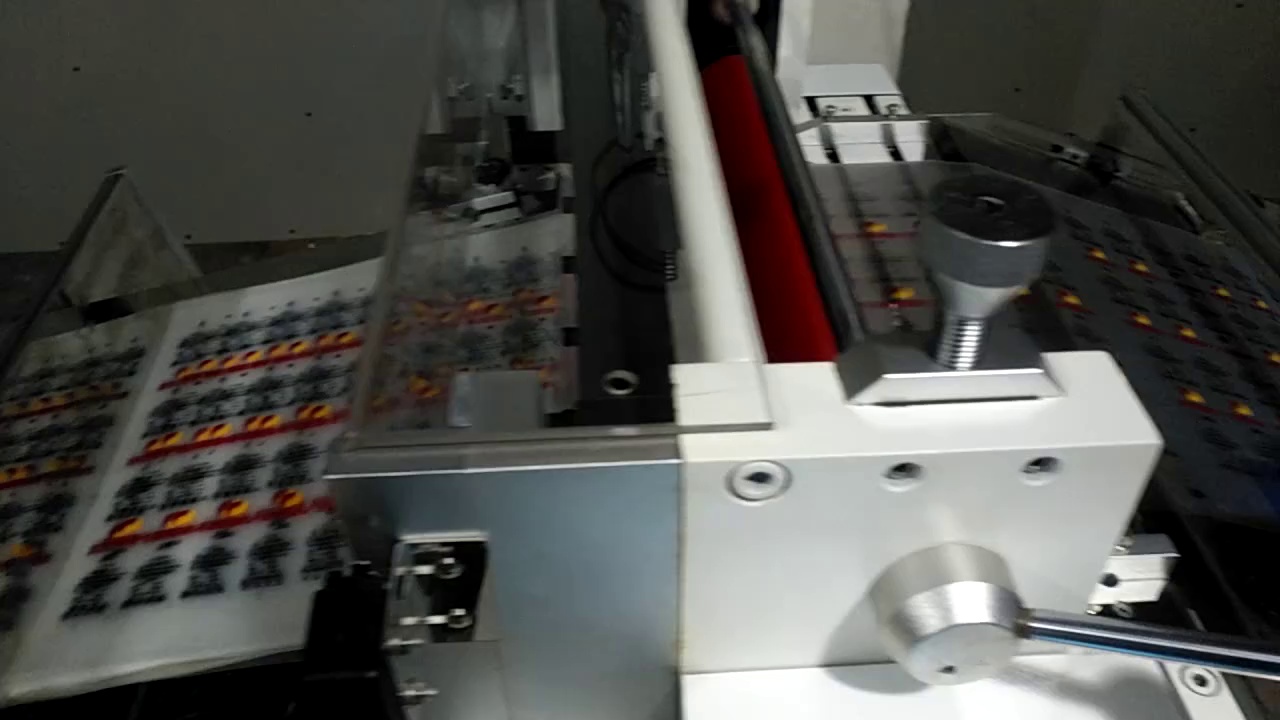

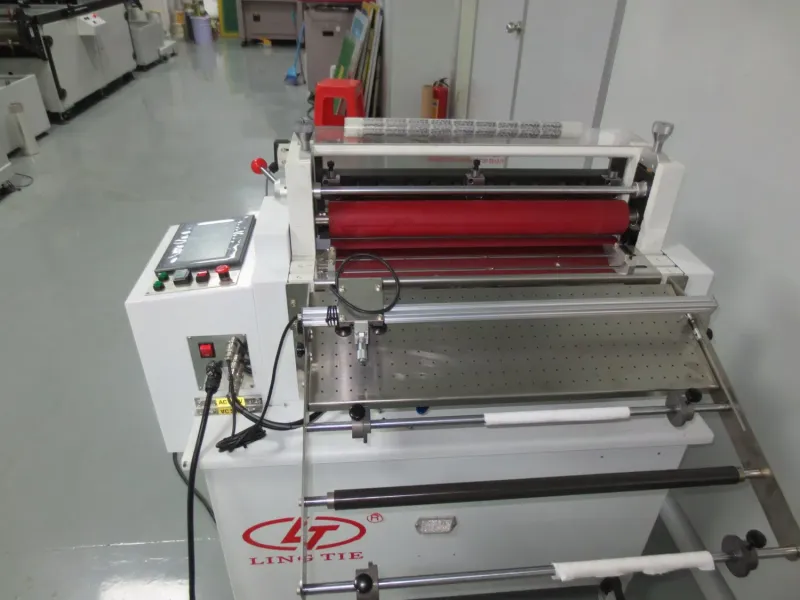

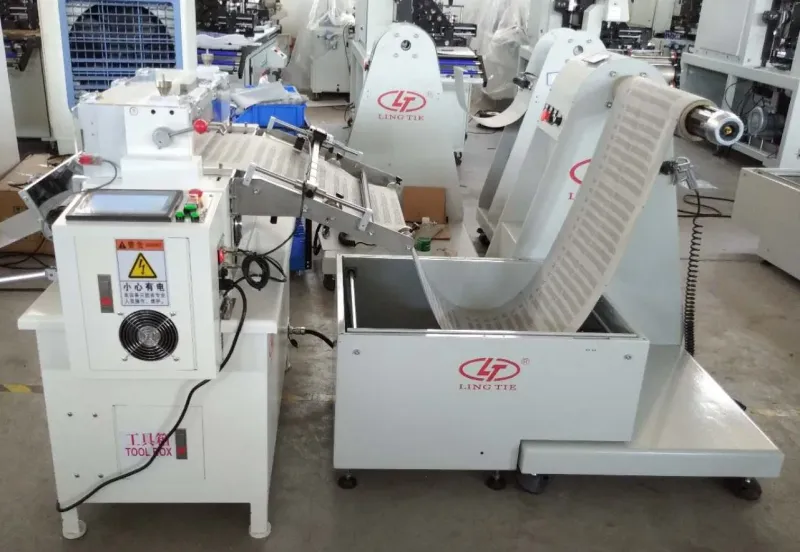

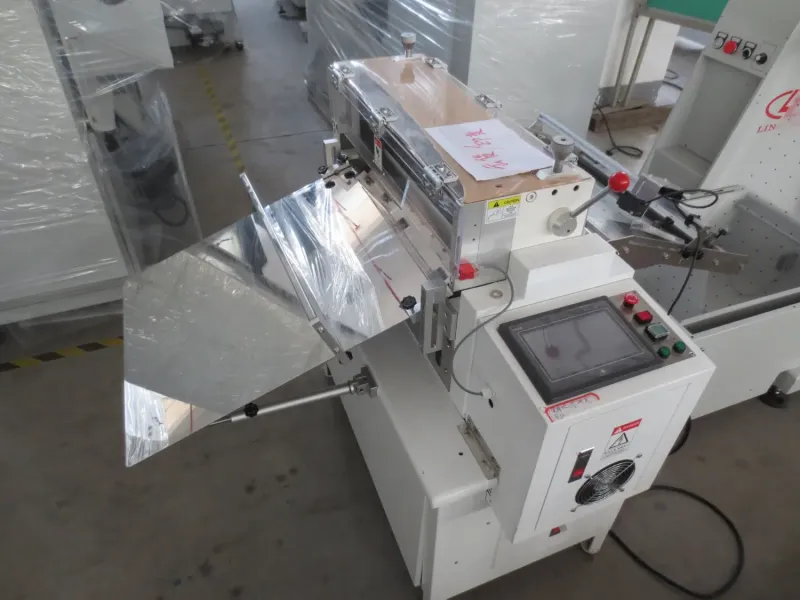

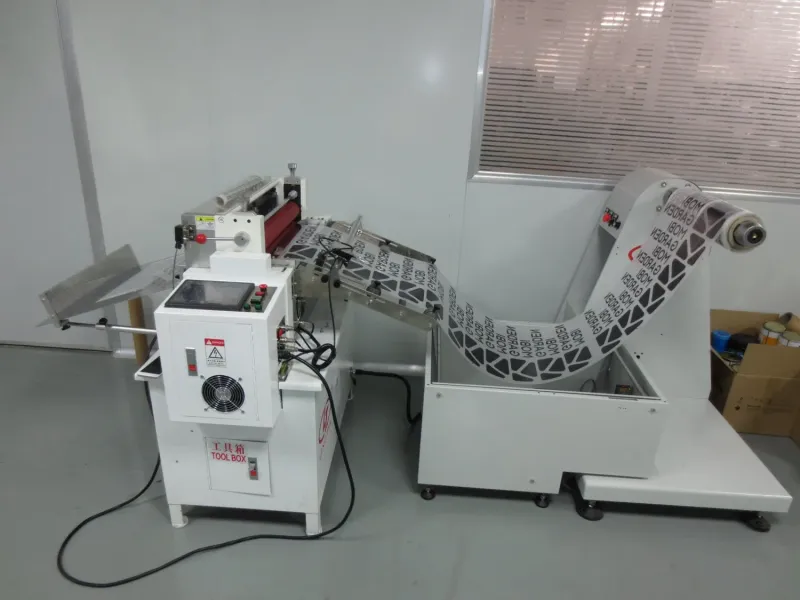

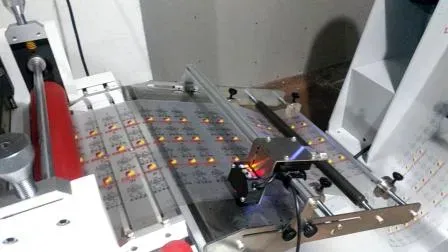

Machine Photos:
