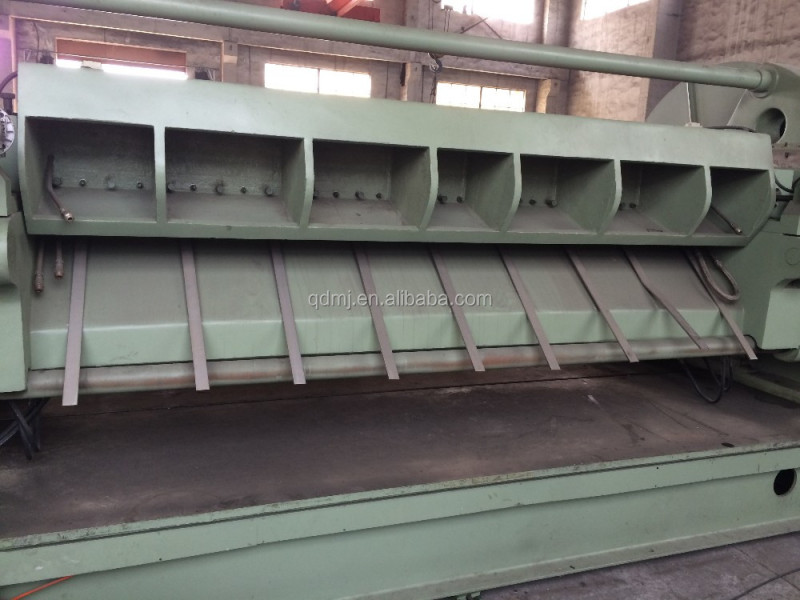

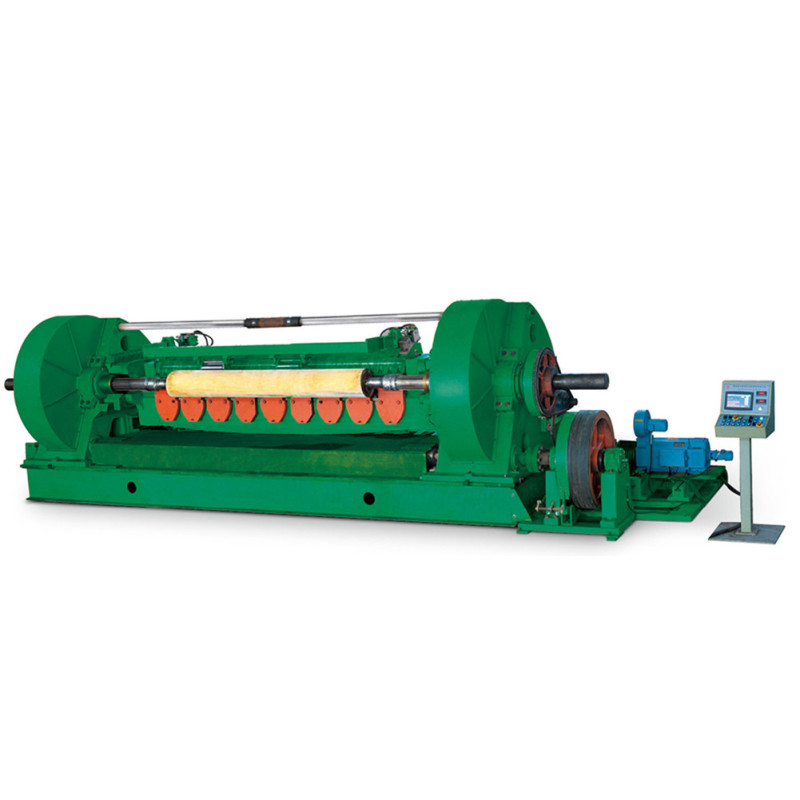

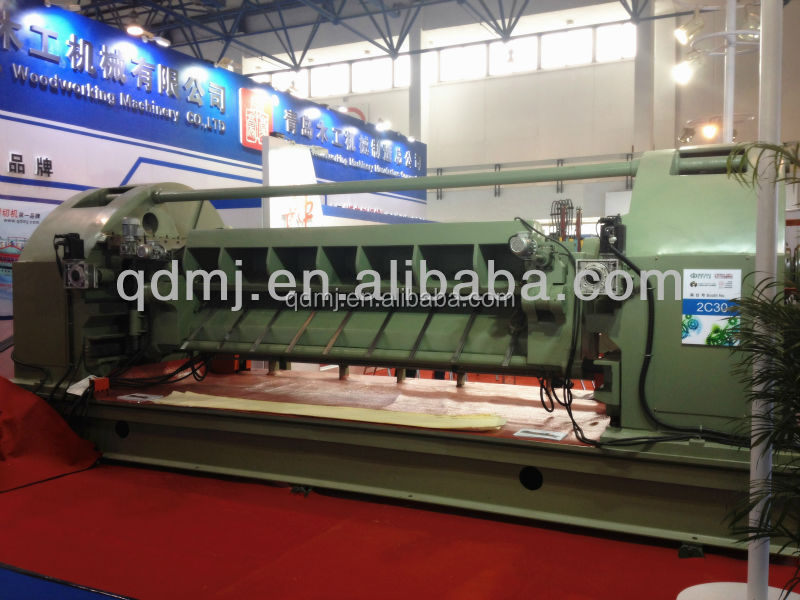

Wood Log Spindle Half Round Peeler Machine for Flooring Surface Veneer
Contact Now
Description
Product description
Product Application
Half round peeling machine adopts technique overseas and is developed by our company independently. It slices solid wood with straight grain, runs stably and precisely, veneer thickness is uniform. It is mainly used in solid wood, plywood, MDF, flooring and furniture production.
|
Model
|
BQ1535
|
|
Max cutting size
|
length:1800-3500mm max diameter 680mm
|
|
Blade size
|
3650*200*19mm
|
|
Veneer thickness
|
0.3-2.5mm
|
|
Cutting speed
|
Max 70pcs/min
|
|
Blade holding
|
Hydraulic
|
|
Wood clamping method
|
Chain Clamping
|
|
Pressure bar adjustment
|
Motor trimming,knife plate rack hydraulic flip up
|
|
Total power
|
78.23Kw
|
|
Main power
|
55KW DC
|
|
Wood clamping method
|
7.5KW*2
|
|
Blade-holder motor
|
2KW*2 servo motor
|
|
Pressure bar adjustment motor
|
0.18KW*2
|
|
Blade angle motor
|
0.37Kw
|
|
Oil pump motor
|
2.2Kw
|
|
Heat cycle motor
|
0.75kw
|
|
Conveyor motor
|
0.55kw
|
|
Working stroke
|
max 450mm
|
|
Pressure bar adjustment speed
|
0.19mm/s
|
|
Wood clamping speed
|
25mm/s
|
