CE diesel wood chipper shredder
Contact Now
Description
Product description

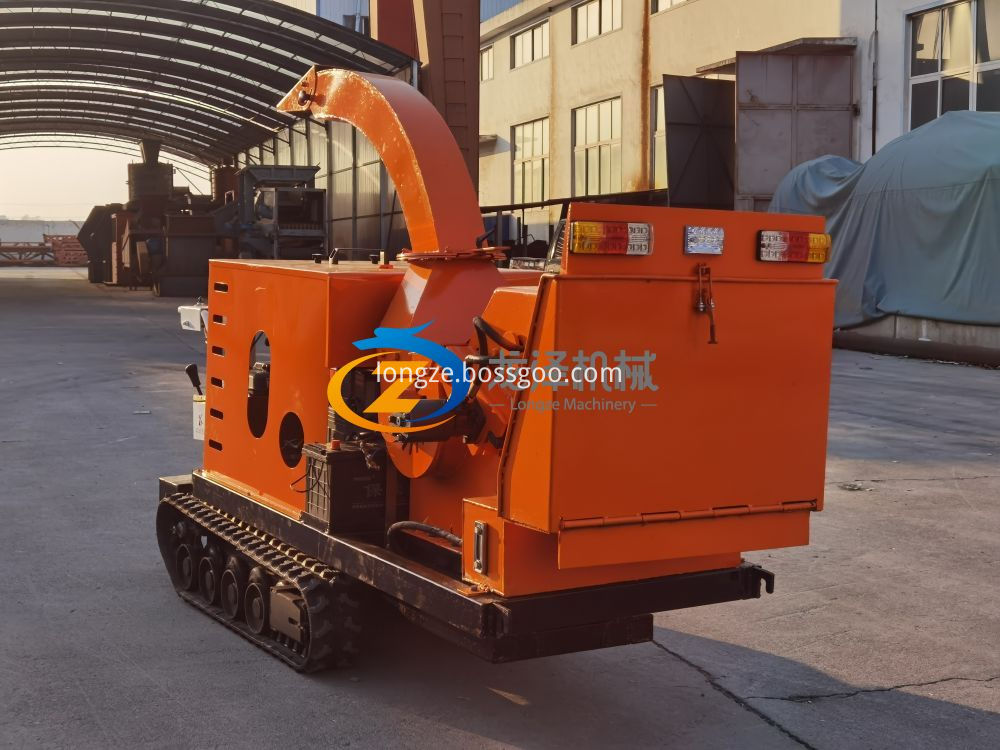

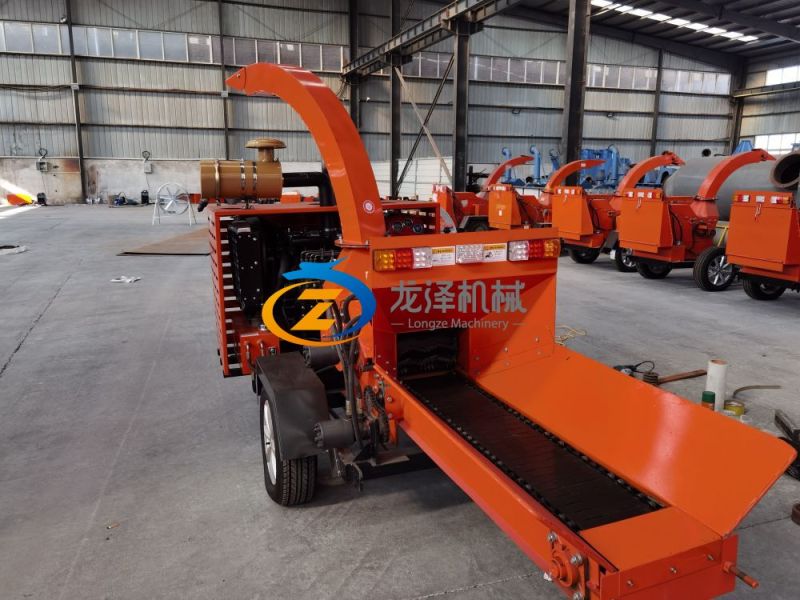

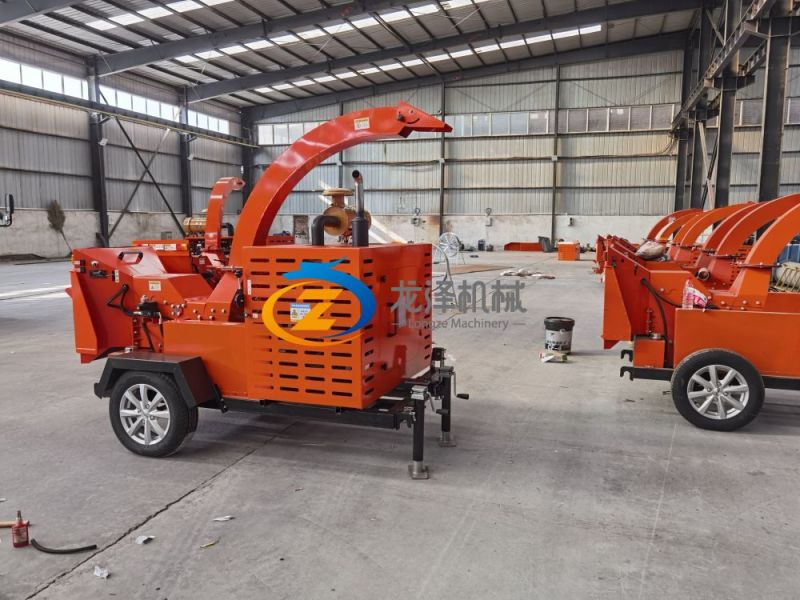

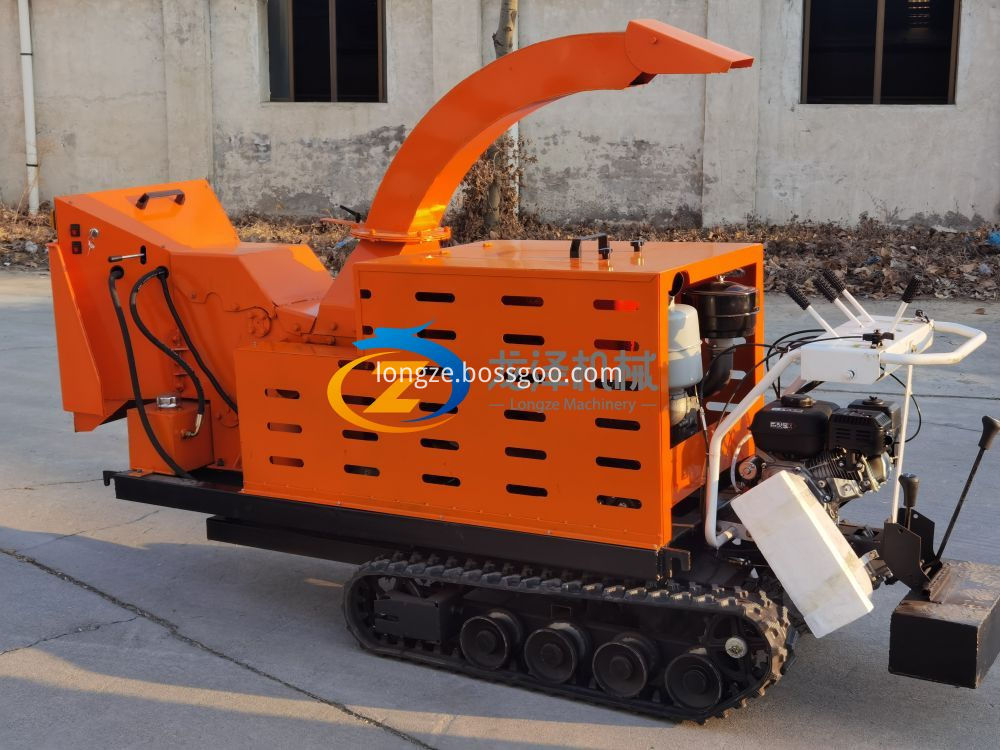

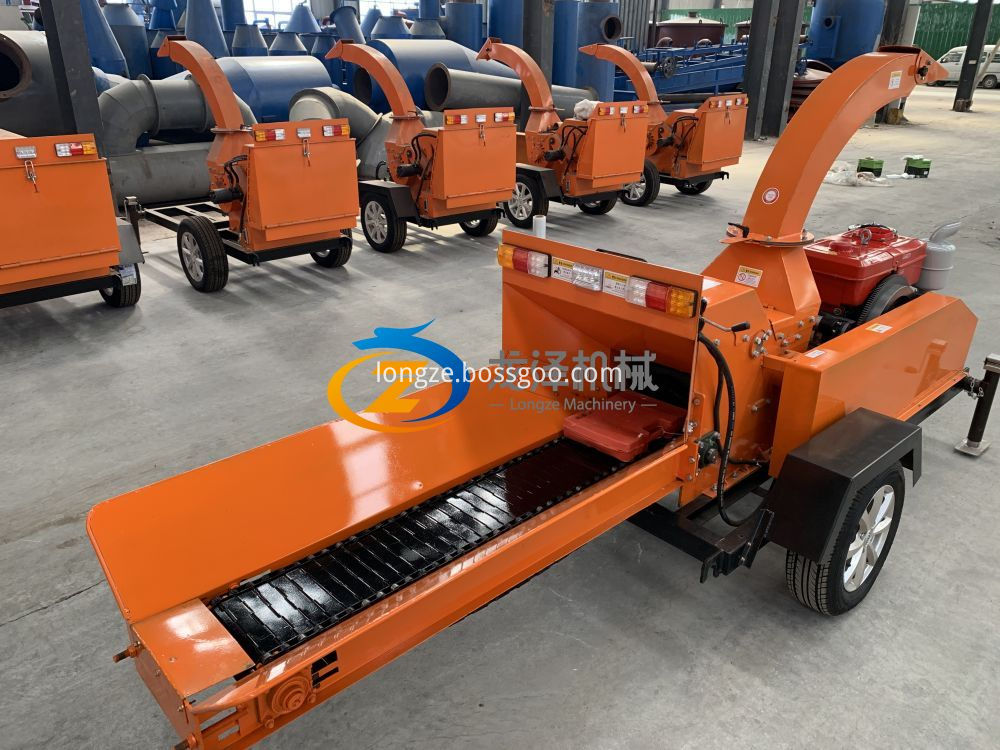

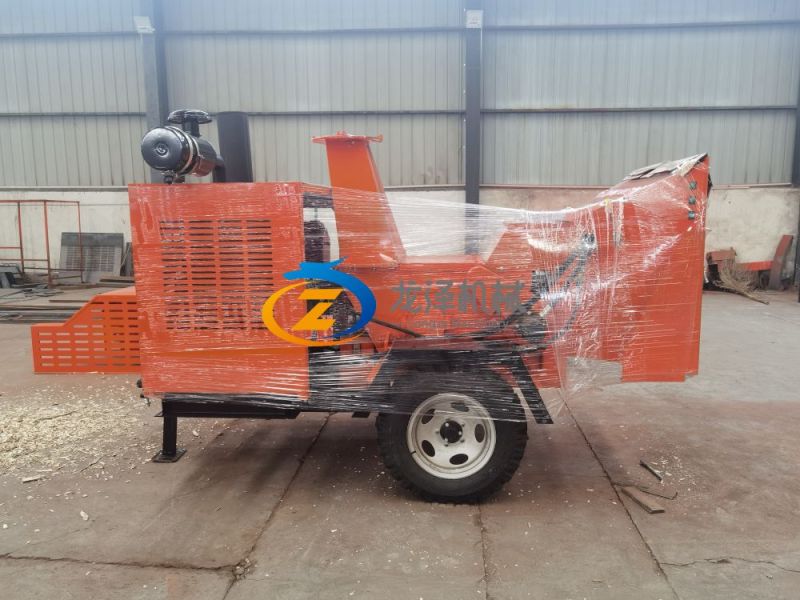

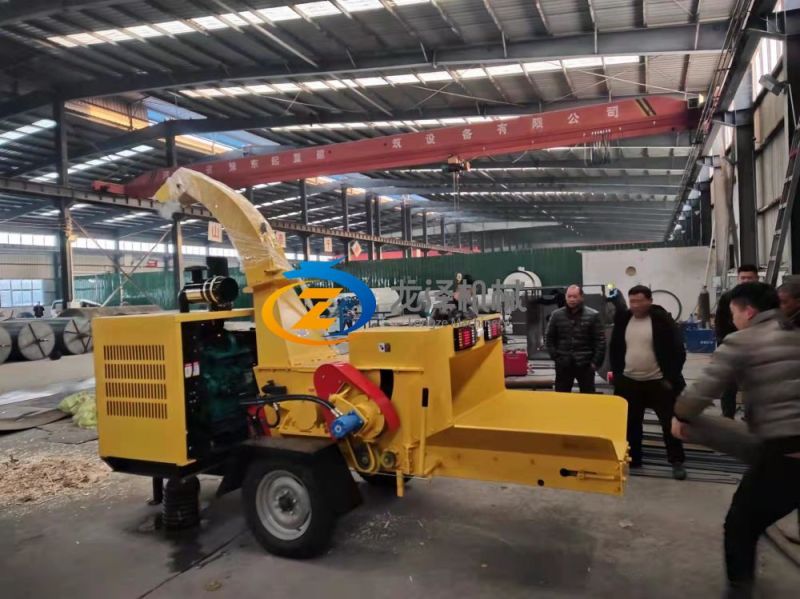

Mobile diesel engine wood chipper introduction:
SHANDONG LONGZE MECHANICAL EQUIPMENT CO.,LTD Mobile diesel engine wood chipper is suitable for fruit, forest, tea factory, nursery, garden residues, branches, grape branches, cotton branches, building branches, waste, straw, because easy to use, can be applicable to the park, campus, enterprise units, urban areas of branches, leaves, bark crushing.Can be used for edible fungus base material, safe and reliable, practical, high crushing efficiency.
Technical Parameter
| unit type | Type 6130 tree branch grinder |
| Diesel engine power type | |
| capacity | 1-3T/h |
| outline dimension | L2300*W1300*H1800mm |
| With power | 25 / 32 / 55 HP Diesel Engine |
| starting mode | Electric start |
| Host speed | 2900r/min |
| Feed pressure roller diameter | 280mm |
| Feed pressure roller power | fluid motor |
| Knife roller diameter | 300mm |
| Number of blades | Moving knife, 3 pieces, still knife, 1 piece |
| Blade length | 300mm |
| Battery specifications | 12V 105aH |
| Generator power | 800W |
| Diesel tank volume | 20L |
| Hydraulic tank volume | 25L |
| Feed gear | Enter-reverse-stop three-gear manual control |
| Feed mouth size | 700*500mm |
| Feed throat size | 300*250mm |
| Hub size | A 13-inch aluminum alloy wheel hub |
| Tire size | 165/70r13 |
| Accelerator adjustment mode | Turn off the throttle with an integrated operating handle |
| The direction of the outlet | The 360 ° quick adjustment device and outlet mouth height adjustment |
| Other configurations | Tail lights, feed lighting, foldable hand shake jack, traction height adjustable,with motor cover plate and chain conveyor |
