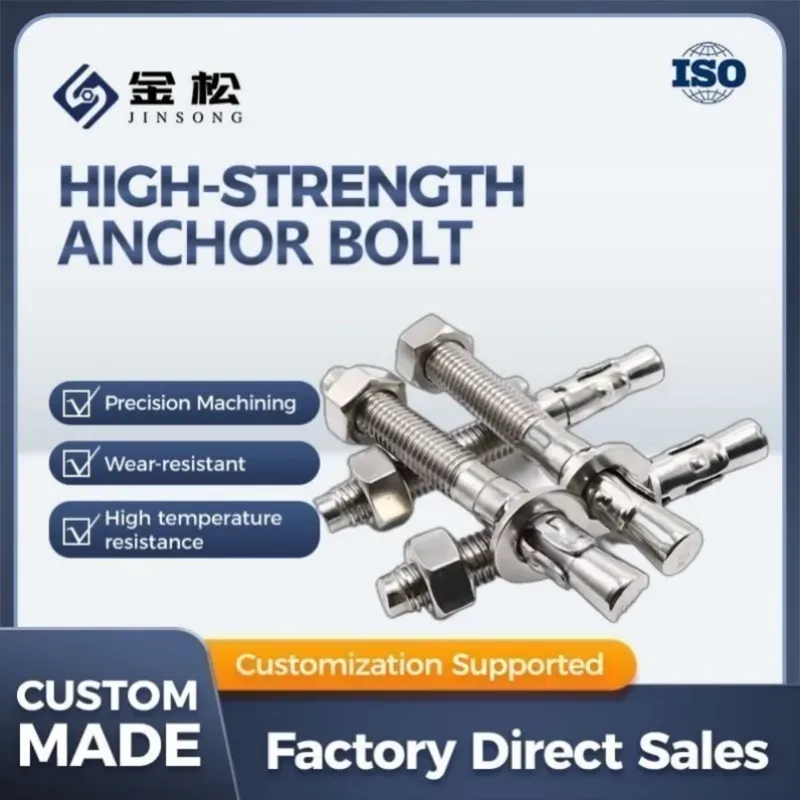

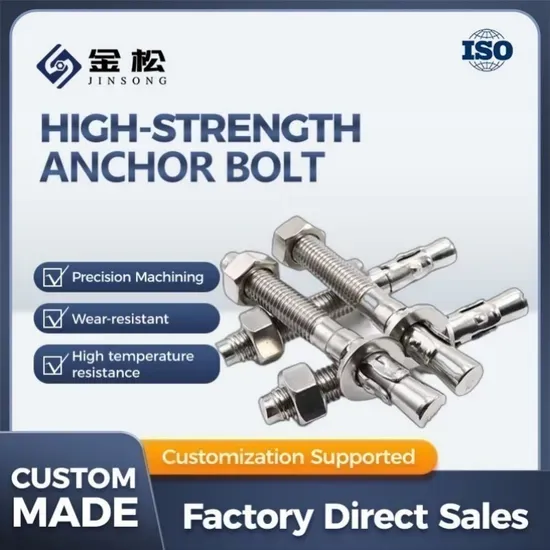

High-Tensile Stainless Steel Wedge Expansion Anchor Bolts for Concrete Foundations
Description
Overview
FAQ
Overview
Basic Info.
| Model NO. | Anchor Bolt |
|---|---|
| Connection | Common Bolt |
| Head Style | Round |
| Standard | DIN, ANSI, GB, JIS, BSW, GOST |
| Grade | 10.9 |
| Application | Machinery, Building |
| Finish | Blue-White Zinc Plated |
| Model No. | Wedge Anchor Bolt |
| Product Name | Expansion Wedge Anchor Bolt |

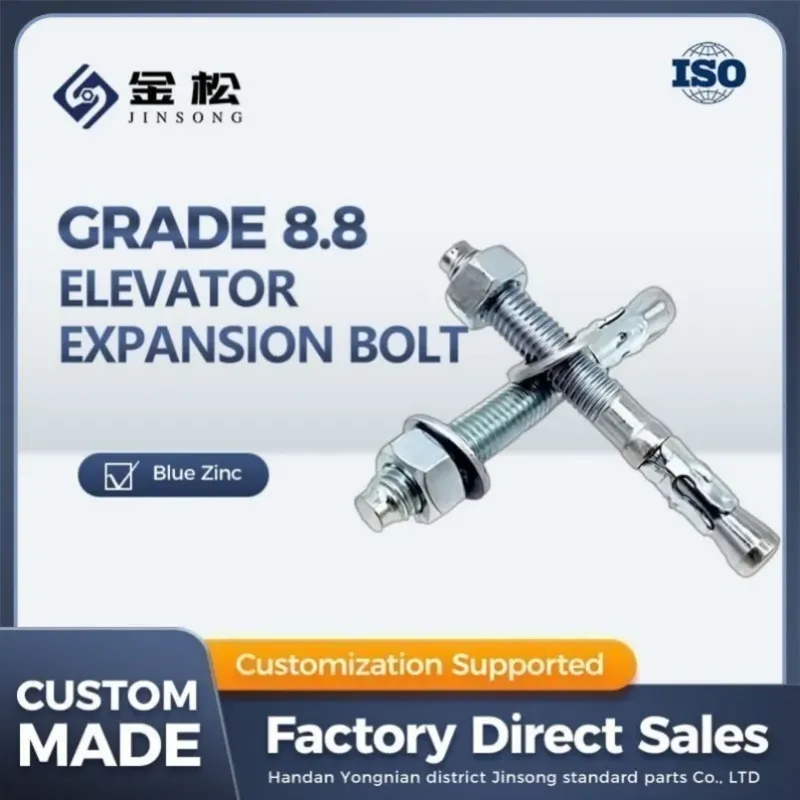

| Special Use | Elevator Fixing |
| Components | Expansion Sleeve, Flat Washer, Spring Washer, Nut |
| Advantage | Long Service Life, Easy to Use and Maintenance |
| Transport Package | Bags/Cartons |
| Specification | Eye Bolts/Bolts and Nuts//Hexagon Bolts/Flange Bol |
| Trademark | Jinsong |
| Origin | China |
| Production Capacity | 30, 000, 000 Pieces Per Year |
Product Description

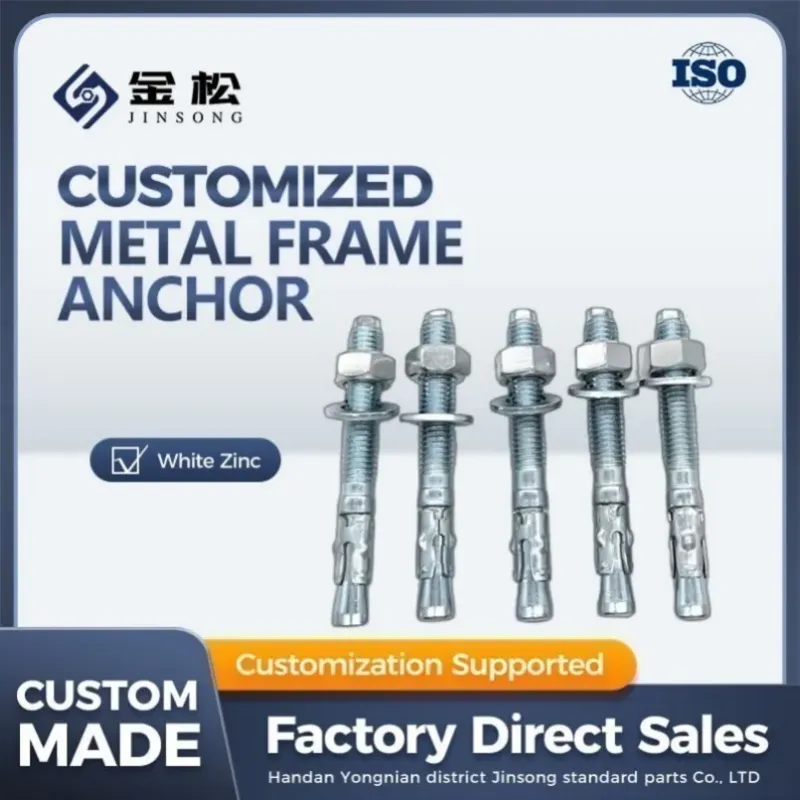

Stainless Steel Metal Frame Galvanized Elevator Expansion Bolt Carbon Steel Wedge Anchor Bolts are a common type of fastener, they are usually made of high-strength aluminum alloy, which has high tensile strength and corrosion resistance. Nuts are used to secure bolts to brackets and are usually also made of aluminum alloy for high strength and durability.
Size
| Thread Size | Anchor Length (mm) | Diameter φ(mm) | Min Embedment (mm) | Max Fixture Thickness (mm) | Pull Out Load In Concrete (kgf)/(KN) | |
|---|---|---|---|---|---|---|
| M8*80 | M8-P1.25 | 80 | 8 | 55 | 40 | 950 |
| M8*85 | M8-P1.25 | 85 | 8 | 55 | 45 | 950 |
| M8*90 | M8-P1.25 | 90 | 8 | 55 | 50 | 950 |
| M10*100 | M10-P1.5 | 100 | 10 | 70 | 1320 | |
| M10*105 | M10-P1.5 | 105 | 10 | 70 | 40 | 1320 |
| M10*110 | M10-P1.5 | 110 | 10 | 70 | 50 | 1320 |
| M12*90 | M12-P1.75 | 90 | 12 | 80 | 20 | 1980 |
| M12*100 | M12-P1.75 | 100 | 12 | 80 | 30 | 1980 |
| M12*110 | M12-P1.75 | 110 | 12 | 80 | 40 | 1980 |
| M12*120 | M12-P1.75 | 120 | 12 | 80 | 50 | 1980 |
| M16*110 | M16-P2.0 | 110 | 16 | 100 | 20 | 2750 |
| M16*140 | M16-P2.0 | 140 | 16 | 110 | 50 | 2750 |
| M16*150 | M16-P2.0 | 150 | 16 | 110 | 60 | 2750 |
| M20*160 | M20-P2.5 | 160 | 20 | 150 | 40 | 4660 |
| M20*200 | M20-P2.5 | 200 | 20 | 190 | 80 | 4660 |
FAQ
Q1. How to ensure that every process's quality?
A1: Every process will be checked by our quality inspection department which insures every product's quality. In the production of products, we will personally go to the factory to check the quality of products.
Q2. How long is your delivery time?
A2: Our delivery time is generally 30 to 45 days. Or according to the quantity.
Q3. What is your payment method?
A3: 30% value of T/T in advance and other 70% balance on B/L copy.
For small order less than 1000USD, would suggest you pay 100% in advance to reduce the bank charges.
Q4. Can you provide a sample?
A4: Sure, Our sample is provided free of charge, but not including courier fees.
