180kg Palletizing Robot with 3.2m Arm Span
Description
Overview
Basic Info
- Model NO. KW1180M-3200
- Degrees of Freedom 4-axis
- Drive Mode Electric
- Payload Capacity 180kg
- Payload 180 Kg
- Main Uses Handling, Palletizing, Loading and Unloading
- Installation Method Ground
- Condition New
- Certification ISO, CE
- After-Sales Service Yes
- Transport Package Wooden Case
- Specification 180 kg
- Trademark tengyang/kowell
- Origin China
- HS Code 8428909090
- Production Capacity 2000 Sets/Month
Packaging & Delivery
- Package Size 180.00cm * 180.00cm * 200.00cm
- Package Gross Weight 1170.000kg
Product Description
180kg load 3.2m arm span palletizing robot, efficient stacking expert for boxed materials. Designed for stacking cartons and various boxed materials, with a large load of 180kg, it can easily grab a whole layer of cartons or heavier boxed goods. The 3.2m long arm span has a wide working range and can cover different areas such as production lines and warehouses, allowing flexible material placement.
The four axes are stable and efficient, and can easily cope with complex environments. ±0.2mm high-precision positioning ensures that materials are neatly and firmly stacked to avoid tipping and collision, and reduce losses.
The body is made of high-quality materials, and key components are specially protected. It has excellent dust, moisture and rust resistance. It can adapt to various complex industrial environments, operate stably, reduce failures, and reduce maintenance costs. The introduction of this palletizing robot can greatly improve stacking efficiency, reduce labor costs, and help enterprises upgrade to intelligence.

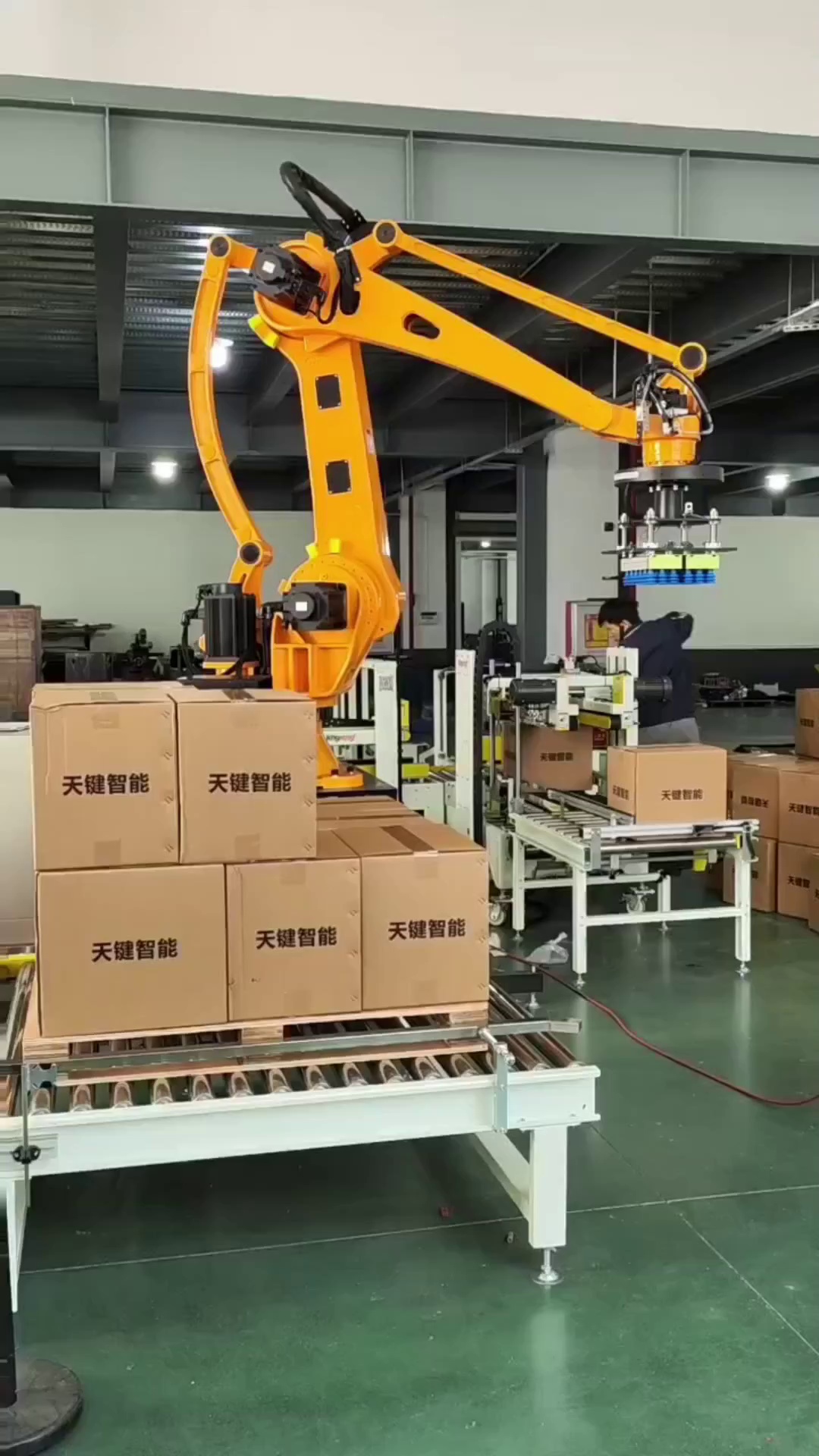

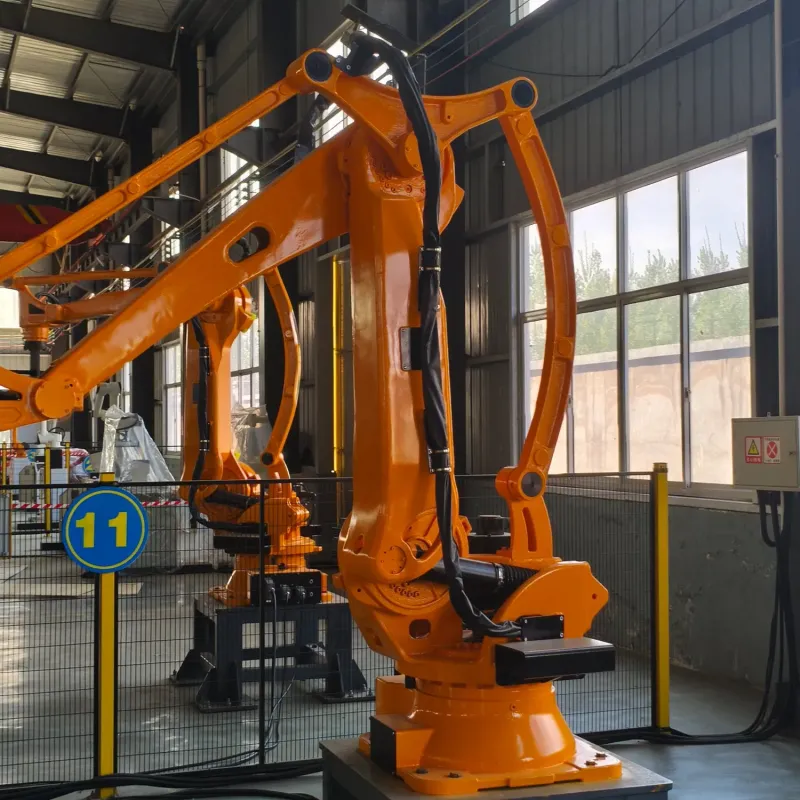

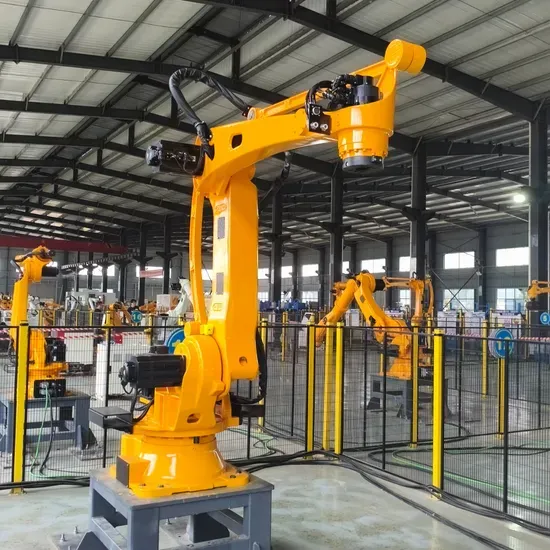

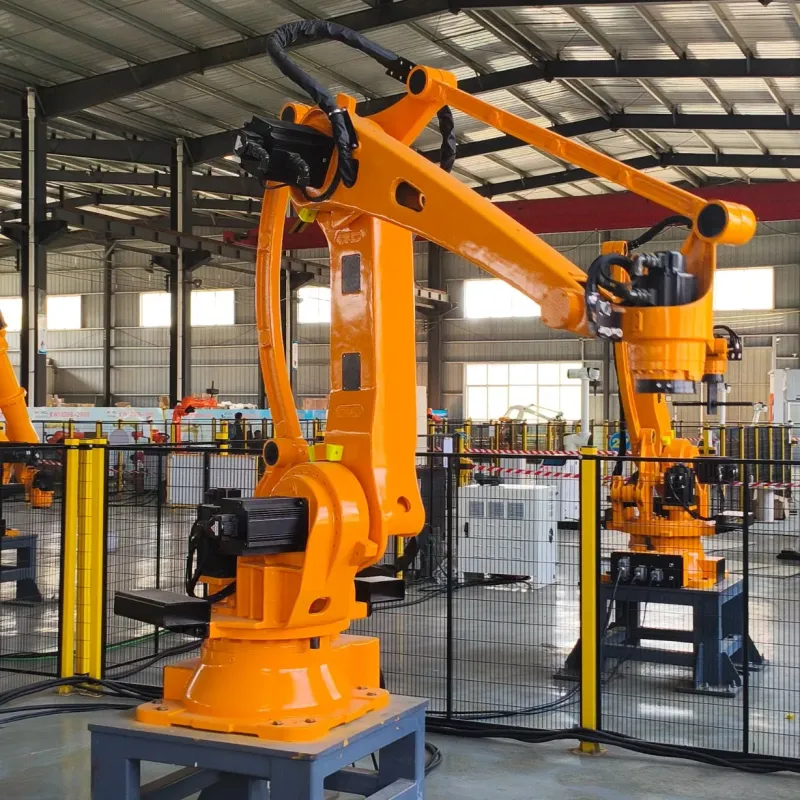

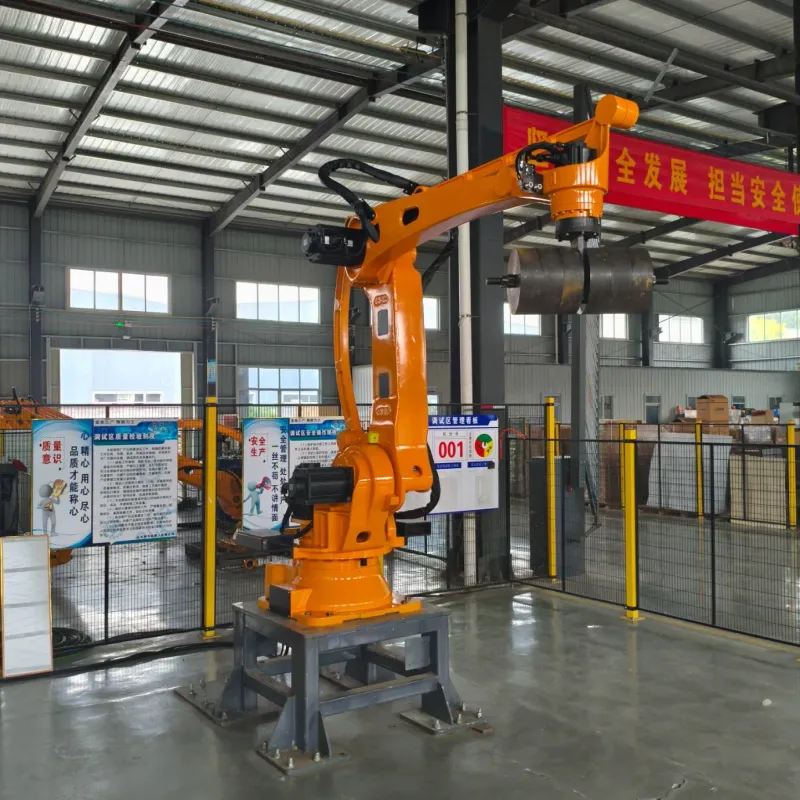

Detailed Photos
Product Parameters
- Product Name Industrial Robot
- Model KW1180M-3200
- Type vertical joint 4 degrees of freedom
- The maximum handling weight 180kg
- The working radius 3200mm
- Body weight 1150kg
- Position repetition accuracy ±0.2mm
- Main uses Handling, palletizing, loading and unloading
- Environmental conditions for use 0-45ºC, 20-80%RH (No condensation phenomenon)
- Protection level Equivalent to IP54
- Installation method Ground
